Features:
– Can use 5V battery or any USB port to power.
– D class amplifier is highly respected today because its 90% high efficiency. A class, B class amplifier efficiency is only about 30%.
– Temperature does not affect the sound quality so no need to add heat sink therefore less space is taken.
– Module has a short-circuit current protection and over-temperature protection.
– Noise canceling circuit was built in, power on / off without pop noise.
– Can provide 3W (left channel) + 3 W (right channel) output power in the 4Ω load and 5V power supply conditions.
Specifications:

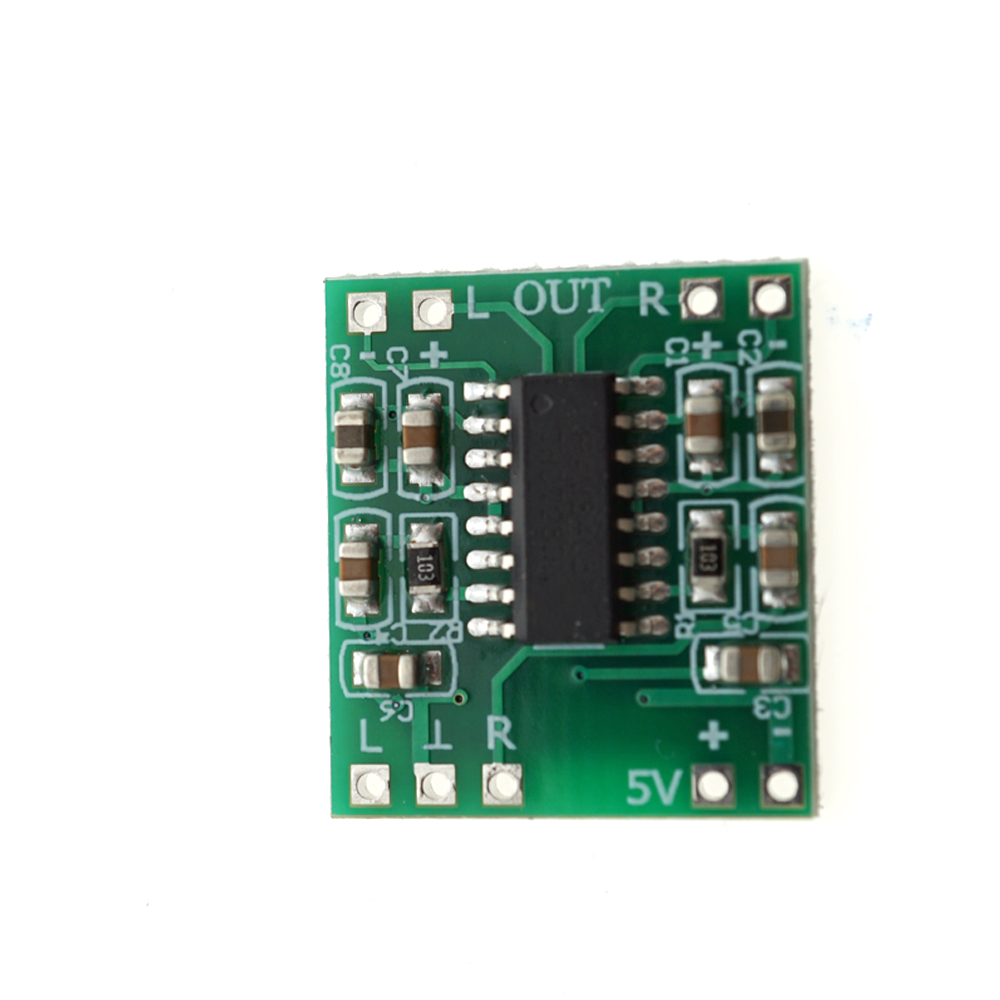

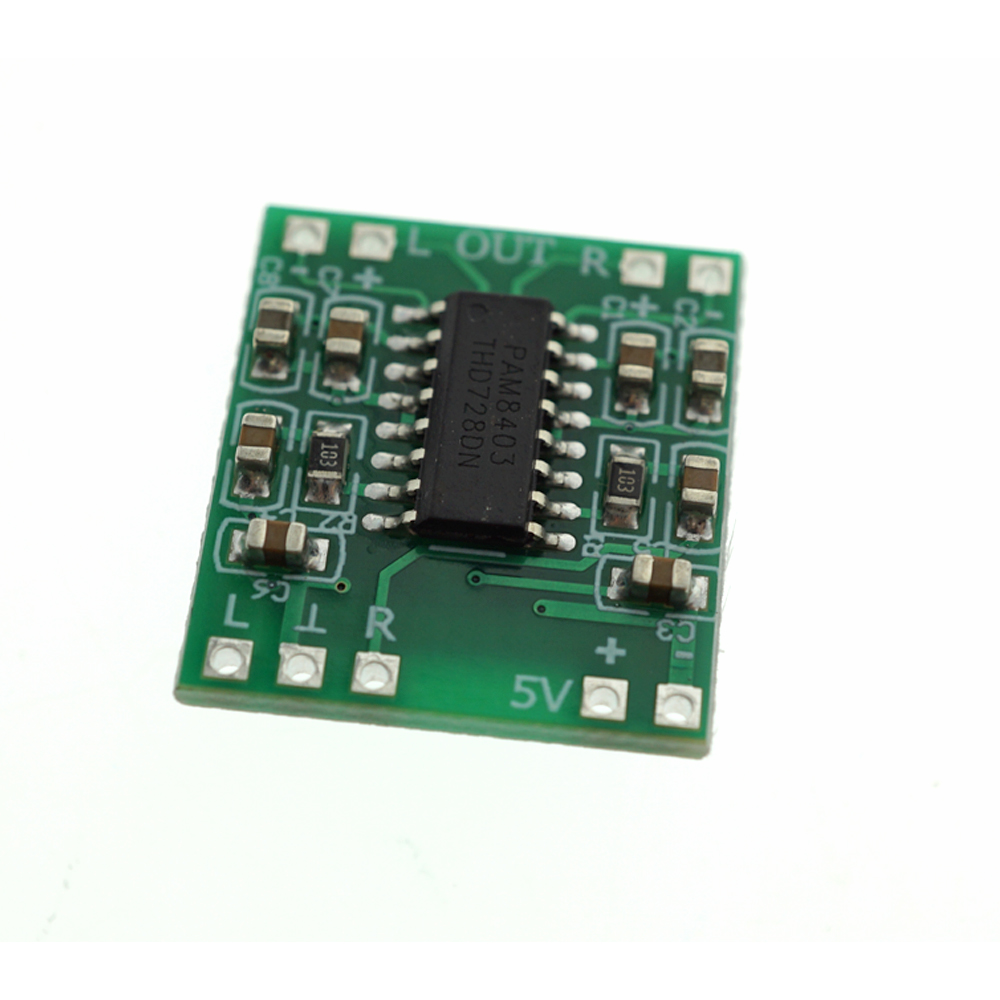

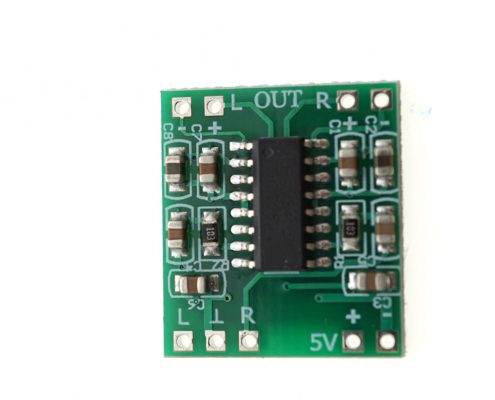

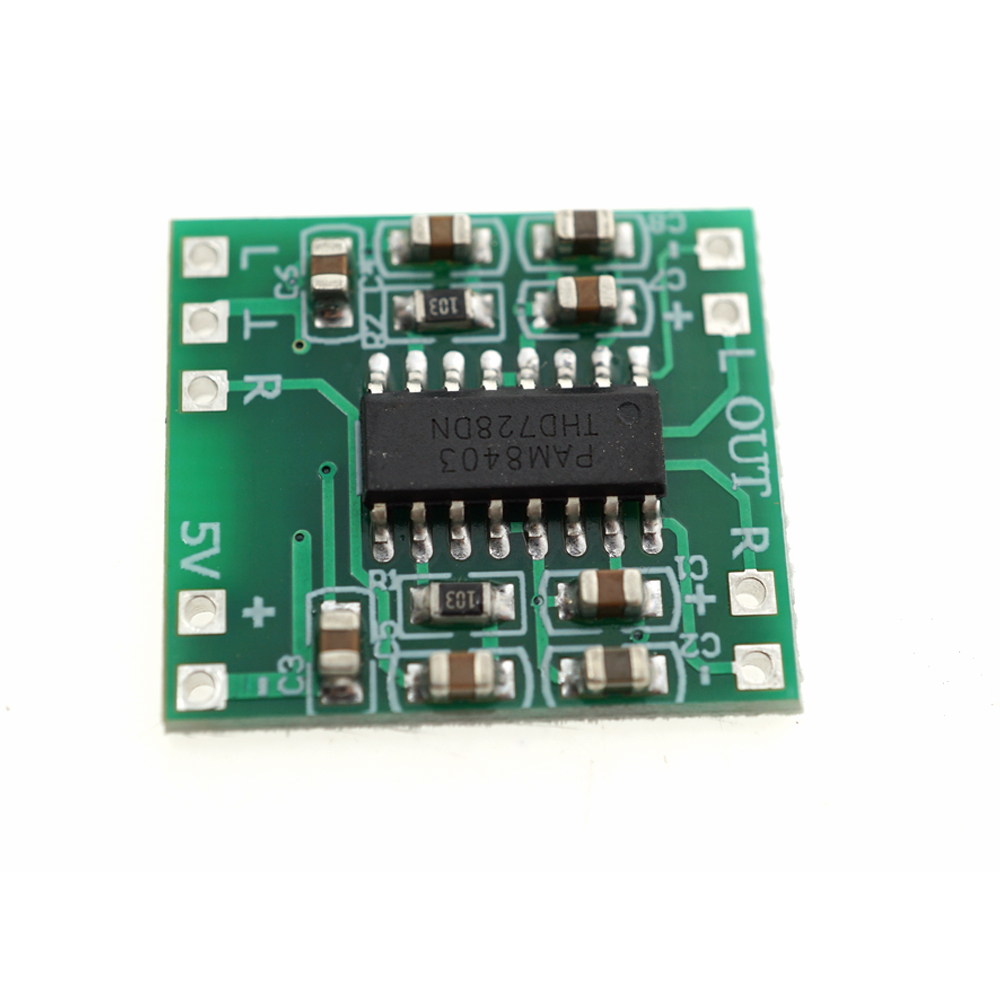

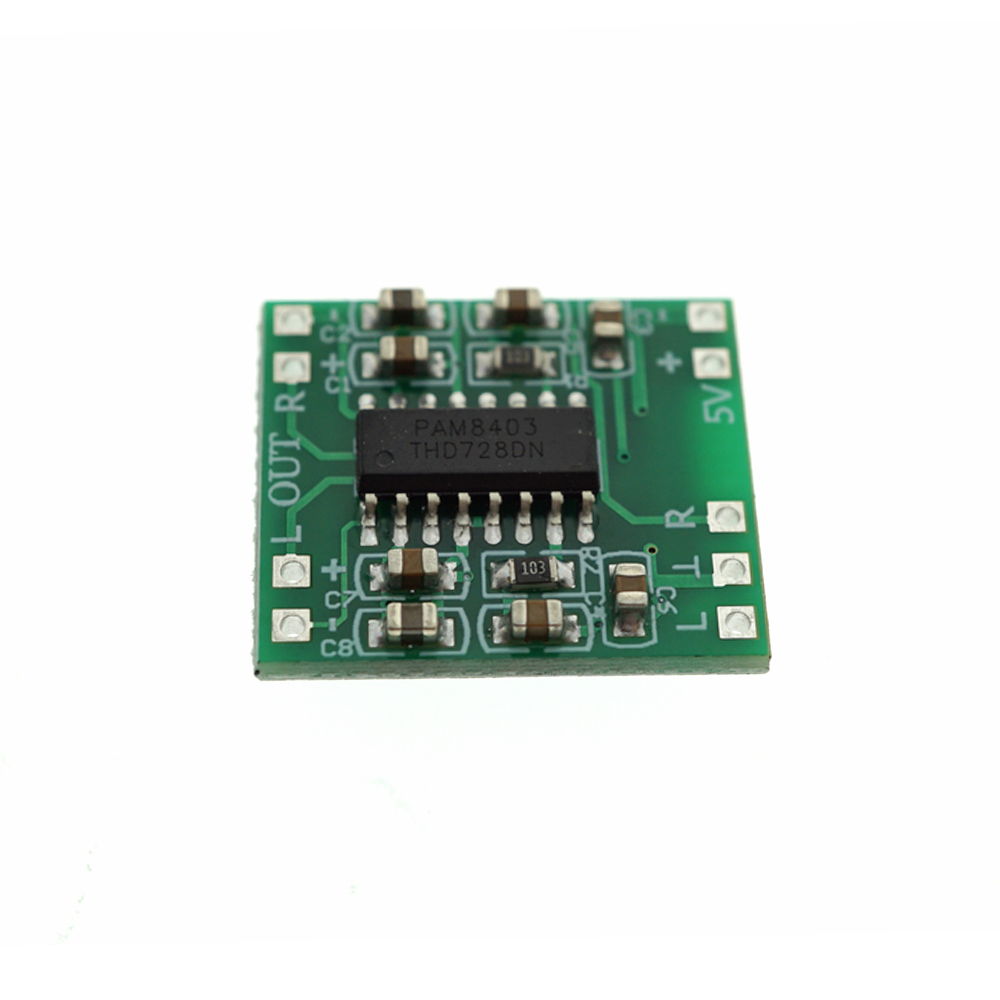

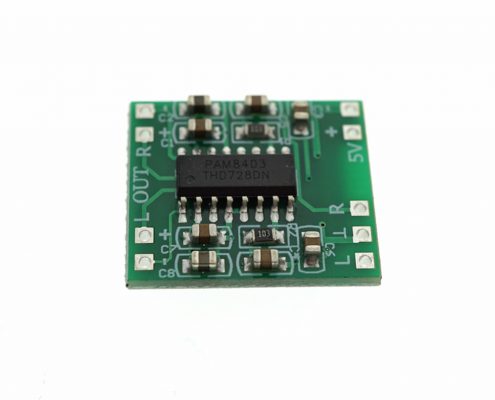

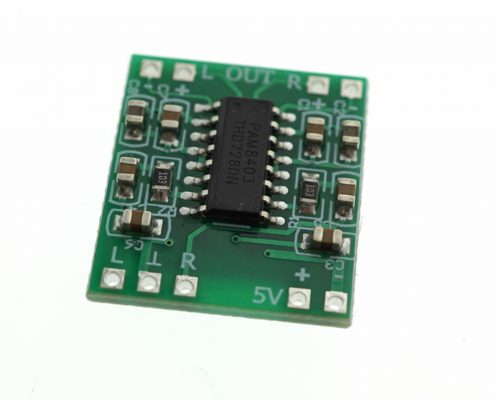

Model: PAM8403

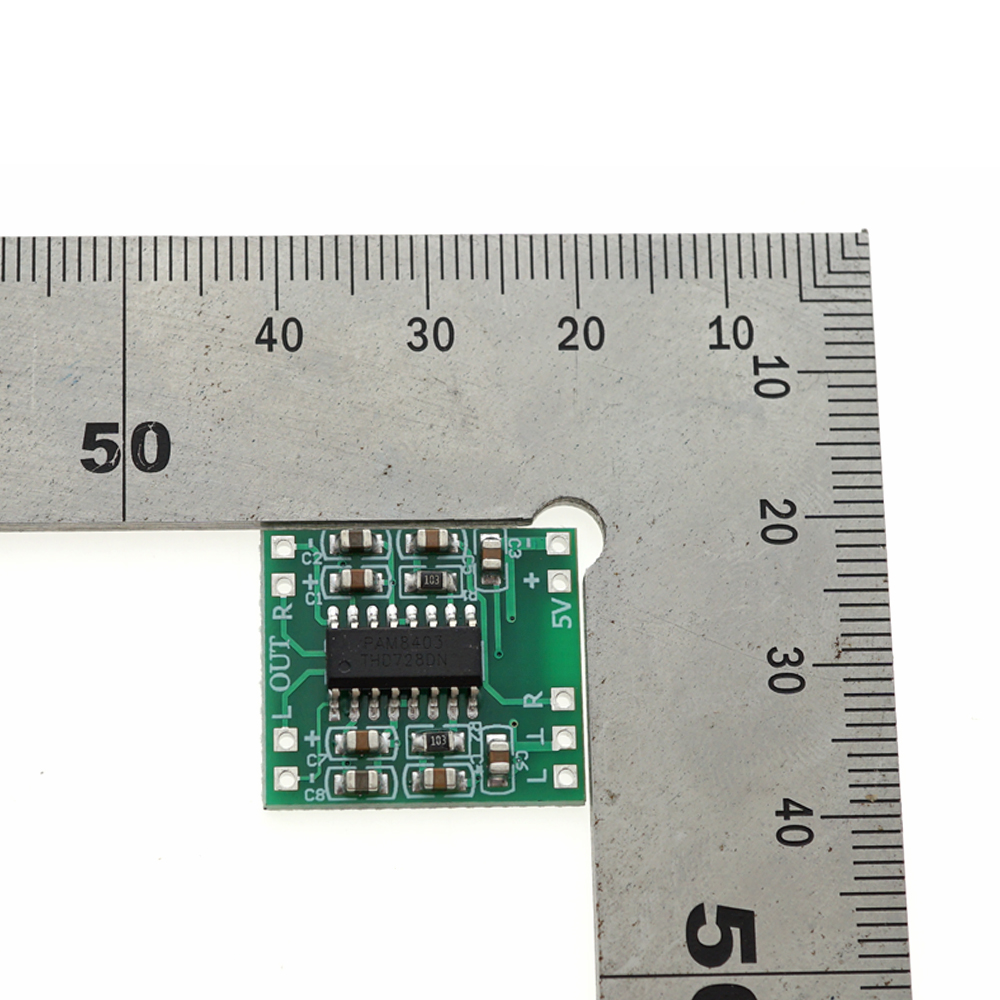

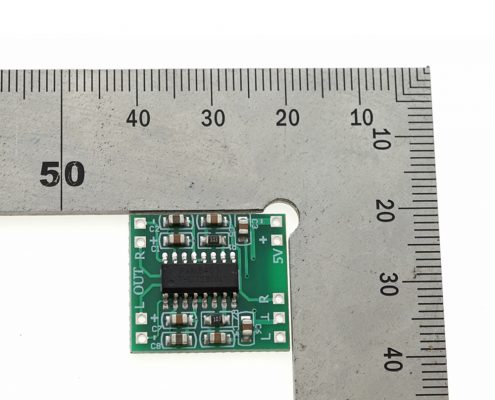

Super Mini Size: 1.85 x 2.15cm
Input voltage: 2.5-5V (can not be more than 5.5V, otherwise it will burn the IC on board)
Output power: 2 channels x 3W
Speaker Choice: It can work with 4 ohm and 8 ohm speakers, recommend 4 ohms.
Net weight:1g
