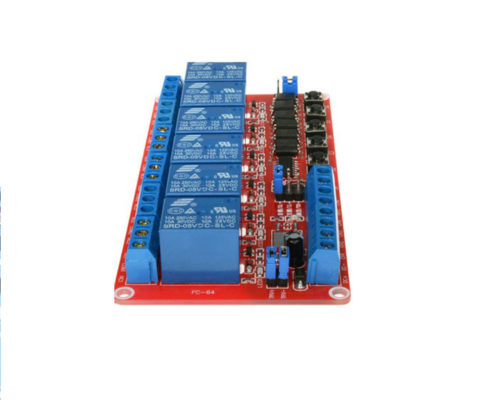

Description:
Each channel has a signal can know which way the switch at work
Working methods are self-locking / interlocking / trigger (jogging) three options.
Self-locking is click, relay, and then click, the relay is closed. 6-way self-locking independent of each other,
It can also trigger an external switch (CH Terminal Blocks), with high or low trigger (optional),
It can simultaneously control 6-way, such as lighting control, etc.
Trigger (jogging) is pressed relay, release the button to close the relay. You can also add a trigger switch
(CH Terminal Blocks), with high or low trigger (optional). In applications such as electric doors, electric door locks,
And SCM docking requires only a high or low pulse circuit circuit.
Interlocking fan design is a typical application, when S1 S1 pressed the relay; when pressed S1, S2 off, S2 the relay.
2-way interlock can only have turned all the way, can also trigger an external switch (CH Terminal Blocks),
With high or low trigger (optional). Practical applications such as fans gear switch circuit.
Electrical parameters:
Trigger voltage: low level 0-2.5V, high default 3.5-5V (case 12V voltage trigger, you need a series resistance of 5.1-6.8K
In order to trigger; 24V voltage trigger, we need a series of 15-22K resistance in order to trigger, otherwise it will burn the chip)
Load: 250V 10A (AC) or 30V 10A (DC)
Trigger terminal:
1.CH1-CH6: 1-6 corresponds to trigger relay control terminal, support high or low level Trigger;
2.TRV +: positive power supply external trigger, such as to trigger an external power supply jumper between RTV + and VCC to unplug
3.TRV-: external trigger negative power supply, such as to trigger an external power supply RTV- jumper to GND to unplug
4.6 micro switch: relay test button corresponding to 1-6, when the low level trigger effective;
5. High / Low trigger selection, when COM and L-phase, low trigger effective, COM and H terminal phase, the
High trigger effective, refer to the diagram
Relay outputs:
1.NO1-NO6: normally open relay interfaces, relay before hanging, pull back with COM
2.COM1-COM6: Relay Common Interface
3.NC1-NC6: normally closed relay interfaces, relay before with COM, pull vacant post
