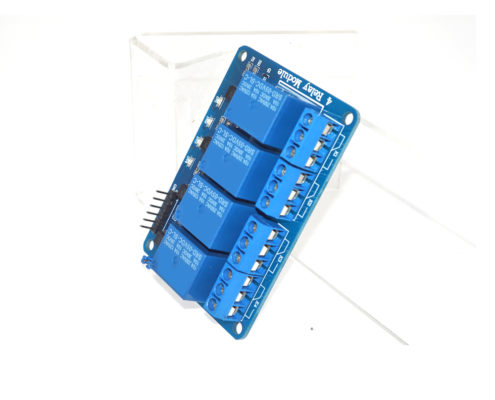

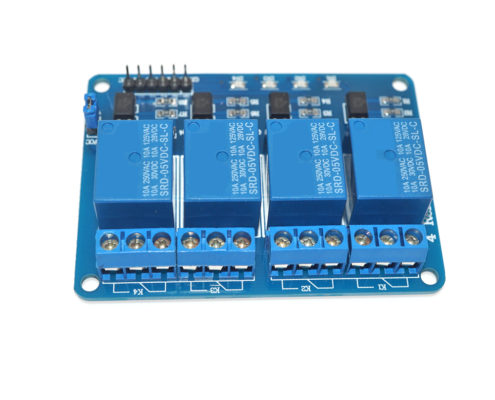

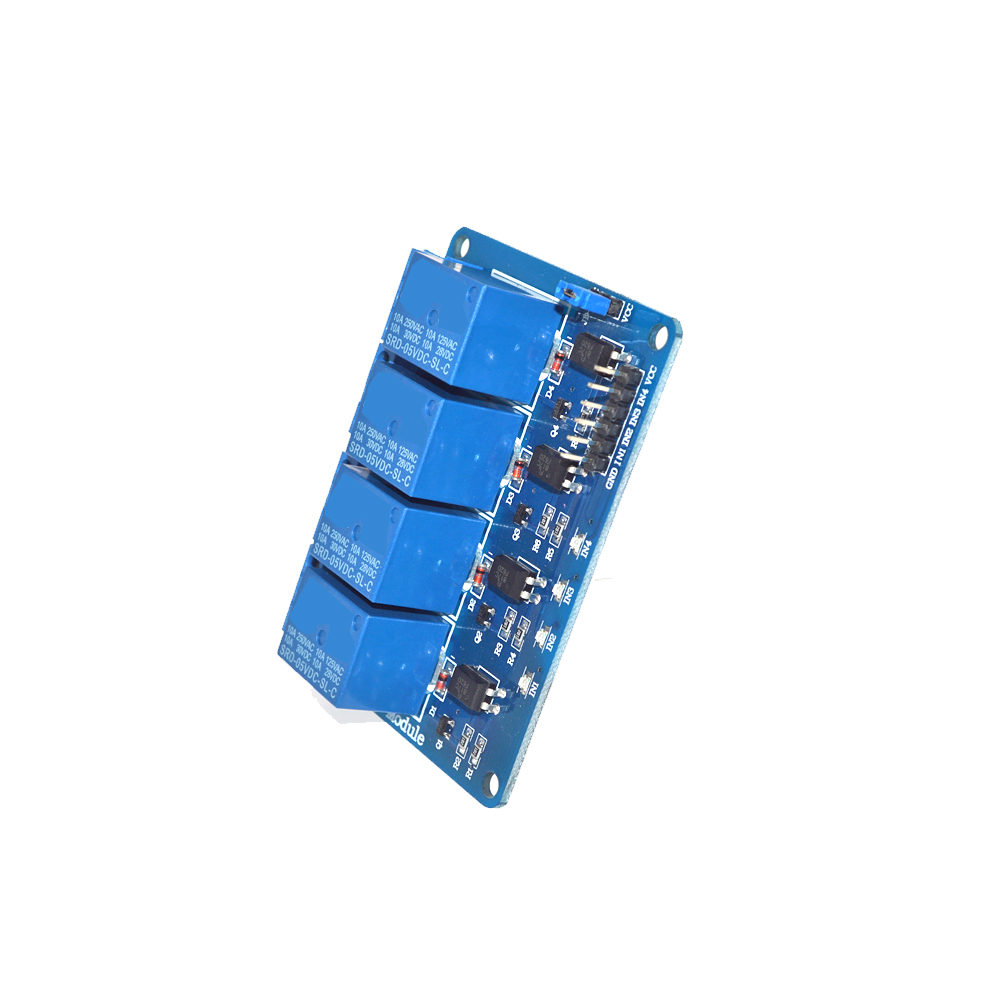

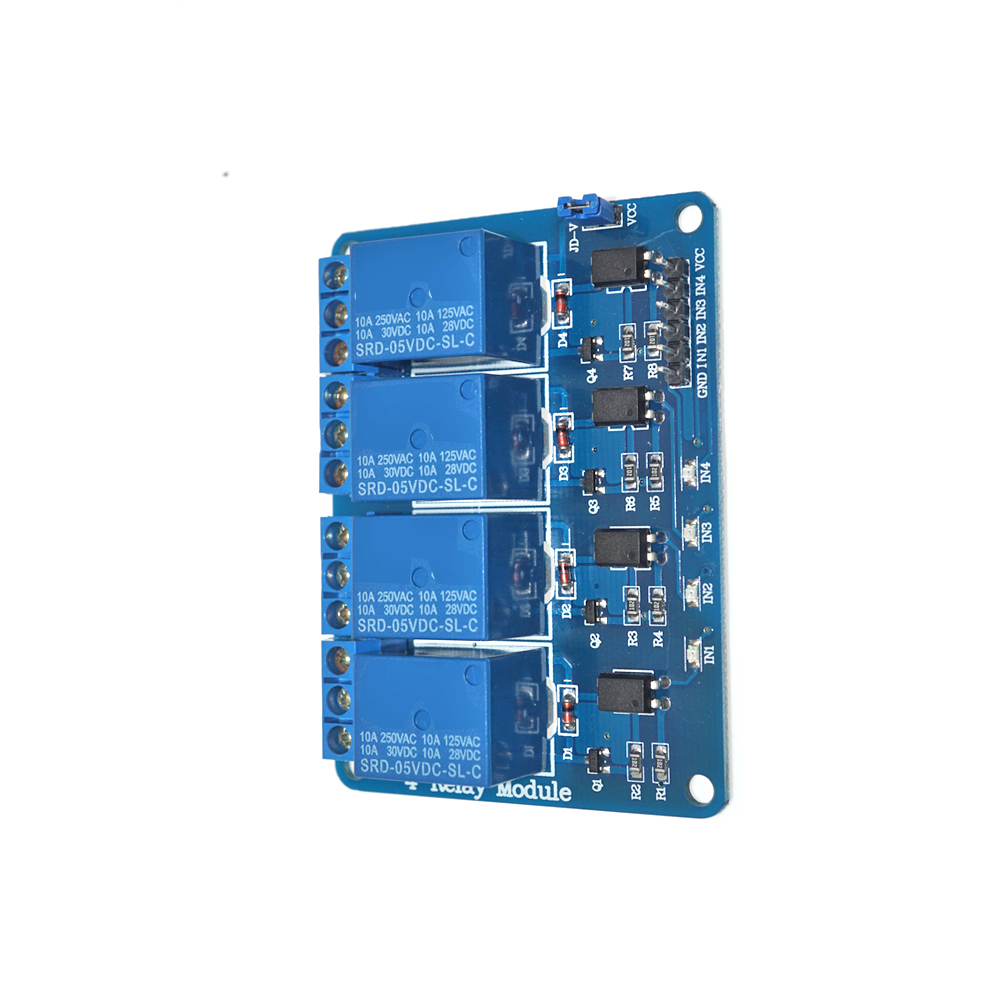

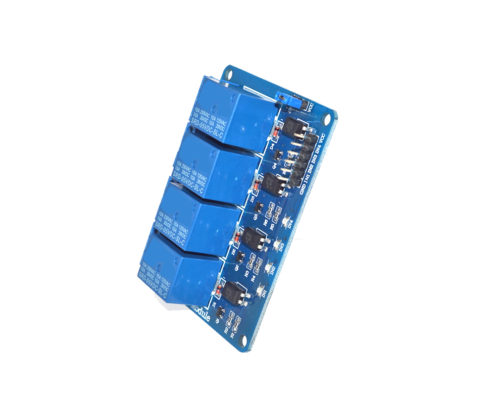

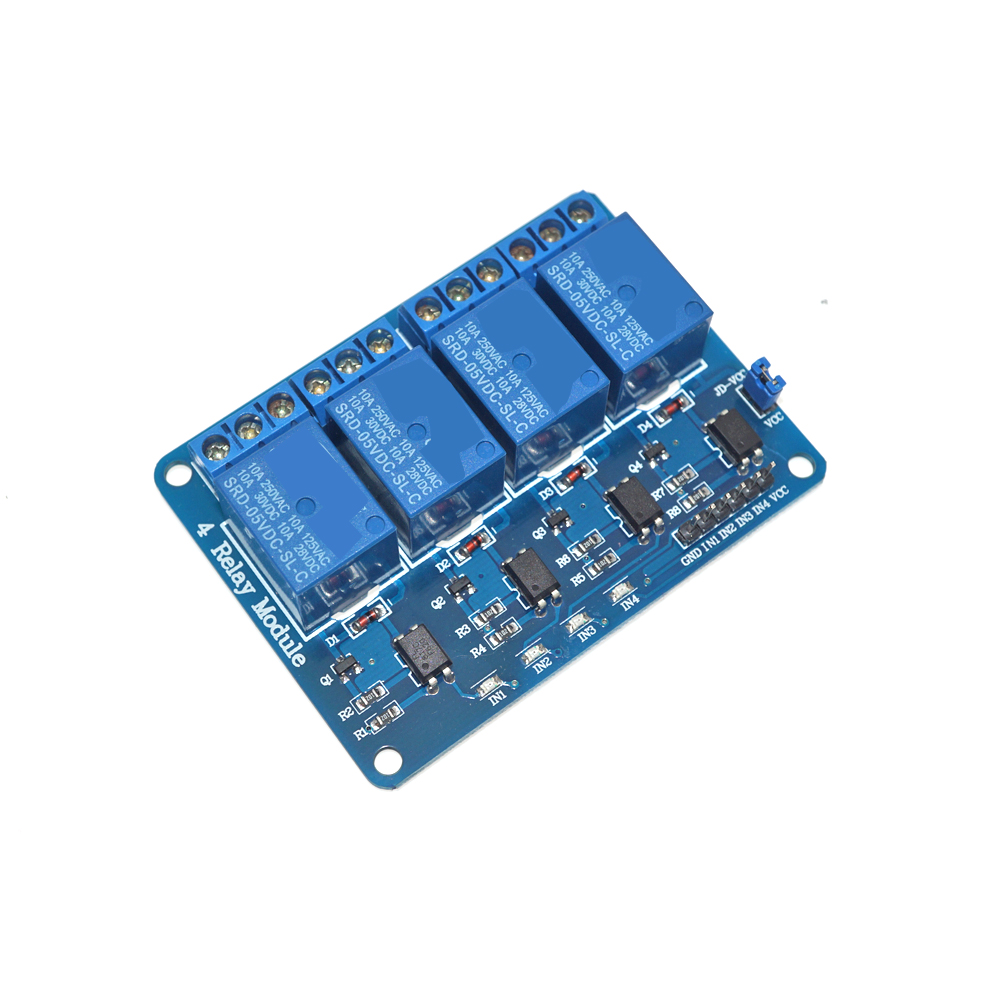

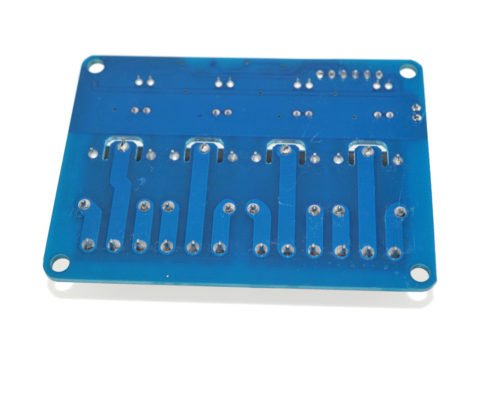

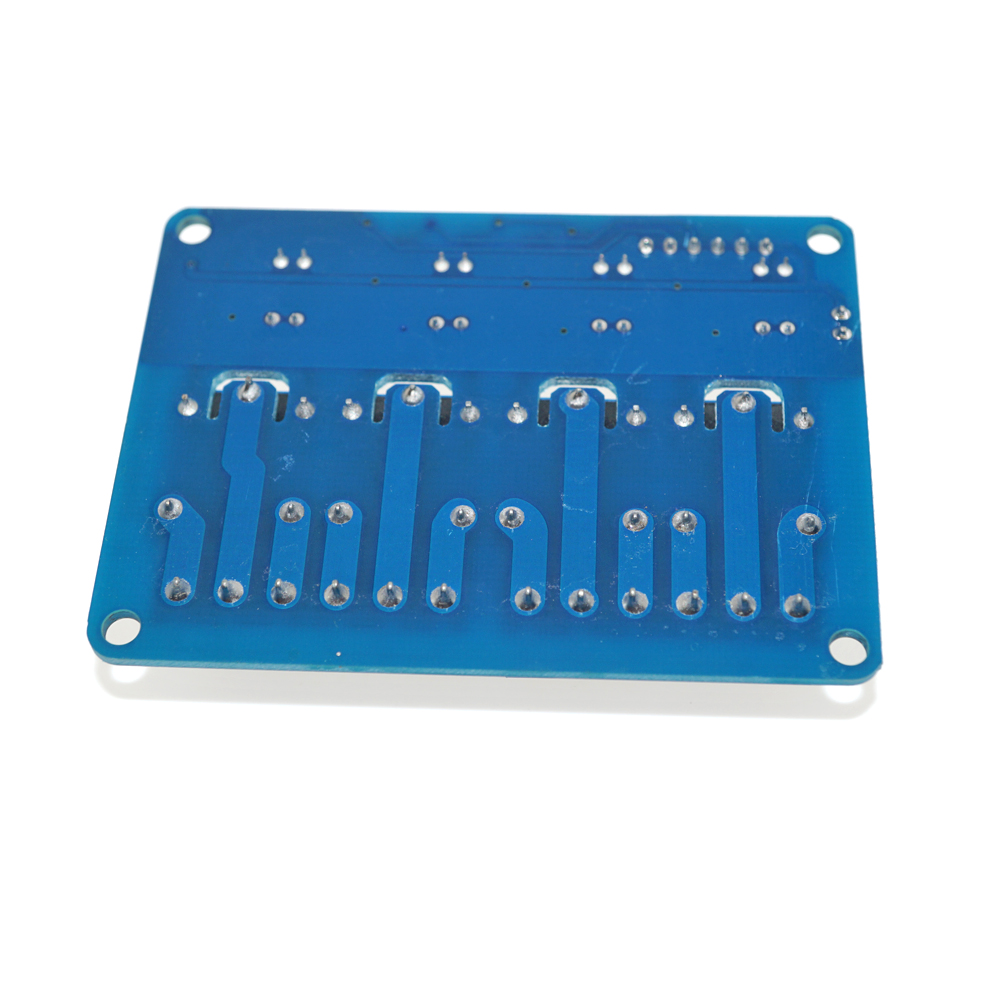

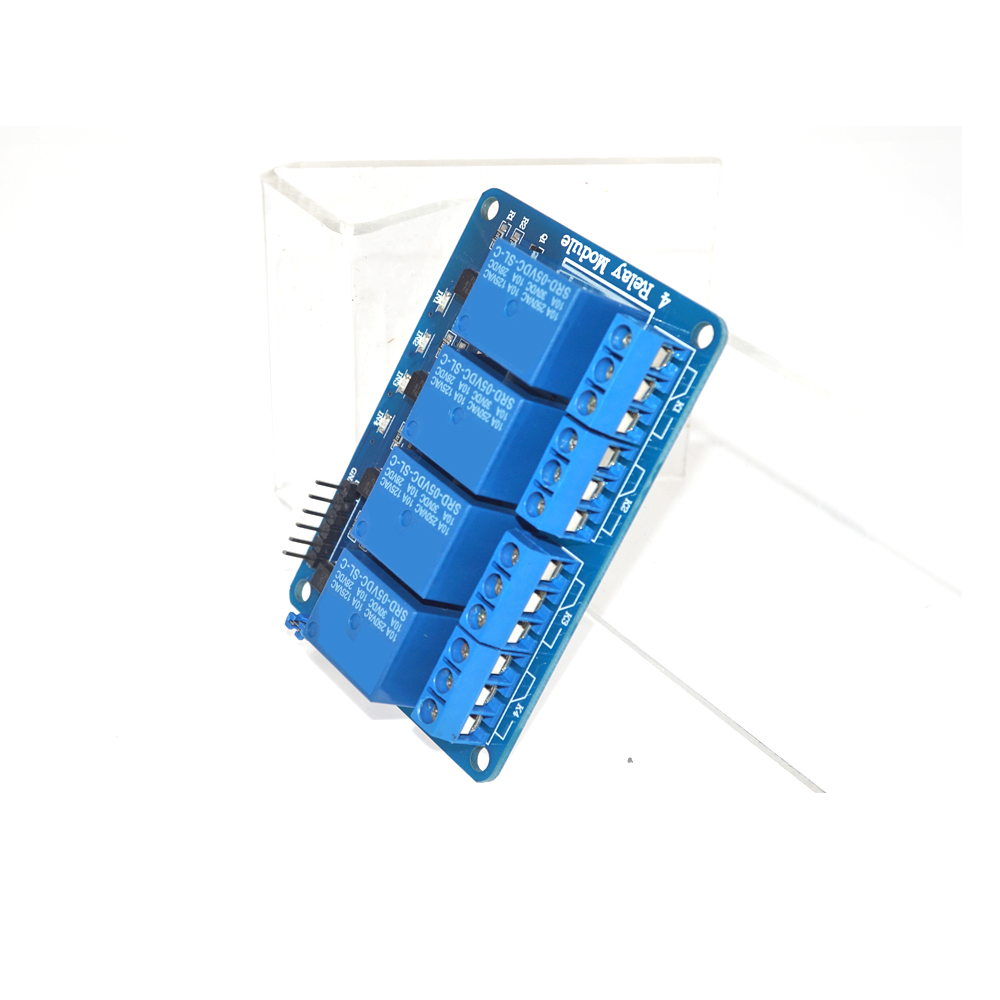

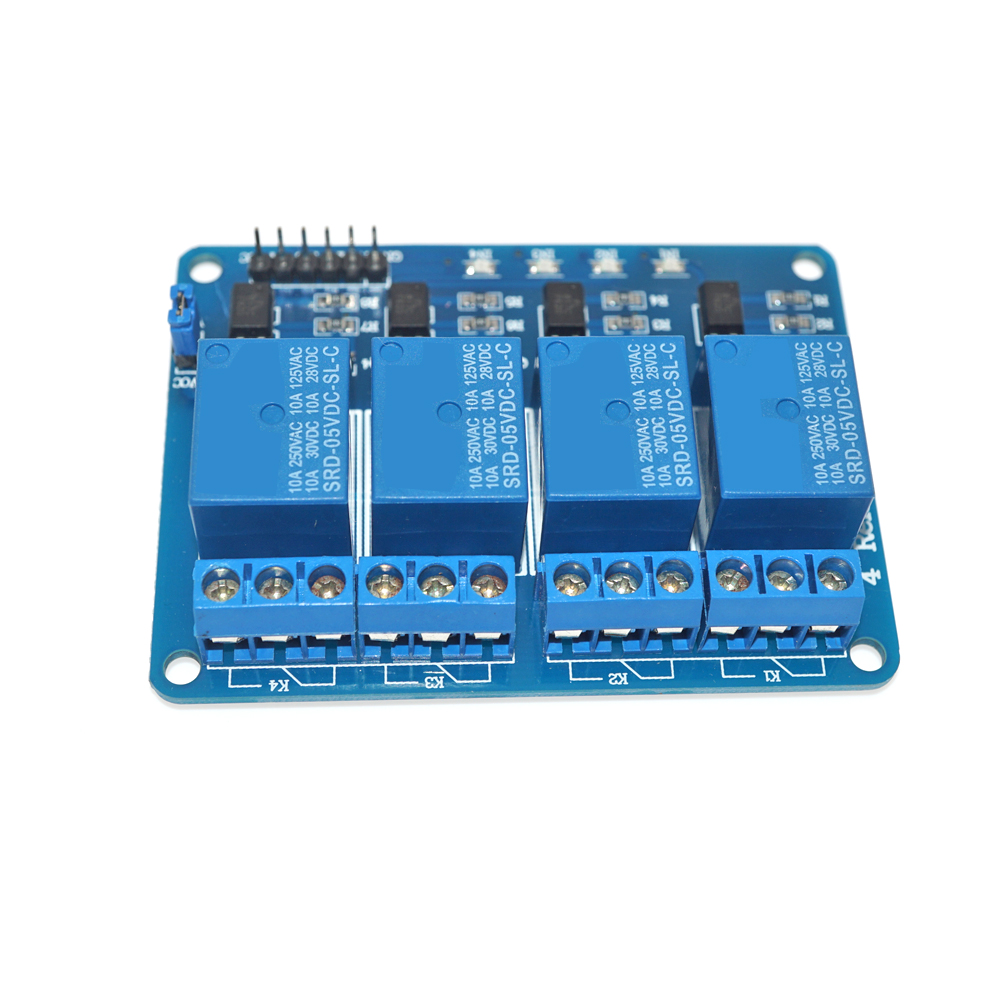

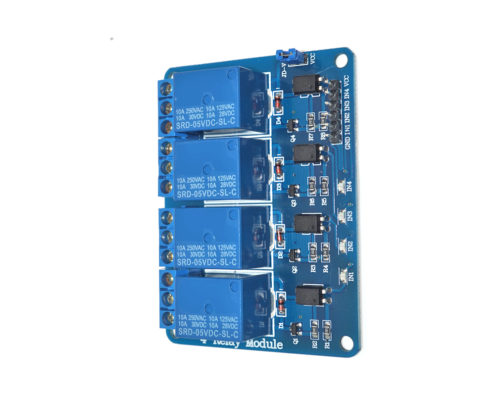

5V / 9V/ 12V/ 24V 4 Channel Relay Module with Optocoupler Low Lever Trigger–OKY3013-2 – OKYSTAR

Product Model: OKY3013-2

5V / 9V/ 12V/ 24V 4 Channel Relay Module with Optocoupler Low Lever Trigger

Product Description

Relay contact capacity 250V10A. Relay output normally open, normally closed;
Active low. 5V relay signal input voltage range :0-5V;
VCC system power. JD-VCC relay power. Default 5V relay.
JD- VCC and VCC shorted.

Call on Whatsapp

Share This Product

Product Details

Product Description

Pin Definition
VCC Power interface
Relay Voltage 5V/12V for optional
Suitable for SCM development, home appliance control
TTL Control Signal 5V-12V
GND Ground
COM Control circuit groud,conect to GND
Channel 4 channel
Pack Size 10cm x 8cm x 6cm
Weight 61g
