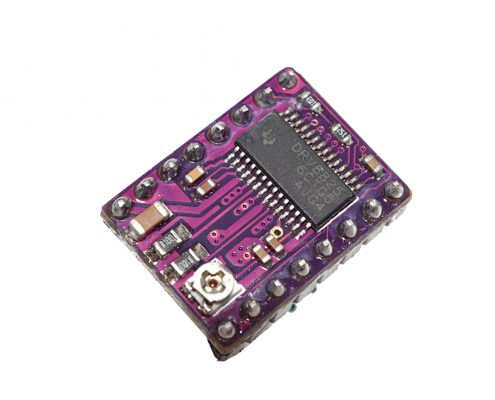

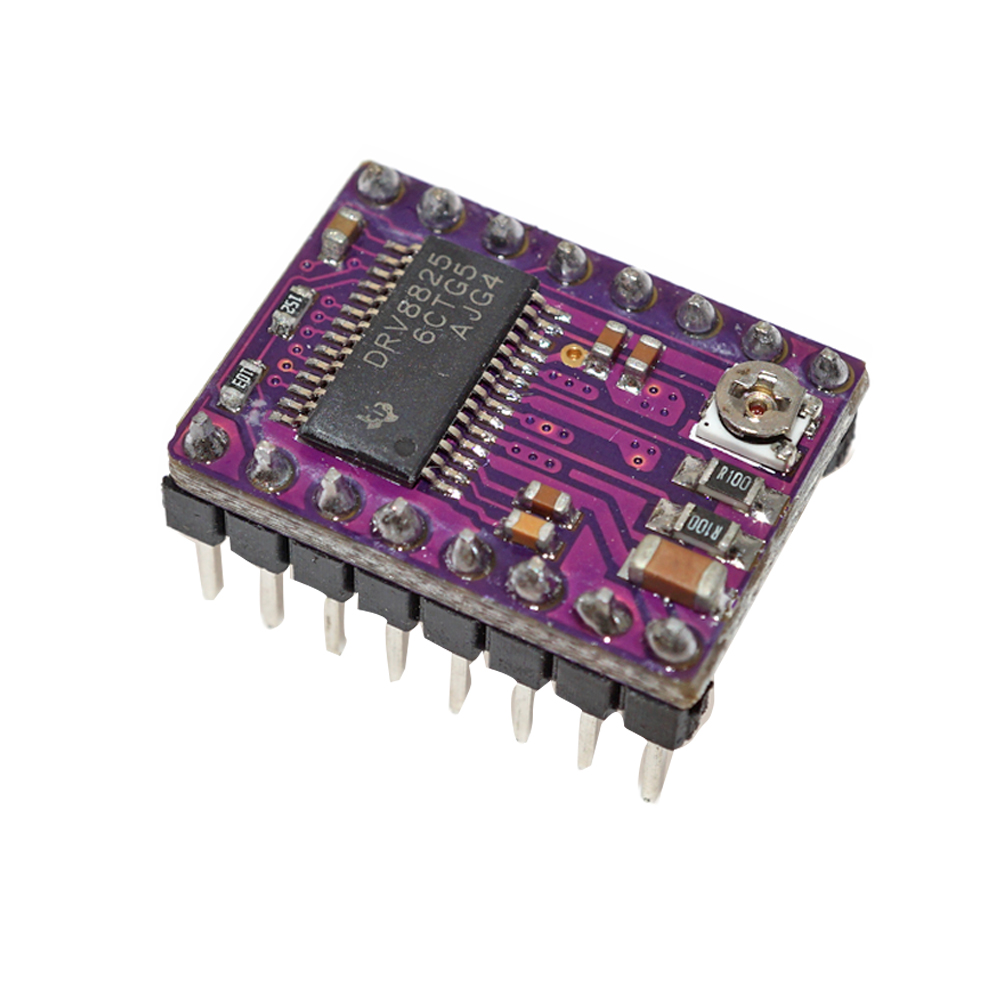

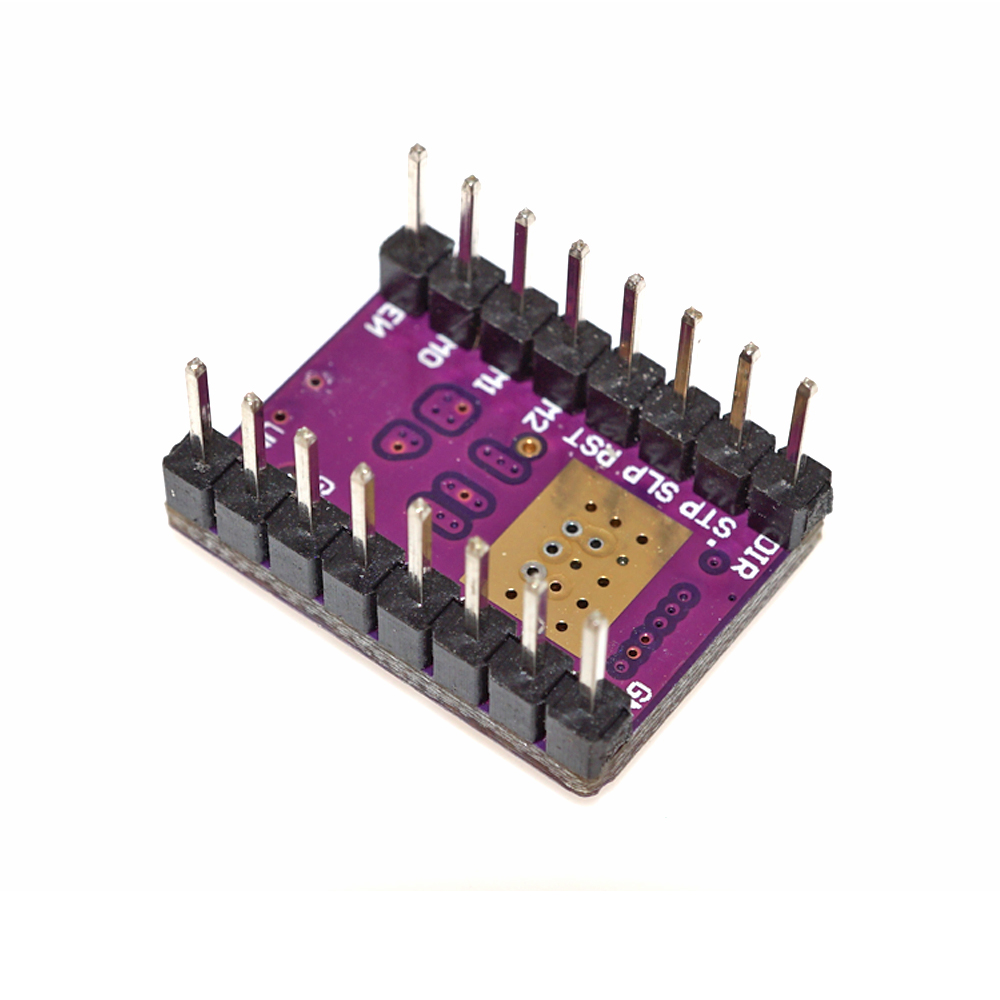

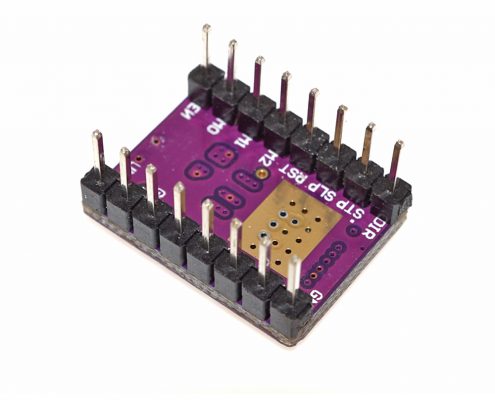

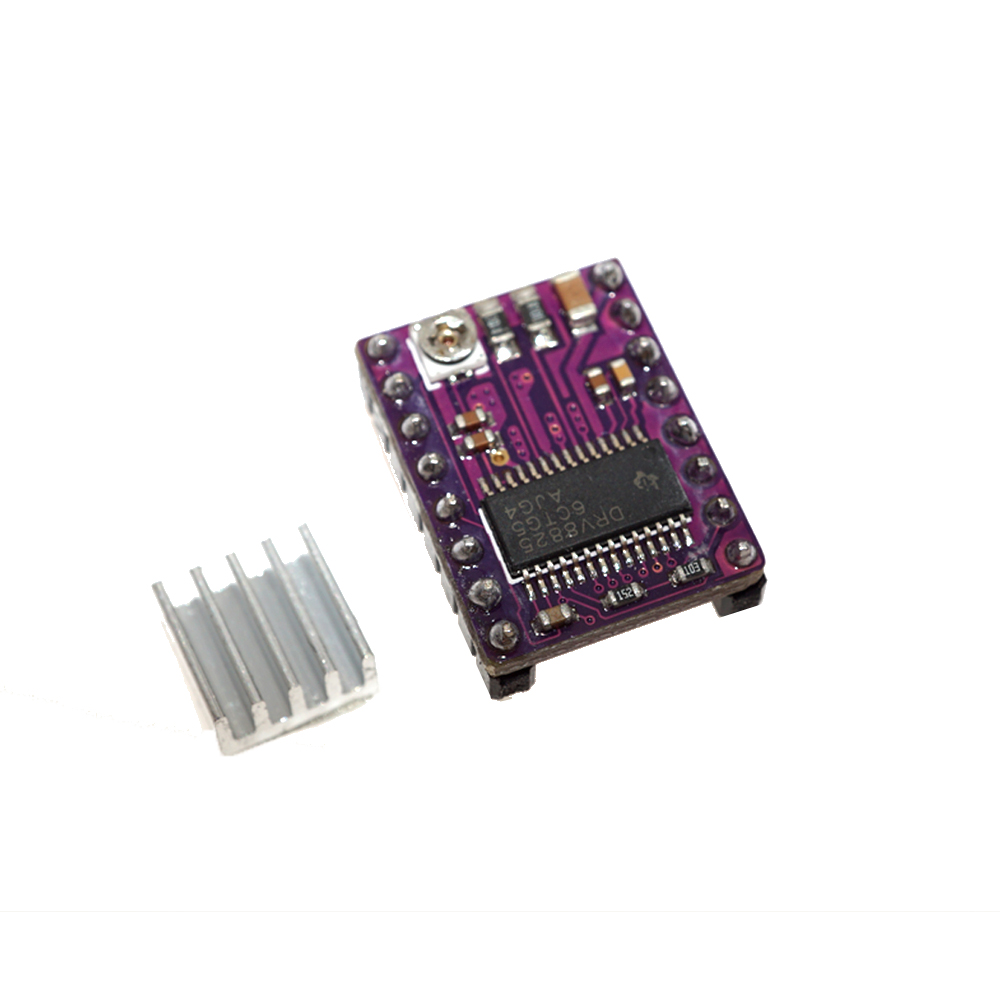

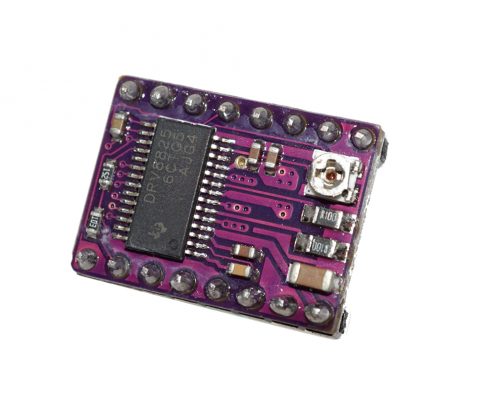

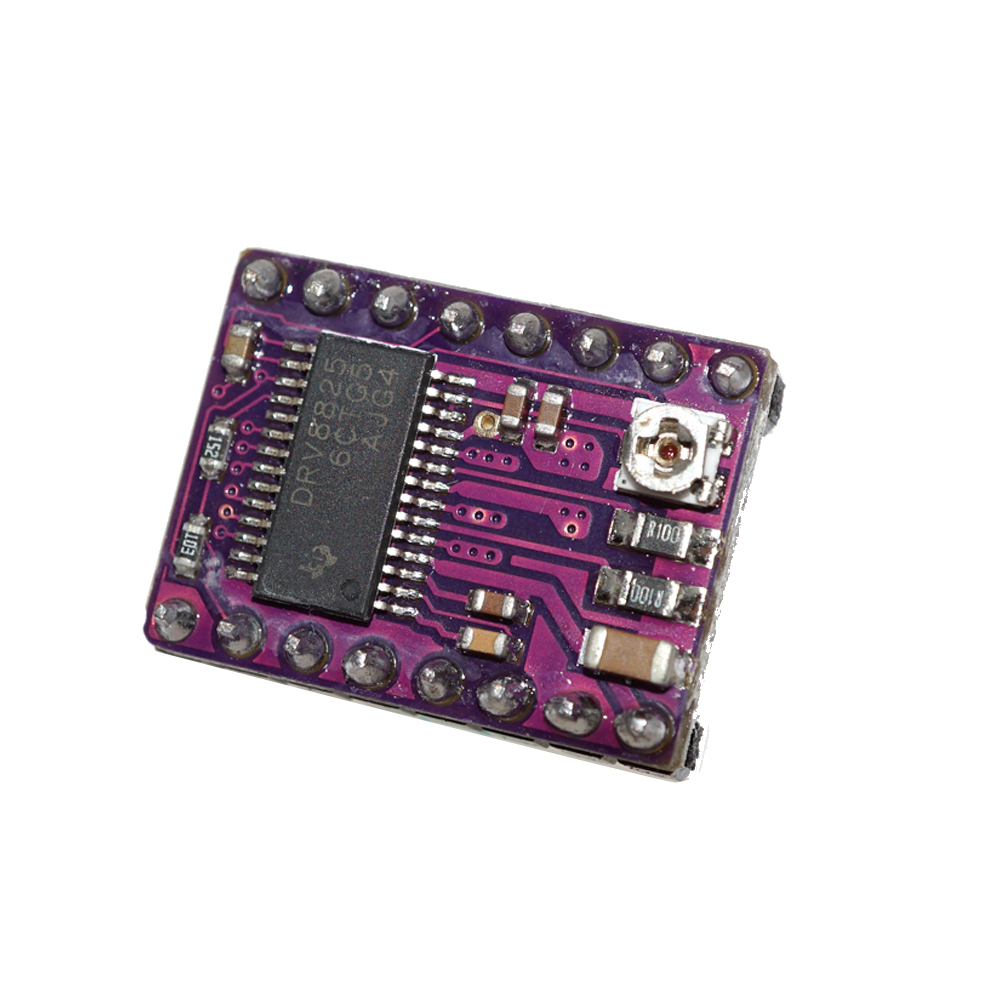

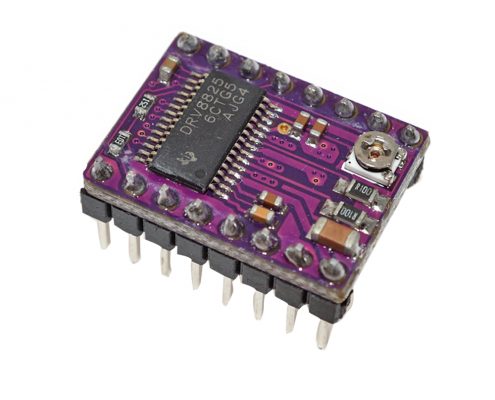

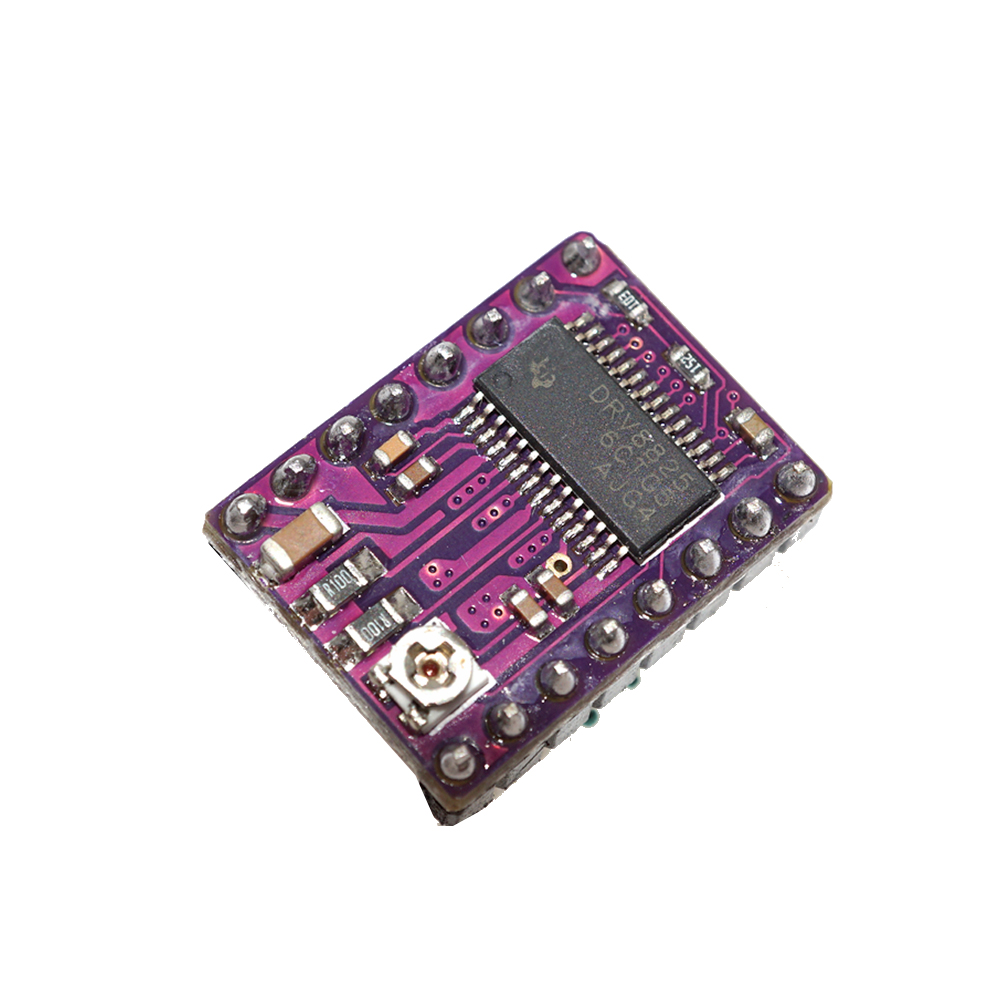

3D Printer Stepper Motor Driver Module DRV8825 Stepper Motor Driver Controller
- Simple step and direction control interface.
- Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step.
- Can interface directly with 3.3 V and 5 V systems.
- Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout.
- Short-to-ground and shorted-load protection.
- 4-layer, 2 oz copper PCB for improved heat dissipation.

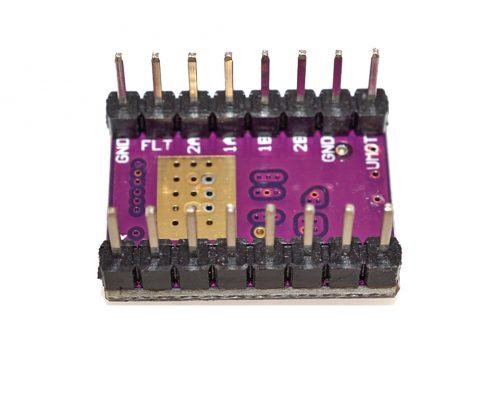

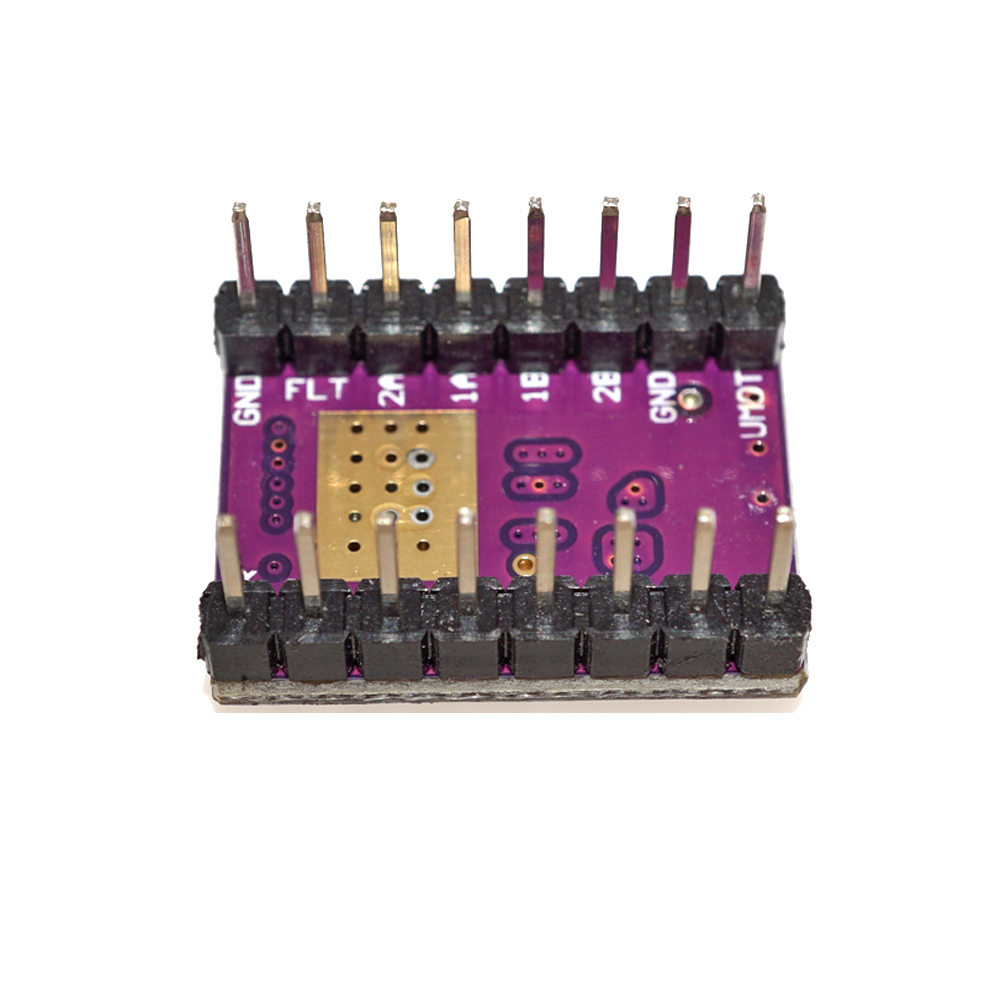

- Exposed solderable ground pad below the driver IC on the bottom of the PCB.
- Module size, pinout, and interface match those of our A4988 stepper motor driver carriers in most respects.
Product Description
- Simple step and direction control interface.
- Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step.
- Can interface directly with 3.3 V and 5 V systems.
- Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout.
- Short-to-ground and shorted-load protection.
- 4-layer, 2 oz copper PCB for improved heat dissipation.
- Exposed solderable ground pad below the driver IC on the bottom of the PCB.
- Module size, pinout, and interface match those of our A4988 stepper motor driver carriers in most respects.
