No battery included…
Clock Module is sensory integration,for science kits for kids,science projects,robot car on high school,primary school,secondary school.

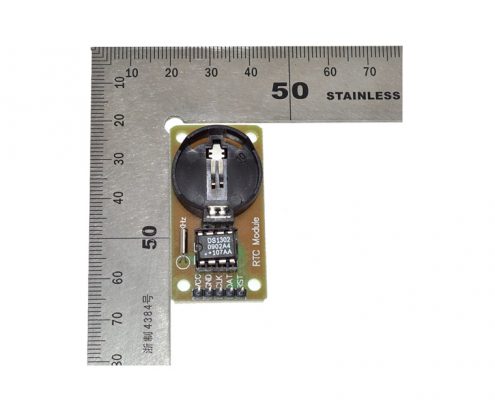

DS1302 real time clock module
DALLAS DS1302 is the company launched trickle charge the clock chip, which contains a real-time clock / calendar and 31 bytes of static RAM, via a simple serial interface to communicate with the microcontroller. Real-time clock / calendar circuit provides seconds, minutes, hours, days, weeks, months, years of information, the number of days per month and leap year automatically adjust the number of days. Clock operation by AM / PM indicator decided to use 24 or 12 hour format. DS1302 between the microcontroller can simply adopt the way synchronous serial communication port only used three lines: (1) RST Reset (2) I / O data lines (3) SCLK Serial Clock. Clock / RAM read / write data in a byte or up to 31 bytes of character set type communication. DS1302 work to maintain low power consumption data and clock information when power is less than 1mW
Real-time clock with energy calculations before 2100 seconds, minutes, hours, day, week, month, year capacity, as well as the ability to leap year adjustment
serial I / O ports such a way that a minimum number of pins
Wide operating voltage range 2.0 5.5V
2.0V, operating current of less than 300nA
read / write clock or RAM data transfer mode, there are two single-byte and multi-byte transfer mode transmission character set
8-pin DIP package or an optional 8-pin SOIC surface mount package under simple 3-wire interface
Vcc = 5V and TTL compatible
Optional industrial temperature range of -40 to +85
dual power tubes used for the main power supply and backup power supply
The real time clock has the ability of calculating prior to the 2100 second, minute, hour, day, week, month, year, and the ability to adjust a leap year
31 8 temporary data storage RAM
Serial I / O port pin makes the least number of ways
Wide range of operating voltage 2.0V – 5.5V
When The working voltage is 2.0V, the current is less than 300nA
Read/write clock or RAM data have two transmission way: Single-byte / many bytes group
8 feet DIP assembly or optional 8 feet SOIC encapsulation according to surface assembly
Simple 3 line interface
Optional industrial temperature range -40°C to +85°C
Dual power tube for the main power and backup power supply
TTL compatible(Vcc = 5V)
PCB single panel, size: 44mm * 23mm
with four positioning holes, diameter 3.1mm
backup battery is genuine celestial CR2032, Voltage 3V, current 260mAh, non-rechargeable batteries. Theoretical data retention time is more than 10 years!
Crystal 32.768KHz, Japan imported crystal, matching capacitance 6pF, size 2 * 6mm
DS1302 is made large 8-pin DIP chip, chip below IC socket for easy replacement and swap chips
module operating voltage compatible 3.3V/5V, can be connected with 5V and 3.3V microcontroller
. Working temperature: 0°— 70°
Wiring methods (procedures in order to provide an example, you can access any IO port, modify the port definition in the program can be):
VCC → +5 V/3.3V
GND → GND
CLK → P02
DAT → P01
RST → P00
