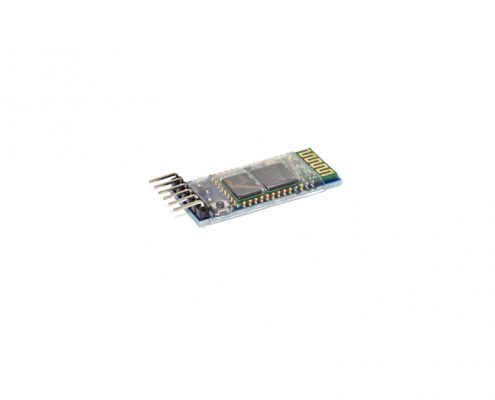

1.PCB Size: 37.3mm (Long) *15.5mm (wide)
2. Weight: 3.5g
3. Input voltage: 3.6V–6V, prohibit exceeding 7V
4. Power supply anti-reverse, the reverse module does not work
5. Leads 6 feet: EN/VCC/GND/RXD/TXD/STATE (Bluetooth state leads, not connected output low level, the output high level after connection)
6. With the connection status indicator, LED flash indicates no Bluetooth connection; Led slow flash indicates enter at command mode
7. On-board 3.3V voltage regulator chip, input voltage DC 3.6V-6V; When not paired, current about 30mA (due to LED lights flashing, current in the state of change); After the pairing succeeds, the current is about 10mA
8. Interface level 3.3V, can directly connect a variety of MCU (/51/AVR/PIC/ARM/MSP430 and so on), 5V MCU can also directly connect. Direct connection SCM Serial port, cannot pass MAX232 chip!
9. Effective transmission distance of 10 meters in open area, more than 10 meters is possible, but not to ensure the quality of the connection
10. After pairing succeeds, can be used as full duplex serial port. No need to understand any Bluetooth protocol, but only support 8-bit data bits, 1-bit stop bits, no parity communication format. This is also the most commonly used communication format, does not support other formats!
11. Press the key and then power up the Bluetooth module to enter at mode, set parameters and query information
12. Can switch host and machine mode from at command
13. The module default baud rate is 9600, the default pairing password is 1234, the default name is HC-05.
