Description:
Material: PCB
Color: blue

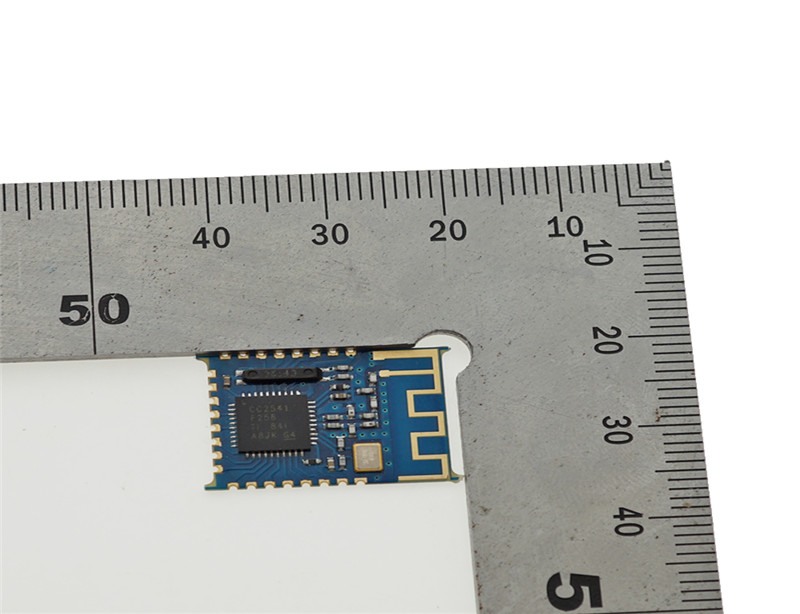

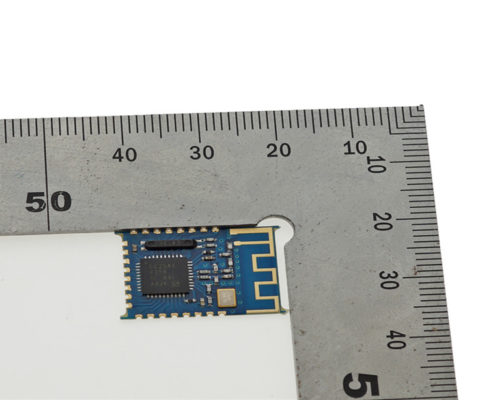

Size: 19.6 * 14.9 * 14.9 MM
Quantity:1/2/3Pcs

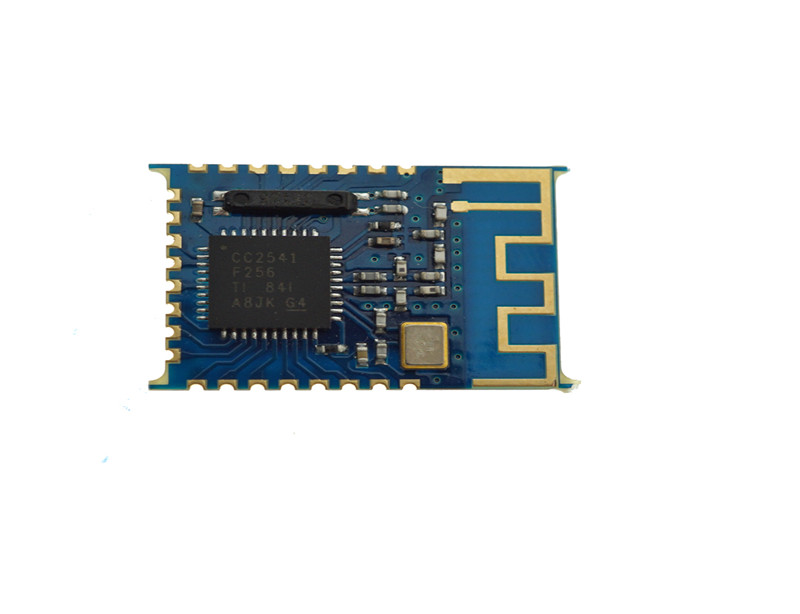

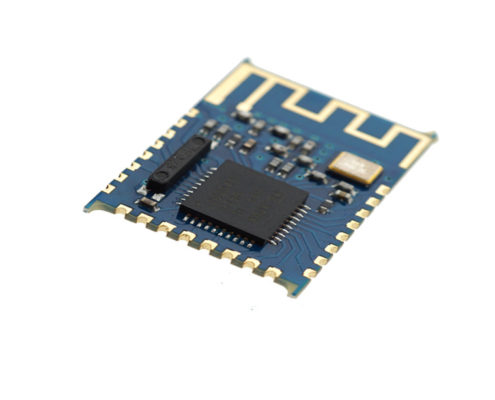

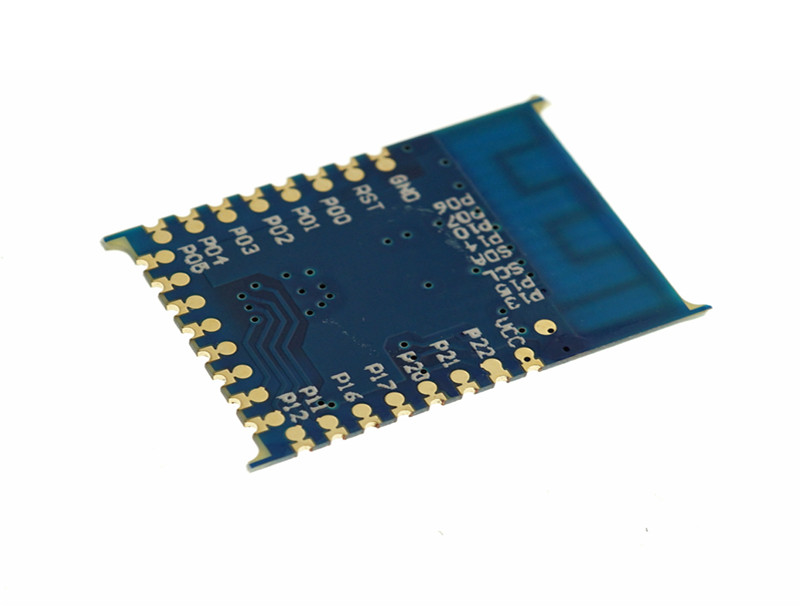

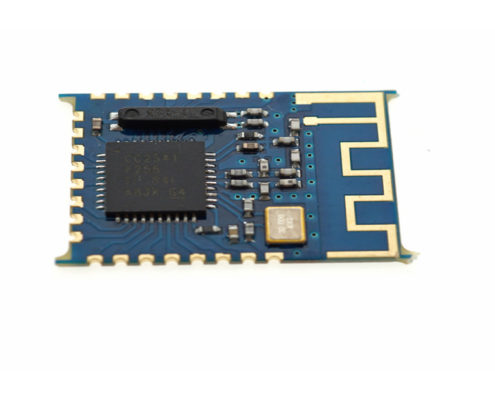

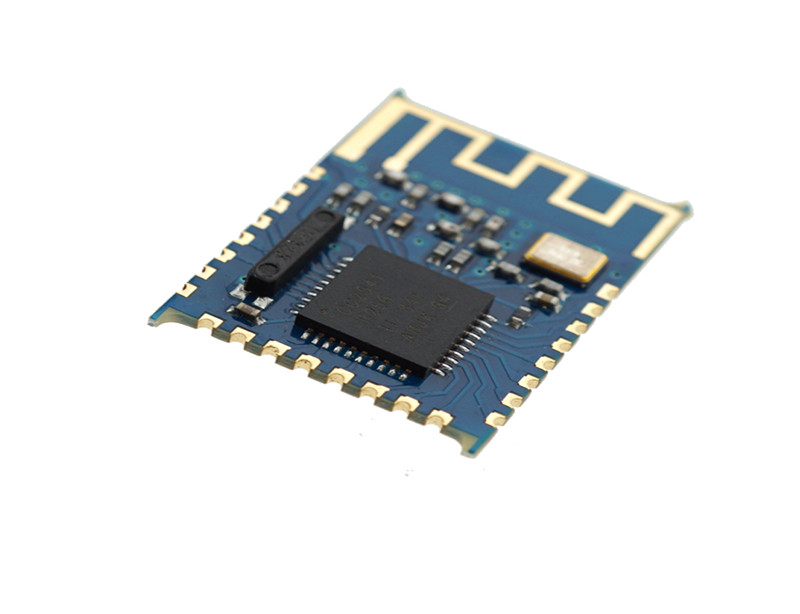

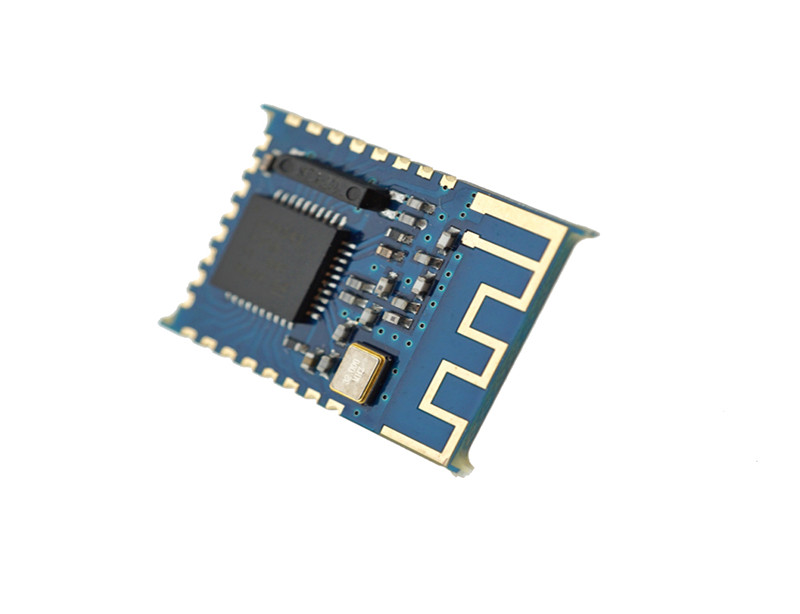

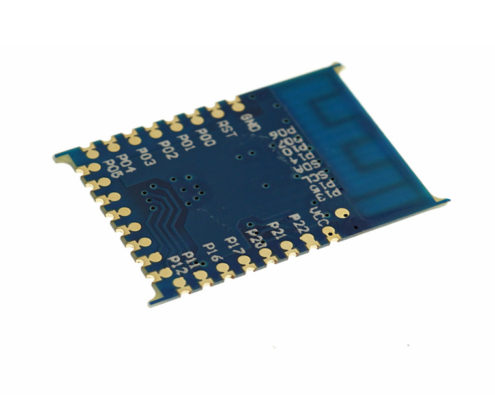

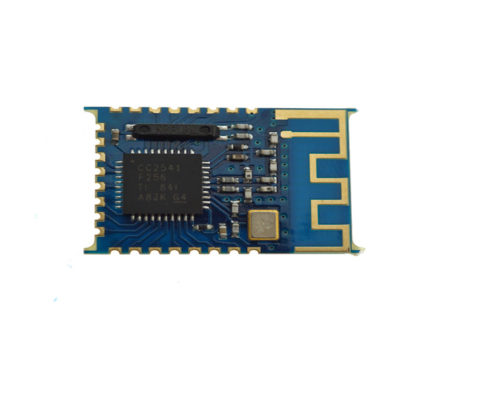

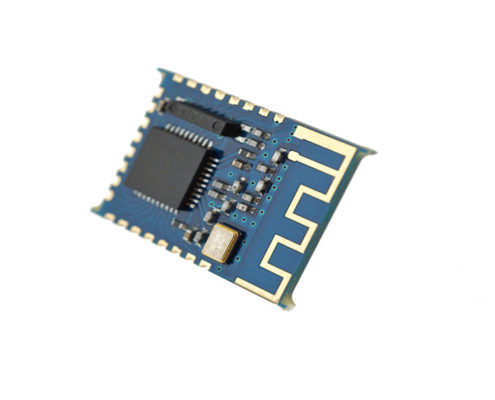

JDY – 08 passthrough module is based on bluetooth 4.0 protocol standard, scope of work frequency of 2.4 GHZ, modulation method for GFSK, maximum transmitted power of 0 db, the largest launch distance of 80 meters, adopt TICC2541 chip design, support the user through the AT command to modify the device name, service UUID, transmission power, such as matching password instructions, convenient use and flexible. Function introduction
1: wechat xin transmission (support AirSync protocol, apply to wechat xinH5 or factory server communication, including long packet data resolution sending and receiving)
2: micro-xin control mode (motor speed regulation, LED light switch control)
3: APP transmission (support Android and IOS data transmission)
4: iBeacon mode (support microxin shake protocol and apple iBeacon protocol)
5. Sensor mode (temperature, humidity and many other sensor data acquisition applications)
6: host transmission mode (data transmission between application modules, communication between host and slave)
7: host observer mode (application sensor, indoor positioning)
8: PWM mode (used for motor speed regulation and LED light brightness adjustment)
9: IO mode (for mobile phone control relay or LED on/off)
10: indoor chamber location application (application of collecting iBeacon data to achieve range positioning)
11: RTC model
JDY-08 transparent transmission module is based on the Bluetooth 4.0 protocol standard, the working frequency of 2.4GHZ range, modulation scheme is GFSK, the maximum transmit power of 0db, maximum transmission distance of 80 meters, the use TICC2541 chip design, allowing users to modify the device name through AT commands service UUID, transmit power, pairing password instructions, convenient to use and flexible.
The new V508 firmware upgrade to support serial
Ultra-low standby power consumption 400uA ~ 800uA
Ultra-long connection distance 100 ft / 60 m
Fast reaction speed 0.4 seconds
For Apple, Android
Receive no byte limit, up to 6K Bytes / sec.
MFI does not need to do
Android 4.3+ perfect support.
