Product Model:OKN427-6

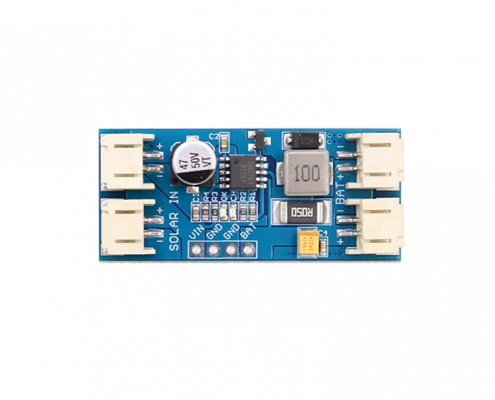

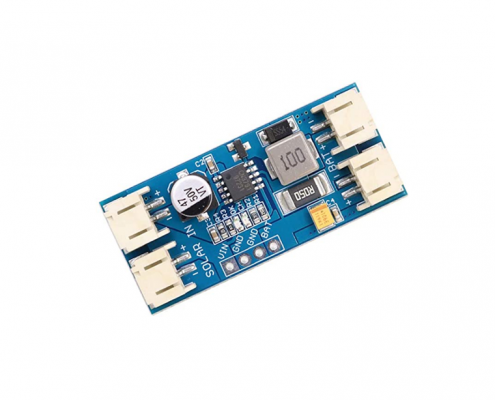

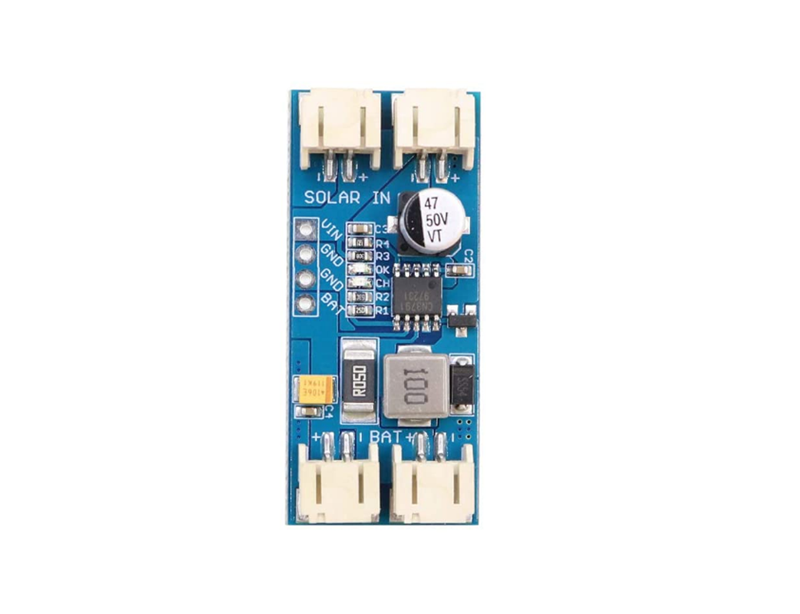

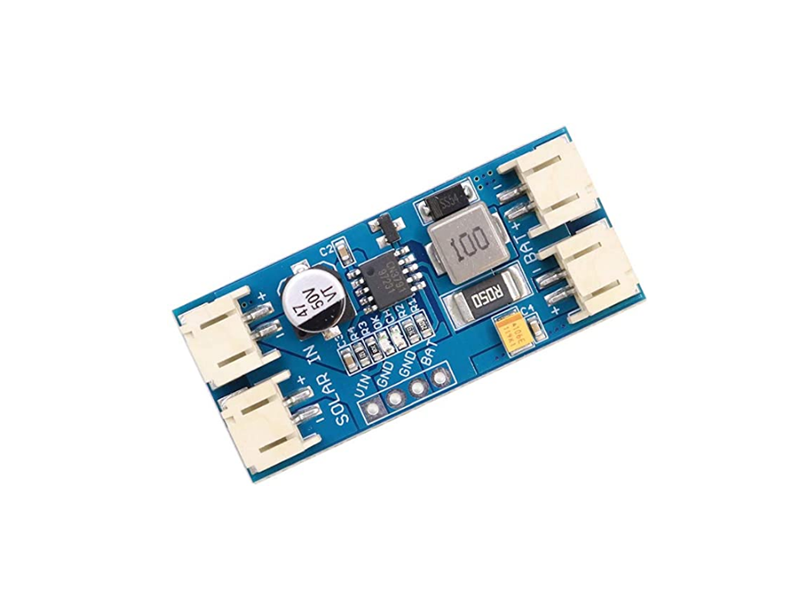

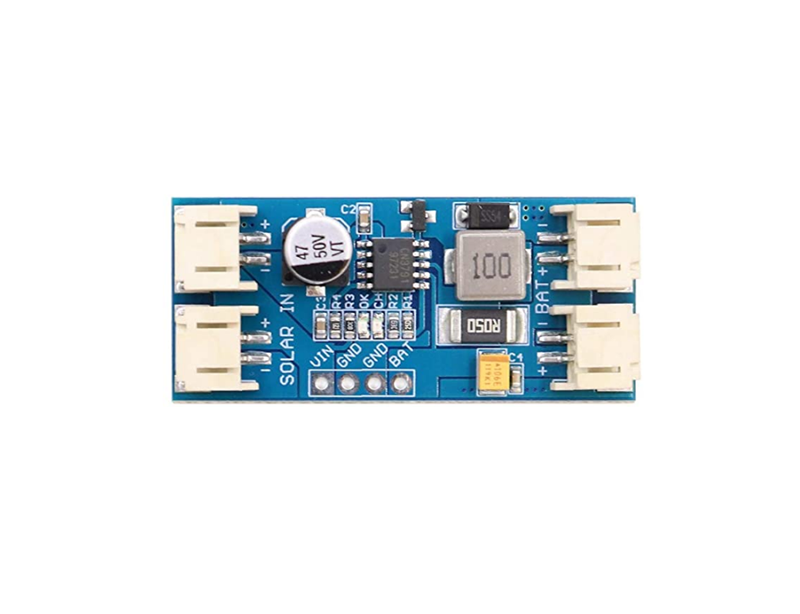

12V Solar Panel Charger Regulator Control Module Solar Charge Controller Board MPPT CN3791
Product Description
1.Trickle charging of deeply discharged batteries.
2.Automatic recharge, Battery over voltage protection.
3.Charge status and charge end status indication.
4.Solar panel maximum power point tracking.
5.Complete charge management for single-cell lithium batteries.
6.The output of the Solar Charger is intended to charge a single polymer lithium ion cell. 7.The load should be connected in parallel with the battery.

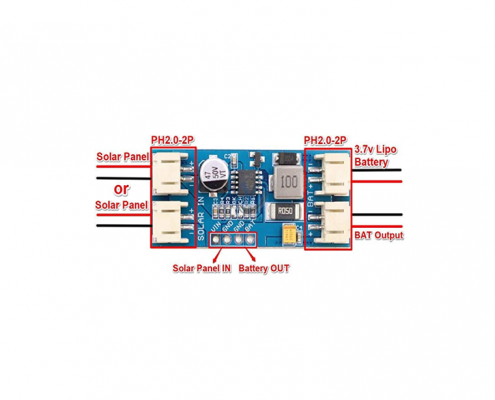

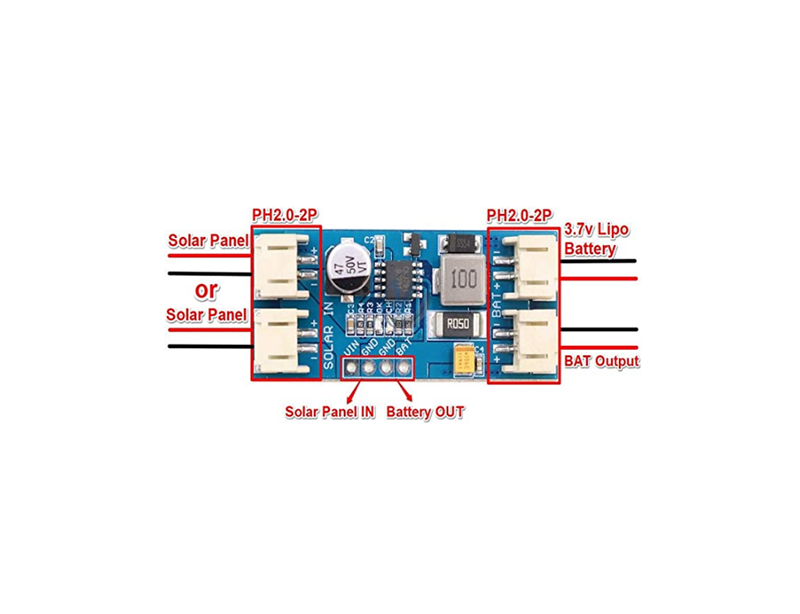

8.Each Solar Charger comes equipped with a CN3791 power tracking battery charging circuit and four 2-pin JST/PH2.0connectors. Default we have set the holding voltage for MPPT.
9.So we have 3 version for the input voltage 6V/9V/12V(for Solar Panel working voltage 6V/9V/12V), very suitable for the application of the input voltage and battery voltage difference is bigger. In general, need to use a switch mode DC – DC converter to realize MPPT function, keep the output voltage and charging current product maximize (output).
Product Details
Description:
1.Trickle charging of deeply discharged batteries.
2.Automatic recharge, Battery over voltage protection.
3.Charge status and charge end status indication.
4.Solar panel maximum power point tracking.
5.Complete charge management for single-cell lithium batteries.
6.The output of the Solar Charger is intended to charge a single polymer lithium ion cell. 7.The load should be connected in parallel with the battery.
8.Each Solar Charger comes equipped with a CN3791 power tracking battery charging circuit and four 2-pin JST/PH2.0connectors. Default we have set the holding voltage for MPPT.
9.So we have 3 version for the input voltage 6V/9V/12V(for Solar Panel working voltage 6V/9V/12V), very suitable for the application of the input voltage and battery voltage difference is bigger. In general, need to use a switch mode DC – DC converter to realize MPPT function, keep the output voltage and charging current product maximize (output).
Specification:
1.Input voltage: 12V
2.Output voltage: nominal 3.7V full charge voltage 4.2V lithium battery
3.Max Charging current: 2A
4.PWM switching frequency: 300KHz
5.Charging voltage: 4.2V ± 1%
6.Working environment temperature: -40 ° C to +85 ° C
7.Size: 45*20*9.5MM
Package Including:

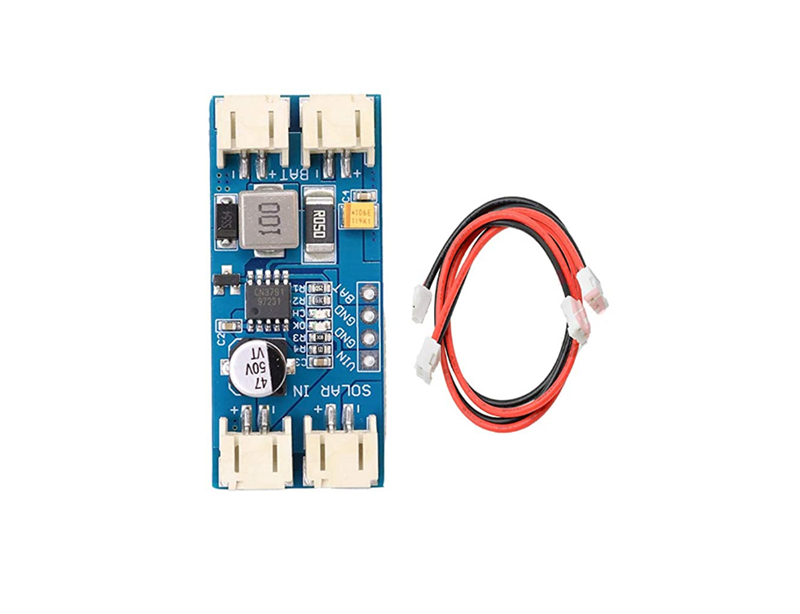

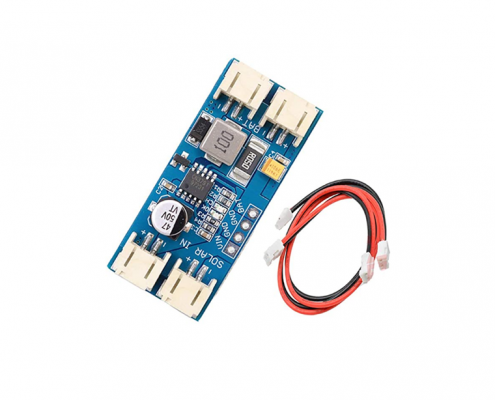

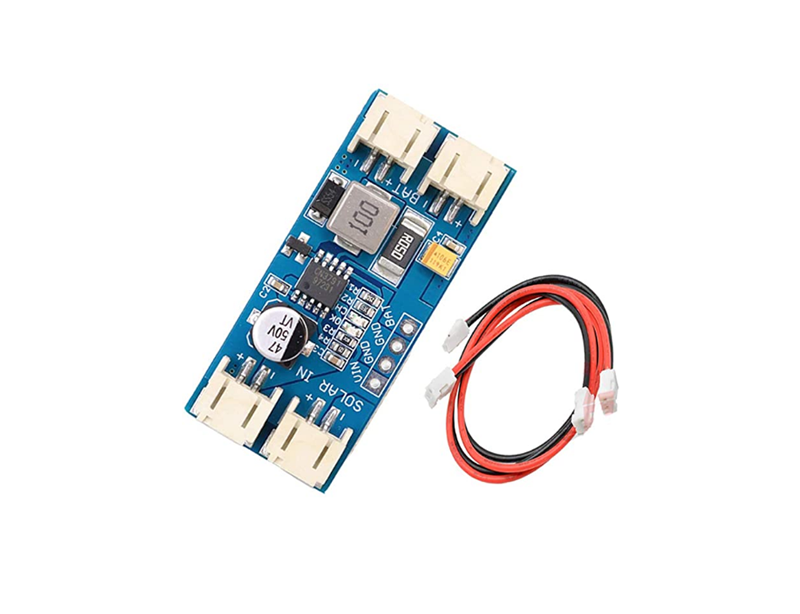

1* CN3791 Solar Charge Controller Board 1 Cell Lithium Battery Charge Module
