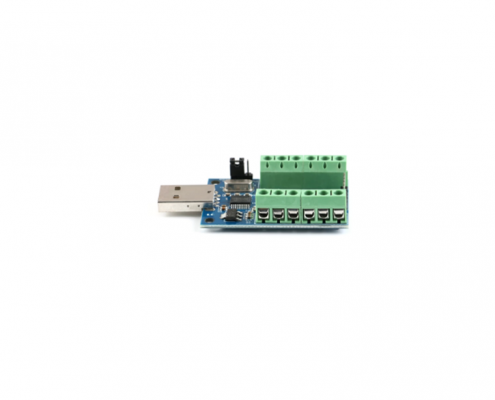

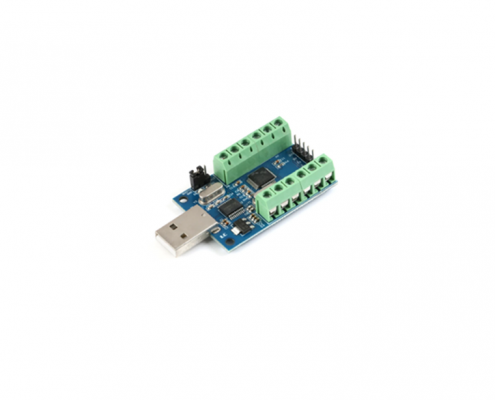

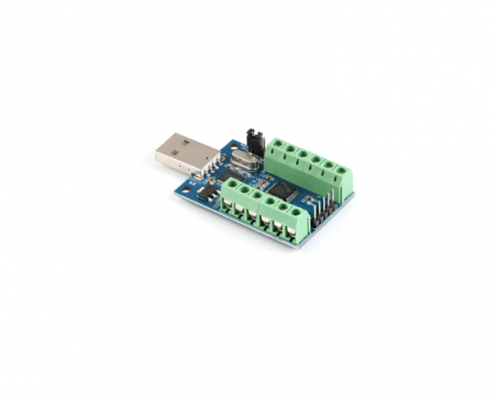

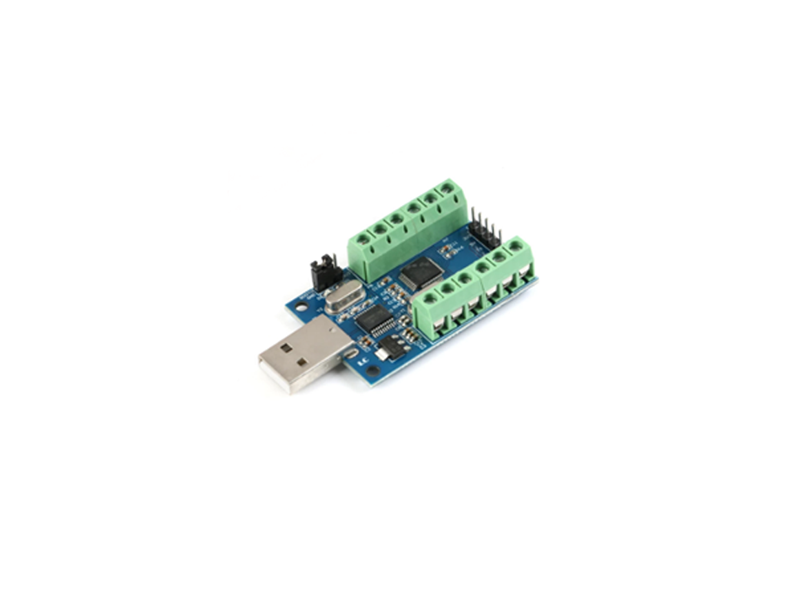

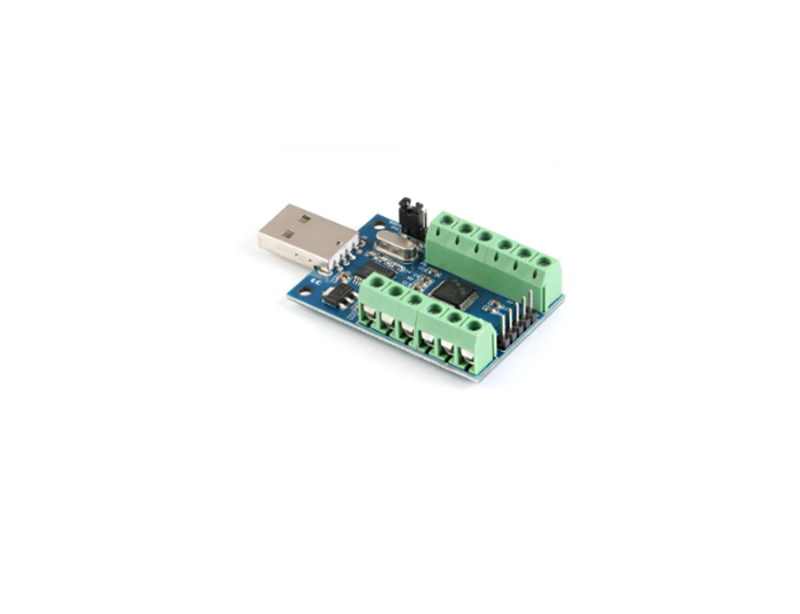

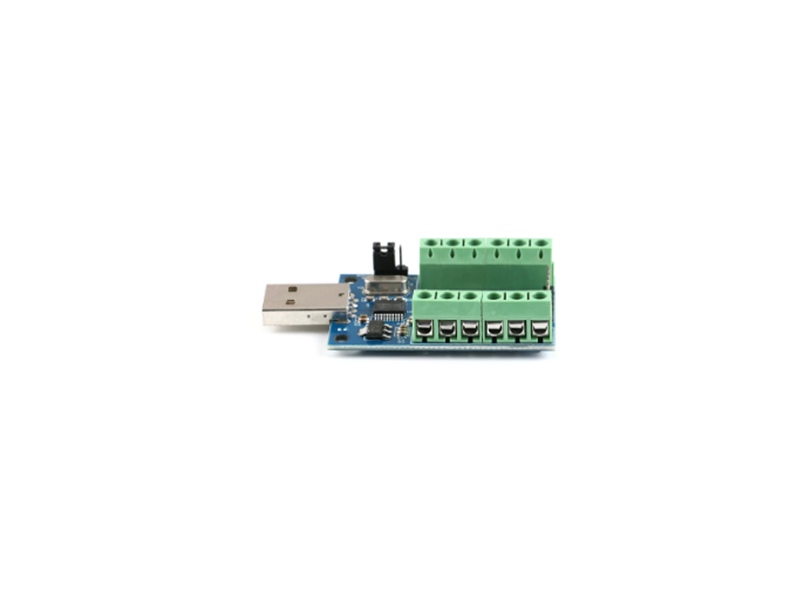

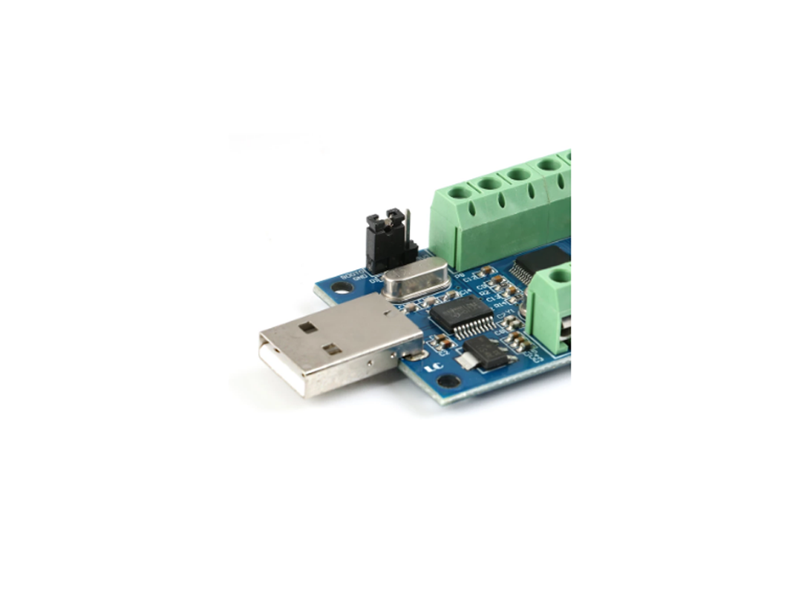

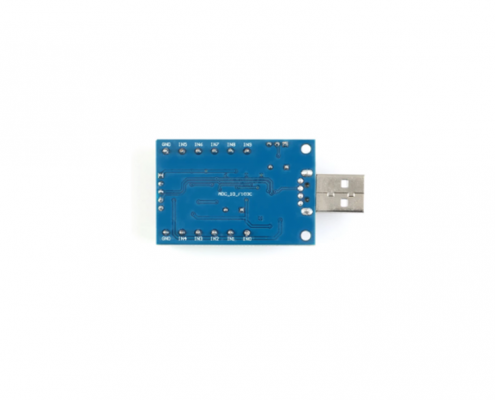

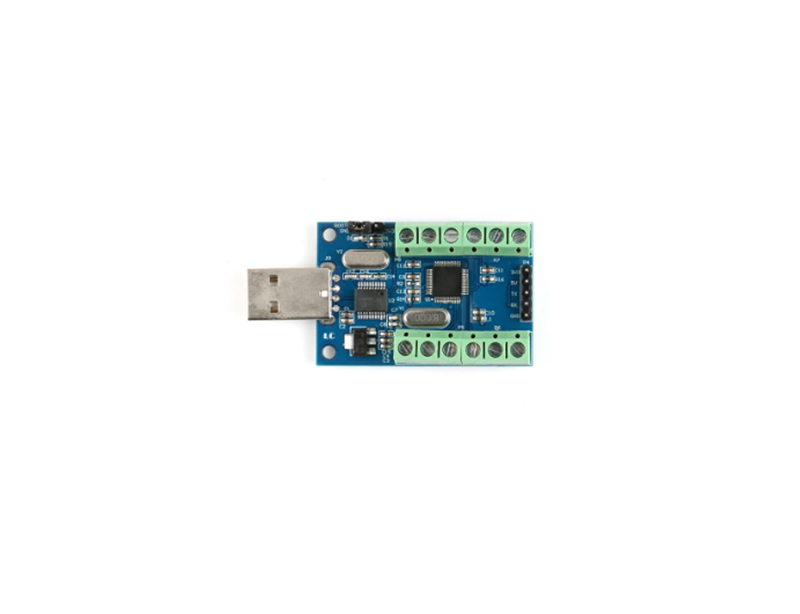

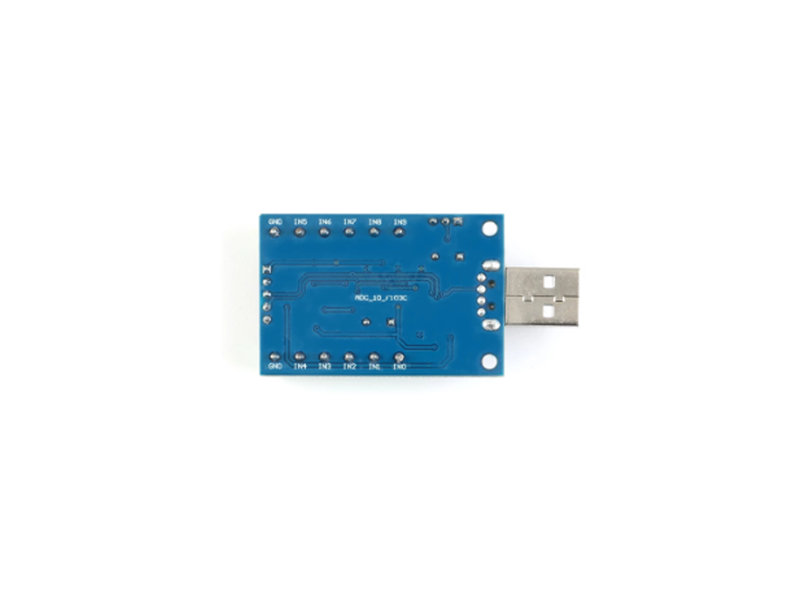

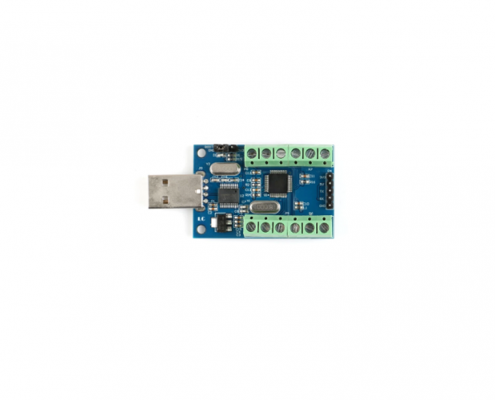

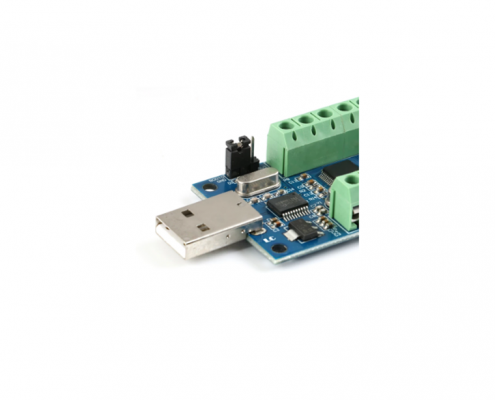

Product Model:OKN422-12
103C8T6 Sampling Data Acquisition Communication ADC Module STM32F
Product Description
1.The 10-channel ADC module uses the internal 10-channel ADC resources of the STM32F103 series as the sampling core.
2.Transfers the acquired sampling data to the internal memory through the STM32 to reduce the CPU load and enhance the stability of the AD sampling. Accuracy, while the on board USB to serial port chip can transfer data to the host computer.
Product Details
Description:
1.The 10-channel ADC module uses the internal 10-channel ADC resources of the STM32F103 series as the sampling core.
2.Transfers the acquired sampling data to the internal memory through the STM32 to reduce the CPU load and enhance the stability of the AD sampling. Accuracy, while the on board USB to serial port chip can transfer data to the host computer.
Specification:
1.Sampling Voltage Input Range: 0 3.3V
2.Power Supply Voltage: 5V 3.3V
3.Resolution: 12Bit (4096)
4.Board Size: 50*33MM
5.Model Number: 10-Channel 12Bit ADC Module
6.Type: Voltage Regulator
Package Including:
1 * 10-Channel 12Bit ADC Module
