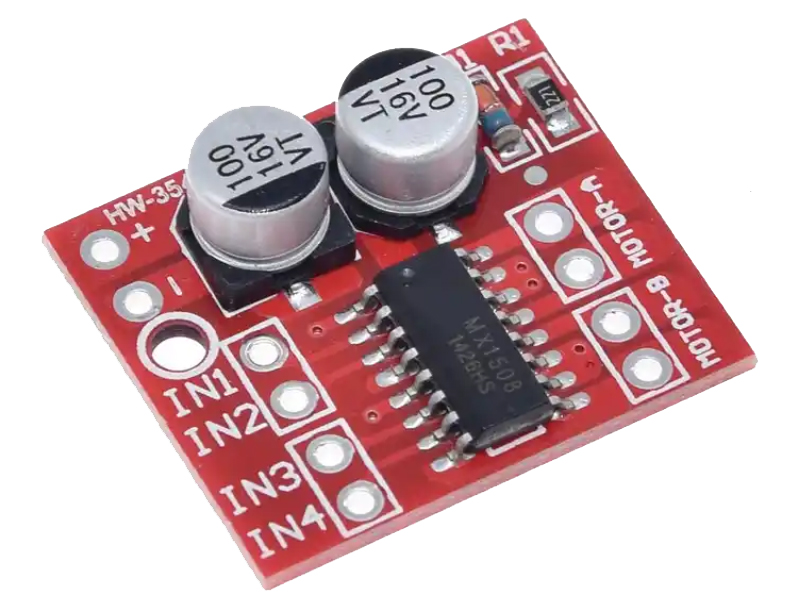

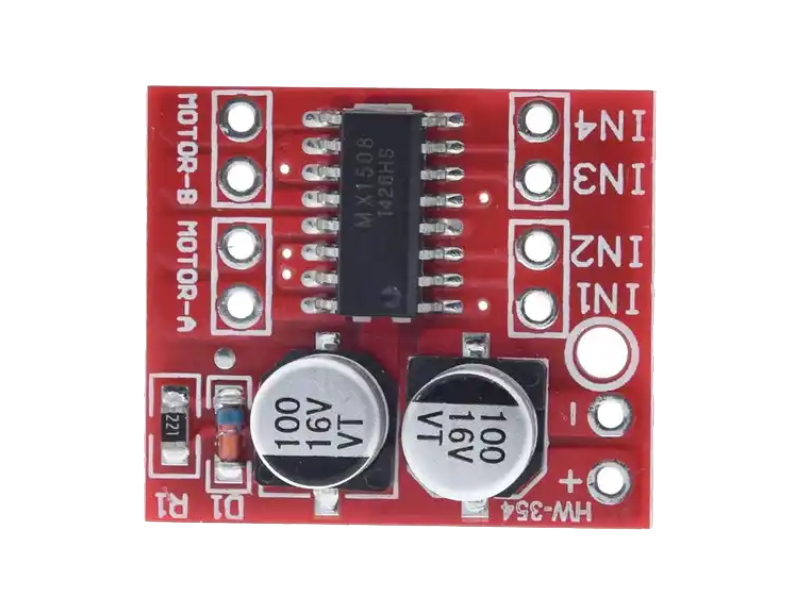

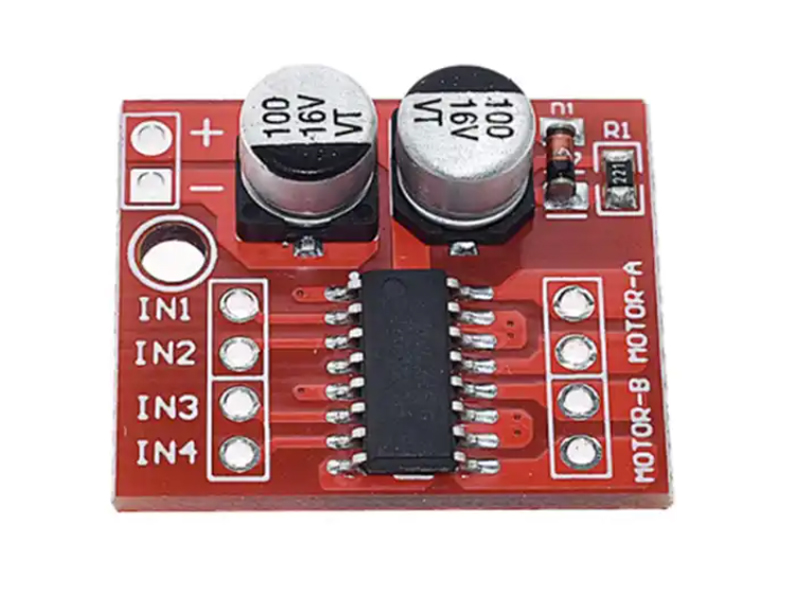

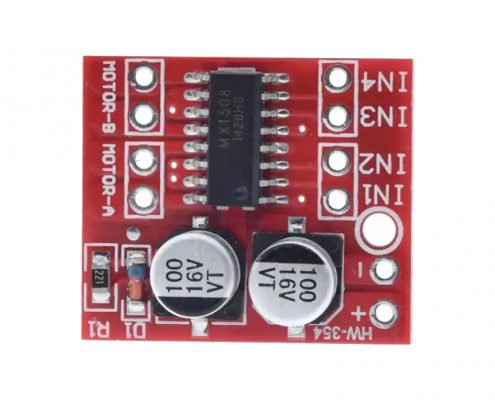

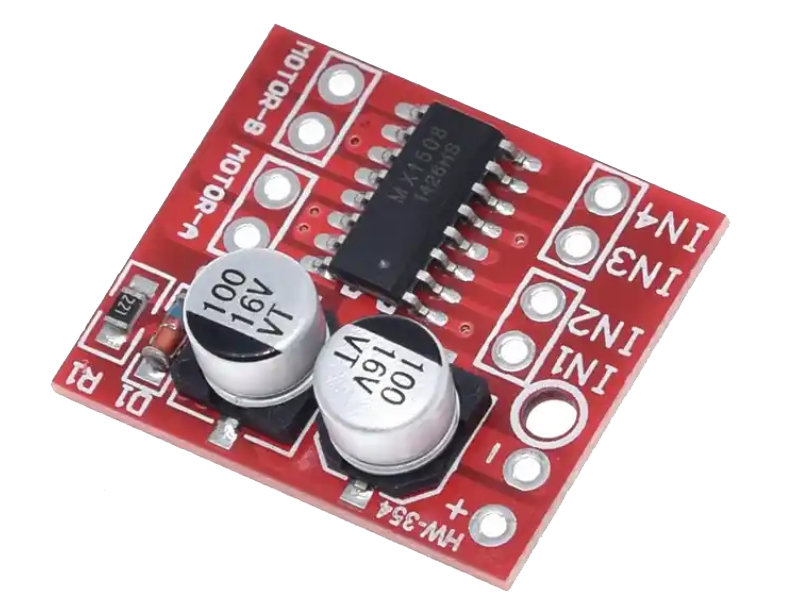

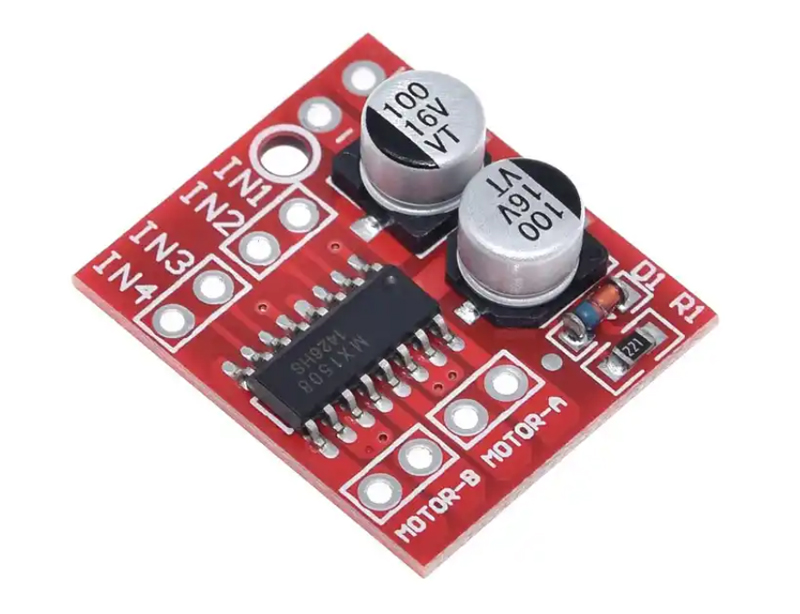

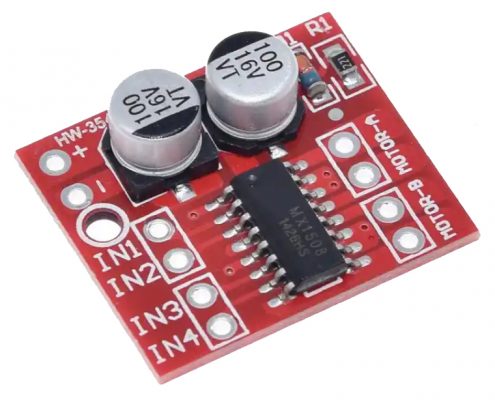

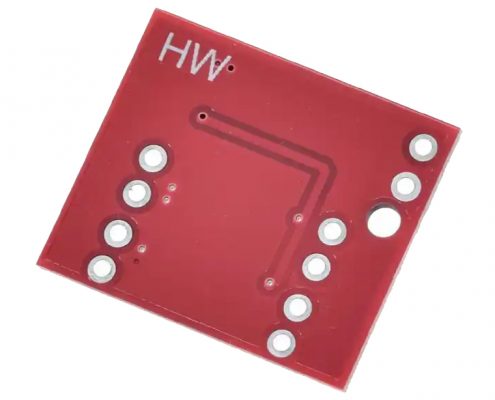

2 DC Motor Drive Module

Product Model:

OKY3199-4-2

Product Description

The Mini Victory L298N is a dual H-bridge motor driver module that allows for the control of two DC motors or a stepper motor. It features PWM (Pulse Width Modulation) speed control and can reverse the direction of the motors. This module is ideal for use in robotics, automation, and other projects that require precise control of motor speed and direction.

Send Inquiry

Chat Online

Call on Whatsapp

Share This Product

Product Details

Product Description

Description:

Dual H-bridge motor drive, can drive two DC motors or one 4-wire two-phase stepping motor at the same time;
Module power supply voltage 2V-10V;
The input voltage of the signal terminal is 1.8-7V;
The single-channel working current is 1.5A, the peak current can reach 2.5A, and the low standby current (less than 0.1uA);
Built-in anti-common state conduction circuit, when the input terminal is suspended, the motor will not malfunction;
Built-in overheat protection circuit (TSD) with hysteresis effect, no need to worry about motor stall;
Product size: 24.7*21*5mm (length, width and height), ultra-small volume, suitable for assembly and vehicle;
Mounting hole diameter: 2 mm.

Package Include:

1 x 2 DC Motor Drive Module
