Product Model: OKY4035

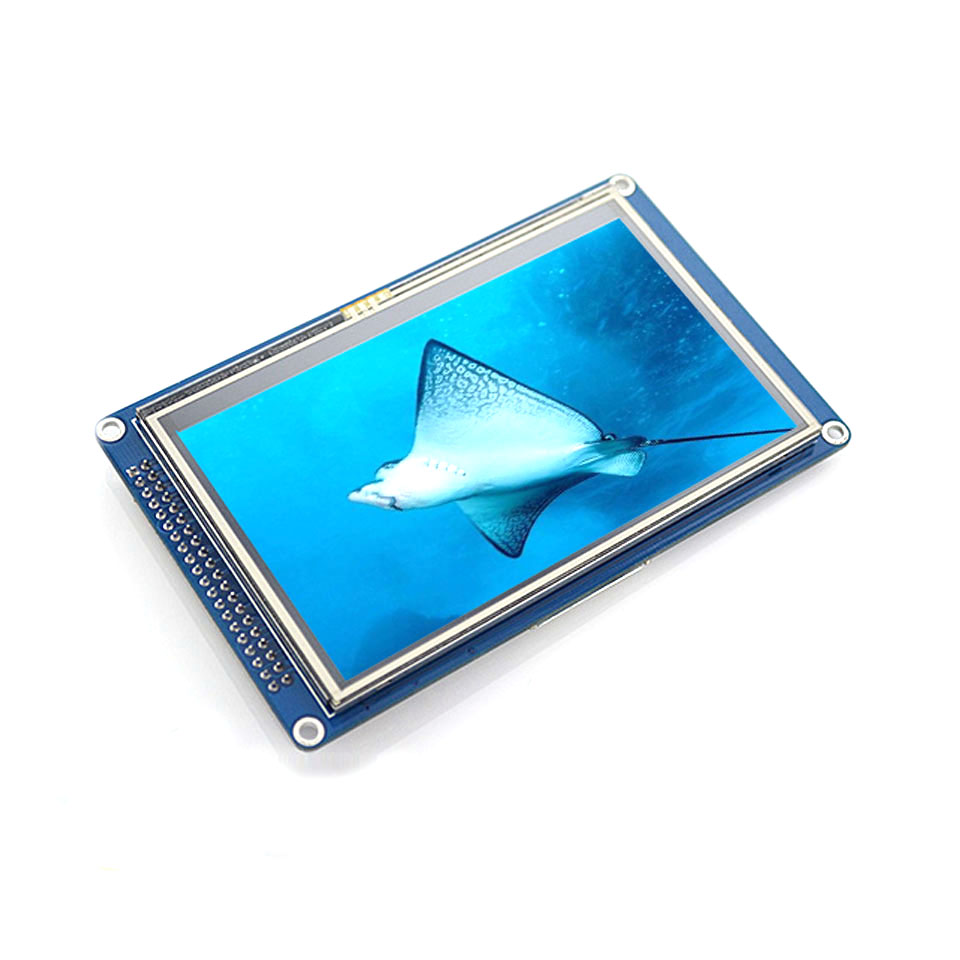

4.3Inch LCD Display Module 480×272 4.3 Inch TFT LCD Module For Arduino

Product Description

100% Brand New & High Quality

Features:
1.This 4.3″ TFT LCD Module can be can be easy controlled by microcontroller.
2.It can be used in any embedded systems which require display high quality colorful image.
3.The Module used SSD1963 LCD controller with 4.3 inch LCD module with touchscreen.
4.This LCD has a superior display quality and super wide viewing angle.

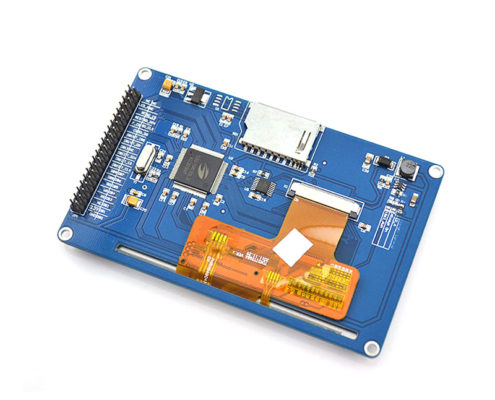

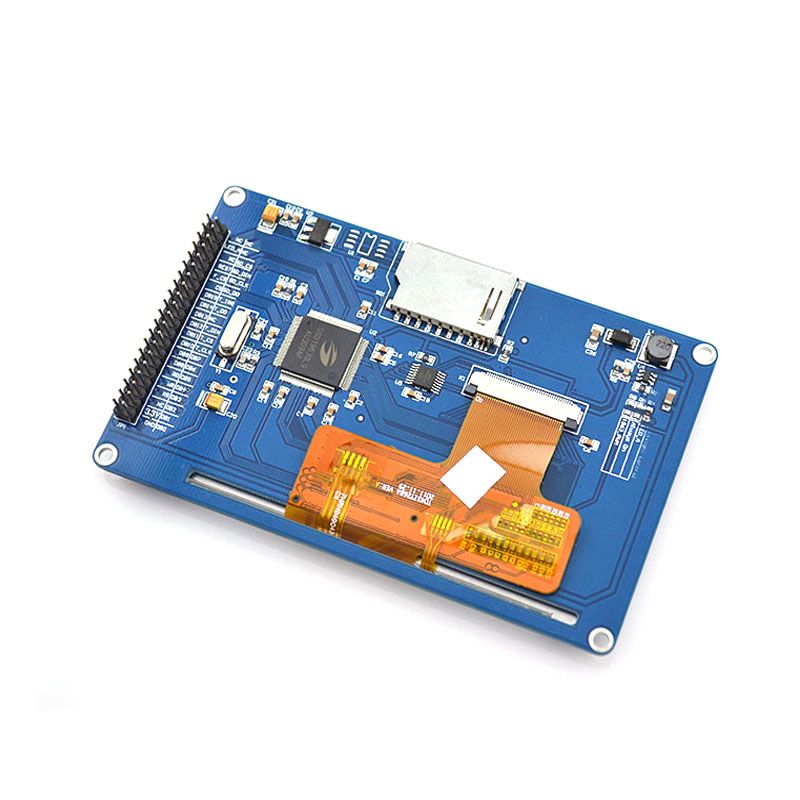

5.The module has inherited backlight driver circuit, on board 400mA DC-DC Boost regulator to provide power supply to LCD backlight.
6.Standard 2×20 2.54mm pin header for connection to microcontroller or development board.

Call on Whatsapp

Share This Product

Product Details

Product Description

Description:

100% Brand New & High Quality
Specification:
Module type:4.3″ TFT LCD Module
Size:4.3”TFT
Resolution:480×272(Pixel)
Controller:SSD1963
Driving IC:OTA5180A
LCD Type: TFT Transmissive Normal White
Backlight: 10-Chip WHITE LED
Interface: 24-bit parallel
Touch Screen Interface:4 wires
TFT Power: 2.8-3.3V
Power Consumption:56mW
Backlight Current:20mA
Viewing Direction:12 O’Clock
Contrast:500 : 1
Brightness (cd/m):280
Colors:16,777,216
PCB Color: Blue

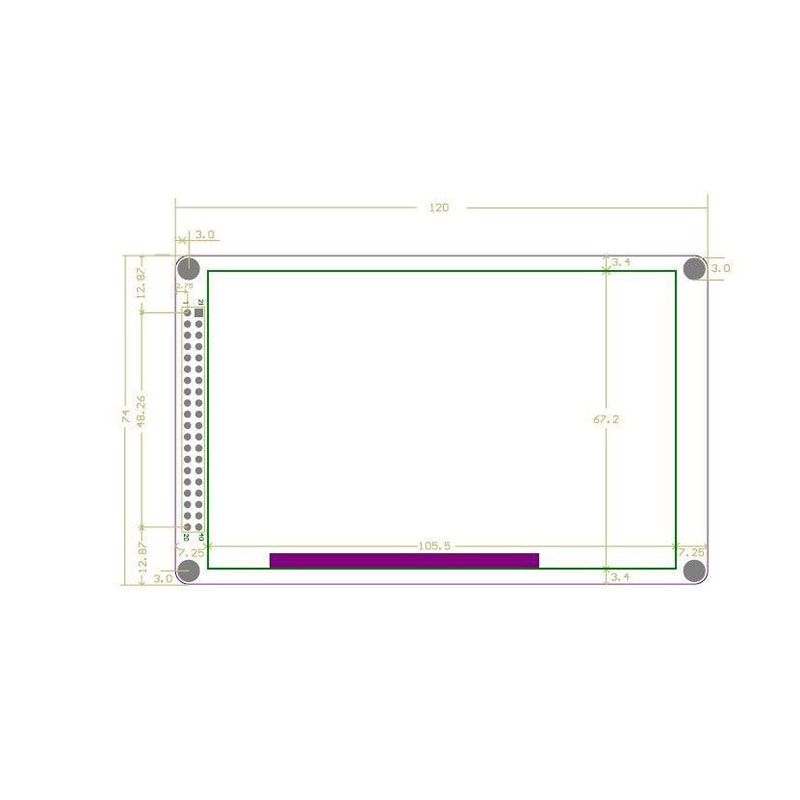

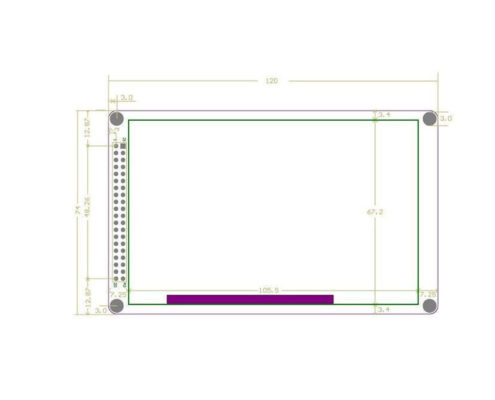

Module Dimensions: 114.0 * 68.0
Panel Dimensions: 67.2 * 105.5
Visual area (VA): 63.0 * 102.04
Display Area (AA): 53.86 * 95.04
Dot Pitch (mm): 0.006 (W) × 0.198 (H)
Operating Temperature : -20 degree~ +70degree
Storage Temperature : -30degree ~ +80degree

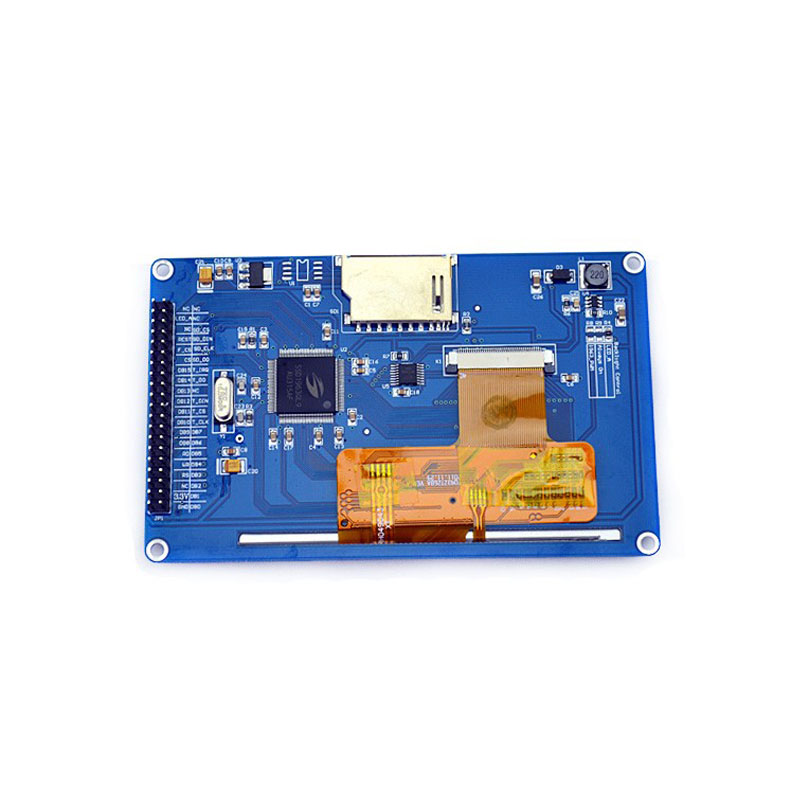

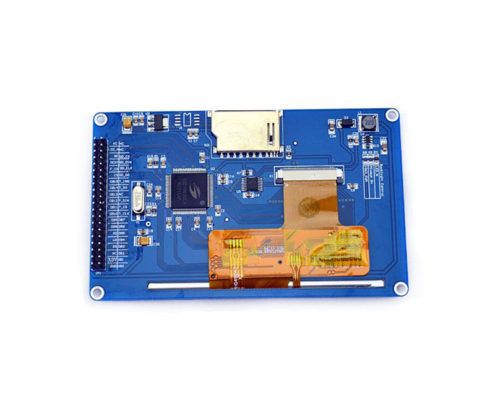

Pin Description:
T_ beginning of the pin touch control pin,
SD_ the beginning of the pin for the SD card control pins,
F_ beginning of the pin flash control pins.
Others for TFT control pins, flash chips for set aside, on-board and no soldering.If you need, on your own welding FLASH chip SPI interface.
Notes:
We offer excellent industrial LCD products.The color LCD module slight deviation may be caused by a number of other reasons, such as color reflection in the monitor, lighting, background etc.

Package Include:

1 x 4.3″ TFT LCD Module
