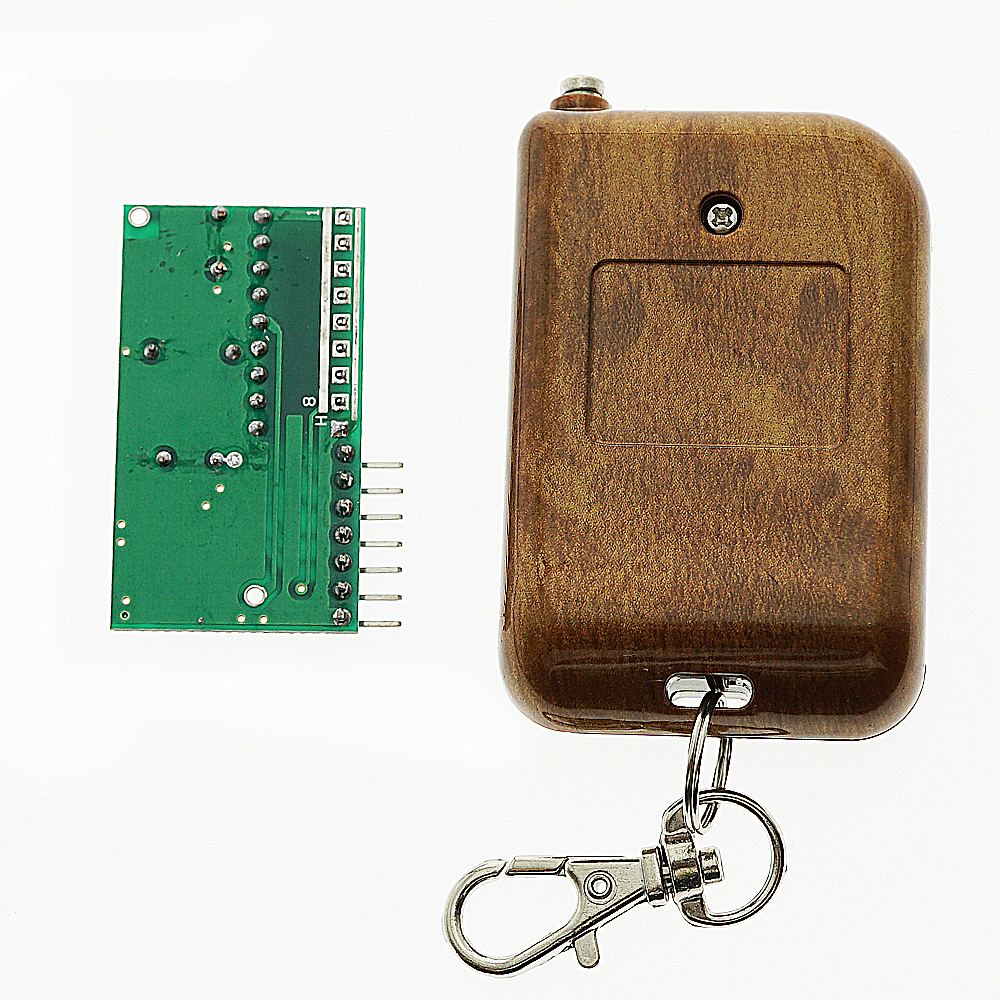

4 Channel 315Mhz RF Wireless Remote Control Module Transmitter + Receiver-OKY3387

OKY3387

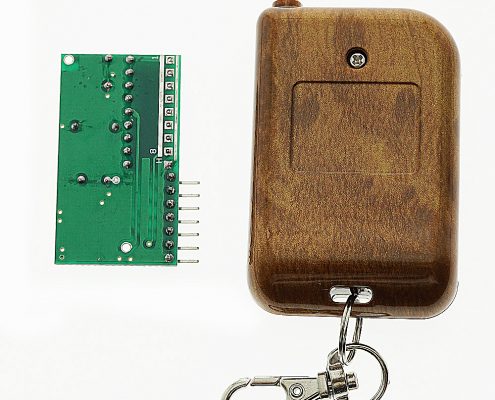

4 Channel 315Mhz RF Wireless Remote Control Module Transmitter + Receiver

Product Description

100% Brand New & High Quality

X804 Remote Control Transmitter

Power: 4.5~7V

Quiescent Current (mA): 4.5 mA

Modulation: AM (OOK)

Operating Temperature: -10°C to +70°C

Receiver sensitivity (dBm): -105 DB

Operating range: up to 300m

Channels: 4

Encoding: Encoding pad (fixed code)

Modulation: ASK (AM)
There is 4 keys optional
Size: 58 * 38 * 13mm
Color: mahogany gold
Transmitting frequency: 315Mhz

Send Inquiry

Chat Online

Call on Whatsapp

Share This Product

Product Details

Product Description

Description:

Operating voltage: DC12V (27A/12V battery x1)

Operating Current: 10mA 12V

Radiated power: 10mw 12V

Size: 6.2 x 3.8 x1.4cm(LxWxD)

Receiver connect:

VT: Decoding valid indication output pin

D0-D3: Four control signal output pins

VCC: + 5V

GND: – Negative Electrode

Modulation mode: ASK (Amplitude Modulation)

Transmitting frequency: 315MHZ (SAW frequency stabilization)

Transmission distance :50-100M (Open field the receiver sensitivity -100dbm)

Encoder types: fixed code

The frequency of this product is 315 mhz.

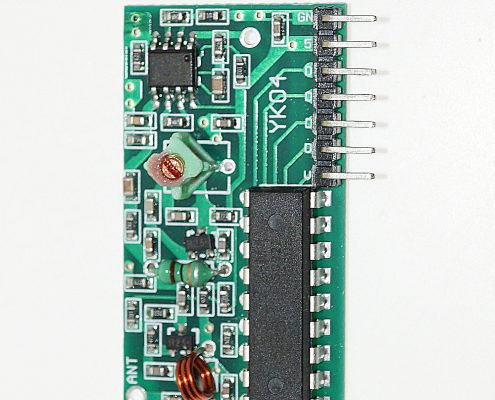

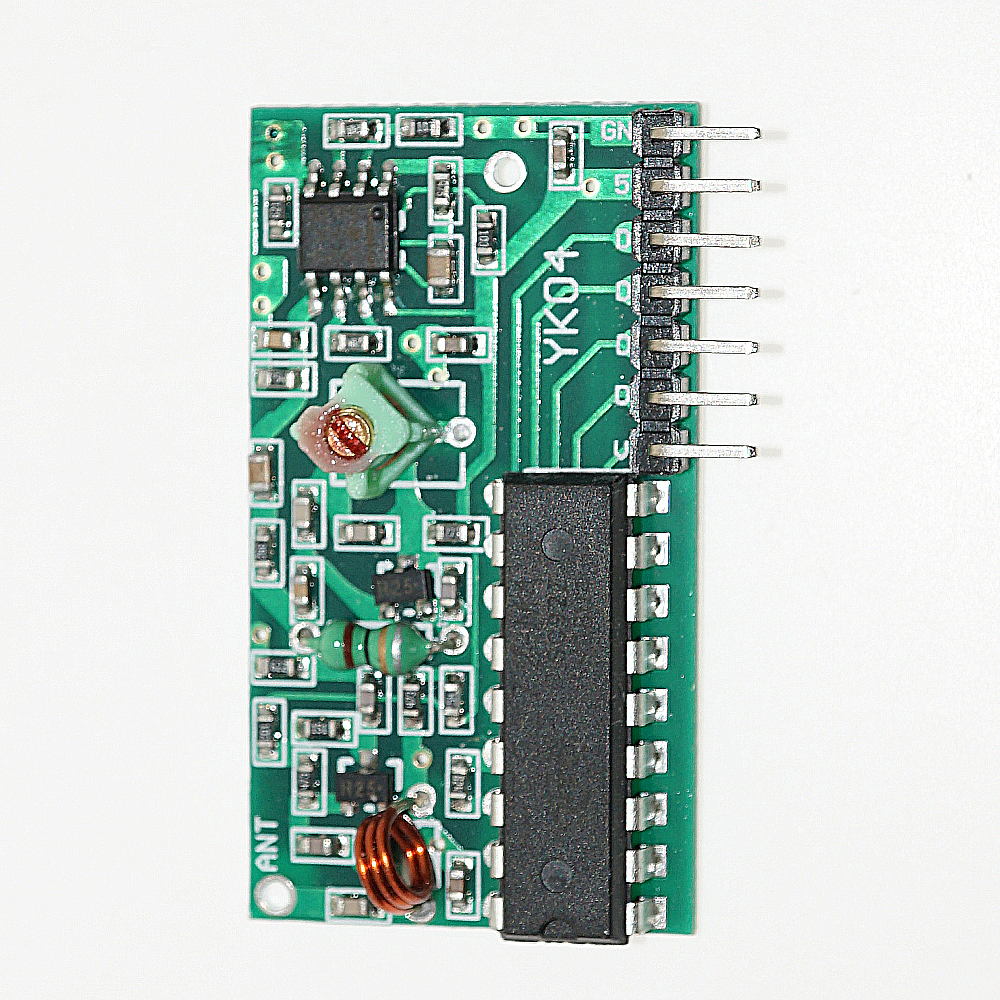

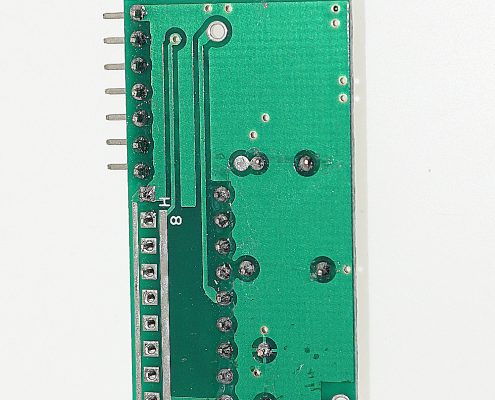

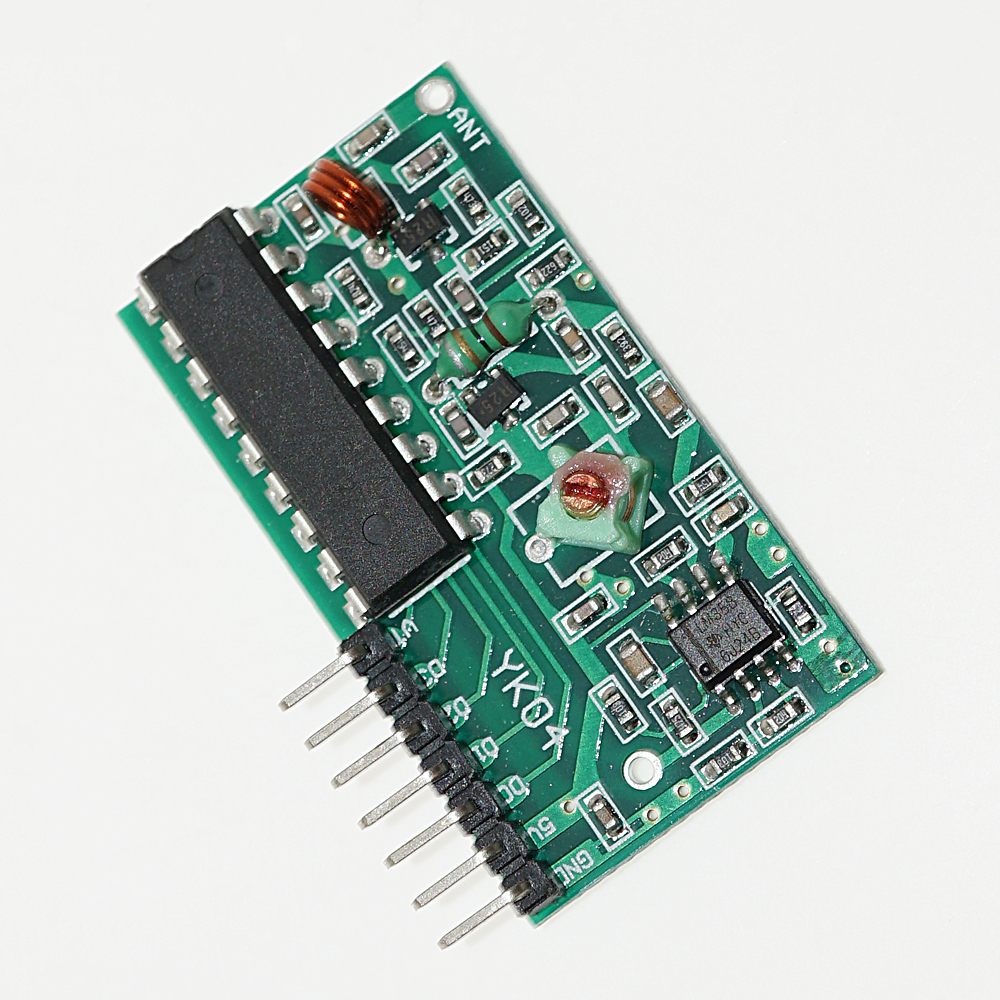

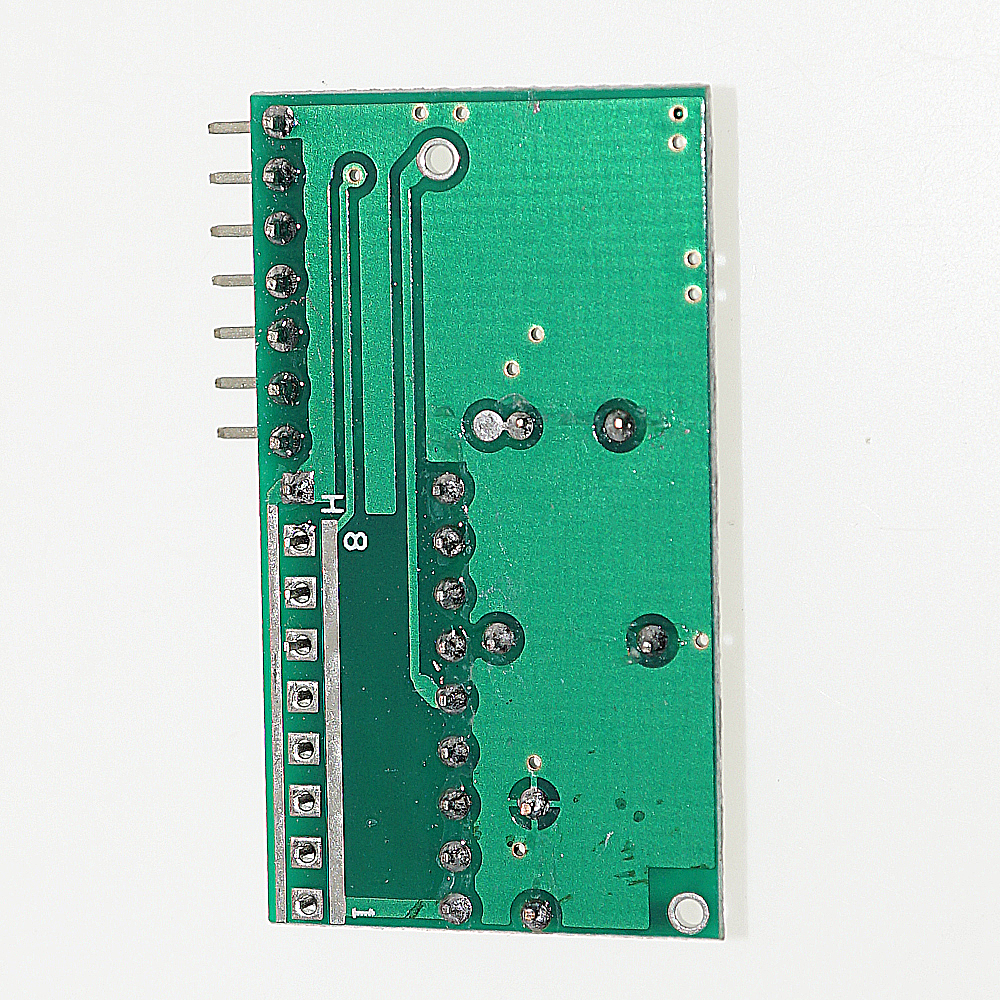

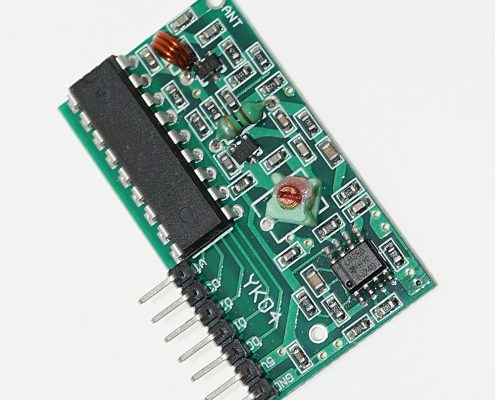

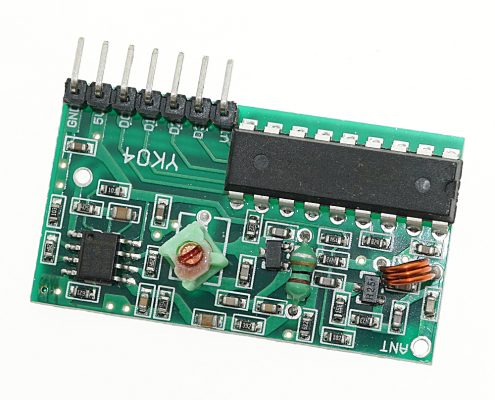

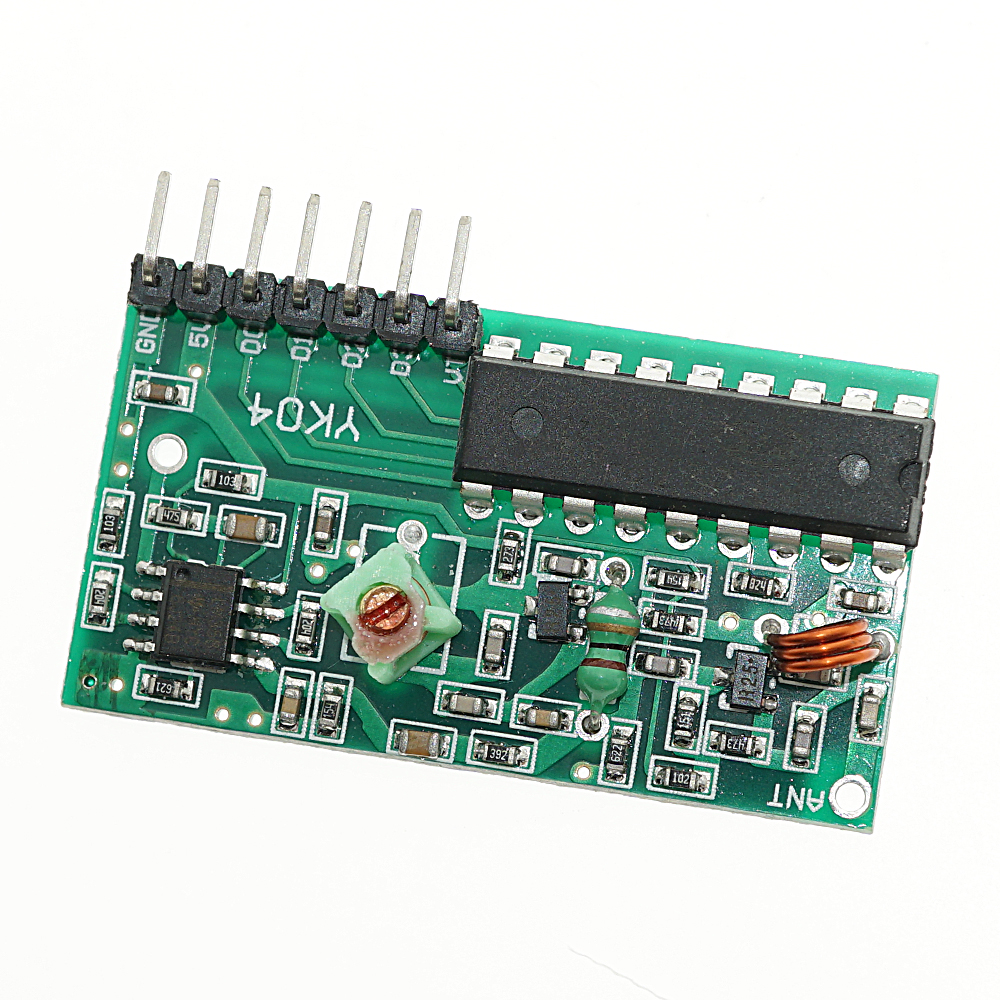

With decoding receiver board

1.The operating voltage DC5V, receiver sensitivity is-98db. Leg 7 bits, respectively, VT, D3, D2, D1, D0, the +5 V and GND. VT is a valid signal high output pin Upon receiving a valid signal, the pin output high, may also drive the relay.

2.Size: 6*22*41mm
