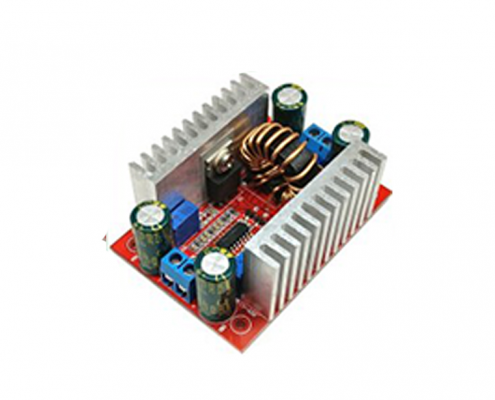

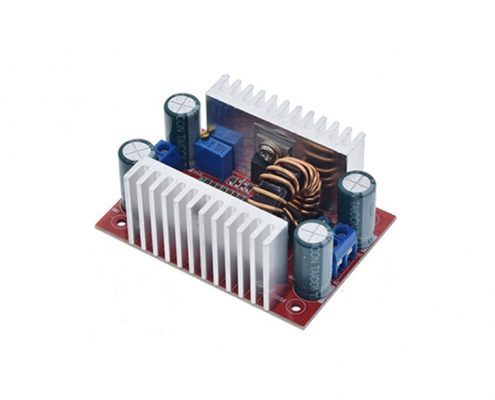

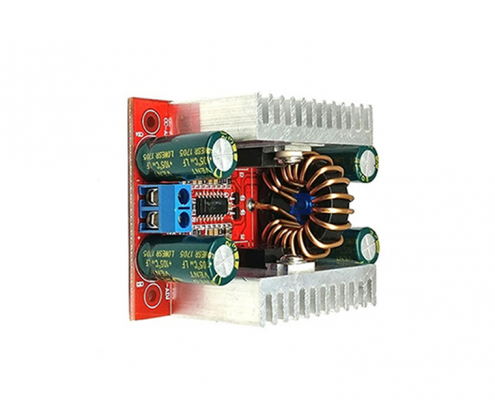

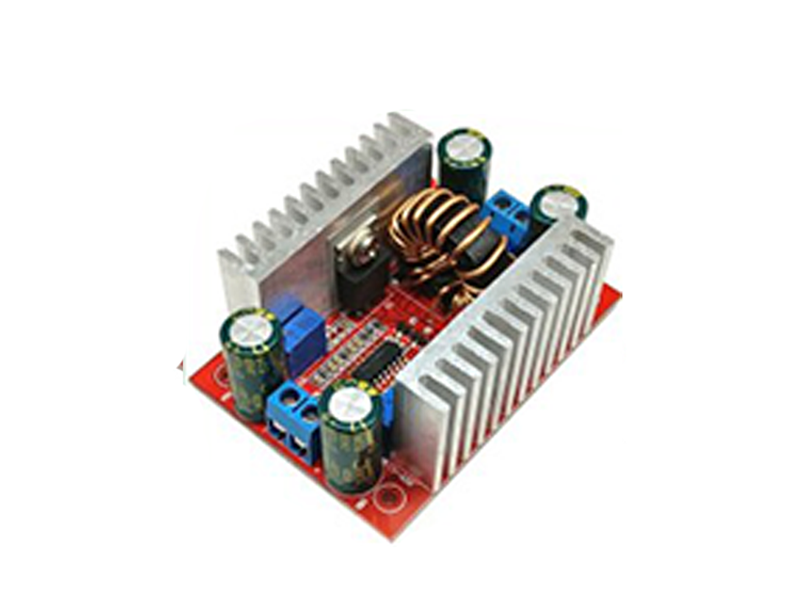

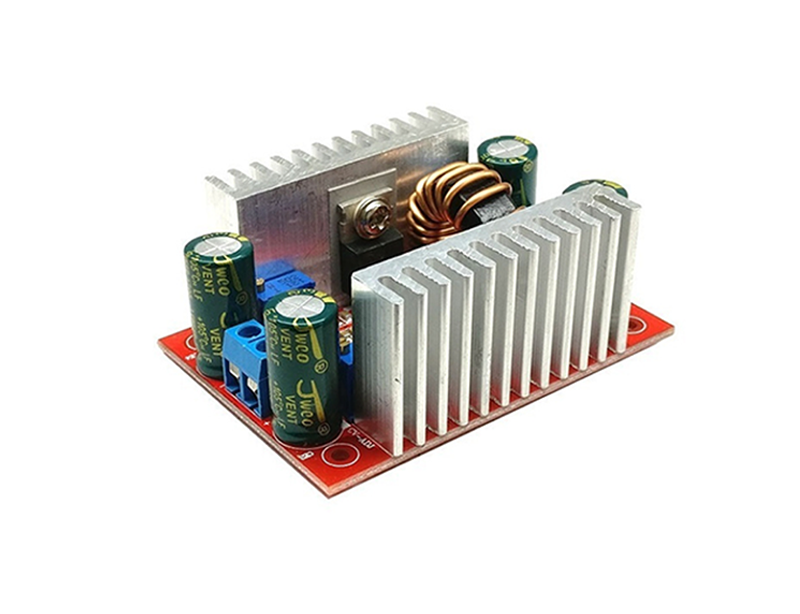

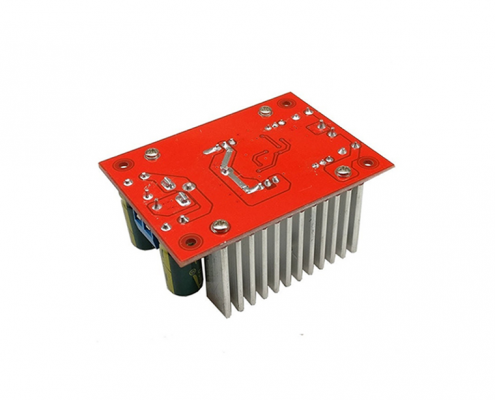

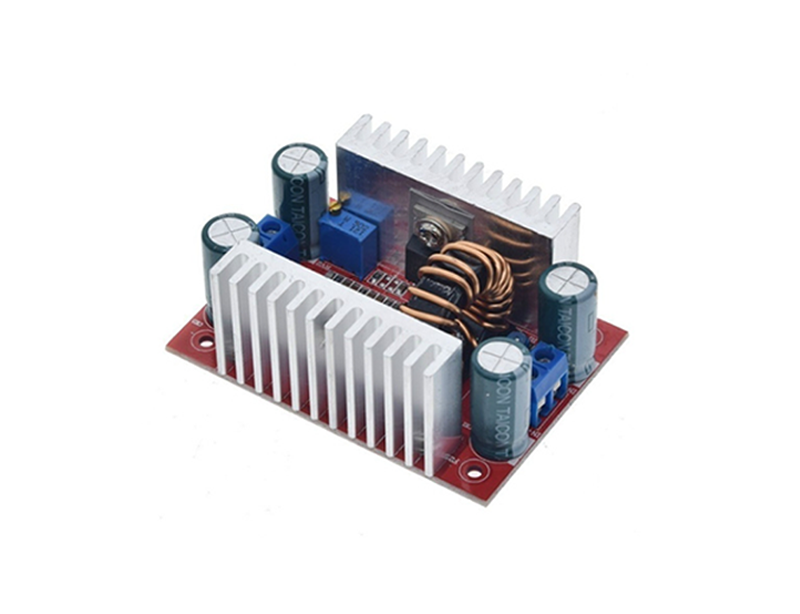

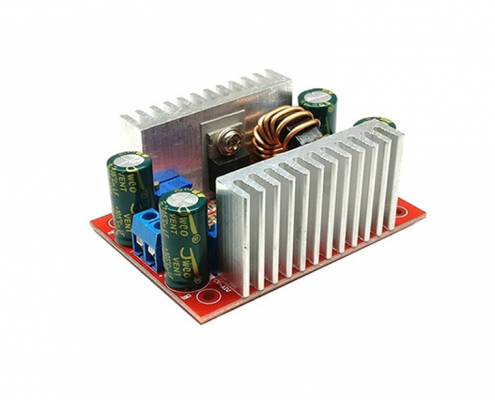

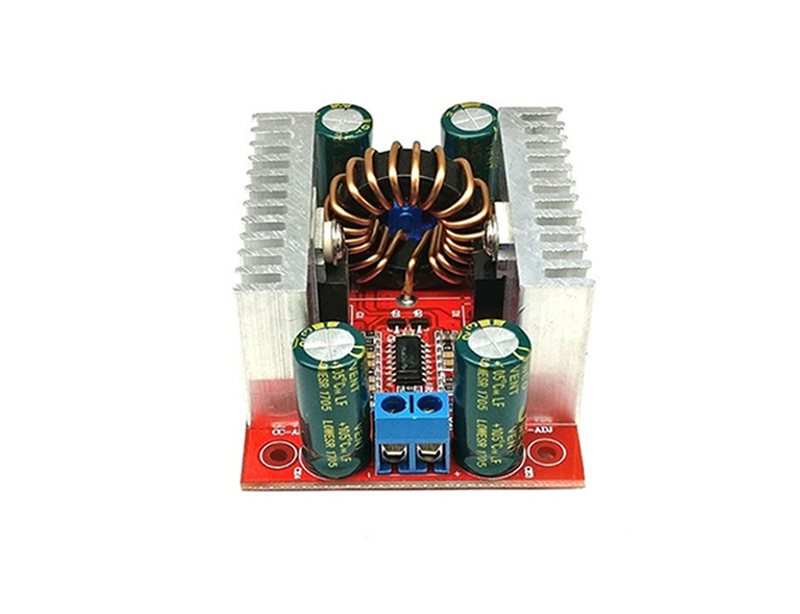

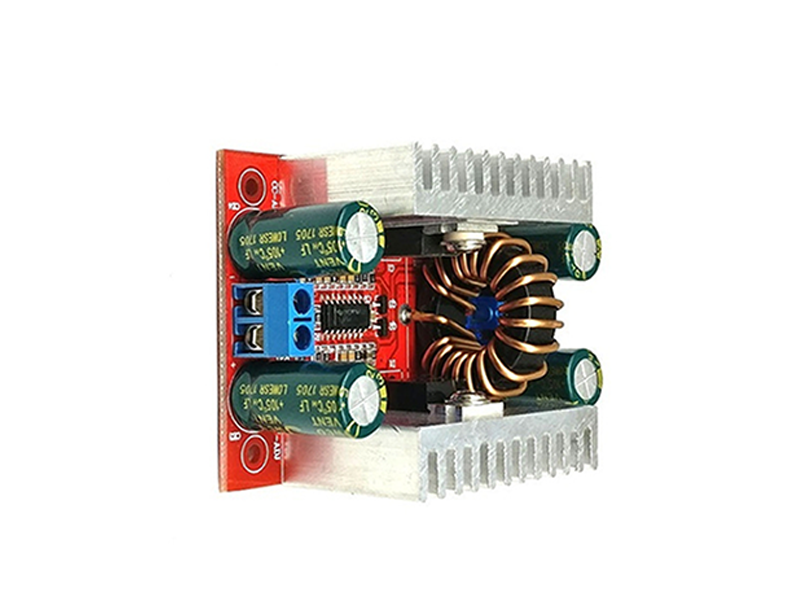

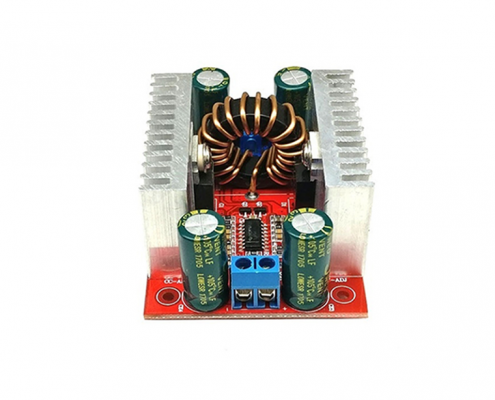

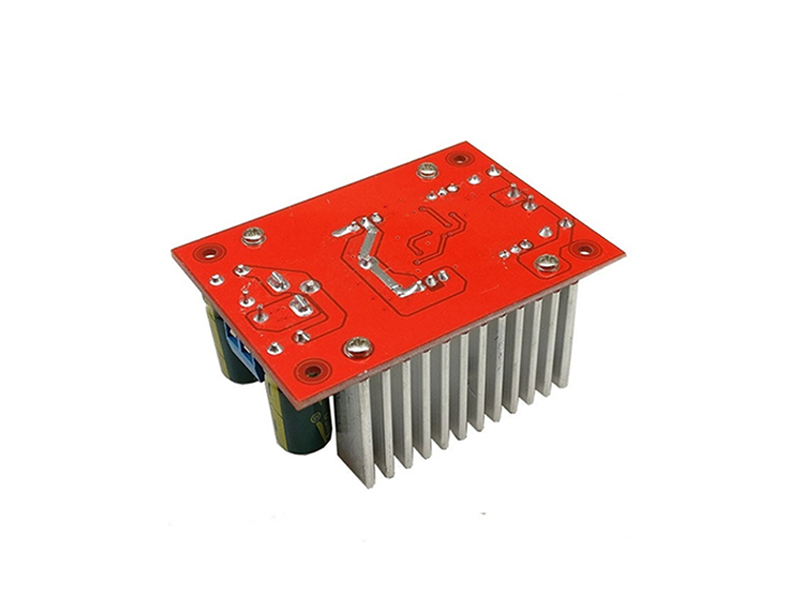

Product Model:OKY3498-5
DC 400W 15A Boost Converter Constant Current Power Supply Led Driver 8.5V To 50V To 10V To 60V Voltage Charger Step Up Module
Product Description
1.Module properties: non-isolated step-up module (BOOST)
2.Input voltage: DC8.5V To 50V
3.Input current: 15A (MAX) exceeds 8A please enhance heat dissipation
4.Quiescent current: 10mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)
5.Output voltage: 10V To 60V continuously adjustable
6.Constant] range: 0.2A To 12A
7.Temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
8.Operating frequency: 150KHZ
9.Conversion efficiency: Up to 96%
10.Over current protection: YES
11.Input reverse polarity protection: no Installation: 4 2.55mm screw holes
12.Connection method: Connection Output
13.Module size: 67MM*48MM*28MM
