5V/12V/24V 8 Channel Relay Module Supportthe high and low level trigger–OKY3015-1

Product Model: OKY3015-1

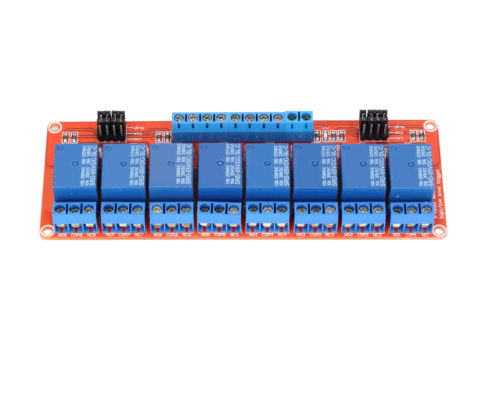

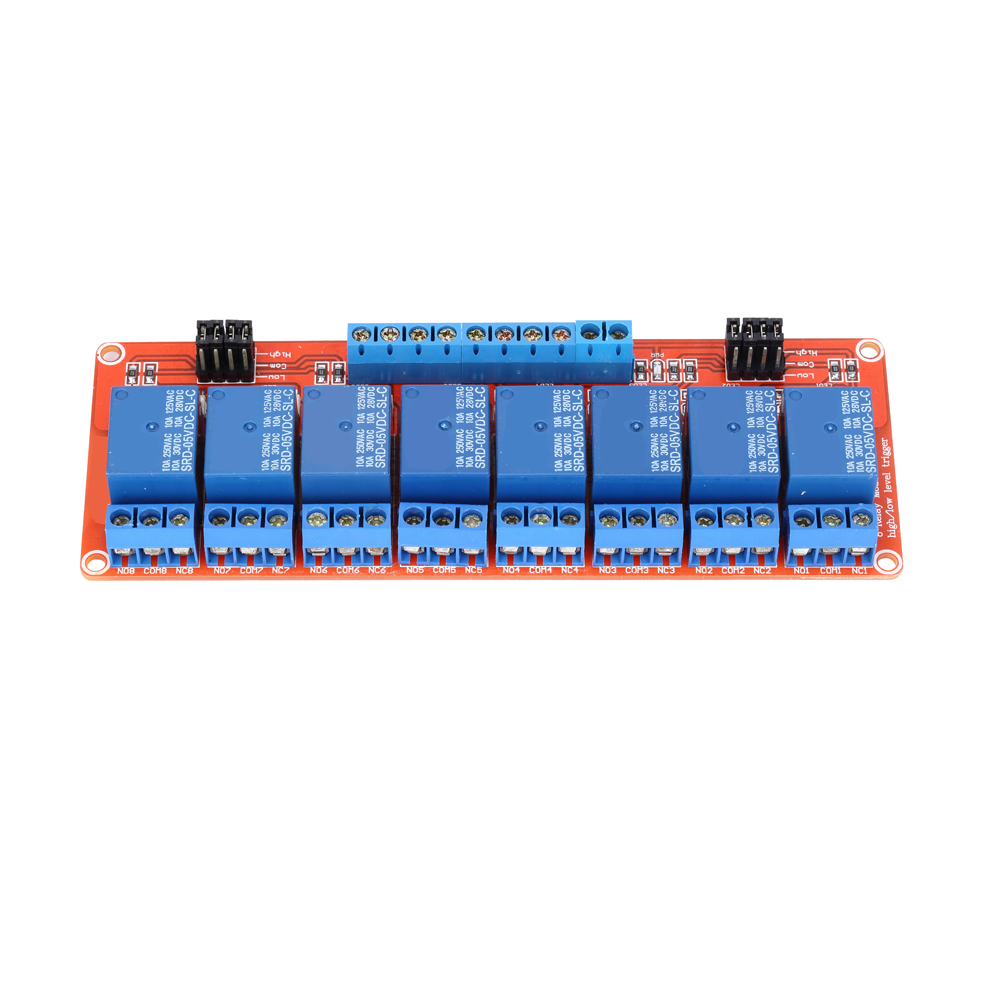

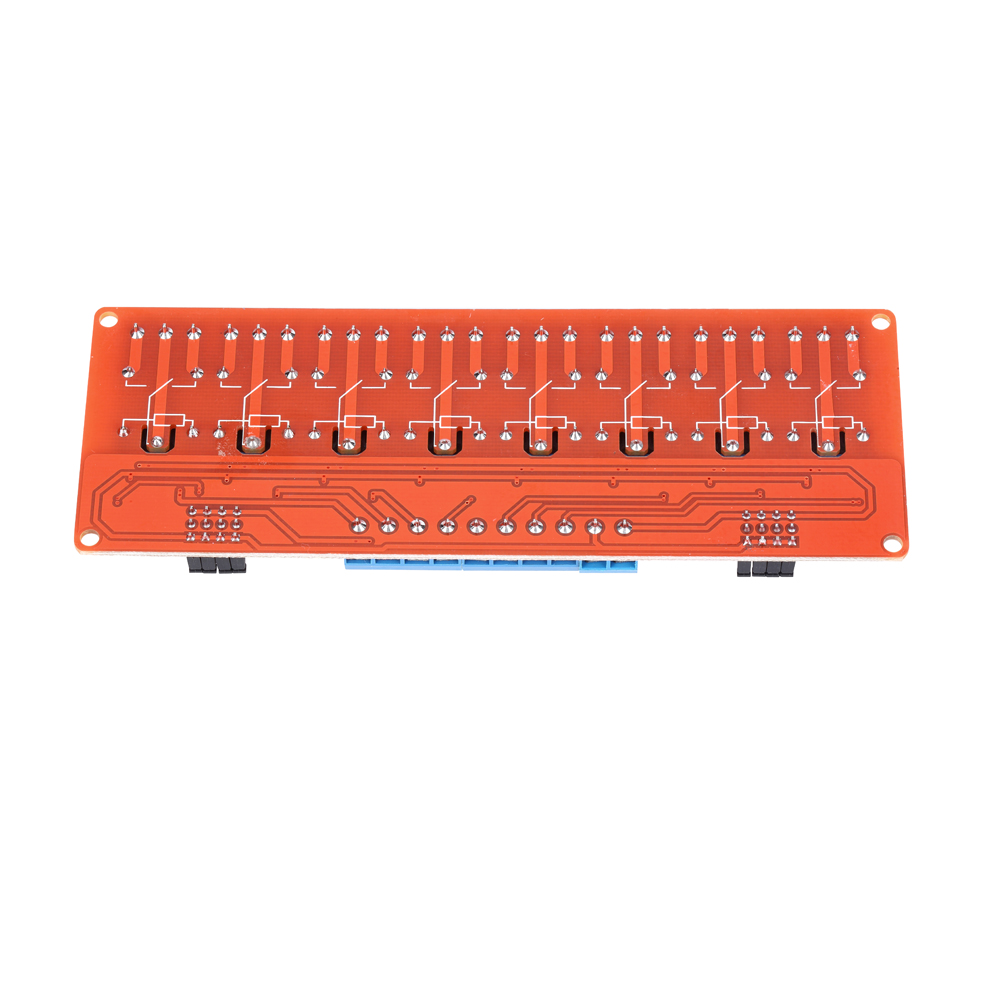

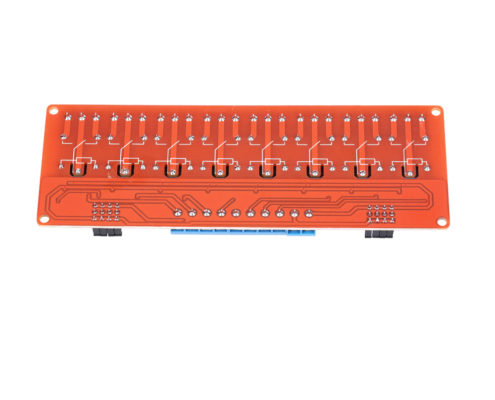

5V/12V/24V 8 Channel Relay Module Supportthe high and low level trigger

Product Description

1, the module uses genuine quality relay, normally open interfaces Maximum load: AC 250V / 10A, DC 30V / 10A;
2, SMD optocoupler isolation, strong driving ability, stable performance; trigger current 5mA;
3, the module voltage 5V, 12V, 24V to choose from;
4, each channel module can be set high or low triggered by jumper;
5, fault-tolerant design, even if the control line is broken, the relay will not operate;
6, power indicator (green), 8 relay state indicator (red)
7, interface design user-friendly, all interfaces are available through the wiring terminal direct connection leads, very convenient
8, module size: 141.5mm * 50mm * 18.5mm (L * W * H)
9, has 4 mounting bolts holes, hole 3.1mm, spacing 136mm * 44.5mm

Send Inquiry

Chat Online

Call on Whatsapp

Share This Product

Product Details

Product Description

Features:
1.Dual trigger design, use a dedicated two-way driver IC.
2.Strong resist interference, use diode continued current to protect it.
3.The relay contact part adopts double cloth line for large current, safe and reliable.
4.The input and output are 5.08mm wiring terminals, wiring is more convenient, suitable for PLC control.
5.Input terminals can be arbitrarily set high and low level, the control mode is more flexible.
6.Equipped with fixing screw hole, easy to install.
7.Each way module can be set high or low triggered by jumper.

Specifications:
Size: 141.5mm * 50mm * 18.5,
Material: Metal
Mounting bolts holes: 4
Holes diameter: 3mm
Voltage: 24V
Maximum load : AC 250V/10A, DC 30V/10A

Interface:
VCC: Power end
GND: Ground strap
CTR1-CTR8: Signal input trigger

Outputs:
24 line interface, the interface can be directly connected to all leads , user-friendly.
NO1-NO8: normally open relay interfaces , relay before the vacant after the pull shorted with COM
COM1-COM8: Relay Common Interface
NC1-NC8: normally closed relay interface relay shorted with COM ago , after the pull- vacant

Package Included:
1x 8 Channel Relay Module
