Module interface:
Input section:
DC +: positive power supply (relay voltage power supply)
DC-: connect power negative
CH1: 1 signal to trigger the end of the relay module (low level trigger valid)
CH2: 2-way relay module signal triggering end (low level trigger valid)
CH3: 3 relay module signal triggering end (low level trigger valid)
CH4: 4-channel relay module signal triggering end (low level trigger valid)
CH5: 5-way relay module signal triggering end (low level trigger valid)
CH6: 6-way relay module signal triggering end (low level trigger valid)
CH7: 7-way relay module signal triggering end (low level trigger valid)
CH8: 8-channel relay module signal triggering end (low level trigger valid)
Voltage version quiescent current working current trigger voltage trigger current
1-way 5V 0mA 13.8mA 0-2.5V 2mA
2-way 5V 0mA 26.8mA 0-2.5V 2mA
3-way 5V 0mA 37mA 0-2.5V 2mA
4-way 5V 0mA 48mA 0-2.5V 2mA
5-way 5V 0mA 59mA 0-2.5V 2mA
6-way 5V 0mA 70mA 0-2.5V 2mA
7-way 5V 0mA 81mA 0-2.5V 2mA
8-way 5V 0mA 90mA 0-2.5V 2mA
Package Included:

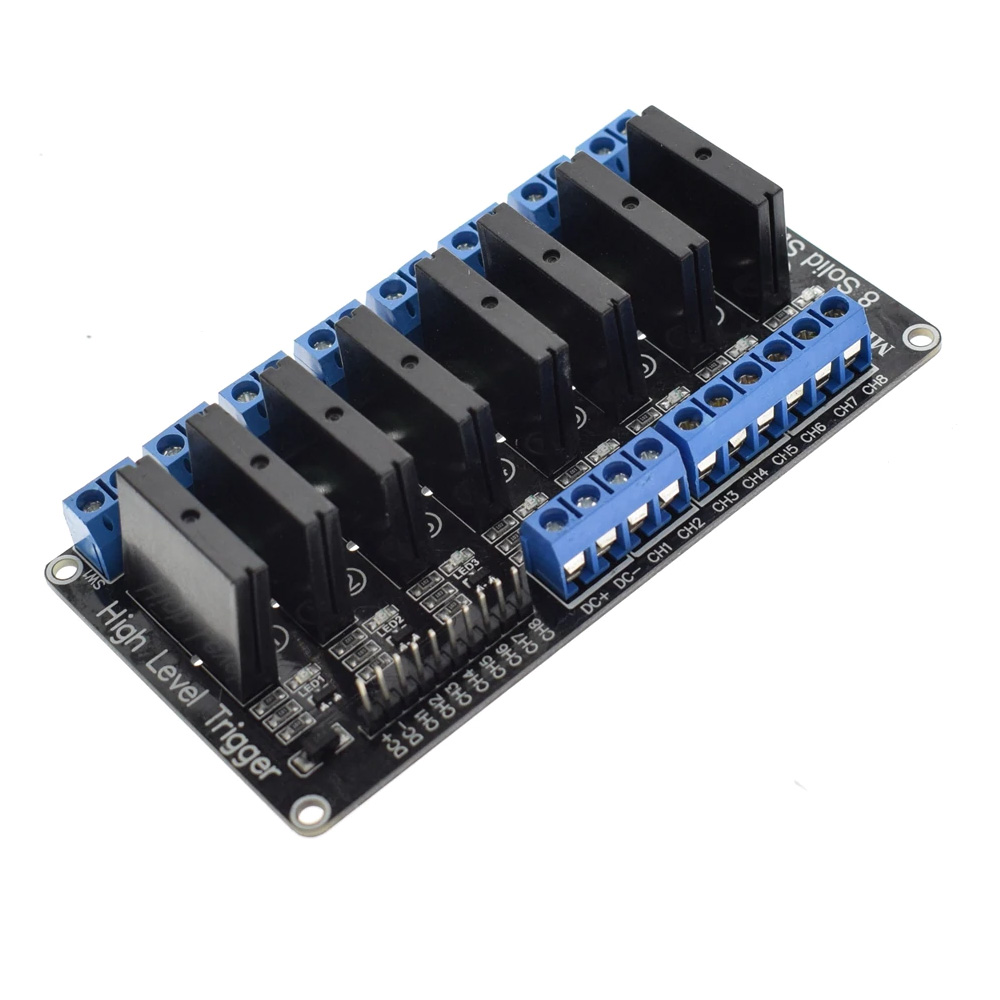

1 X 8 Channel 5V Solid State Relay Module
