700Ma 3.5W Power Supply Module Ac-Dc 220V To 5V Buck Converter Step Down Transformer-OKY3506 – OKYSTAR

OKY3506

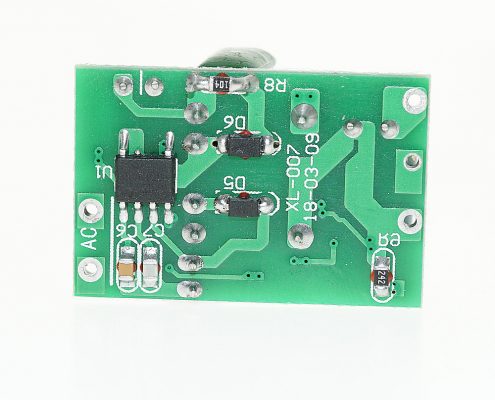

700Ma 3.5W Power Supply Module Ac-Dc 220V To 5V Buck Converter Step Down Transformer

Product Description

100% Brand New & High Quality

Input voltage: AC 85 ~ 265 v 50/60 hz or DC 100~ 370 v

Imput current: 0.0273A(AC110V) 0.014A(AC220V)

Input Inrush Current: 20A

Output voltage: DC 5V (+ / – 0.2 V)

Output current 700 mA

Power 3.5 W

Operating temperature -20~60℃

Relative humidity 40-90%RH

Output 5V, min current 0a, max current 700mA, peak current: 800mA, output range: 4.8~5.2v, ripple wave: 60mV

Call on Whatsapp

Share This Product

Product Details

Product Description

Description:

This power source for the isolation industrial-grade module power supply, temperature protection, over current protection and short circuit protection, high and low voltage isolation AC85 ~ 265 v wide voltage input, ac/dc current , 431 precision voltage stability DC5V output Small size, stable performance, cost-effective.
