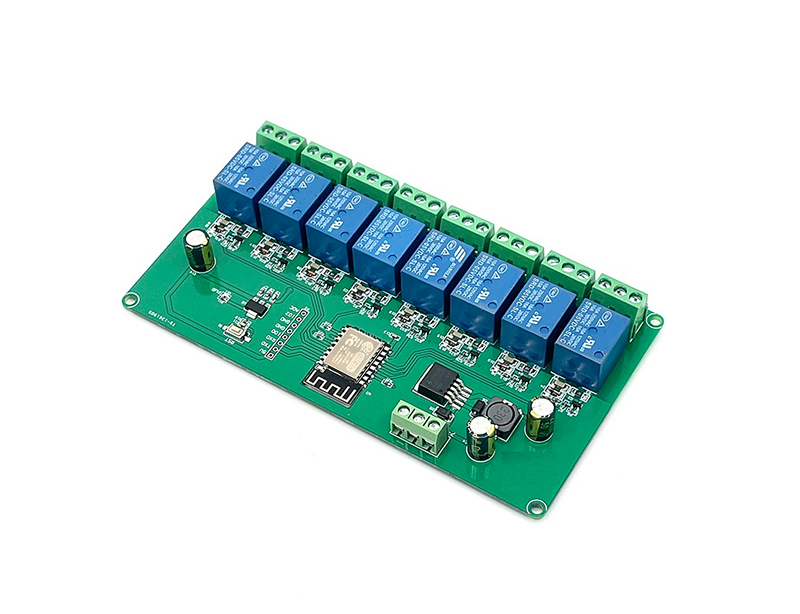

8 Channel Relay Module – OKYN3015-9 – OKYSTAR

Product Model: OKYN3015-9

5V/7-28V Wireless WIFI Module ESP8266 WIFI 8 Channel Relay Module ESP-12F Development Board Supply

Product Description

The ESP8266 eight- relay development board is equipped with ESP-12F WiFi module and supports DC7-28V/5V supply.
Provide development environment reference code,suitable for ESP8266 secondary development learning,smart home wireless control and other occasions.
On-board mature and stable ESP-12F WiFi module,large capacity 4M Byte Flash;
The supply mode supports DC7-28V/5V;
The onboard WiFi module RST reset button;
ESP-12F supports the use of Eclipse IDE and other development tools,and provides reference programs under the development environment;
There are 8 5V relays on board,outputting switch signals,suitable for controlling loads whose working voltage is within AC 250V/DC30V;
Onboard indicator and relay indicator.

Call on Whatsapp

Share This Product

Product Details

Product Description

Specification:

Board size:149 * 80mm
Weight:140g
Model Number:ESP8266 WIFI 8 channel
NC:Normally closed, the relay is short-connected with COM before it is closed,and it is suspended after it is closed
NO:Normally open end, the relay is suspended before being closed, and shorted to COM after being closed

Package Including:

1 * WIFI 8 Channel Relay Module
