ACS712 Current Sensor DC Current Sensor – OKY3311 – OKYSTAR

Product Model: OKY3311

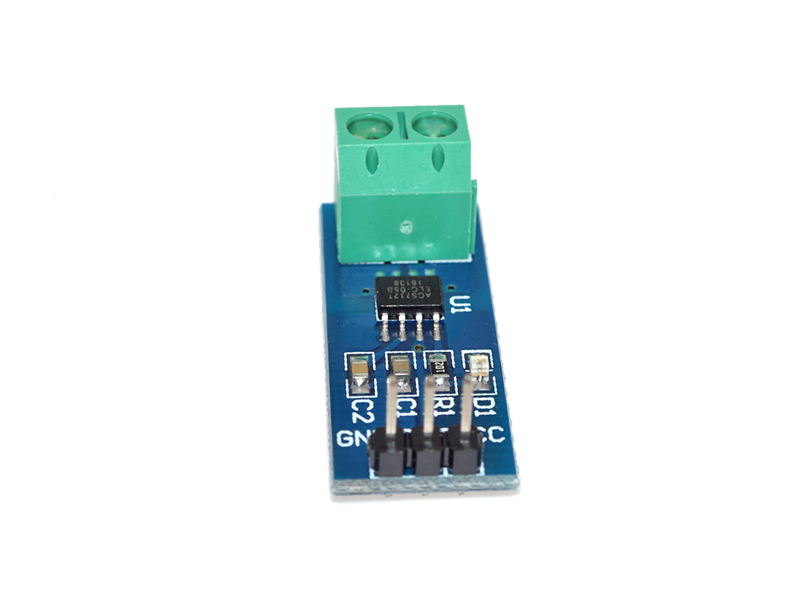

5A ACS712 DC Current Sensor Module ACS712 Current Detect Range for Arduino

Product Description

Chip: ACS712ELC-05B
Pin 5V power supply, on-board power indicator;
Module can measure the positive and negative 20 amps, corresponding to the analog output 100mV / A
When electric current is not detected by the voltage output is VCC / 2
PCB board size: 31 (mm) x13 (mm)

Call on Whatsapp

Share This Product

Product Details

Product Description

Chip: ACS712ELC-05B
Pin 5V power supply, on-board power indicator;
Module can measure the positive and negative 20 amps, corresponding to the analog output 100mV / A
When electric current is not detected by the voltage output is VCC / 2
PCB board size: 31 (mm) x13 (mm)

Product Features

1.The current sensor chips: ACS712ELC-05B;
2.Pin 5V power supply, on-board power indicator;
3.The module can measure the positive and negative 5 amps, corresponding to the analog output 185mV / A;
4.No test current through the output voltage is VCC / 2;
5.PCB board size: 31 (mm) x13 (mm);

Note: ACS712 is based on the principle of the Hall test, please use this field to avoid an impact
