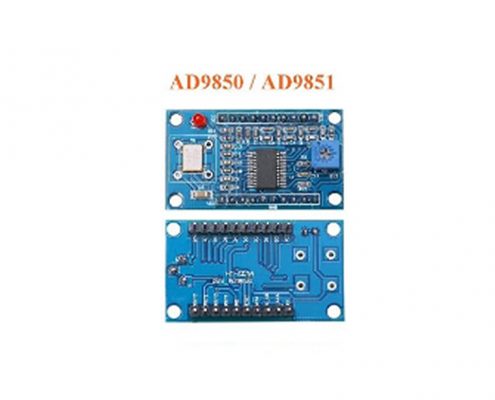

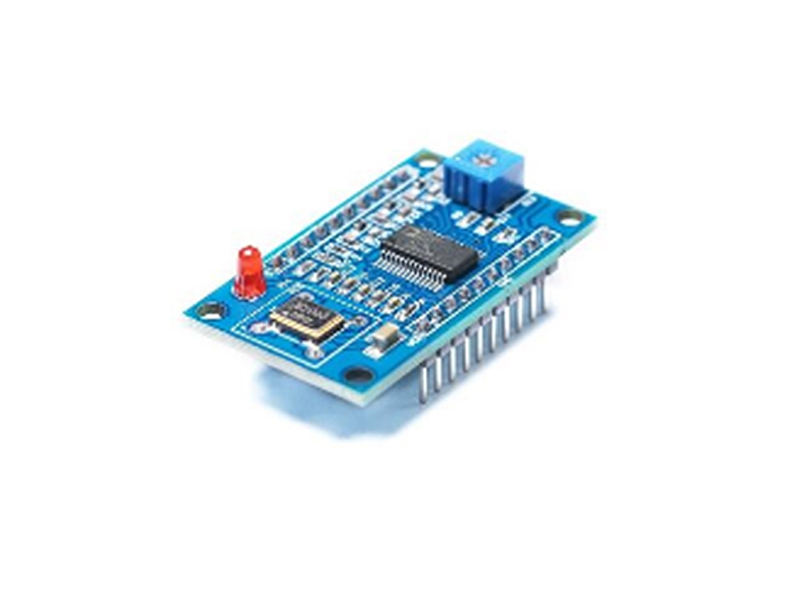

Product Model:OKN424-29
70MHz Sine Wave IC 30MHZ Crystals AD9851 DDS Signal Generator
Product Description
1.Direct Digital Synthesizer (DDS) is actually a frequency divider: divide the system clock (SYSTEM CLOCK) by programming the frequency control word to generate the required frequency.
2.DDS has two outstanding features. On the one hand, DDS works in the digital domain. Once the frequency control word is updated, the output frequency will change accordingly and its frequency hopping rate is high. Higher), high frequency resolution.
3.The internal structure of DDS is mainly divided into 3 parts: phase accumulator, phase amplitude conversion, digital-to-analog converter (DAC).
Product Details
Description:
1.Direct Digital Synthesizer (DDS) is actually a frequency divider: divide the system clock (SYSTEM CLOCK) by programming the frequency control word to generate the required frequency.
2.DDS has two outstanding features. On the one hand, DDS works in the digital domain. Once the frequency control word is updated, the output frequency will change accordingly and its frequency hopping rate is high. Higher), high frequency resolution.
3.The internal structure of DDS is mainly divided into 3 parts: phase accumulator, phase amplitude conversion, digital-to-analog converter (DAC).
Specification:
1.AD9851: 0-70MHz
2.Square Wave: 0-1MHz
3.Model Number:AD9850
4.Type:Voltage Regulator
5.Size:3.7 * 2.2 * 0.55CM
6.Weight:25g
Package Including:

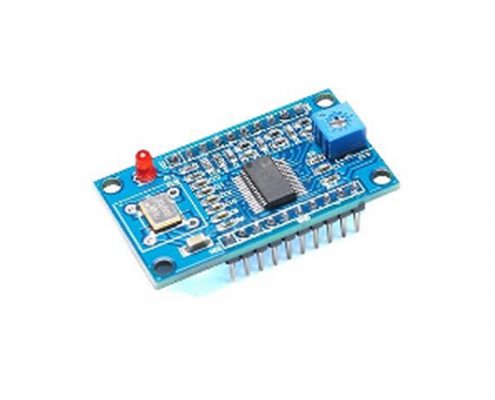

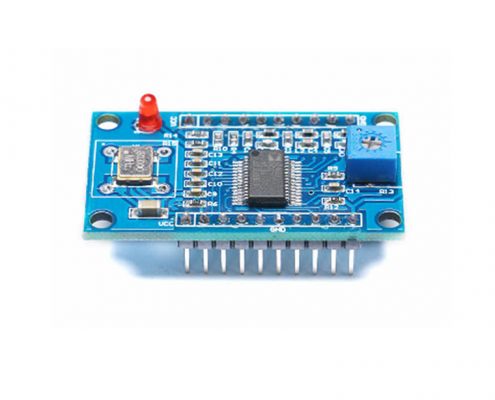

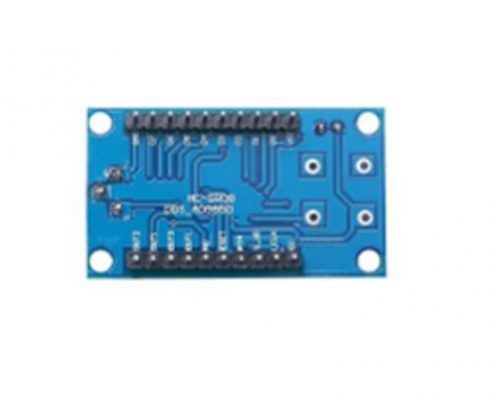

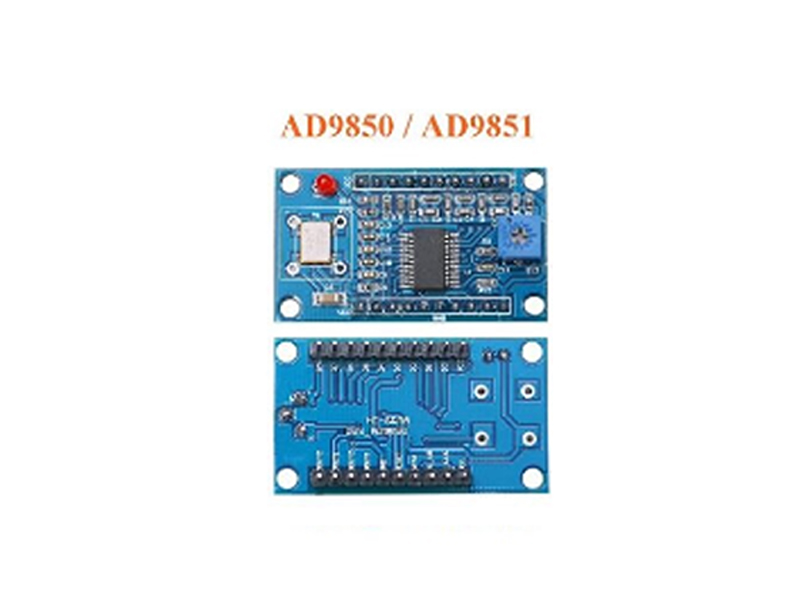

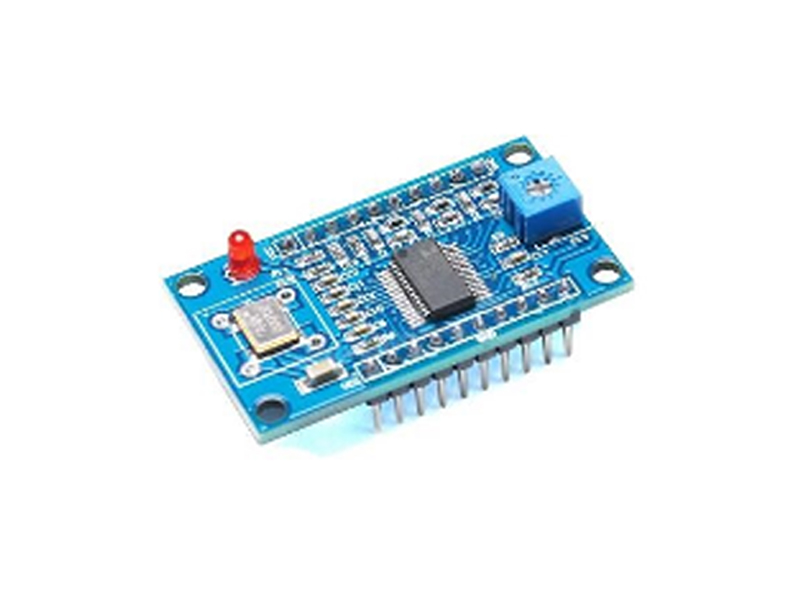

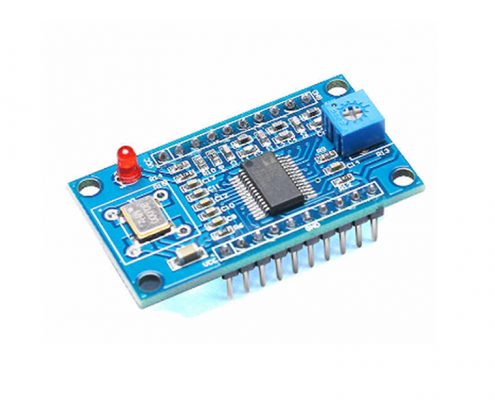

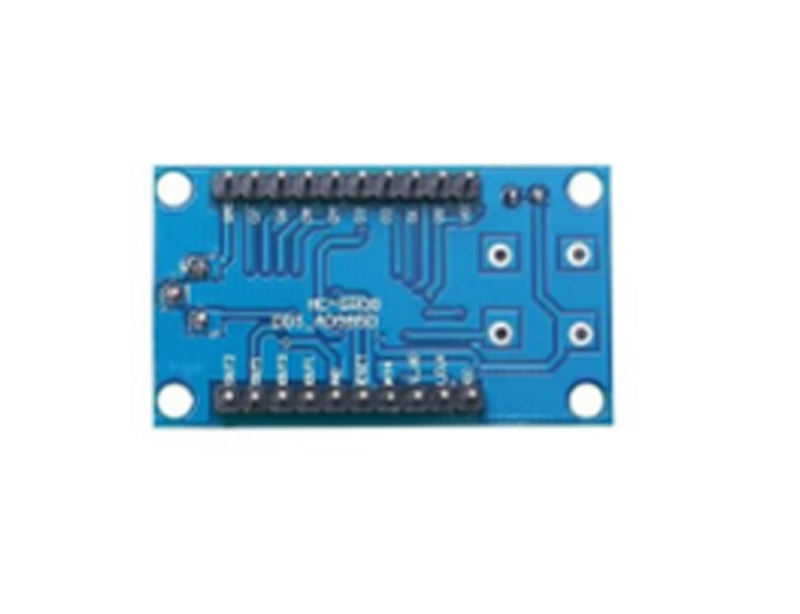

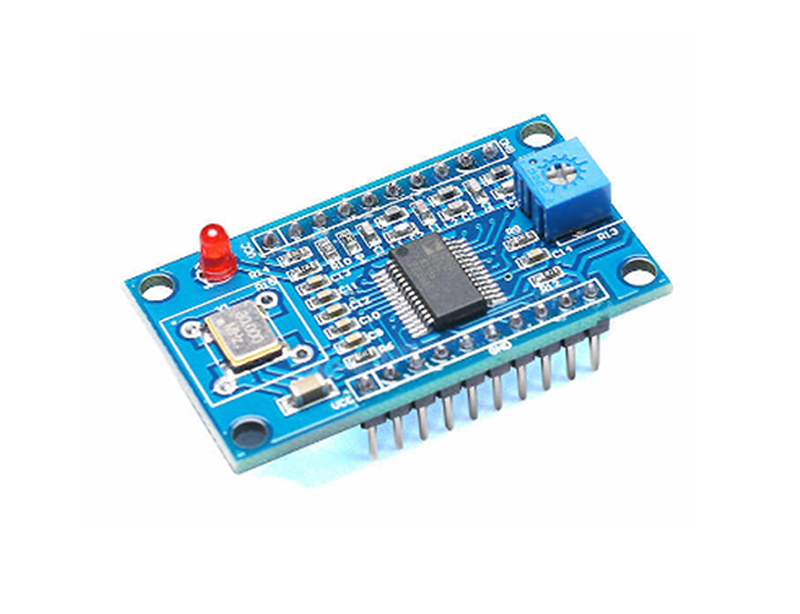

1 * AD9851 DDS Signal Generator Module
