Description:

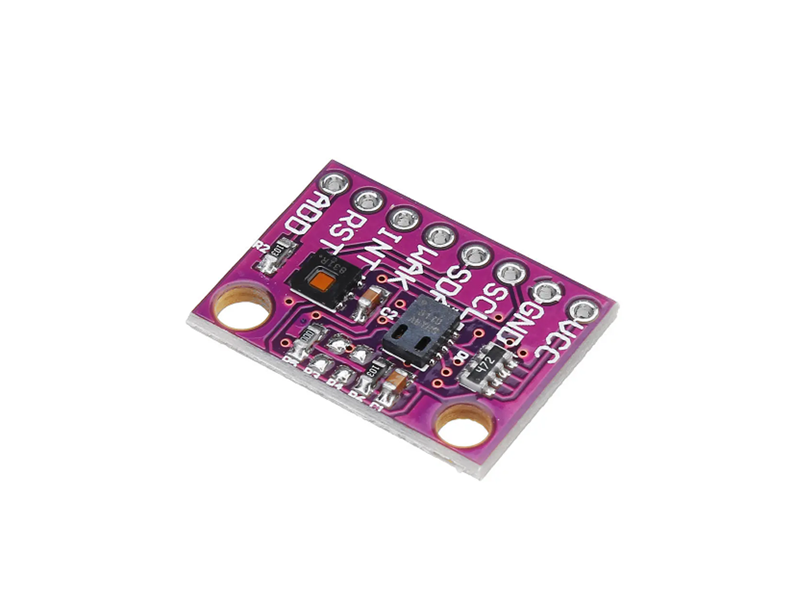

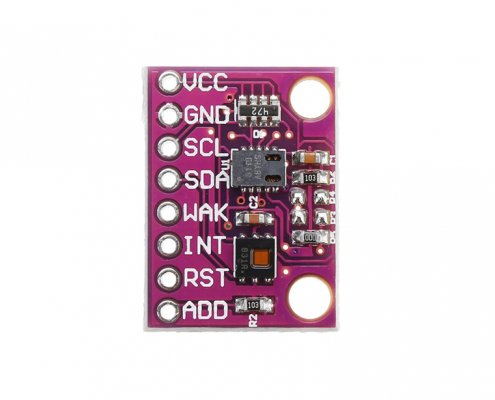

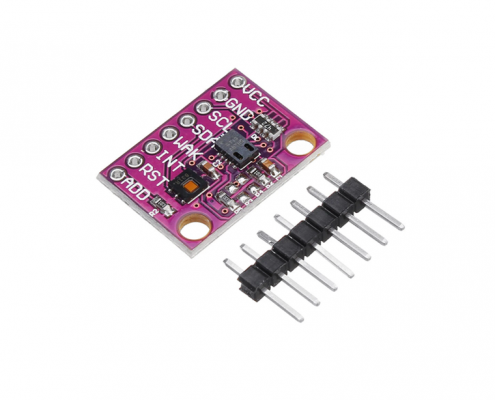

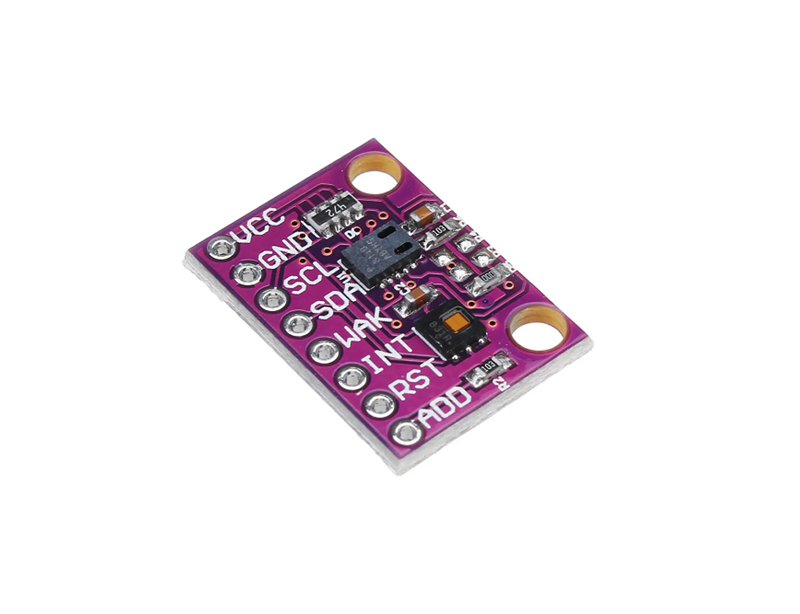

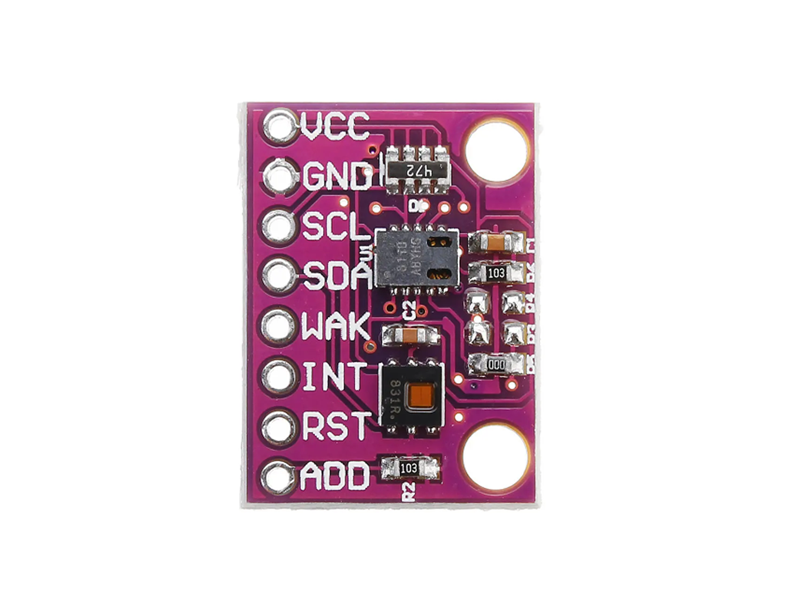

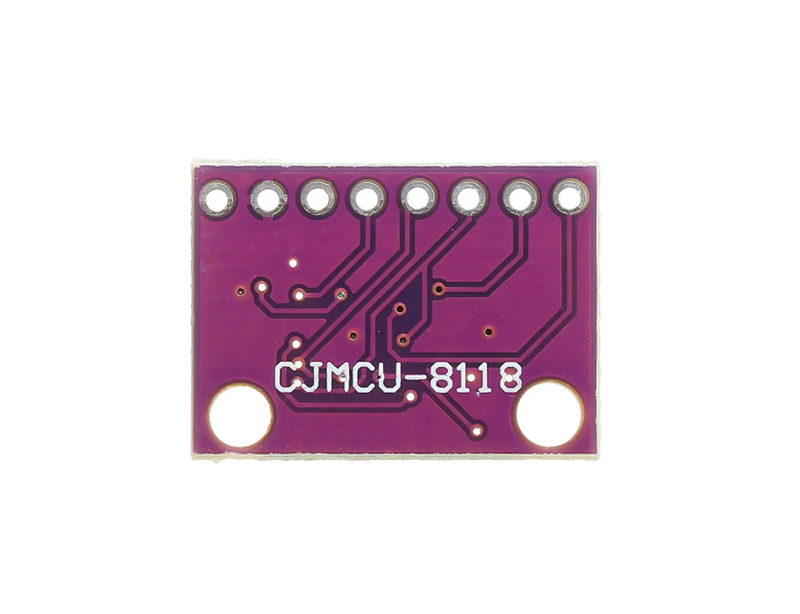

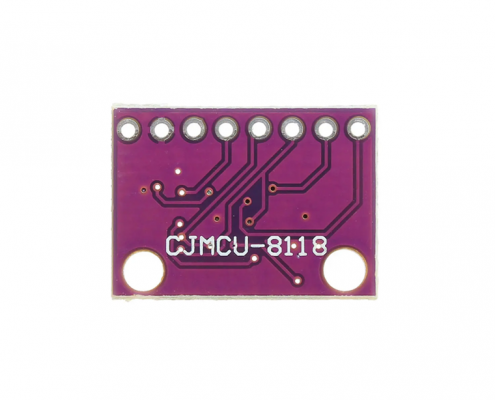

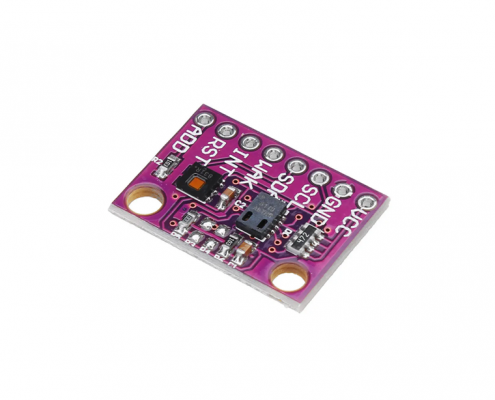

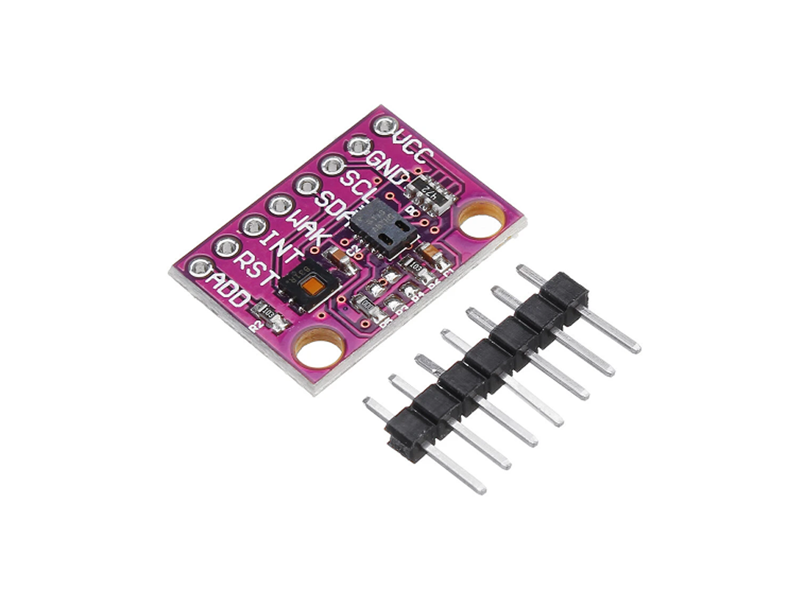

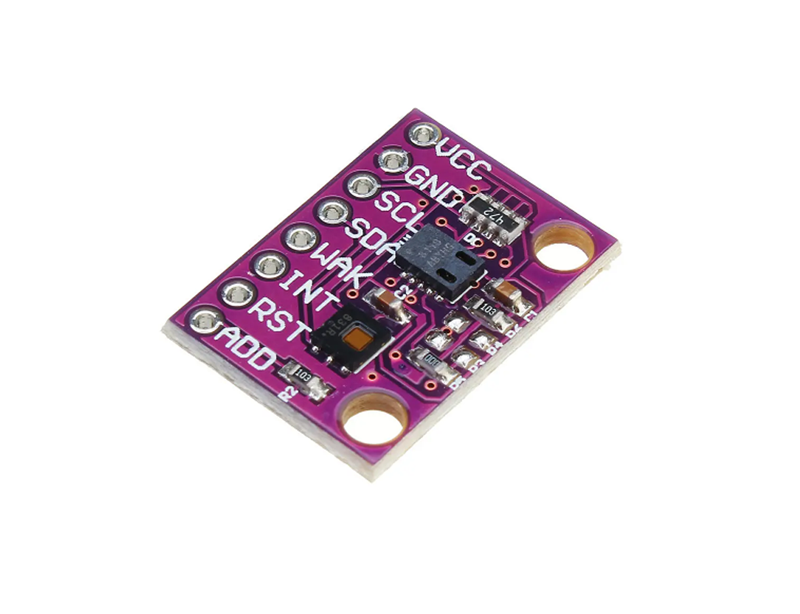

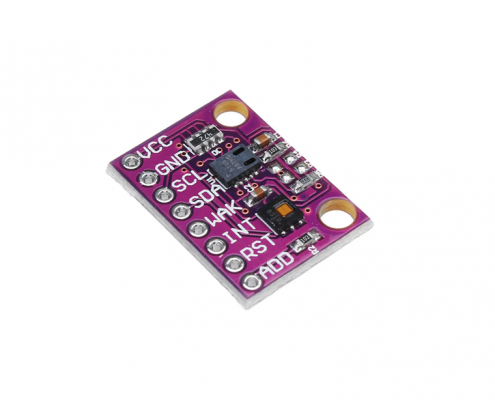

1.CJMCU-8118 a gas sensor chip system chip temperature and humidity sensor, using low-power sensing technology to detect indoor volatile organic compounds .

Integrated MCU, the sensor has an on board processing capability, without host intervention, can provide the equivalent level of carbon dioxide or total volatile organic  compounds (TVOC) index. At the same time, with the use of separate gas sensors and MCU solutions,

2.CCS811 can save equipment inventory costs as well as up to 60% of the total area of the board.

3.HDC1080 low power consumption, high precision digital humidity sensor with the temperature sensor.

4.DC1080 is a digital temperature sensor with the integrated temperature sensor, which can provide excellent measurement accuracy with ultra-low power consumption. HDC1080 supports a wide range of operating power supply voltage, and compared to competitive solutions, the device can provide a wide range of common applications with low cost and low power consumption advantages. Humidity and temperature sensors are factory calibrated.

Specification:

1.Module Size: 15 * 21MM

2.Power Supply: 3.3V

3.The Relative Humidity: 2% (typical)

4.Temperature Accuracy: + 0.2 C (typical)

5.Resolution: 14 bit

6.Sleep Mode Current: 100nA

Package Include:

1 *  Air Quality Sensor Module
