Product Model: OKY3078-1

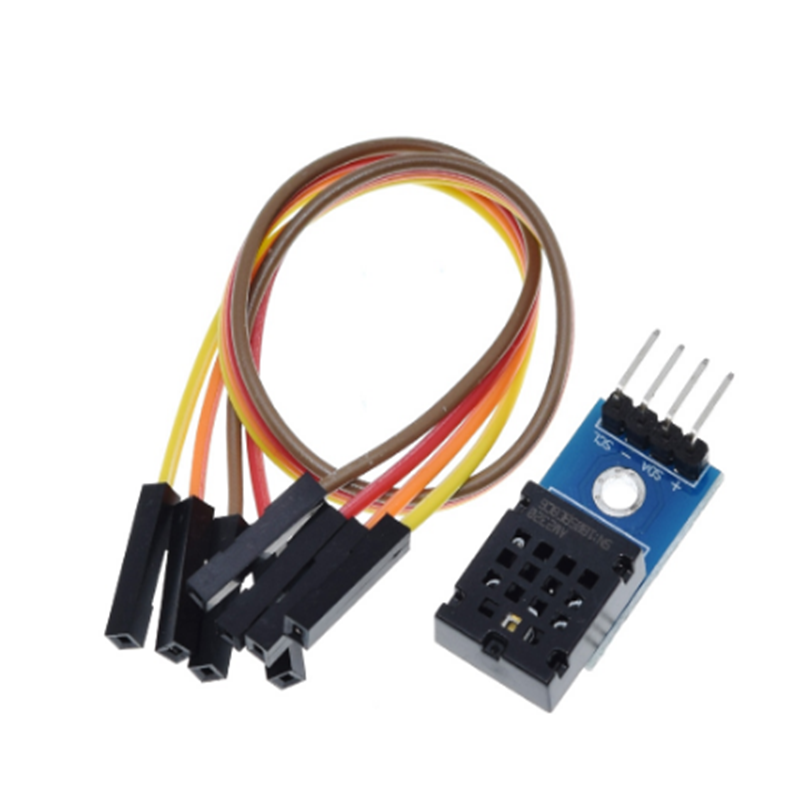

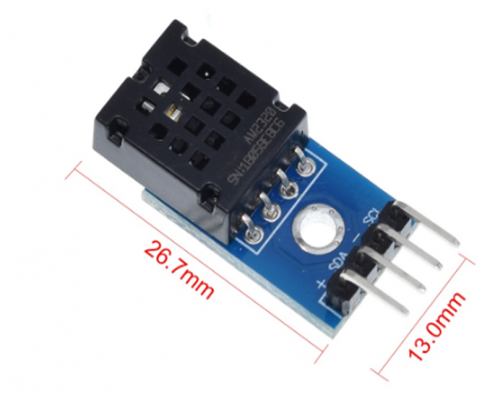

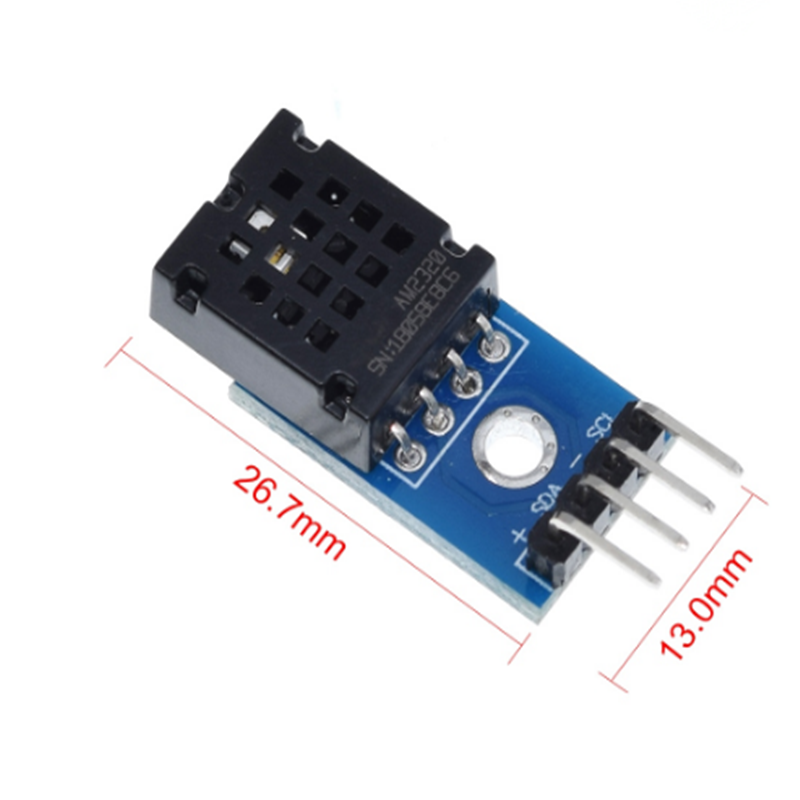

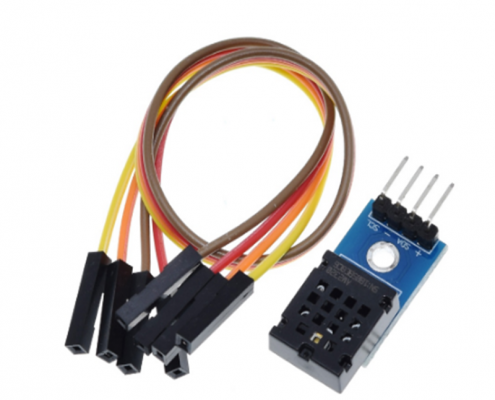

AM2320 module digital temperature and humidity sensor instead of AM2302
Product Description
100% Brand New & High Quality
- 1. Product introduction:
1). Can detect the humidity and temperature of the surrounding environment

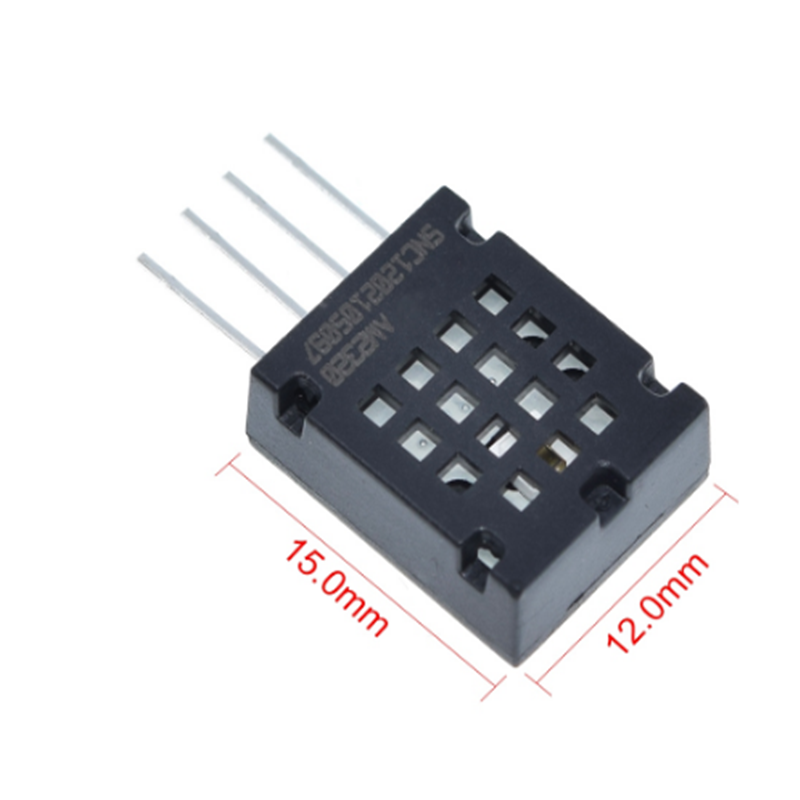

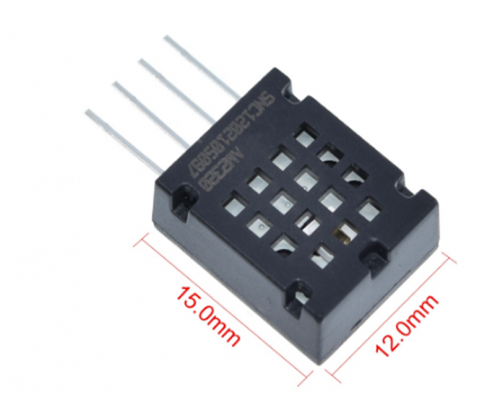

2). The sensor adopts AM2320, which supports single bus and I2C communication
3). Humidity measurement range: 0%-99.9% (40 degrees -80 degrees range) humidity measurement error: +-3%
4). Temperature measurement range: -40 degrees -80 degrees Temperature measurement error: +-0.5 degrees
5). Working voltage 3.1V-5.5V
6). Output form Digital output
7). With fixing bolt holes for easy installation

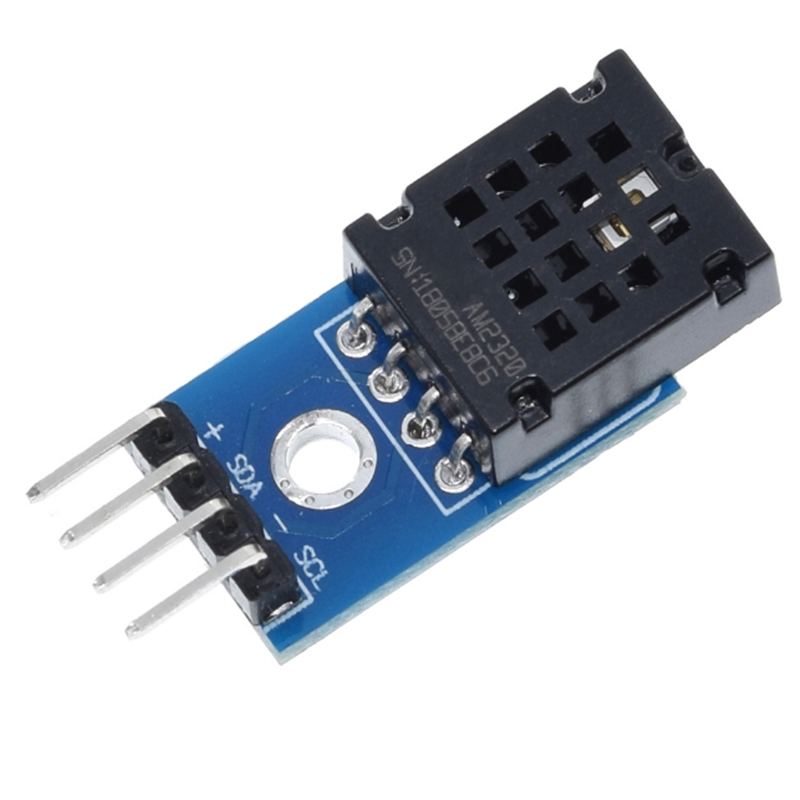

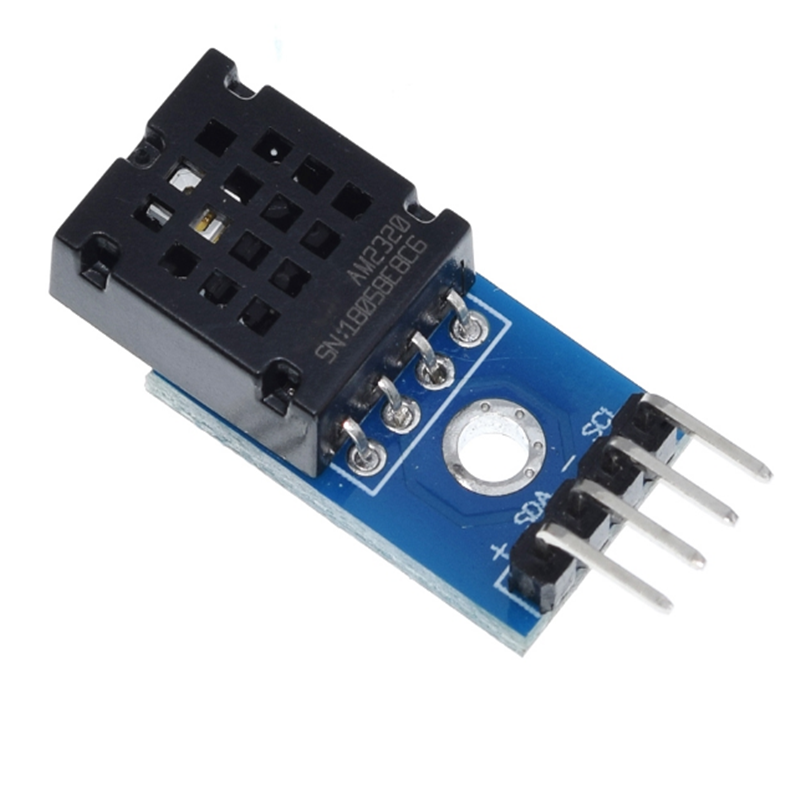

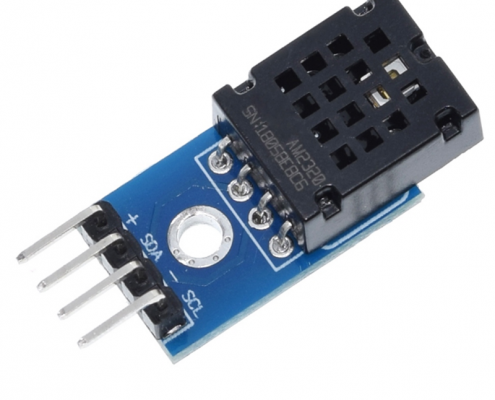

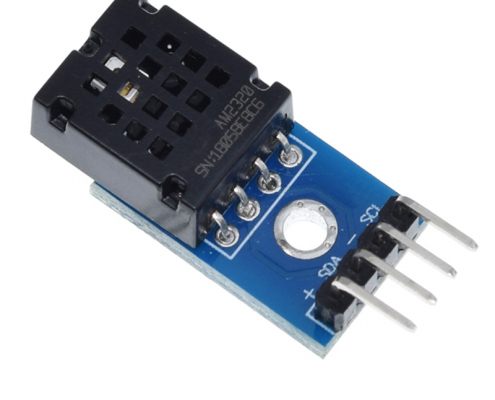

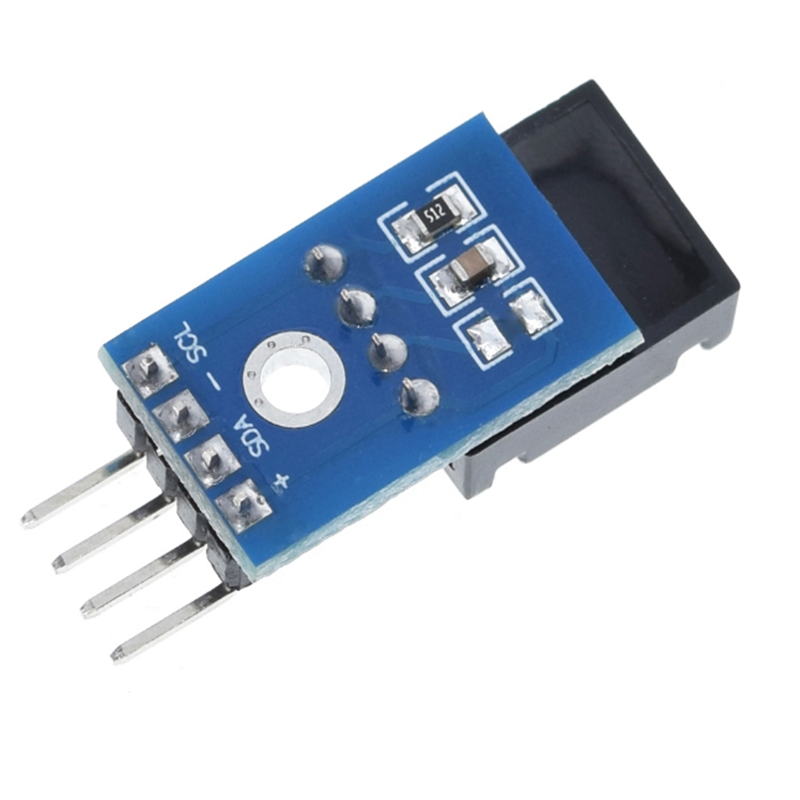

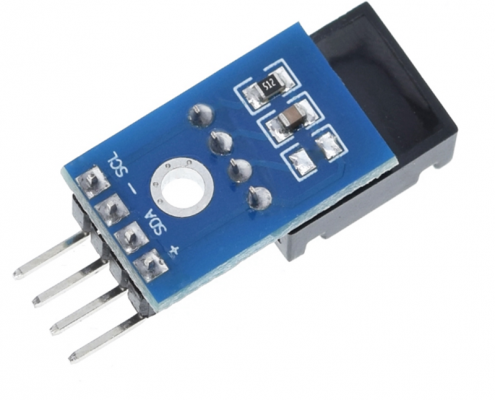

2. Module interface description (4-wire system)
1). VCC connects 3.1V-5.5V
2). SDA serial data, bidirectional port
3). GND External GND
4). SCL serial clock, input port (grounded for single bus)
