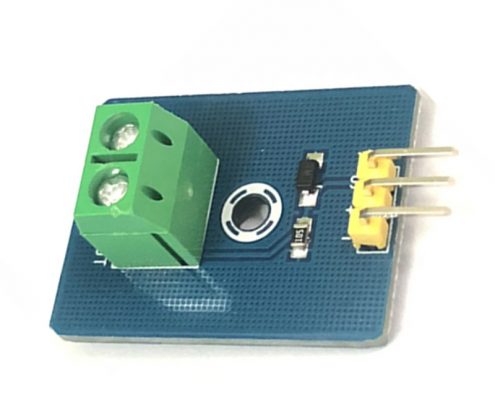

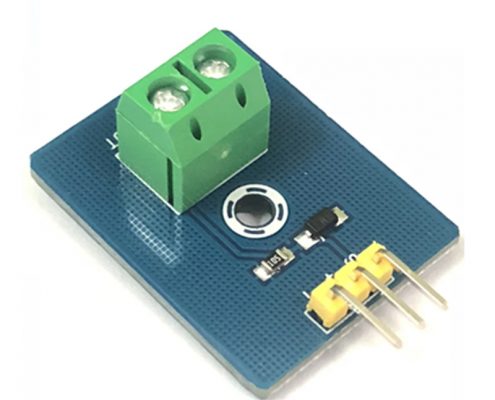

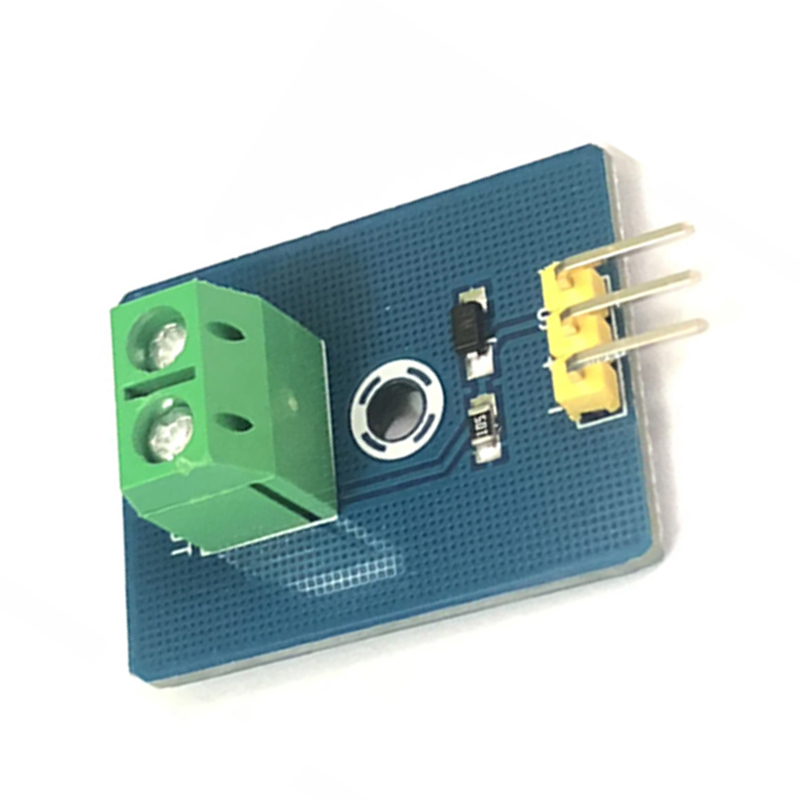

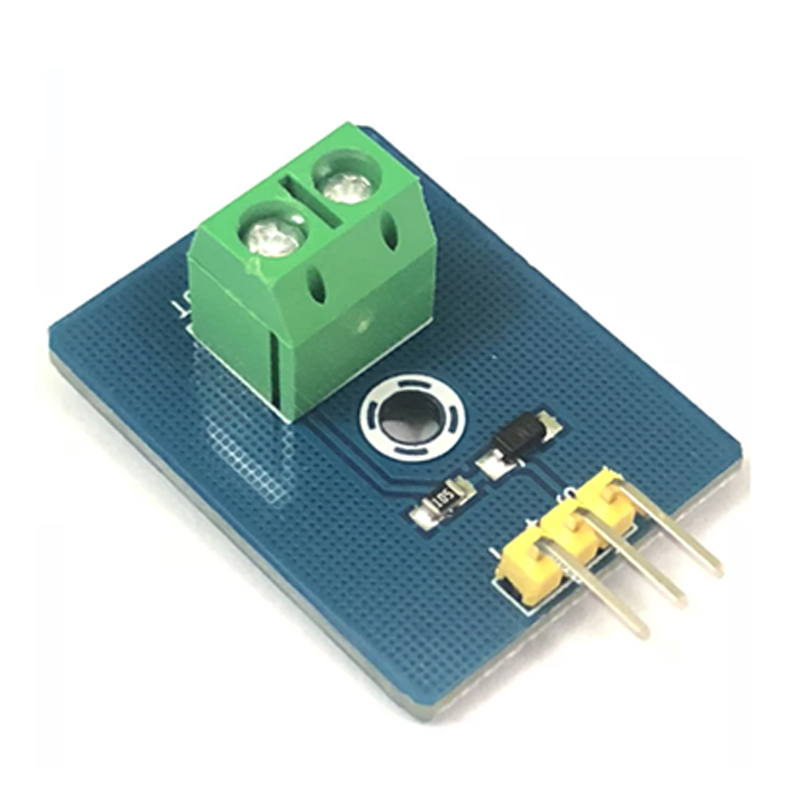

Analog Piezoelectric Ceramic Vibration Sensor — OKY3444-2 – OKYSTAR

Product Model:

OKY3444-2

3.3V 5V Analog Drum Simulate Piezoelectric Ceramic Piezo Vibration Sensor Module

Product Description

*Use the SW-420 normally closed vibration sensor produced by our company.
*Comparator output, clean signal, good waveform, strong driving ability, more than 15mA

*Working voltage 3.3V-5V

*Output form: digital switch output (0 and 1)

*With fixing bolt holes for easy installation

*Small board PCB size: 2.7cm x 1.4cm

*Use wide voltage LM393 comparator

Call on Whatsapp

Share This Product

Product Details

Product Description

Working voltage: 3.3V or 5V
Working current: <1mA
Operating temperature range: -10℃～＋70℃
Interface type: analog signal output

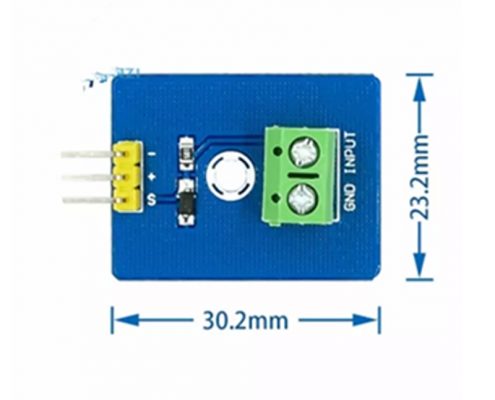

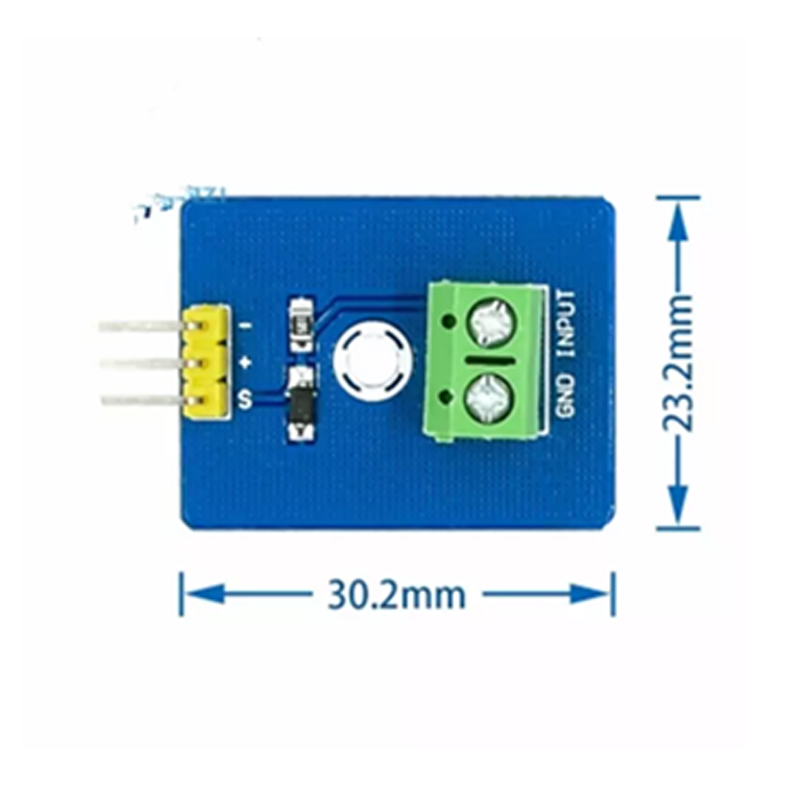

Dimensions: 30mm x 23mm
Pin definition: S signal output, + power (VCC),-ground (GND)

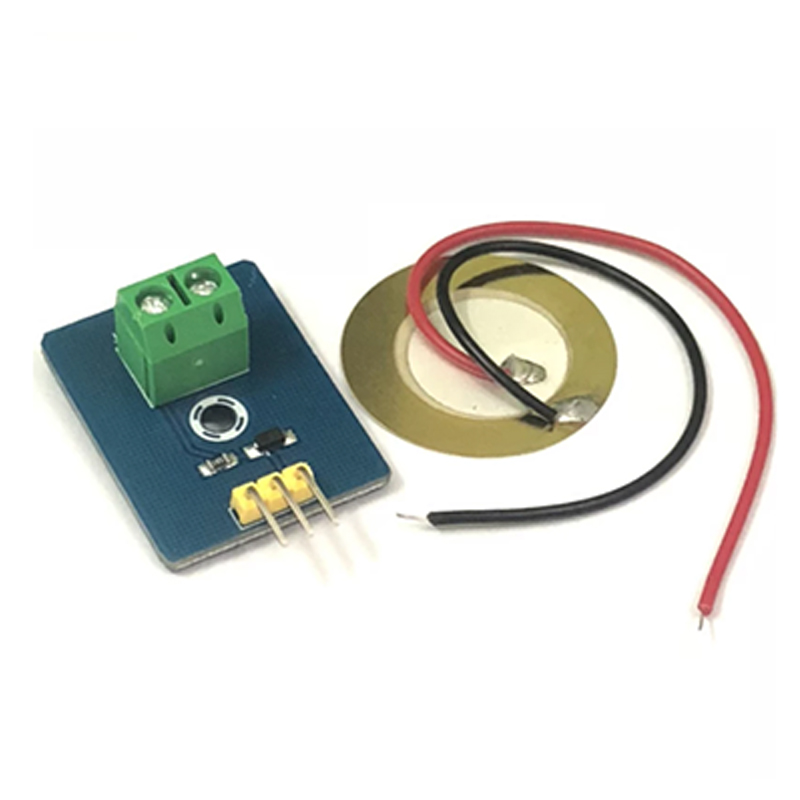

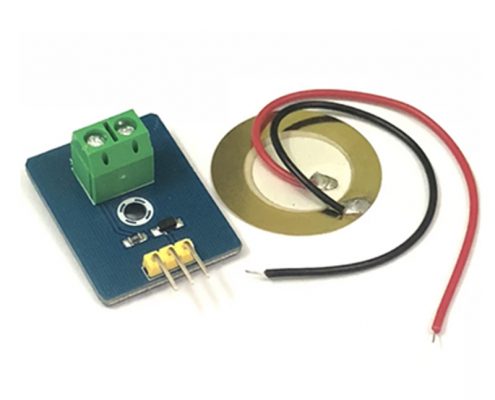

Input: the positive electrode of the piezoelectric ceramic sheet
Gnd: the negative electrode of the piezoelectric ceramic sheet
The S port is connected to the analog input pin of the controller. 5V and GND are respectively connected to +5V and GND of the power supply. When buying Input and Gnd, connect the positive and negative poles of the piezoelectric ceramic sheet.
