Product Model:OKYN41227

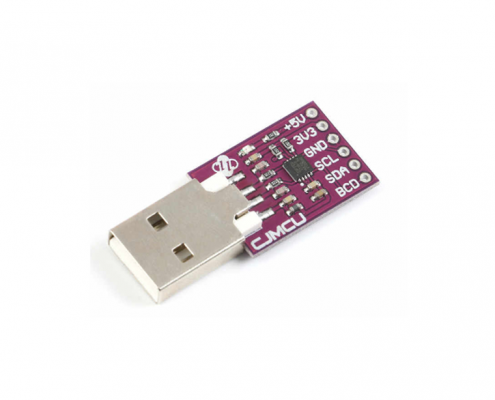

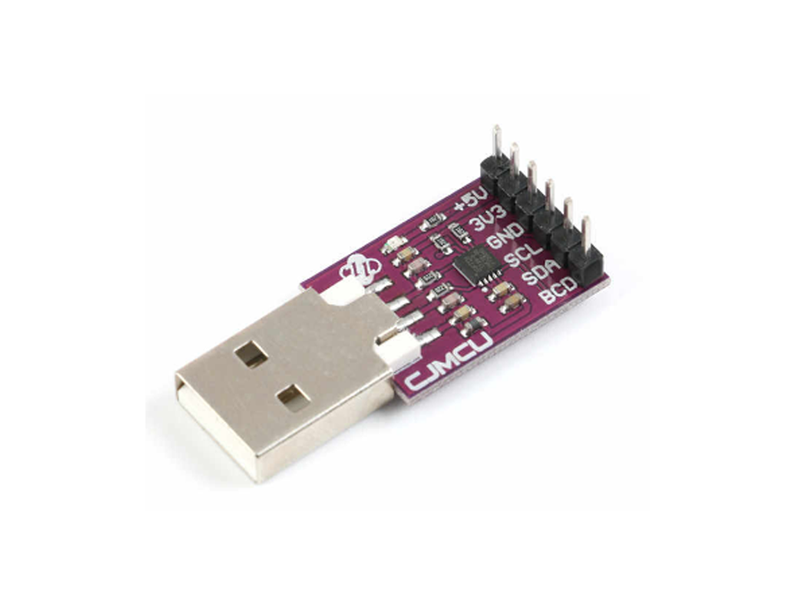

Full Speed Bridge CJMCU-200 FT200XD USB to I2C module
Product Description
1.Single chip USB to I2C interface
2.Up to 3.4MHz, high speed mode, I2C supported
3.Entire USB protocol handled on the chip, no USB specific firmware programming required
4.Fully integrated 2048 byte time-programmable(MTP) memory storing device descriptors and CBUS I/O configuration
5.Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA
6.512 byte receive buffer and 512 byte transmit
7.USB Power Configurations, supports bus-powered, self-powered and bus-powered with power switching
8.Integrated +3.3V level converter for USB I/O
9.True 3.3VCMOS drive output and TTL input, Operates down to 1V8with external pull-ups, tolerant of 5V input
10.Configurable I/O pin output drive strength, 4mA(min) and 16mA(max)
11.Integrated power-on-reset circuit
12.Fully integrated AVCC supply filtering – no external filtering required
+5V Single Supply Operation
13.Internal 3V3/1V8 LDO regulators
Product Details
Description:
1.Single chip USB to I2C interface
2.Up to 3.4MHz, high speed mode, I2C supported
3.Entire USB protocol handled on the chip, no USB specific firmware programming required
4.Fully integrated 2048 byte time-programmable(MTP) memory storing device descriptors and CBUS I/O configuration
5.Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA
6.512 byte receive buffer and 512 byte transmit
7.USB Power Configurations, supports bus-powered, self-powered and bus-powered with power switching
8.Integrated +3.3V level converter for USB I/O
9.True 3.3VCMOS drive output and TTL input, Operates down to 1V8with external pull-ups, tolerant of 5V input
10.Configurable I/O pin output drive strength, 4mA(min) and 16mA(max)
11.Integrated power-on-reset circuit
12.Fully integrated AVCC supply filtering – no external filtering required
+5V Single Supply Operation
13.Internal 3V3/1V8 LDO regulators
Specification:
1.Origin: CN(Origin)
2.Condition: New
3.Type: Voltage Regulator
4.Model Number: MW
5.Application: Computer
6.Operating Temperature: 0-85
7.Supply Voltage: 3.3V
8.Dissipation Power: 1W
9.Package: TQFP
10.Is_customized: Yes
11.Application:USB to I2C Module
Package Include:
1 * CJMCU-200 FT200XD USB To I2C Module
