Specification:

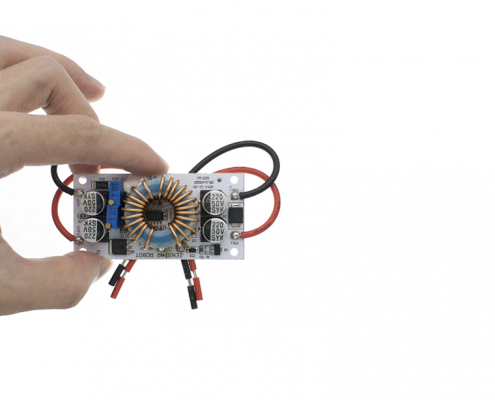

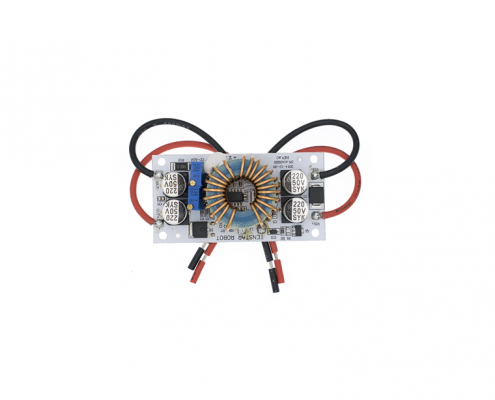

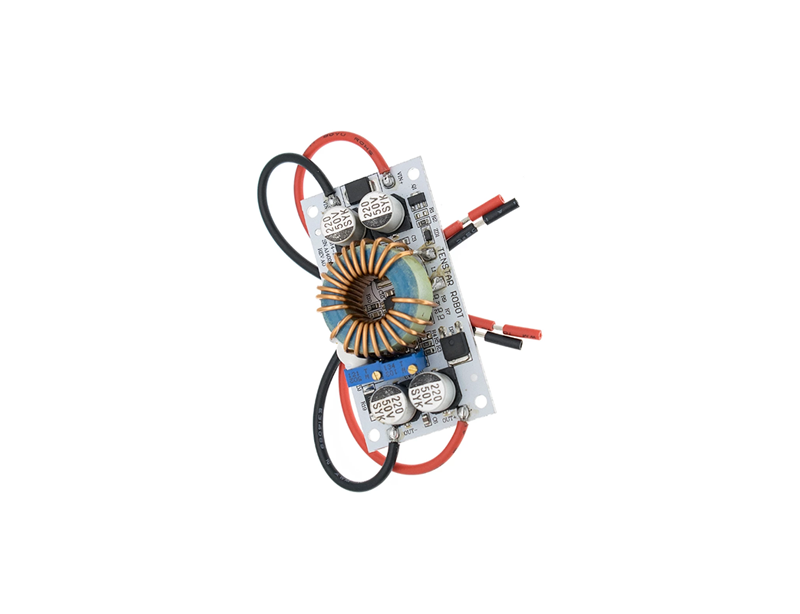

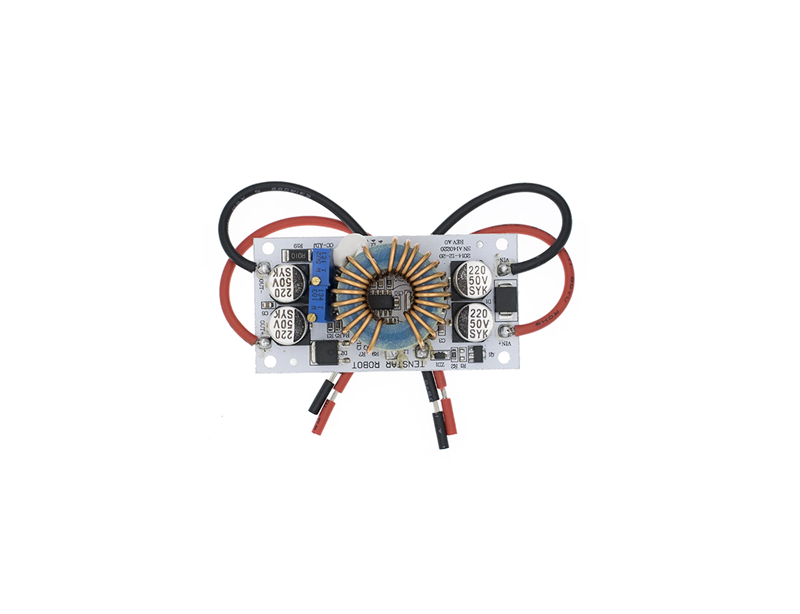

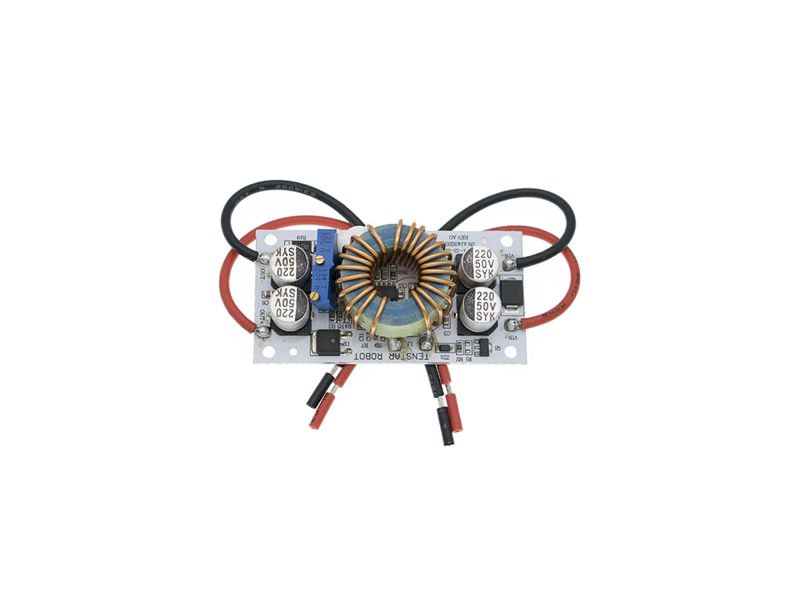

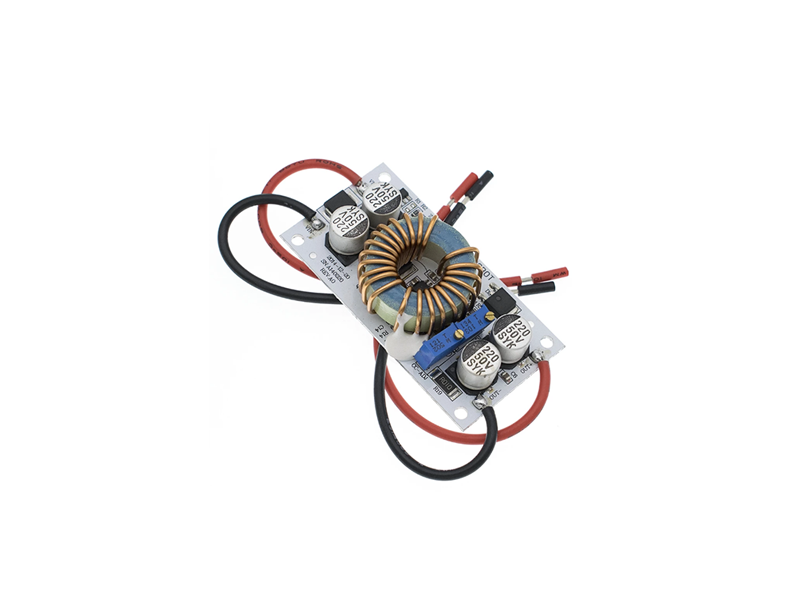

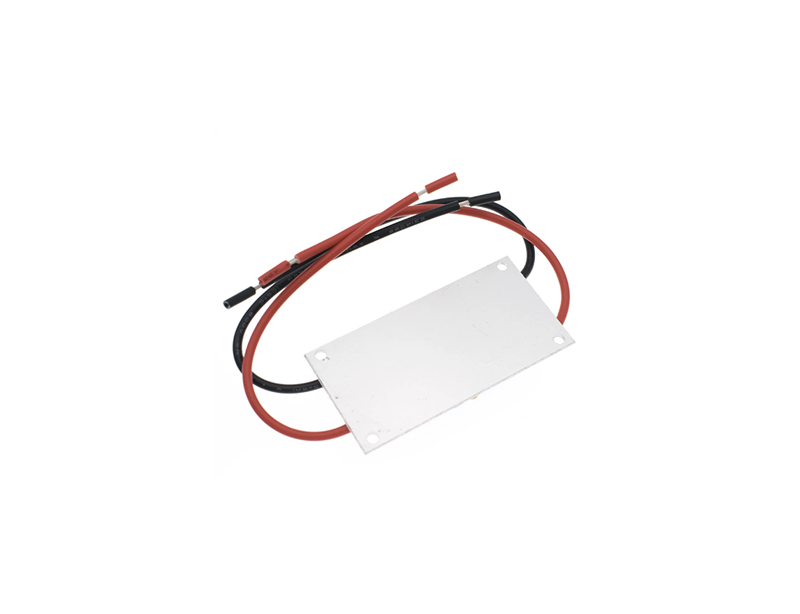

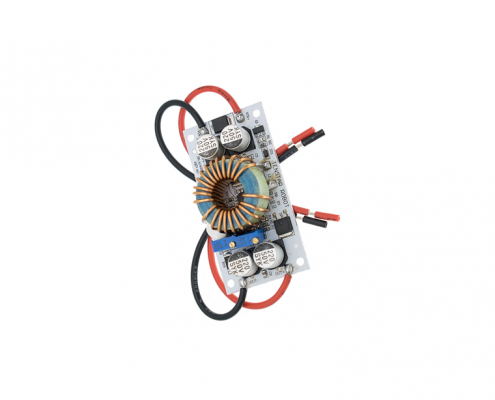

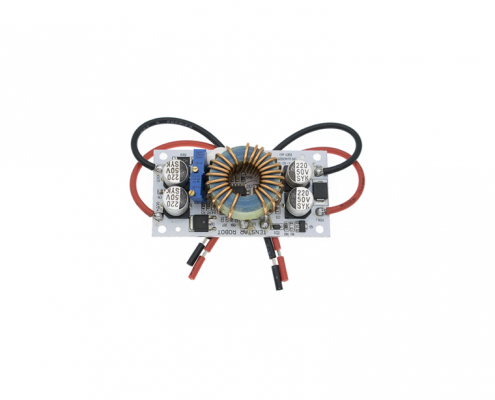

1.Module name :250W boost constant current module
2.Module properties: non-isolated step-up module (BOOST)
3.Input voltage: DC8.5V-48V
4.Input current: 10A (MAX) exceeds 8A please enhance heat dissipation
5.Quiescent current: 10mA (12V liter 20V, the output voltage, the higher
the current will increase too quiet)
6.Output voltage: 10-50V continuously adjustable
7.Constant] range: 0.2-8A

8.Temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
9.Operating frequency: 150KHz
10.Conversion efficiency: up to 96%

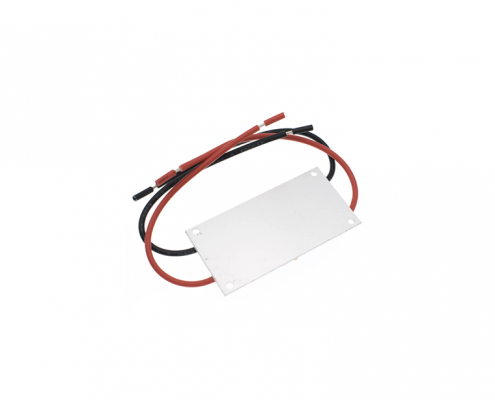

11.Installation: 4 3MMscrew holes
12.Connection method: Connection Output

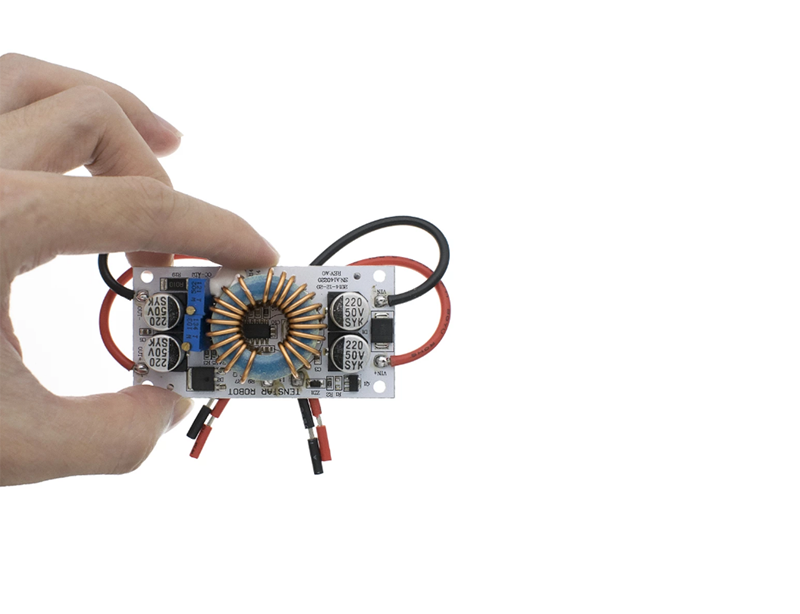

13.Module size: Length 70MM width 36MM height 13MM
14.Single module: 70G
