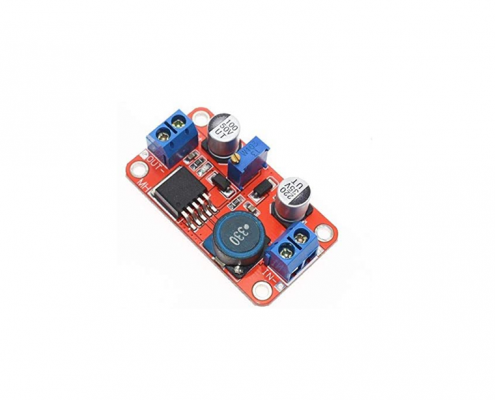

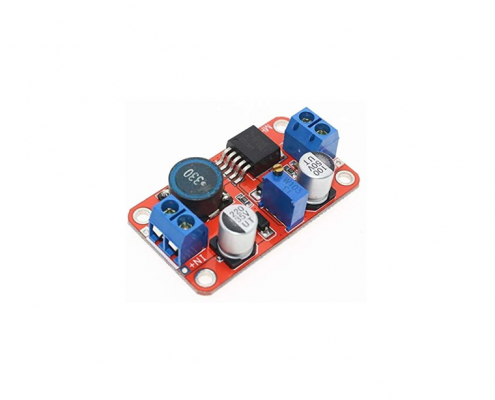

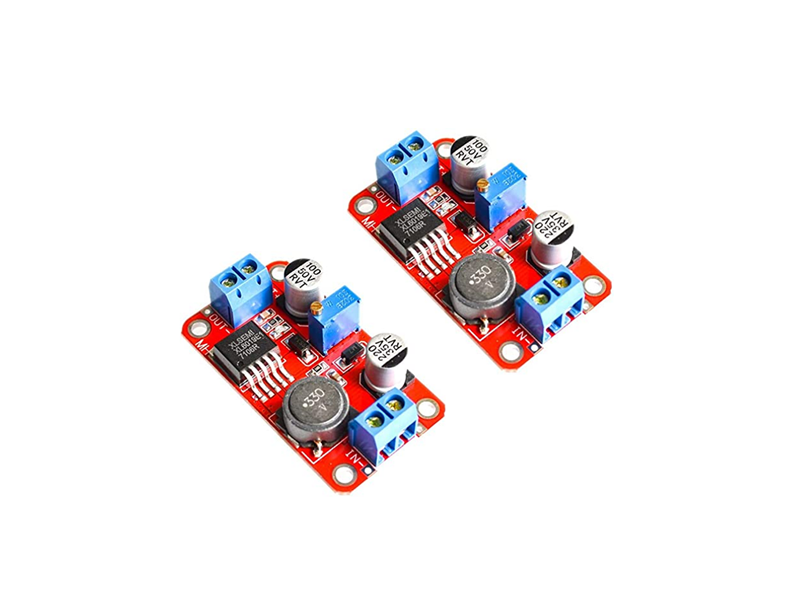

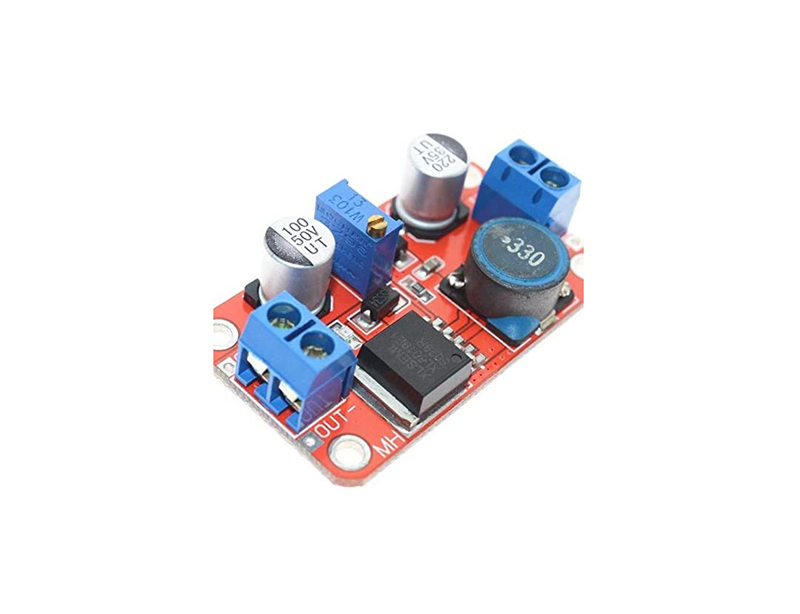

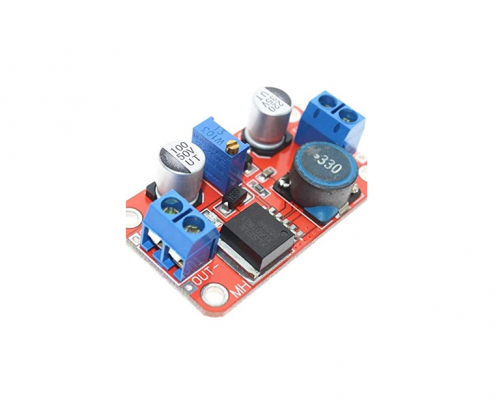

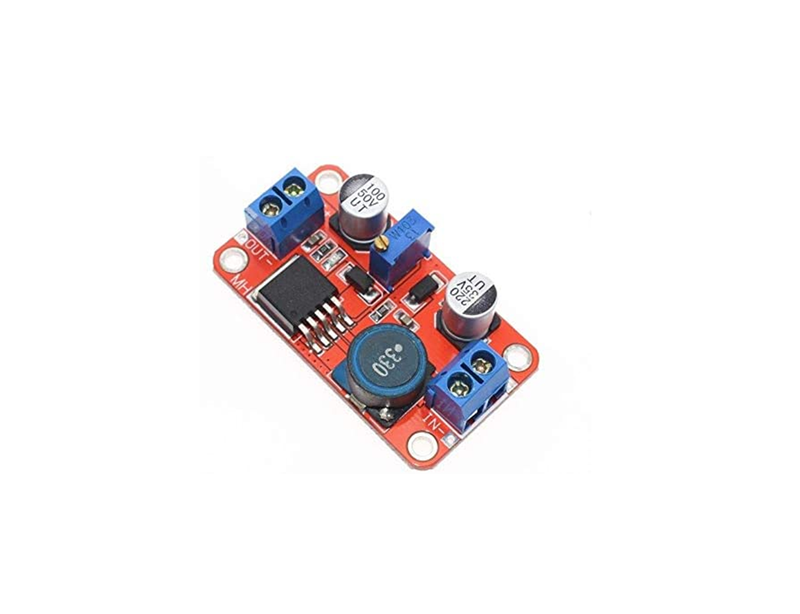

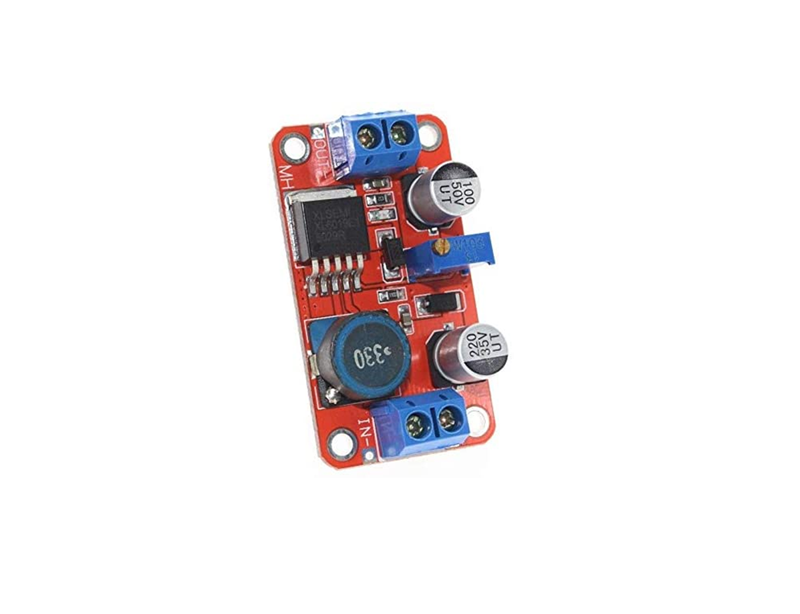

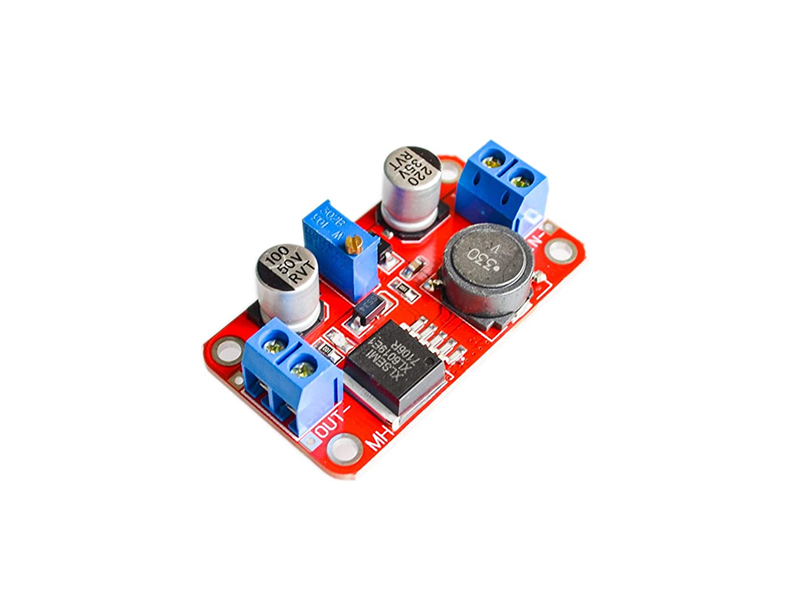

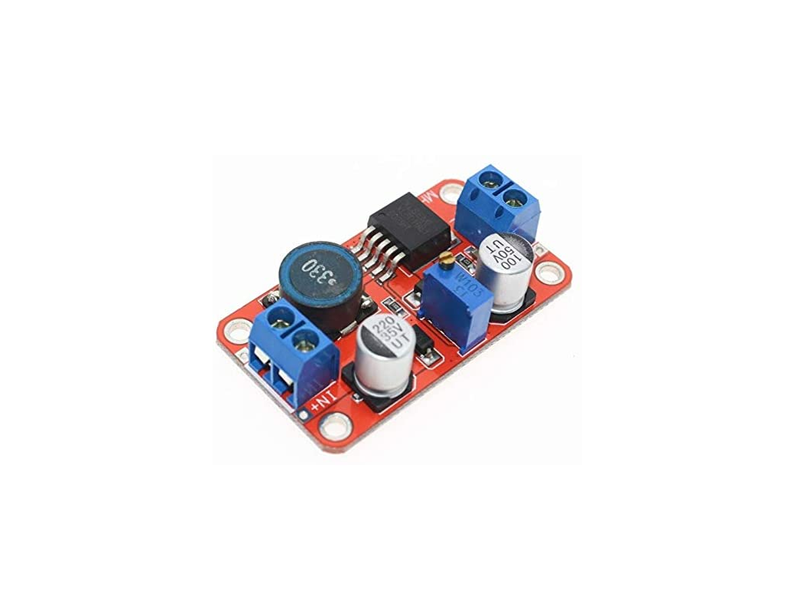

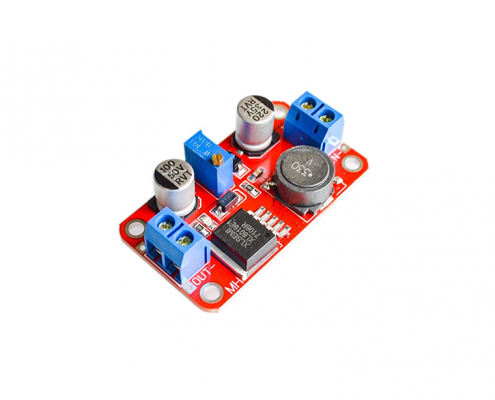

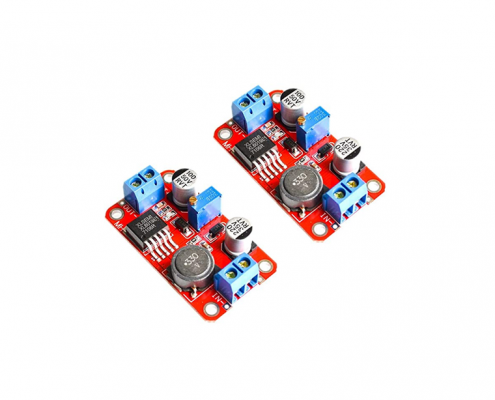

DC DC Boost Power Supply XL6019 Module — OKYSN3172

Product Model:OKYSN3172

DC-DC Power Supply Module Boost Module Step-Up Voltage Regulator XL6019 Adjustable Output

Product Description

Description:

1.DC-DC power supply module boost module step-up voltage converter Voltage regulator XL6019 adjustable output 5V/12V/24V.

2.This XL6019 module DC DC boost can provide 5V / 12V / 24V output can be adjusted, performance beyond LM2577. the conventional use of IMPULSO topology as a constant voltage output, the internal integration of MOSFET, peripheral devices, low-cost system, built-in temperature protection, over current protection circuit protection complete set of reliability, high reliability.

Send Inquiry

Chat Online

Call on Whatsapp

Share This Product

Product Details

Product Description

Description:

1.DC-DC power supply module boost module step-up voltage converter Voltage regulator XL6019 adjustable output 5V/12V/24V.

2.This XL6019 module DC DC boost can provide 5V / 12V / 24V output can be adjusted, performance beyond LM2577. the conventional use of IMPULSO topology as a constant voltage output, the internal integration of MOSFET, peripheral devices, low-cost system, built-in temperature protection, over current protection circuit protection complete set of reliability, high reliability.

Specification:
1.Module Features: non-isolated step-up
2.rectification: Non-synchronized rectification
3.Input range: Limits: 3-40 V, Recommended values: 3 V-35 V
4.Output range: Limits: 5-45 V, recommended values: 5 V-40 V (via rotary potentiometer)
5.Input Current: Limits: 0-5A, Recommended Values: 0-3A
6.conversion efficiency: up to 94%
7.open frequency: 220 KHZ, the second generation of switching power technology
8.load regulation: + plus; 0.5%
9.voltage regulation: ± plus; 0.5%

Package included:
1PC * DC DC Boost Power Supply XL6019 Module
