Product Model:OKY3498-9

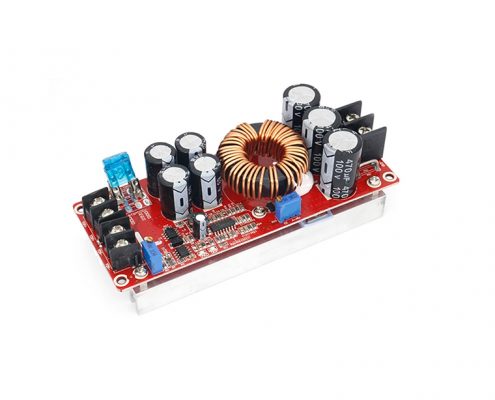

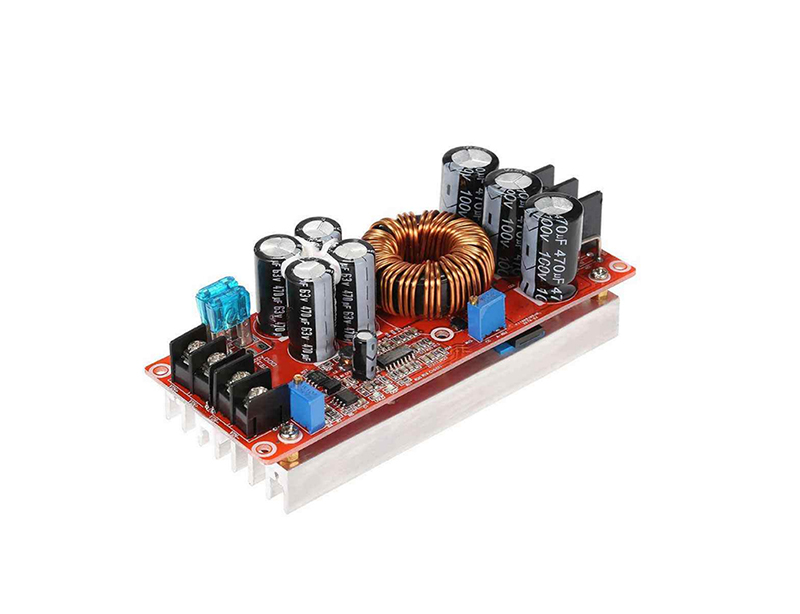

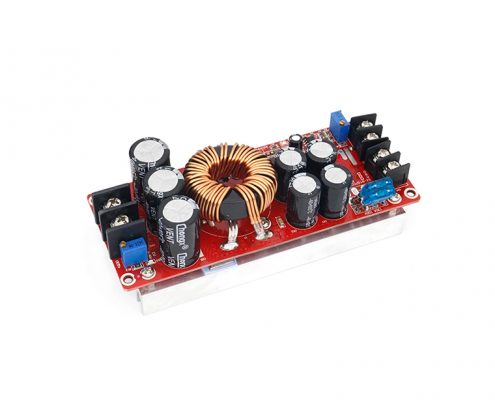

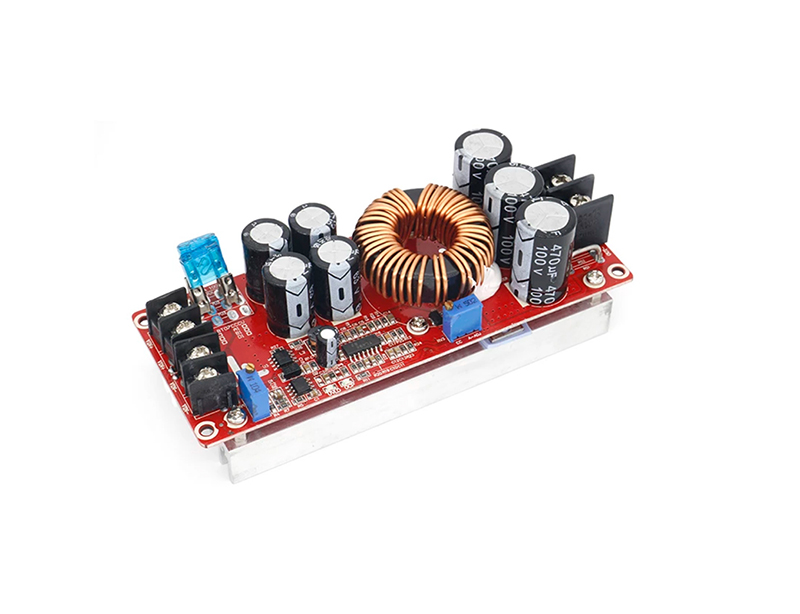

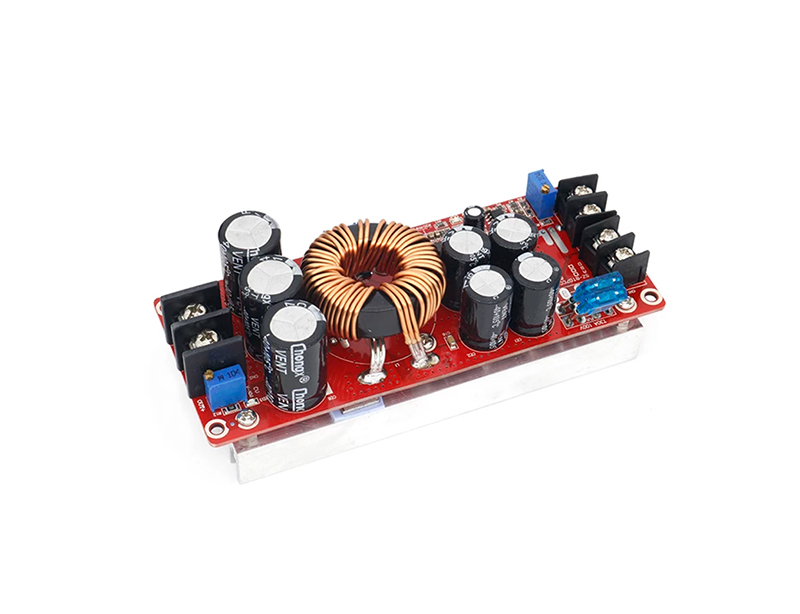

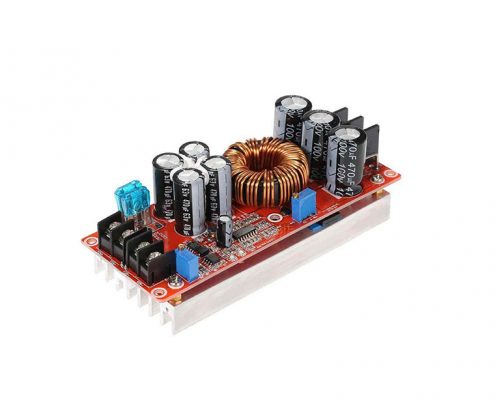

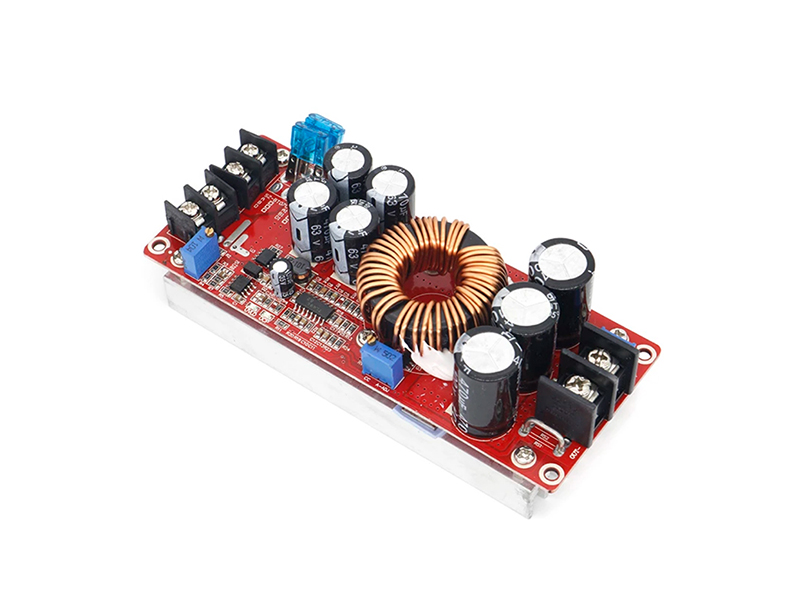

1200W 20A DC-DC Converter Boost Step-up Power Supply Module
Product Description
Description:
1.Wiring mode: terminal block (please use high-current pure copper wire)
2.Input reverse connection protection: Yes (150A power MOS tube is anti-reverse. It can be reversed for a long time);
3.Short circuit protection: Yes (input 30A fuse) double short circuit protection, safer to use
4.Input overcurrent protection: Yes (input over 25A, automatic protection, power supply does not boost);
Product Details
Specification:
1.Module nature: non-isolated boost module (BOOST)
2.Input voltage: DC10-60V
3.Output voltage: 12-80V continuously adjustable
4.Output current: 18A MAX
5.Constant current range: 0.5-18A (+/-0.3A)
6.Working temperature: -40~+85 degrees
7.Working frequency: 150KHz
8.Module size: 130*52*46MM
9.Wegiht:295g
10.MOQ:10pcs
Package Including:
1 * DC-DC Step Up Converter
