DC Stepper Motor 28BYJ-48 5V Stepper Motor – OKY3191 – OKYSTAR

Product Model: OKY3191

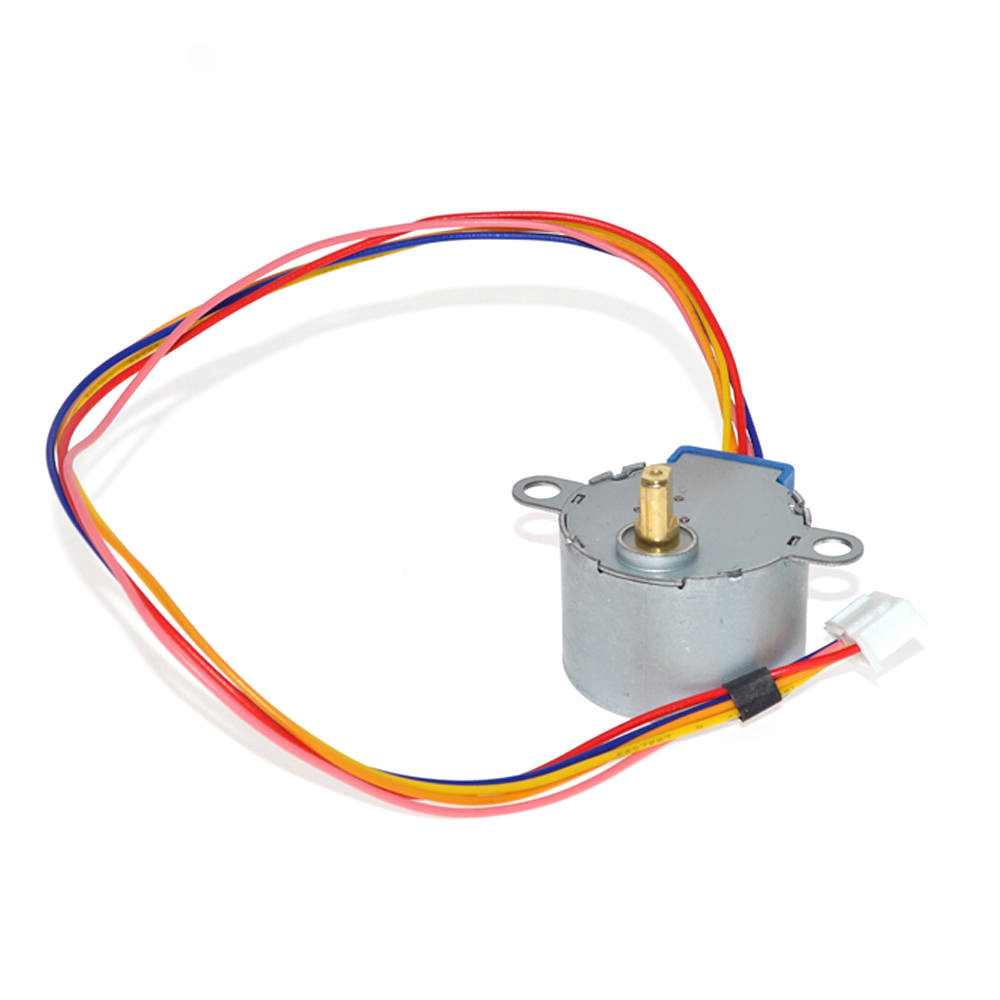

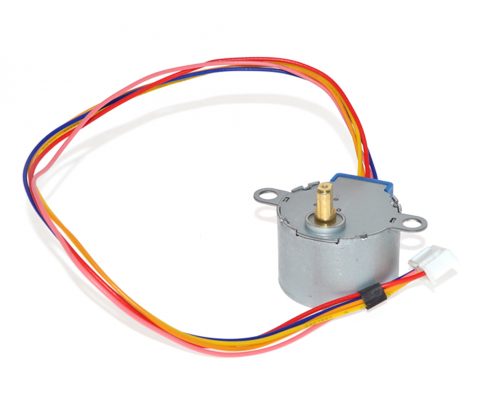

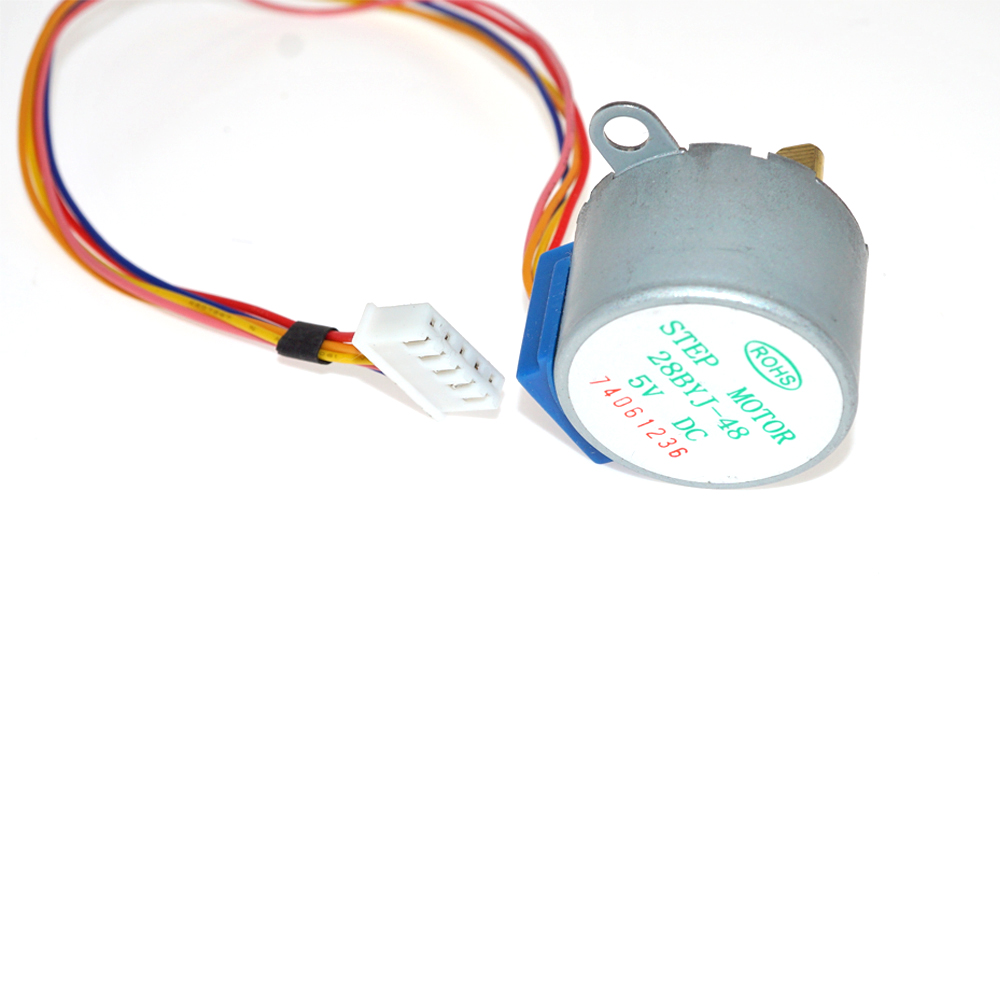

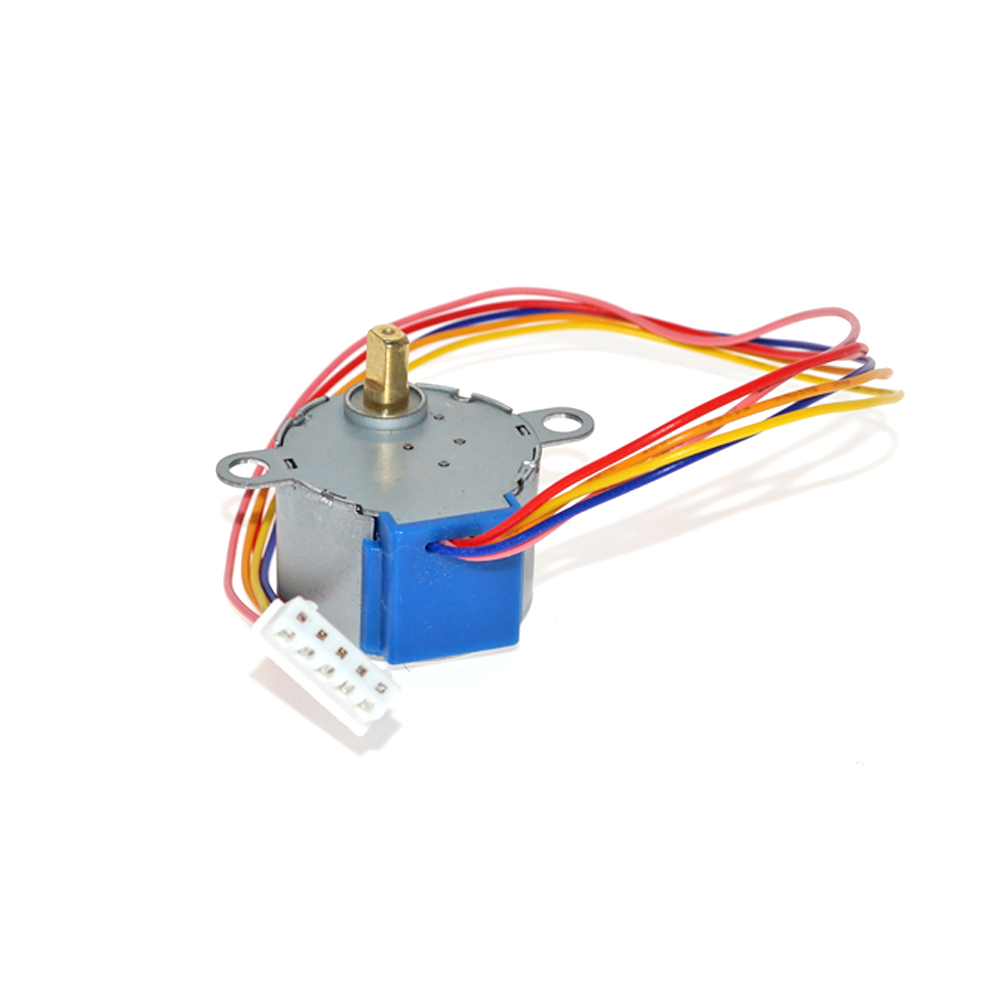

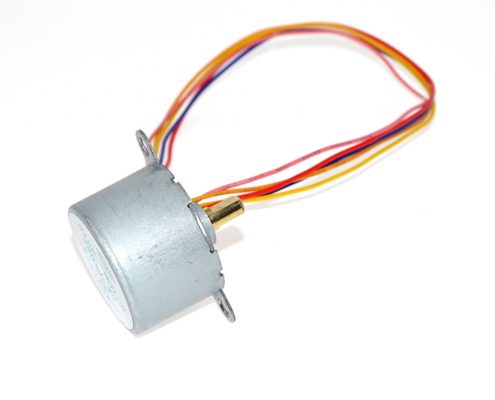

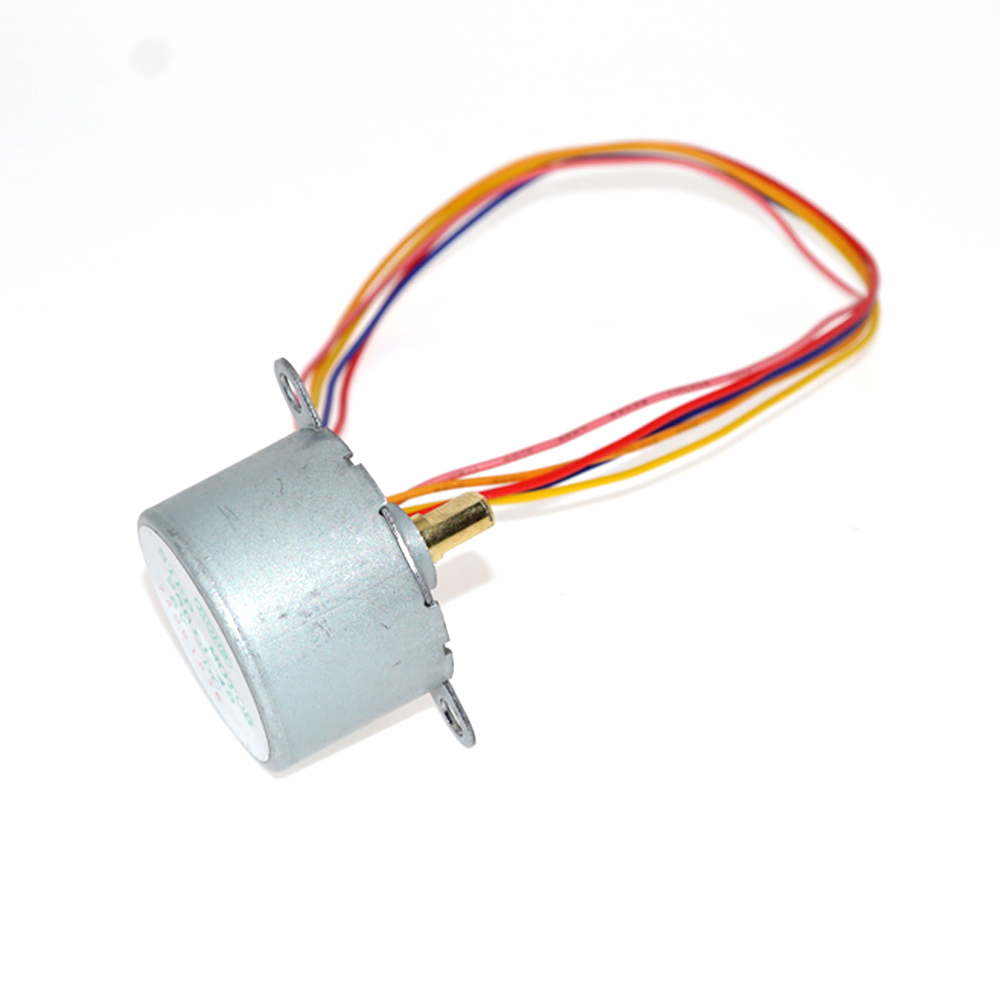

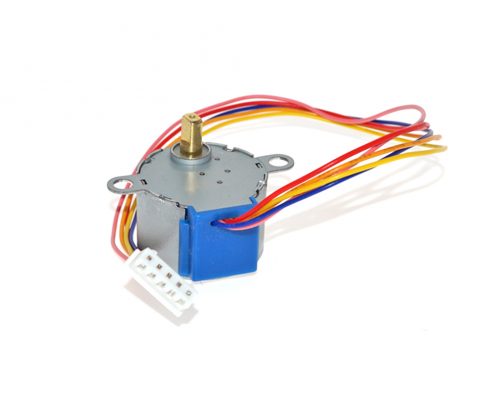

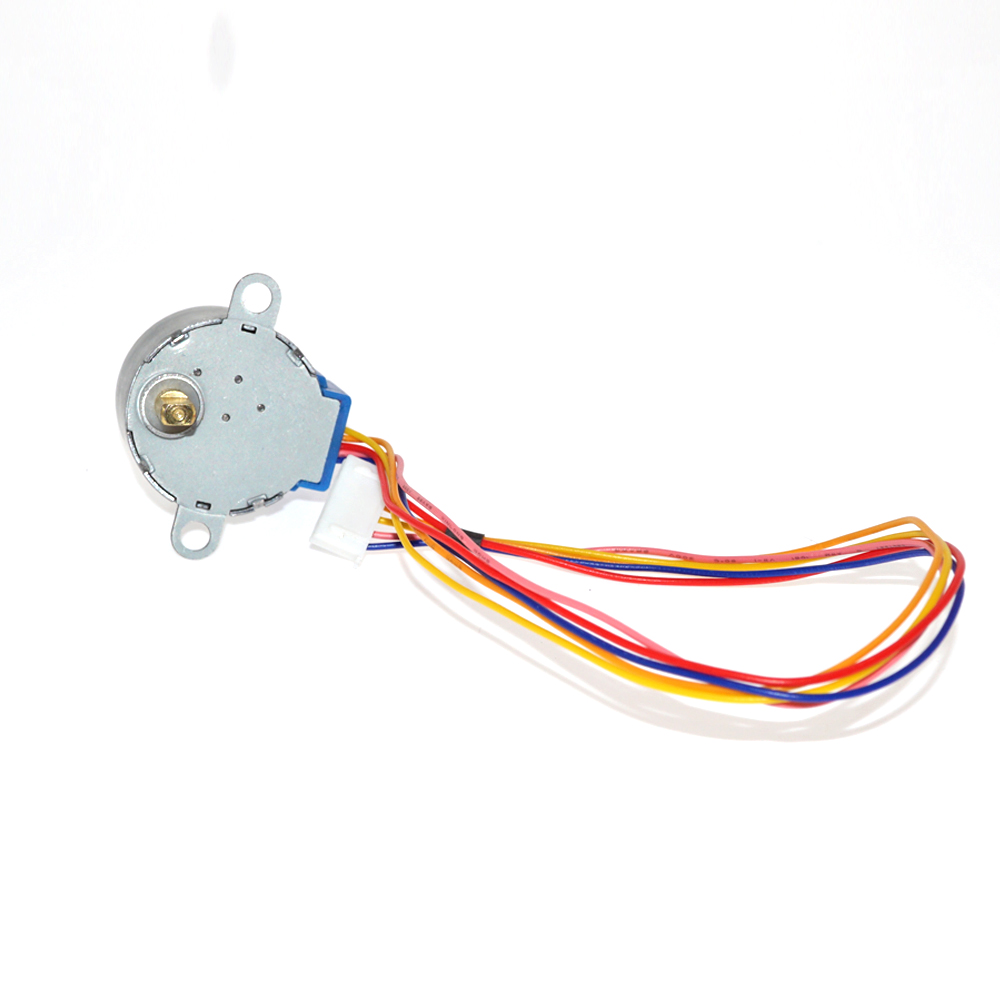

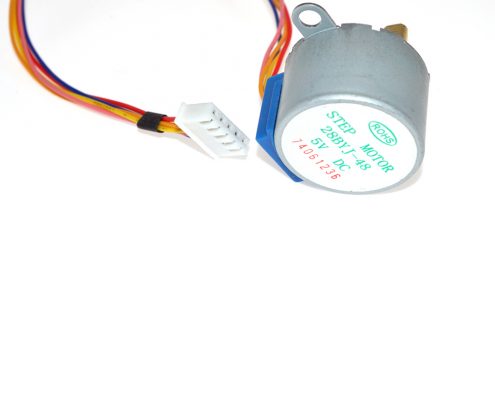

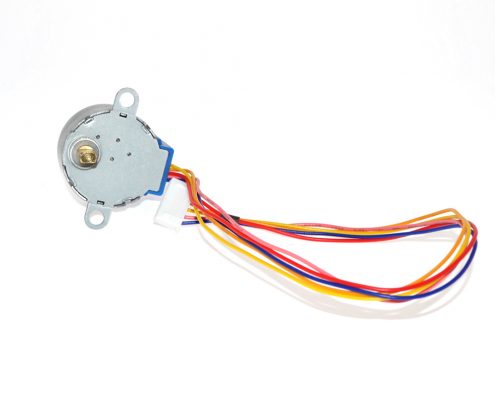

28BYJ-48 5V Stepper Motor 4 Phase 5 Wire Gear Step DC Stepper Motor

Product Description

Model: 28BYJ-48
Voltage: 12V
Phase: 4
Gear ratio: 1 / 64
Cable Length: 20cm
Mount Hole Diameter: 4mm
Mounting Hole Distance: 35mm
Main Material: Metal, Plastic
Net Weight: 60g
Stepper motor, 4-phases 5-wires, DC 12V voltage, can be driven by ordinary ULN2003 or L298 chip, great replacement.

Call on Whatsapp

Share This Product

Product Details

Product Description

Model: 28BYJ-48
Voltage: 12V
Phase: 4
Gear ratio: 1 / 64
Cable Length: 20cm
Mount Hole Diameter: 4mm
Mounting Hole Distance: 35mm
Main Material: Metal, Plastic
Net Weight: 60g
Stepper motor, 4-phases 5-wires, DC 12V voltage, can be driven by ordinary ULN2003 or L298 chip, great replacement.

Product Details

Voltage:5VDC
No-load pull into the frequency:>600Hz
Phase:4
No-load pull-out frequency:>1000Hz
Reduction ratio:1/64
Pull-in torque:>34.3mN.m(120Hz)
Step Angle:5.625° /64
Self-positioning torque:>34.3mN.m
DCR:200Ω±7%(25°c)
Temperature:<40K(120Hz)
Insulation resistance:>10MΩ(500V)
Noise: <40dB(120Hz,No load,10cm)
Dielectric Strength: 600VAC/1mA/1s
Weight:32g
Insulation Class: A

Download Data
