DC to DC Converter Module – OKY3508-4 – OKYSTAR

Product Model:OKY3508-4

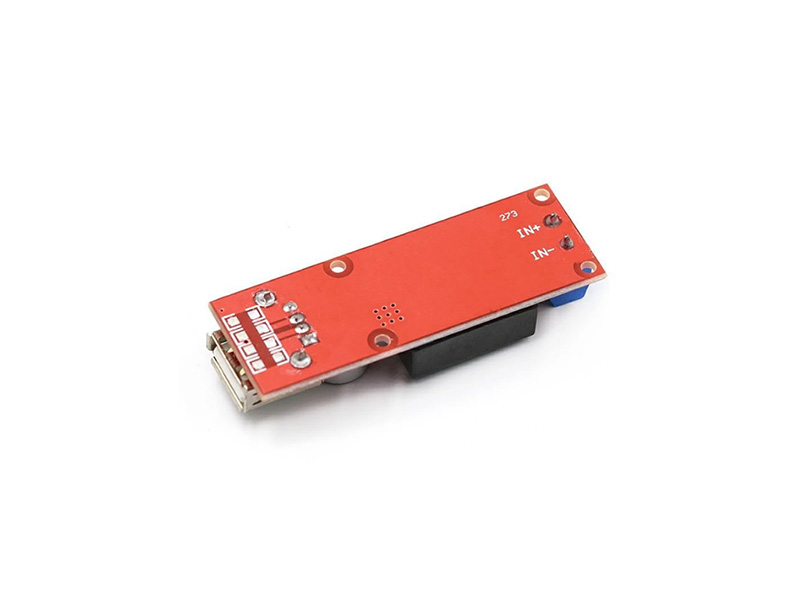

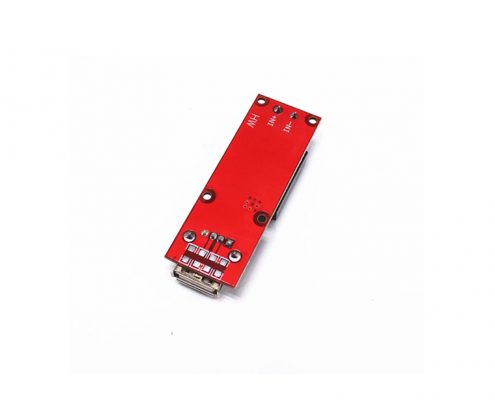

DC-DC 7V-24V To 5V 3A KIS3R33S Non-isolated Step Down Buck Converter Module

Product Description

Description:

This power module is specially designed according to the KIS3R33S module originally produced in Japan, with an input voltage of 7V to 24V, an output voltage of 5.01V, and a continuous current of 2.5A with a peak output of 4A! Able to provide a continuous load current of 3A. Professionally tested by many players, it has the characteristics of ultra-high efficiency and ultra-low loss, which perfectly surpasses the lm2596 power module

Call on Whatsapp

Share This Product

Product Details

Product Description

Specification:

1.Module nature:non-isolated step-down (BUCK)

2.Rectification method:synchronous rectification

3.Input voltage:7V-24V

4.Output voltage:5V

5.Output current:4A (short time)

6.Conversion efficiency:96% (the highest)

7.Switching frequency:340KHz

8.Output ripple:30mV (max)

9.Load regulation rate:±0.5%

10.Voltage adjustment rate:±2.5%

11.Working temperature:-40℃ to +85℃

12.Peripheral size:60mm*21mm*14mm (length * width * height)

13.Weight:95g

14.MOQ:5pcs

Package Including:

1 * USB Outpu
