Product Model:OKY-N320

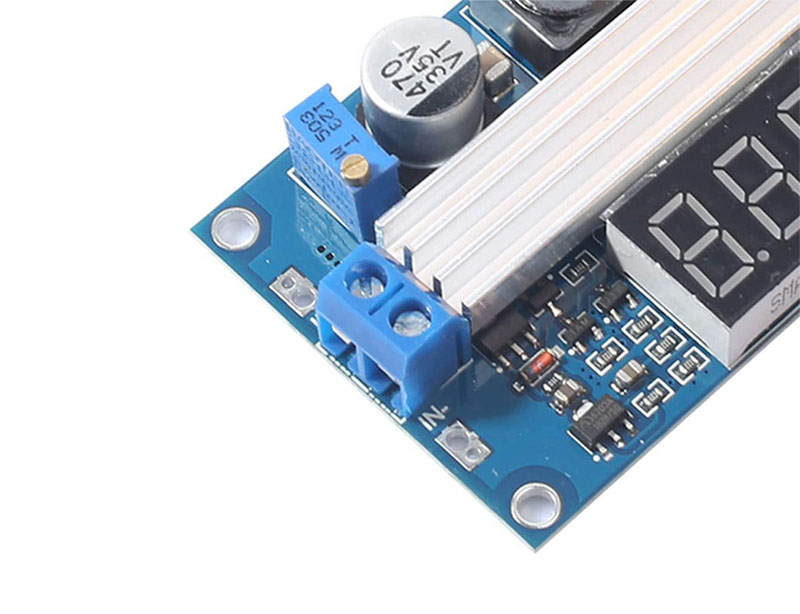

LTC1871 100W DC DC Step Up Converter Boost Power Module Power Supply Voltage Regulator
Product Description
Description:
1.Short circuit protection:Yes(limit current 14A).(Note:connected to high-power load,just switched on the impact of current very general meeting current limiting self-locking protection,it is recommended to be switched on firstly, and then access the load)
Product Details
Specification:
1.Size:68x42x14mm
2.Conversion Efficiency:Up to 96%
3.Input voltage range:3~35VDC(Note:the input voltage is less than 4V, voltmeter failure)
4.Input current:9A (max)
5.Output voltage range:3.5~35VDC(please to ensure that output voltage above on input voltage)
6.Output current:6A (max)
7.Output power:75W (when the input and output voltages greater than 20V up to 128W)
8.Conversion efficiency:96.4% (max)
9.Voltmeter range:4 to 40V,error ±0.1V
10.Weight:92g
11.Input reverse polarity protection:None (if required,high current diode in series with the input)
Package Including:
1 * DCDC LTC1871
