Description:
1. 2 Sine wave and 2 square wave output
2. AD9851: 0 To 40MHZ
3. After the 20 To 30MHz frequency harmonics increases, the waveform will be less and less clean
4. Square Wave: 0 To 1MHZ
5. Low-pass filter with 40MHZ, so the waveform better than SN
6. Parallel and serial data input can be selected via a jumper
7. DA produced the benchmark pin (PIN12) leads for easy adjustment to do the magnitude of the output waveform Application
8. Comparative reference input voltage generated by the variable resistor, the resistor can be adjusted duty cycle square wave of different
9. AD9851 module using 30MHZ Active crystal
10. AD9851 Clock frequency up to 180MHz, AD9851 has 6 octave
Package Included:

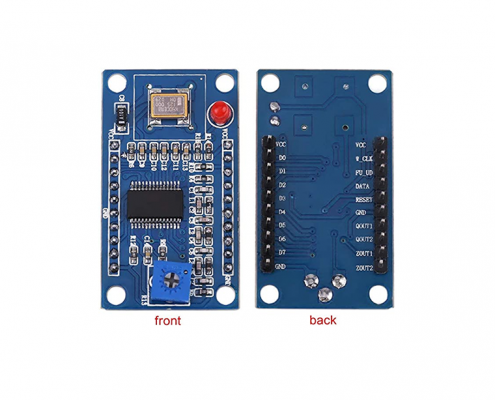

1pc* DDS Signal Generator Module
