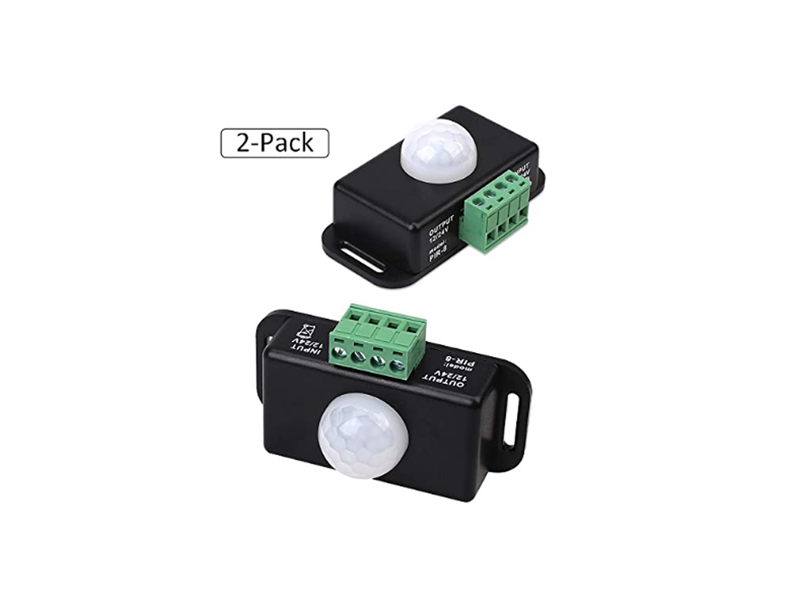

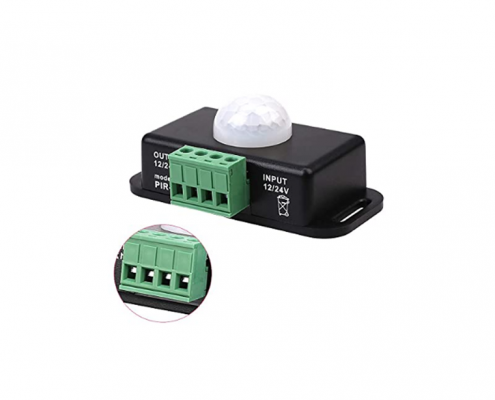

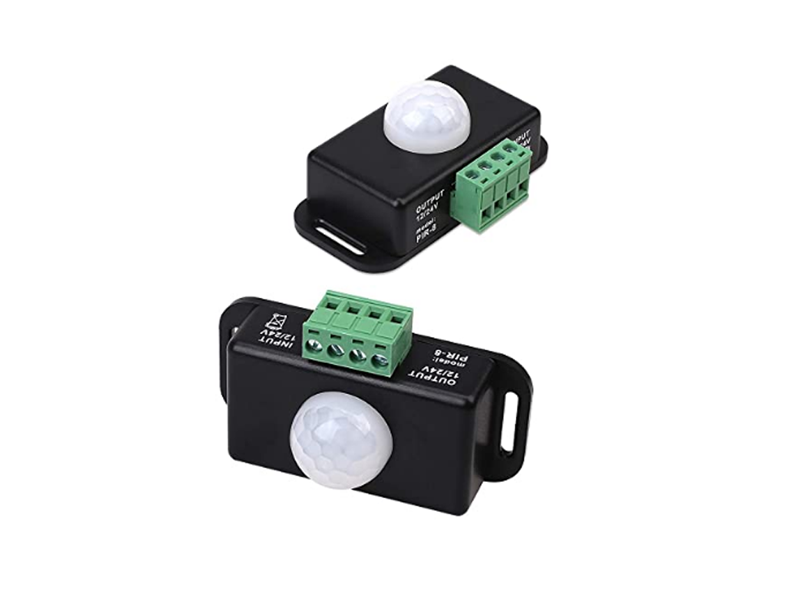

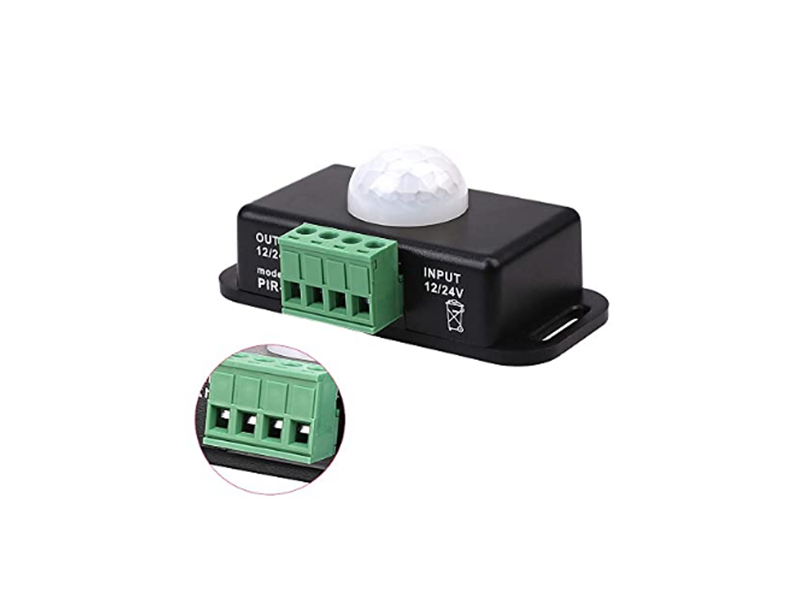

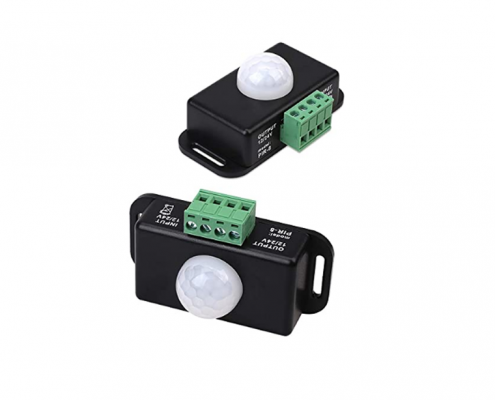

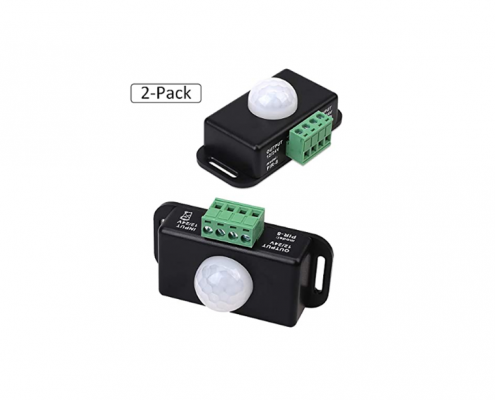

Product Model:OKN429-12

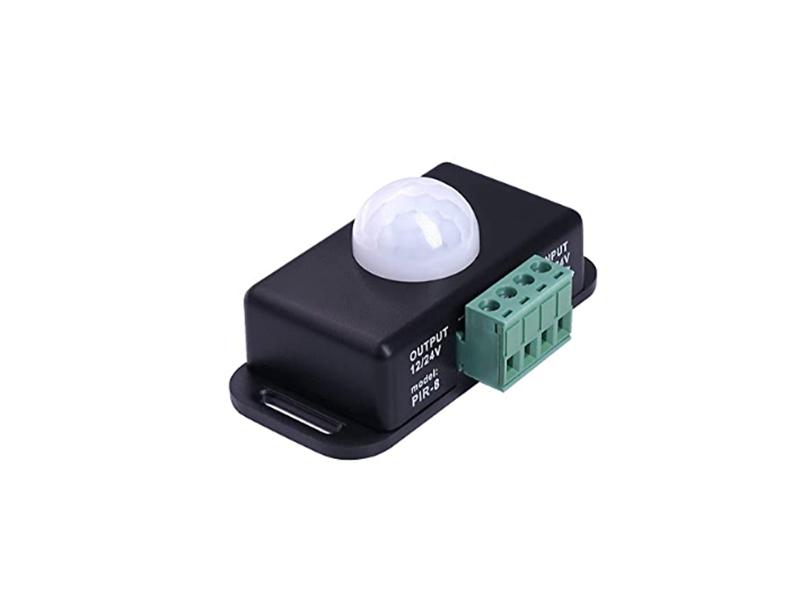

DC 12V To 24V Detector PIR Sensor Module Infrared Motion Sensor Switch
Product Description
1.Infrared detection controller, adopt infrared detection way to control load switch.
2.You can install the human body sensors in the appropriate environment according to actual needs.
3.LED Lighting motion sensing switch which provides 1 to 10 minute OFF delay timing function.
4.The sensor switch activates ON when a body in motion enters the field of view with an ON time hold that is adjustable from 1 to 10 minutes after motion has ceased.
5.PIR sensor has an effective range of 16 feet and diminished sensing of a moving human body to 26 feet.
6.The field of view of the PIR Dome Lens is 60 degrees nominal.

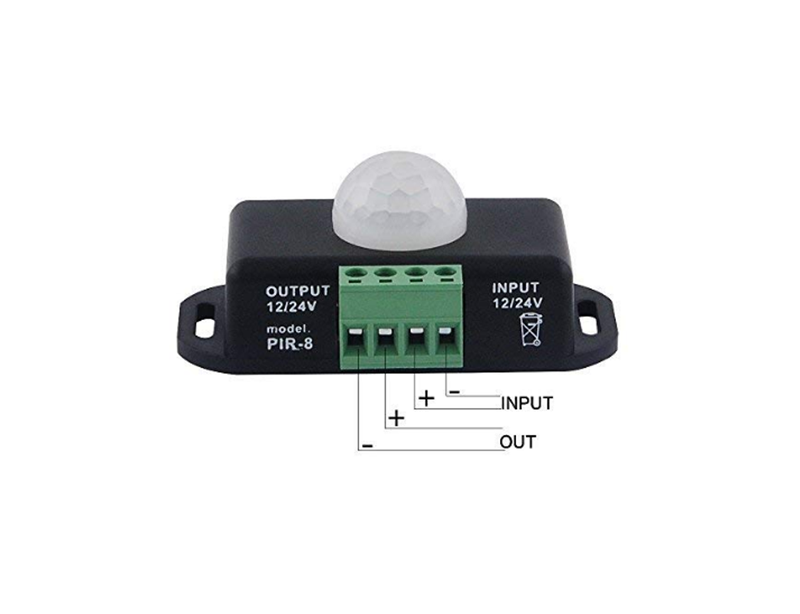

7.The switch operates on 12 or 24 volts DC and can switch up to a 6 amp load.
Product Details
Feature:
1.Infrared detection controller, adopt infrared detection way to control load switch.
2.You can install the human body sensors in the appropriate environment according to actual needs.
3.LED Lighting motion sensing switch which provides 1 to 10 minute OFF delay timing function.
4.The sensor switch activates ON when a body in motion enters the field of view with an ON time hold that is adjustable from 1 to 10 minutes after motion has ceased.
5.PIR sensor has an effective range of 16 feet and diminished sensing of a moving human body to 26 feet.
6.The field of view of the PIR Dome Lens is 60 degrees nominal.
7.The switch operates on 12 or 24 volts DC and can switch up to a 6 amp load.
Specification:

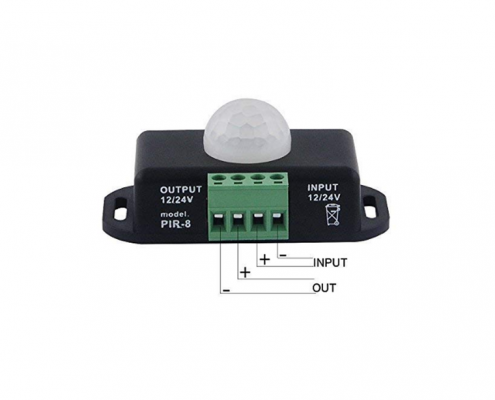

1.Power supply voltage: 12-24V
2.Output voltage: 12-24V
3.Induction range: 8M
4.Delay time: 1-10min (adjustable)
5.Working temperature: -20-60 degrees Celsius
6.Color: Black
7.Loaded power: 10W-99W
8.Induction angle: 60 degrees
9.Output current: 6A

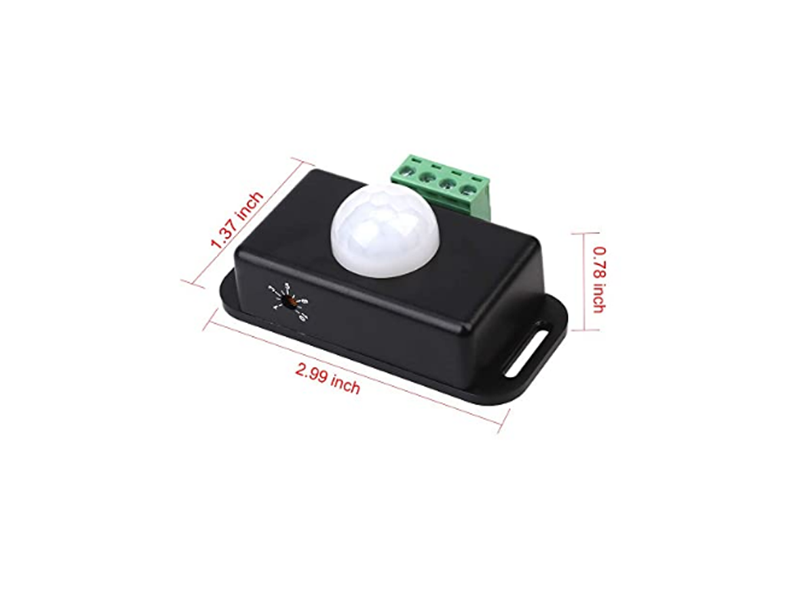

10.Dimensions: 7.5 * 4.6 * 3.4CM
Package Including:
1 * Detector PIR Sensor Module
