Product Model:OKN424-34

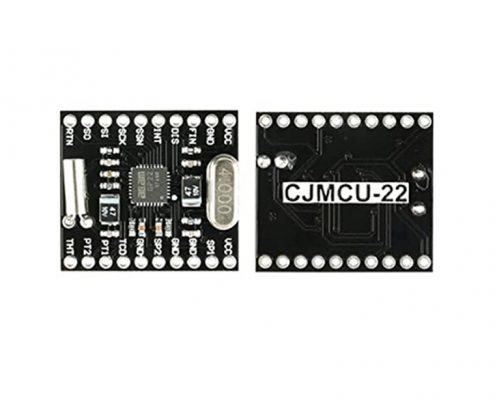

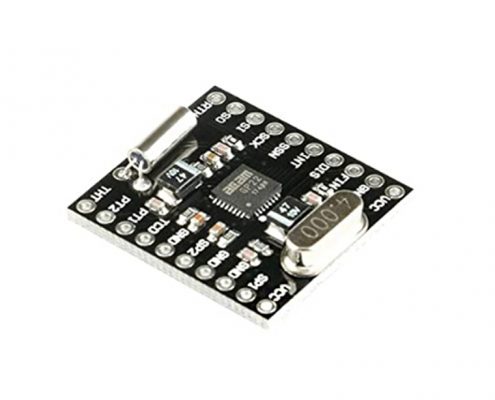

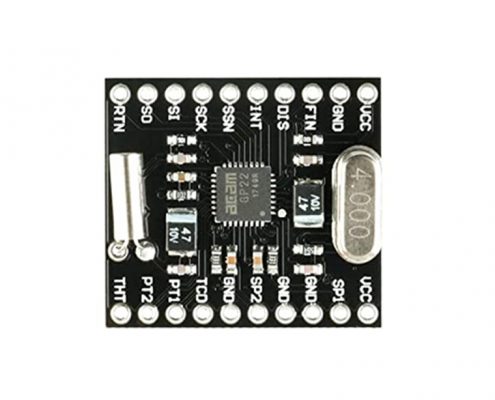

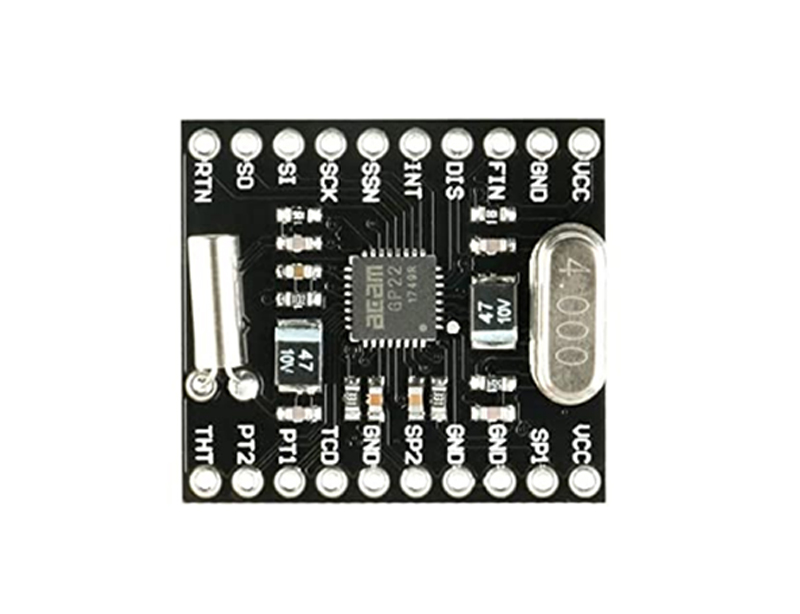

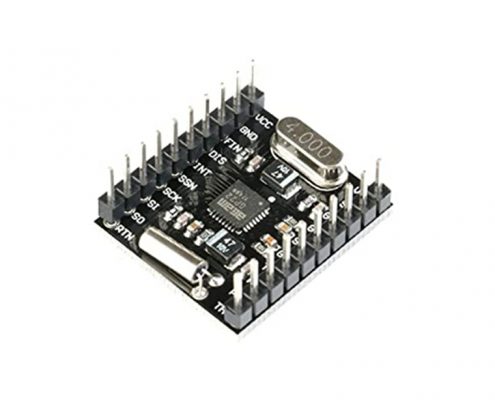

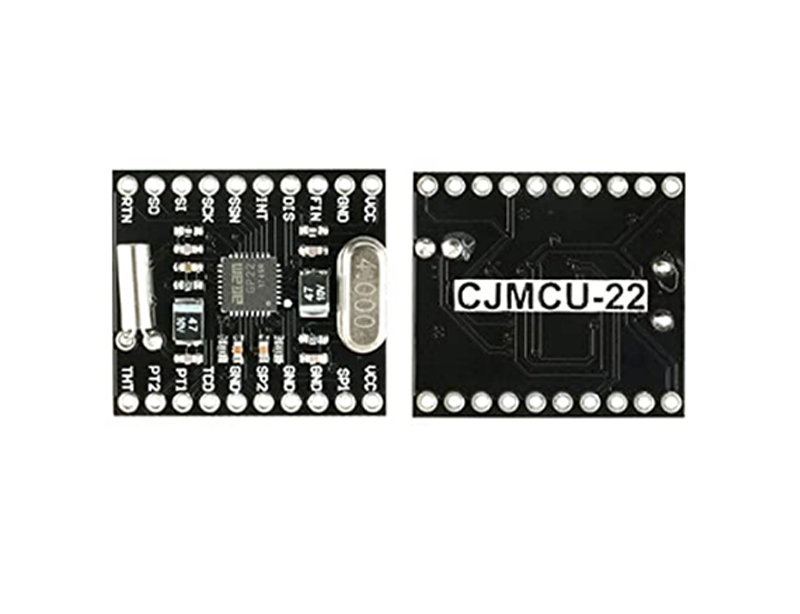

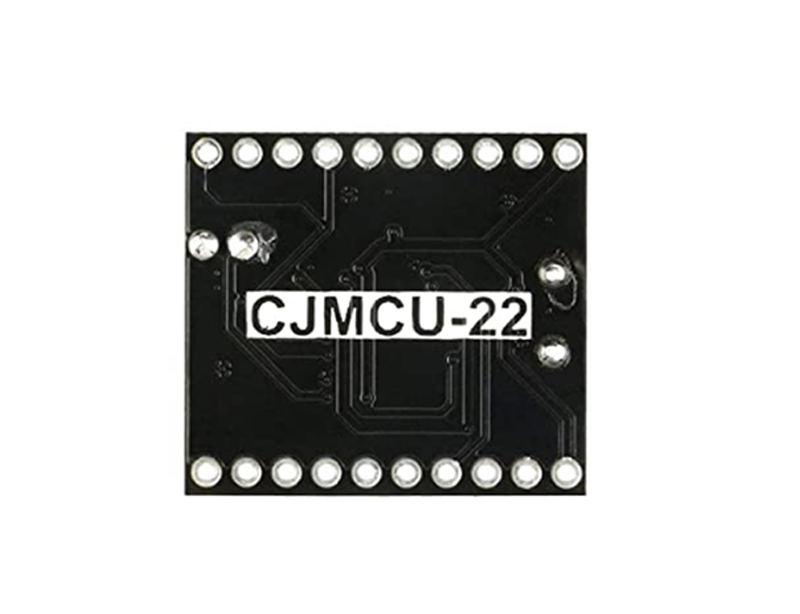

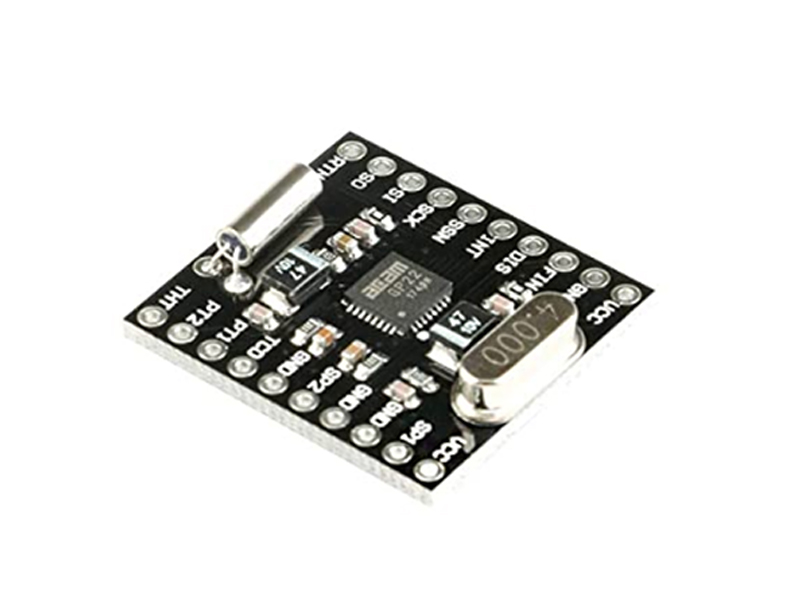

4 Wire SPI Interface Analog To Digital Converter Module TDC-GP22
Product Description
1.The TDC-GP22 is an upgraded version of the next-generation TDC-GP21.
2.It is a 100% pin and feature compatible upgrade for the TDC-GP21 with extended functionality. In particular, the new first wave detection capability makes the TDC-GP22 ideal for ultrasonic water meters with high dynamics.
3.The programmable offset range of the is increased to ±35 MV, and the offset is automatically reset to zero after the first detection of the wave. Measuring the relative pulse width of the first wave, the user can see the strength of the received signal.
4.This can be used for long-term signal attenuation or bubble detection in the system. Compared to the TDC-GP21, data processing and data reading are simplified.
Product Details
Description:
1.The TDC-GP22 is an upgraded version of the next-generation TDC-GP21.
2.It is a 100% pin and feature compatible upgrade for the TDC-GP21 with extended functionality. In particular, the new first wave detection capability makes the TDC-GP22 ideal for ultrasonic water meters with high dynamics.
3.The programmable offset range of the is increased to ±35 MV, and the offset is automatically reset to zero after the first detection of the wave. Measuring the relative pulse width of the first wave, the user can see the strength of the received signal.
4.This can be used for long-term signal attenuation or bubble detection in the system. Compared to the TDC-GP21, data processing and data reading are simplified.
Specification:
1.Type:Voltage Regulator
2.Dissipation Power:Standard
3.Model Number:TDC-GP22
4.Application:Computer
5.Operating Temperature:-40 to +85
6.Input / Output Voltage: 2.5 V 3.6 V
7.Package:TQFP
8.Temperature Range: -40°C to +125°
Package Including:

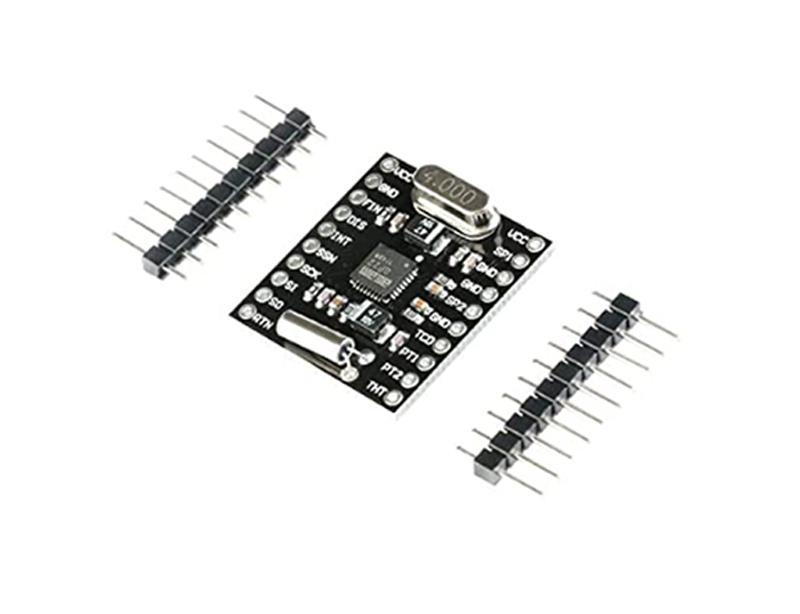

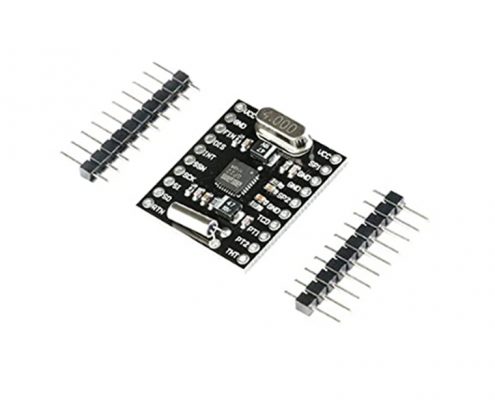

1 * Digital Converter Module
