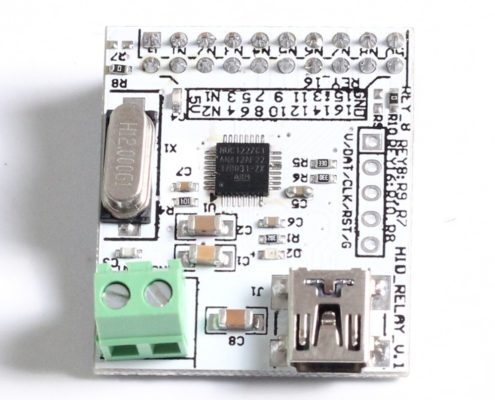

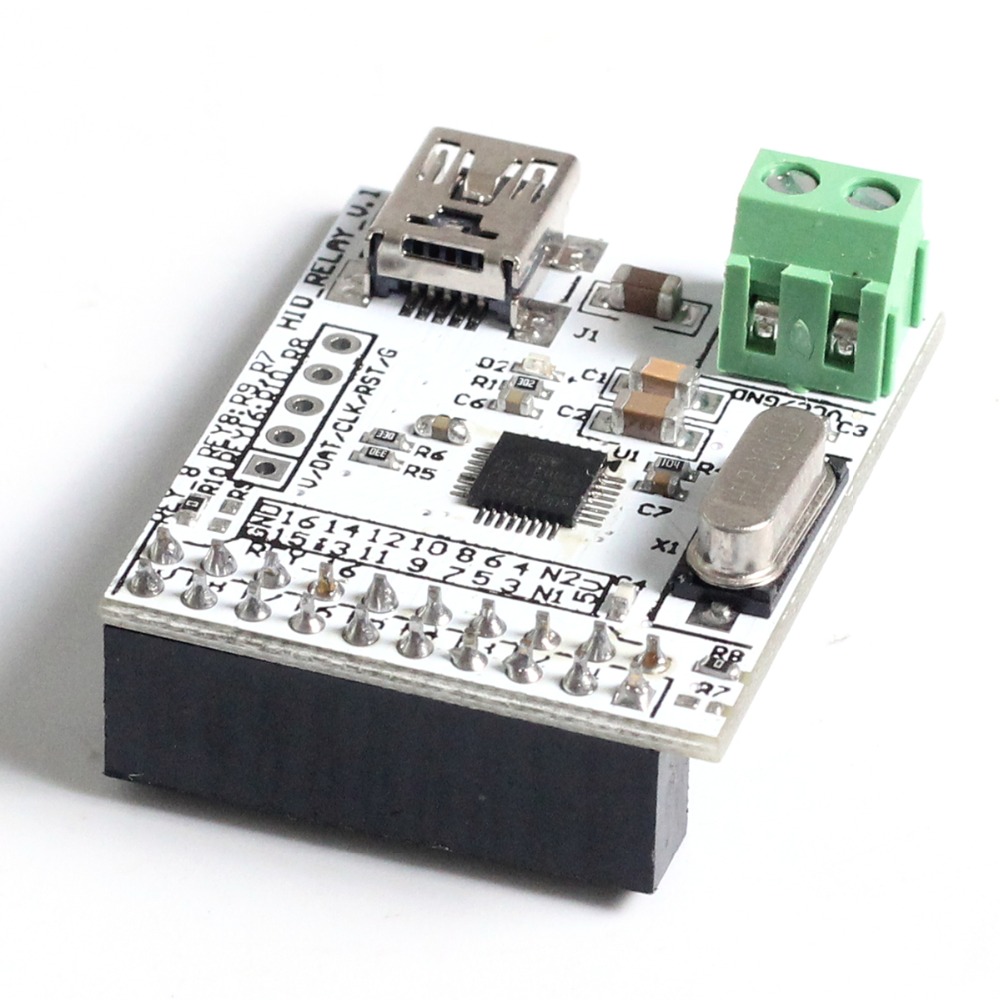

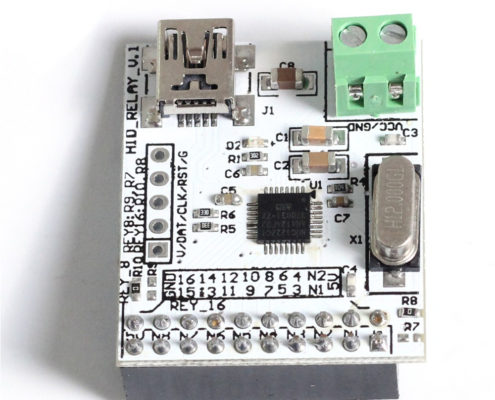

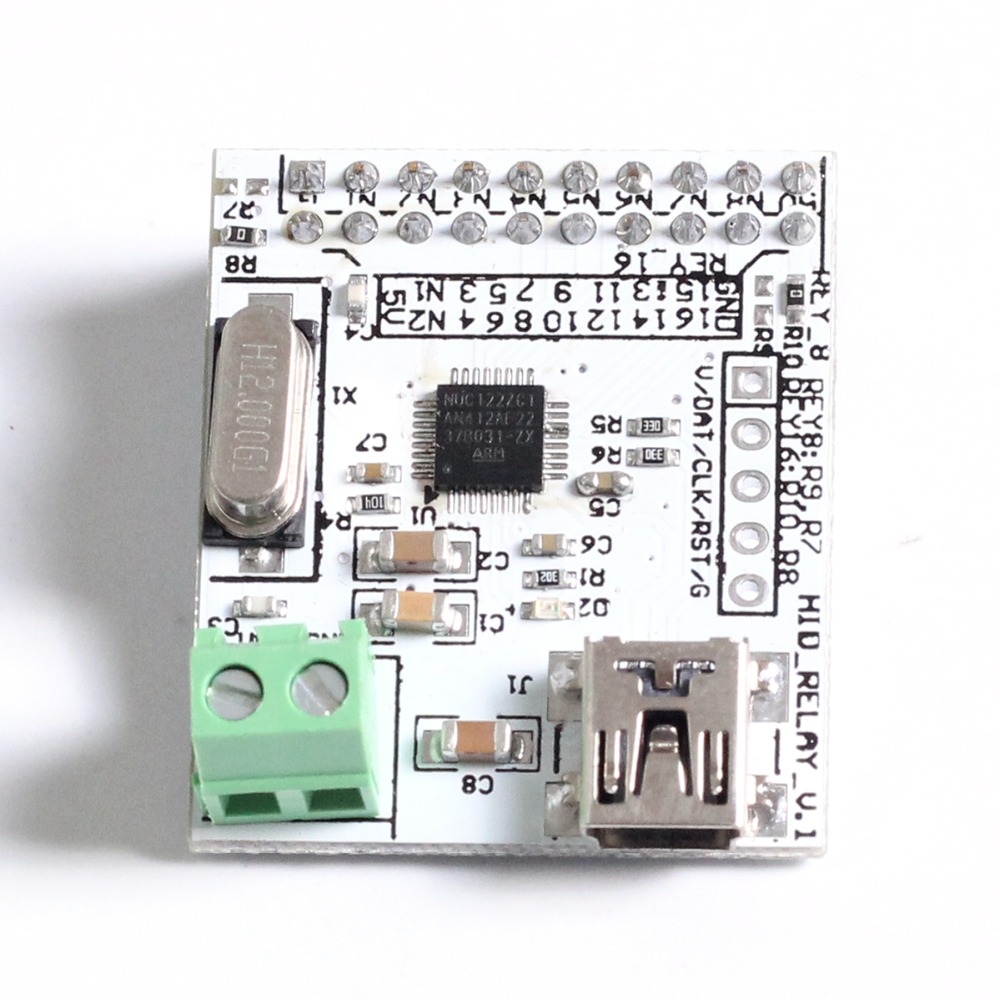

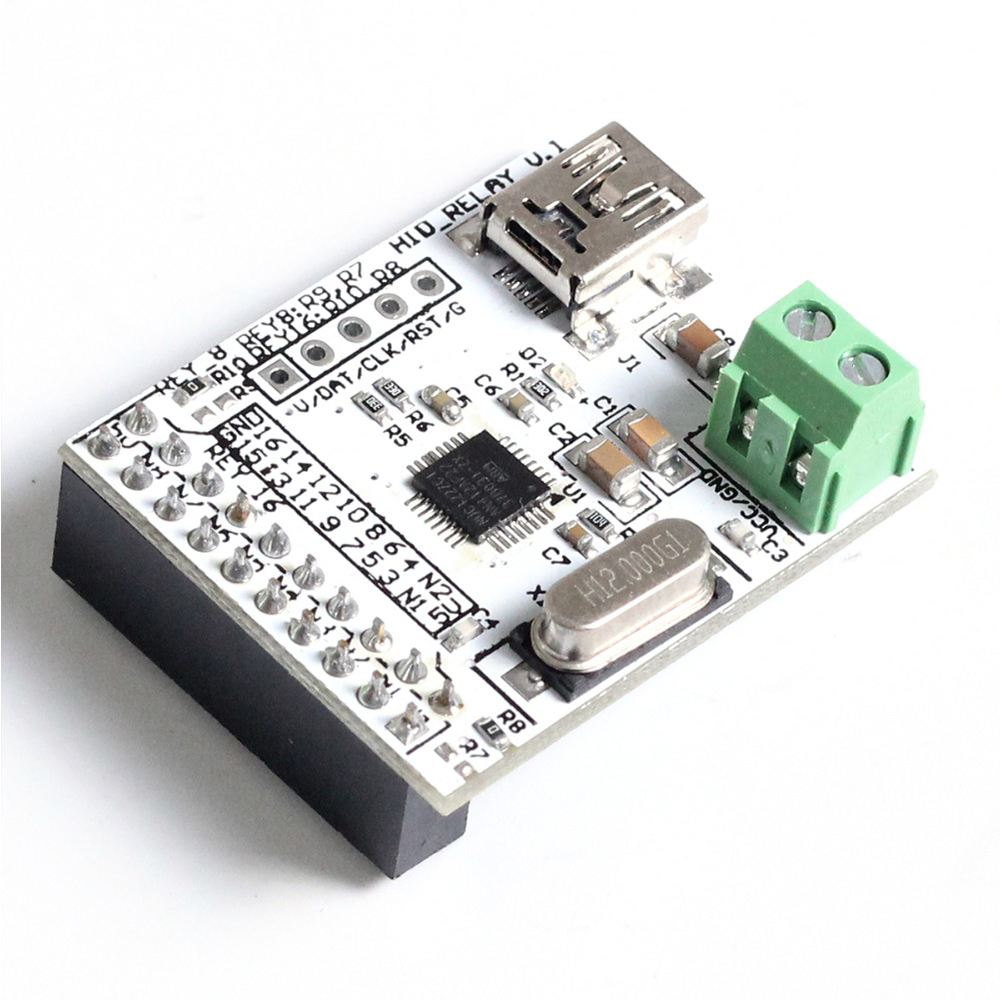

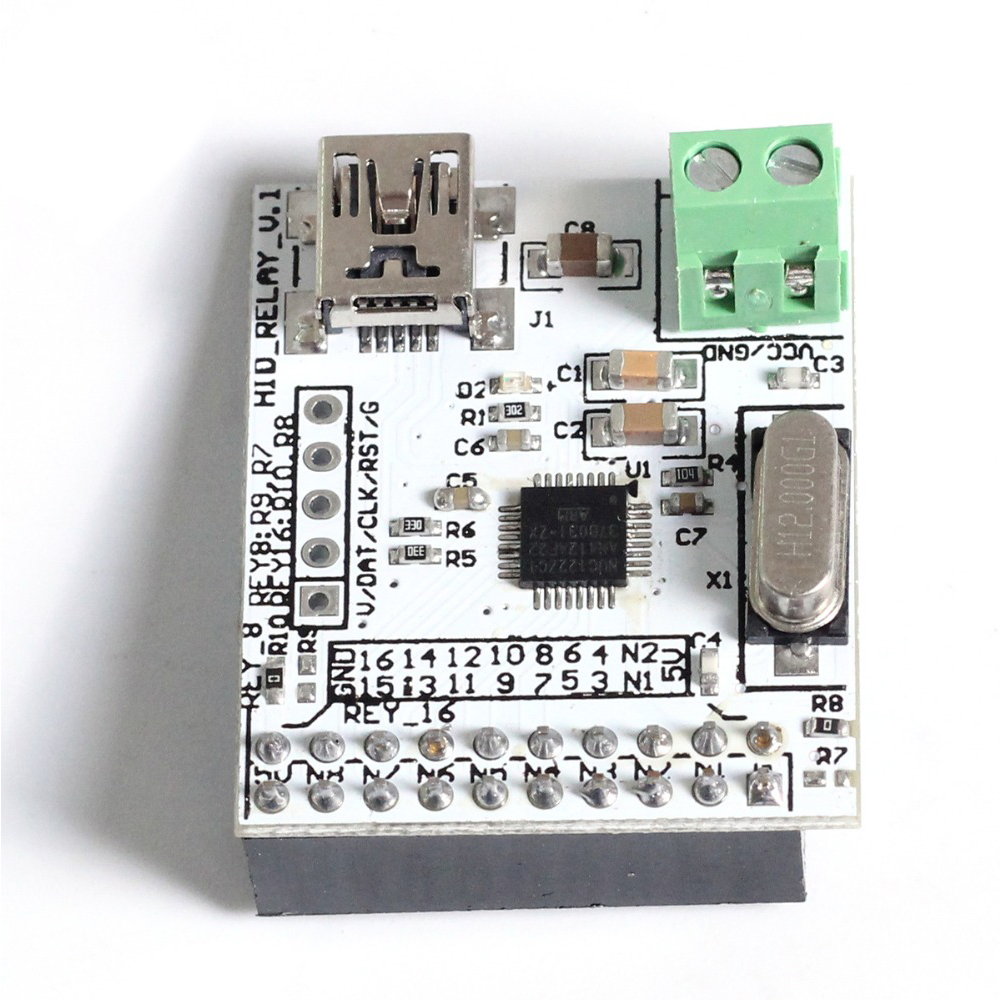

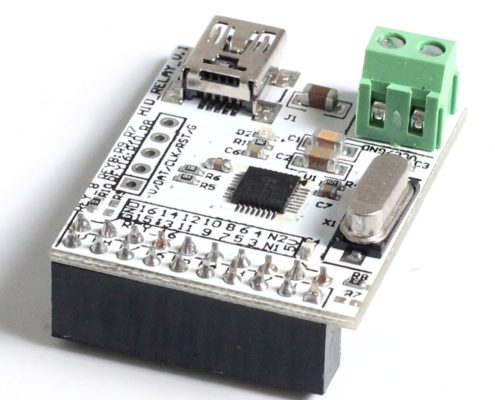

Module description
1.16-way USB control board, the single-chip decoder output after the high and low levels, each output has 15-20mA drive current
2.onboard MINI USB interface, the connection is stable, can be directly controlled by the microcontroller ( 8051, AVR, PIC, DSP, ARM, MSP431, TTL logic level, etc.)
3.military grade PCB board production
Description
1. 16 channel USB control panels, single-chip decoder and output high or low level, each output drive current is about 15-20mA.
2. onboard MINI USB interface to connect stable, you can directly control by the microcontroller(8051, AVR, PIC, DSP, ARM, MSP431, TTL logic level and so on)
3. Supply voltage: DC5V
4. PCB dimensions: 34.5*29mm
5. Quiescent Current: Less than 10MA
The module uses HID technology, foreign trade quality, without any driver, download the information which comes with the application, plug and play. Support WIN7, XP 32-bit, 64-bit system, easy to use simple.
Application:
1. Green indicates that the relay is closed and red is off
2. After the device is turned on, the software automatically obtains the current working status of the relay
