Product Model: OKY4093

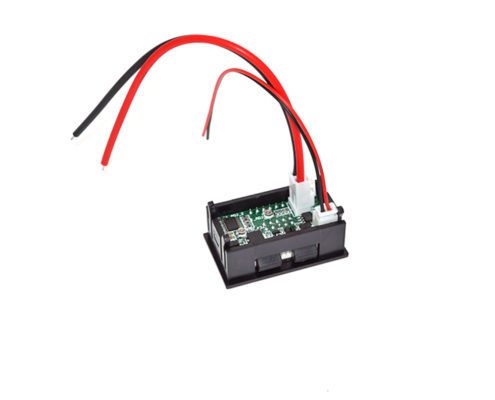

Dual LED Digital Voltmeter Ammeter Panel Tester With DC 100V 10A
Product Description
- Operating voltage:DC 4.5 ~ 30V
- Measure voltage: DC 0 ~ 100V
- Minimum resolution: 0.1A ,0.1V
- Measure current : 0-1A / 0-10A at Optional
- Operating current: <20mA
- Display: 3 0.28″ LED digital tube
- Display color: Red+Red,Red+Blue at Optional
- Dimensions: 48 x 29 x 21mm
- Refresh rate: about 500mS / times
- Measure accuracy: 1% (± 1 digit)
Product Details
Product Description
Description:
- Display color: red + blue(dual display)
- Voltage measurement range: 0.0V-100V
- Current test range: 0-10A/0-50A/0-100A(10A Voltmeter Ammeter direct measurement, built-in shunt)
- Power supply range: DC4-30.0V
- External shunt specifications: 75 milliohms
- Operating current: less than 20mA
- Voltage error: ± 0.1%
- Current error: ± 1%
- Minimum resolution (A): 0.01A.
- Refresh speed: about 300mS once
- Display: double three 0.28 “LED digital tube
- Lead length: 15cm/ 5.91 in
- Dimensions: 48 x 29 x 22 mm
- Mounting hole: 46 x 27 mm
- Mounting cutout: 45.5mm x 26.5mm.
- Operating temperature: -10℃ ~ 65℃
- Operating Humidity: 10 to 80% (non-condensing).
Related Product
Have Question? Contact Us Now!
Product Model: Solar Kit 004
Potato Clock Green Science Project Experiment Kit kids Lab Home School Kit
Product Description
100% Brand New & High Quality
- How It Works:
1.The metal strips and potato make a simple battery that creates electricity to operate to operate the clock. Each potato works as a device called a electrochemical cell. It converts the chemical energy stored in the metal strips intoelectrucal energy.Two potatoes are needed to make electricity strong enough to run the clock.
2.A cell works because of the chemical properties of the metals inside (in this case the copper and zinc).The different properties cause tiny particles charged with electricity .
(called ions) to move between the the two strips of metal. This flow is an electric current. The potato contains the particles that allow the current to flow,but it stops the metals touching.Electric current also flows along the wires between the zinc and copper strips and the clock. This current makes the clock work. - Put some soft drink into the pots provided.Insert the copper and zice plates into the pots, as shown in the diagram.
Taking care that the metal pates do not touch each other.The clock should now start to work. - You may experiment with different liquids like salt water,fruit juices. Or fruit like lemon, orange,tomato etc.The fun is unlimited.
- Cup Size: 5.5cm x 5.5cm x 6.8cm – 2.17inch x 2.17inch x 2.68inch.
Clock Size:6.7cm x 3.2cm x 1.2cm – 2.64inch x 1.26inch x 0.47inch.
Product Details
Product Description
Description:
- 100% Brand New & High Quality
- How It Works:
1.The metal strips and potato make a simple battery that creates electricity to operate to operate the clock. Each potato works as a device called a electrochemical cell. It converts the chemical energy stored in the metal strips intoelectrucal energy.Two potatoes are needed to make electricity strong enough to run the clock.
2.A cell works because of the chemical properties of the metals inside (in this case the copper and zinc).The different properties cause tiny particles charged with electricity .
(called ions) to move between the the two strips of metal. This flow is an electric current. The potato contains the particles that allow the current to flow,but it stops the metals touching.Electric current also flows along the wires between the zinc and copper strips and the clock. This current makes the clock work. - Put some soft drink into the pots provided.Insert the copper and zice plates into the pots, as shown in the diagram.
Taking care that the metal pates do not touch each other.The clock should now start to work. - You may experiment with different liquids like salt water,fruit juices. Or fruit like lemon, orange,tomato etc.The fun is unlimited.
- Cup Size: 5.5cm x 5.5cm x 6.8cm – 2.17inch x 2.17inch x 2.68inch.
Clock Size:6.7cm x 3.2cm x 1.2cm – 2.64inch x 1.26inch x 0.47inch.
Package Include:
1 x Potato Clock Toy Set
