Product Model:OKY3065-15

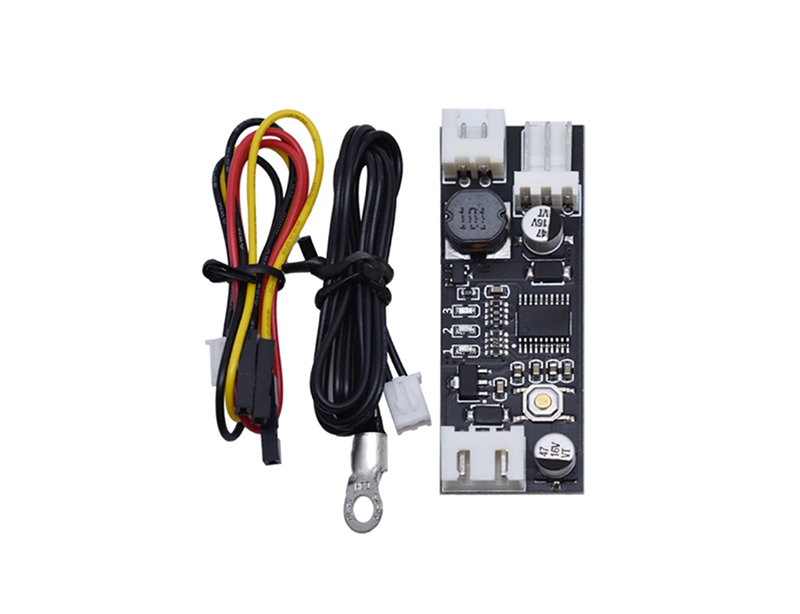

OEM/ODM Available Okystar Single 12V DC PWM 2-3 wire fan temperature control speed regulator noise reduction module
Product Description
100% Brand New & High Quality
- 1.Factory default value of the setting parameters: some fans may not turn when the output is low.
2.Please adjust the fan start position to use low speed 20%, acceleration temperature 30℃, acceleration width 5℃ and output without shutting down.
Product Details
Product Description
Specification:
1.Board size:48mm*18mm*9mm
2.Working voltage:DC12V is recommended
3.Working temperature:-20℃ to 60℃
4.PWM output range:5%-100%
5.Temperature probe temperature resistance:ring probe 110C
6.Temperature probe interface:XH-2P terminal block (pin spacing 2.54mm)
7.Fan current:within 0.8A (not overloaded)
8.Fan interface:KF2510-3P terminal block (pin spacing 2.54mm)
9.Input reverse connection protection:Yes
10.Weight:90g
Package Including:
1 * fan temperature control
