Product Model:OKYN41233

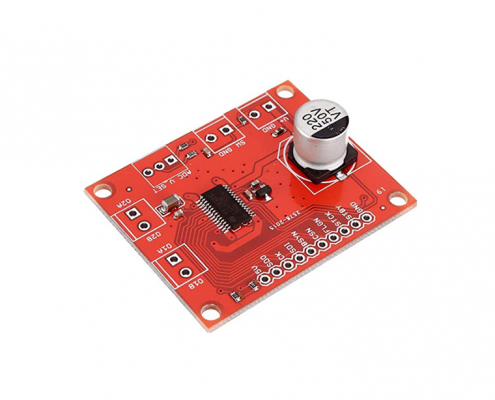

L6470 Stepper Driver 3A Bipolar Stepper Motor Driver Board
Product Description
1.L6470 is a 3A, 8-45V bipolar stepper motor driver. It has built-in overcurrent detection, undervoltage detection, over temperature detection, stall detection, a 5-bit ADC, and a switch input that can be used for either user jog control or as a hard stop function. As if that weren’t enough, it also features micro stepping support (up to 128 micro steps per full step) and PWM drive voltage limiting.
2.Unlike most stepper motor drivers, the DSPIN is controlled over an SPI link. It has anon-board 16MHz oscillator which allows it to autonomously execute movement commands. That means no more counting steps in your code! It also supports customized acceleration and deceleration profiles to prevent jerky starts and stops
3.On-board registers track current speed and location.
4.L6470 Stepper Driver makes it easy to put the DSPIN to work in your project.
Product Details
Description:
1.L6470 is a 3A, 8-45V bipolar stepper motor driver. It has built-in overcurrent detection, undervoltage detection, over temperature detection, stall detection, a 5-bit ADC, and a switch input that can be used for either user jog control or as a hard stop function. As if that weren’t enough, it also features micro stepping support (up to 128 micro steps per full step) and PWM drive voltage limiting.
2.Unlike most stepper motor drivers, the DSPIN is controlled over an SPI link. It has anon-board 16MHz oscillator which allows it to autonomously execute movement commands. That means no more counting steps in your code! It also supports customized acceleration and deceleration profiles to prevent jerky starts and stops
3.On-board registers track current speed and location.
4.L6470 Stepper Driver makes it easy to put the DSPIN to work in your project.
Specification:
1.Origin: CN(Origin)
2.Condition: New
3.Type: Module
4.Motor Type:Stepper Motor
5.Model Number:L6470 Stepper Motor Driver
6.Power Supply:DC
Package Including:
1 * L6470 Stepper Driver 3A Bipolar Stepper Motor Driver Board
