Specification:
1. Input voltage: 5.5-30V
2. Output voltage: 0.5-30V
3. Output current: long-term stable work at 3A, enhanced heat up to 4A
4. Output power: 35W natural heat dissipation, heat dissipation increased by 50W
5. Voltage display resolution: 0.05V
6. Current display resolution: 0.005A
7. Conversion efficiency: about 88%
8. Input reverse protection: Yes
9. Backflow prevention at the output: Yes
10. Short circuit protection: Yes
11. Working frequency: 180KHZ
12. Size: length * width * height 66 * 48 * 21 mm
13. Mounting hole: diameter 4mm
14. Weight:65g
Package List:

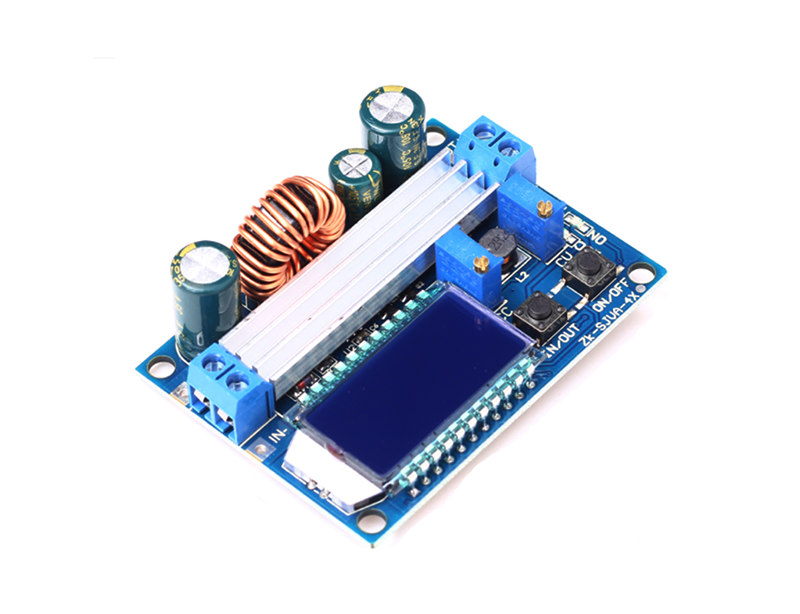

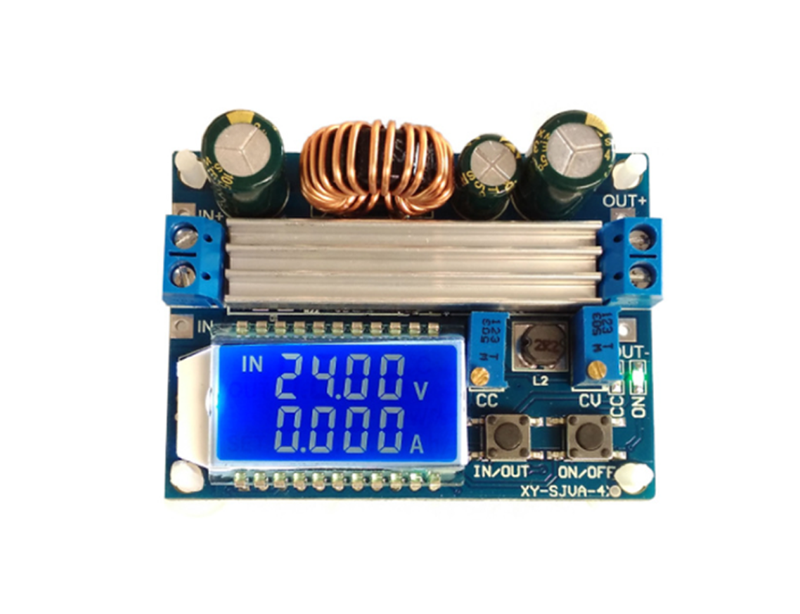

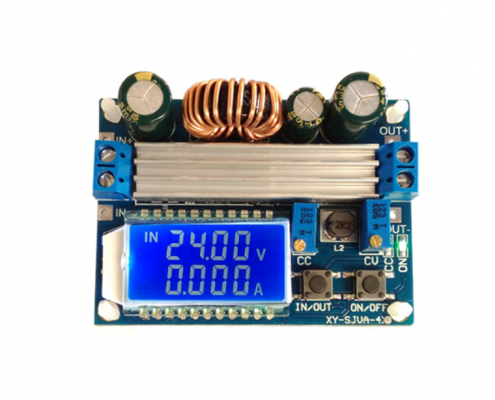

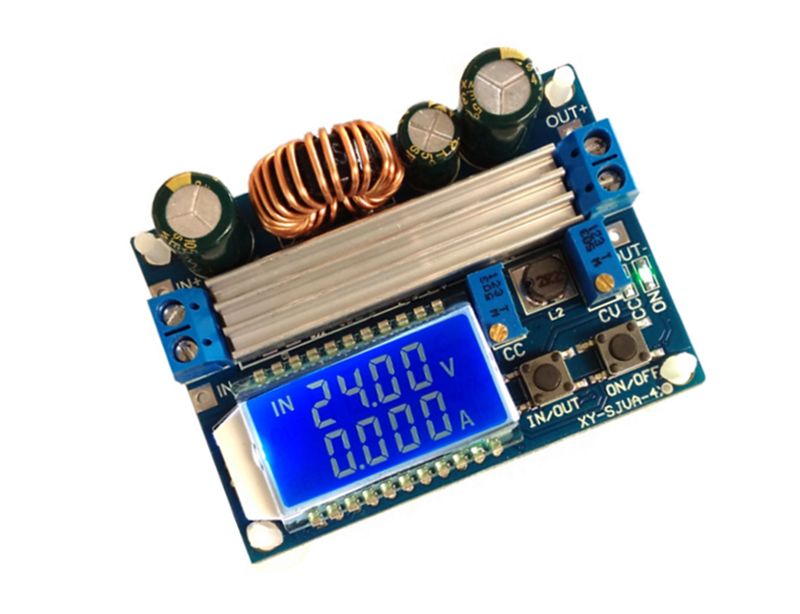

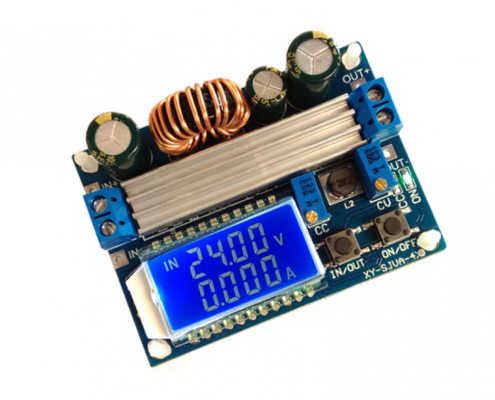

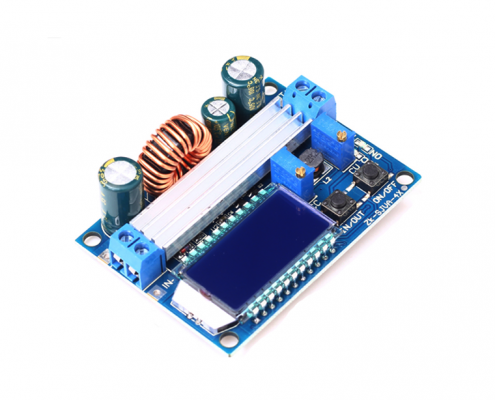

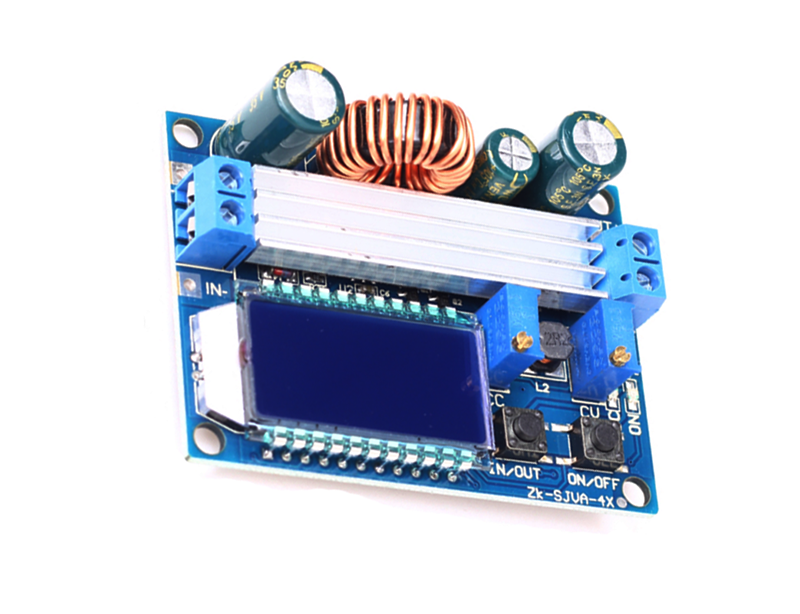

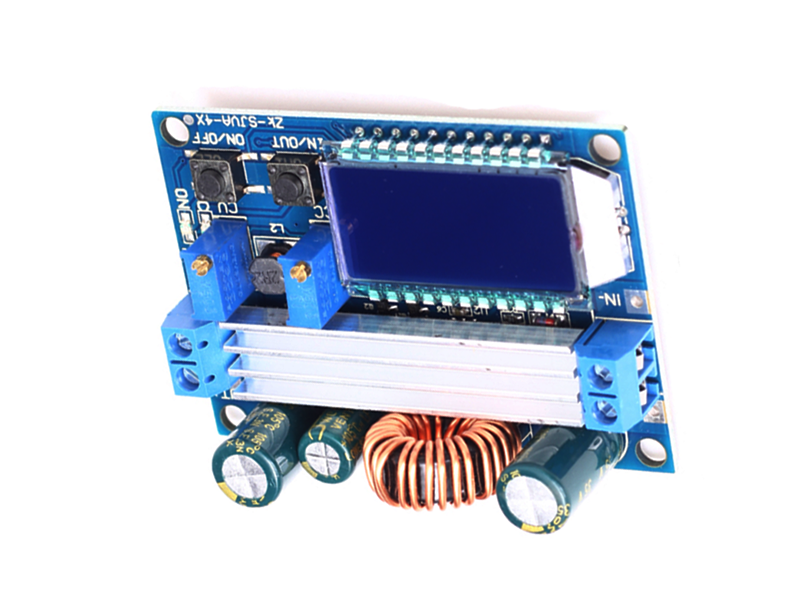

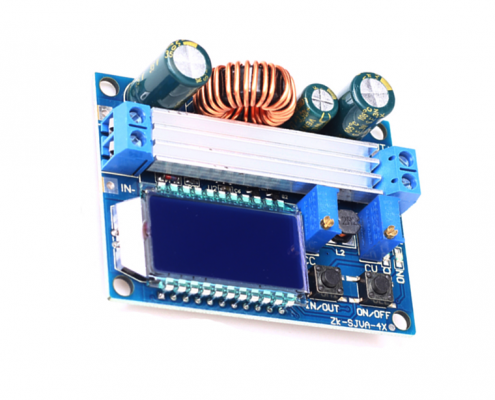

1 * Step Up Down Power Supply Module
