LCD Keypad Shield V2.0 Blue Backlight LCD1602 For Arduino-OKY4006 – OKYSTAR

OKY4006

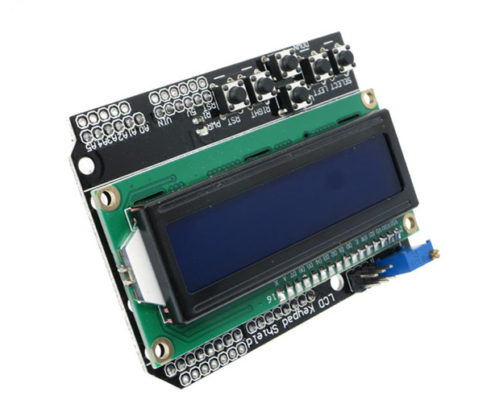

LCD Keypad Shield V2.0 Blue Backlight LCD1602 For Arduino

Product Description

*LCD1602 LCD Joystick Shield v2.0

*ANALOG IN: 5

*16*02 LCD: 1

*Five joystick buttons: 1

*System reset button: 1

*Occupy any digital ports:

*PIN4-DB4 / PIN5-DB5 / PIN6-DB6 /

*PIN7-DB7

*PIN8-RS / PIN9-E

*PIN10-backlight control

*Analog 0 key port

Call on Whatsapp

Share This Product

Product Details

Product Description

Description:

LCD Keypad Shield input-output expansion board using the two -line 16 character LCD with contrast adjustment and backlight , using an analog input port will complete five buttons , a reset button , unused IO ports are extended out of the reserve, make full use of IO ports . Occupancy figures port : PIN4 (DB4), 5 (DB5), 6 (DB6), 7 (DB7), 8 (RS), 9 (E), 10 ( backlight control ) , an analog button port A0. (LCD color is not specified, the random delivery. )
