LED Display Module OLED Display I2 – OKY4020 – OKYSTAR

Product Model: OKY4020

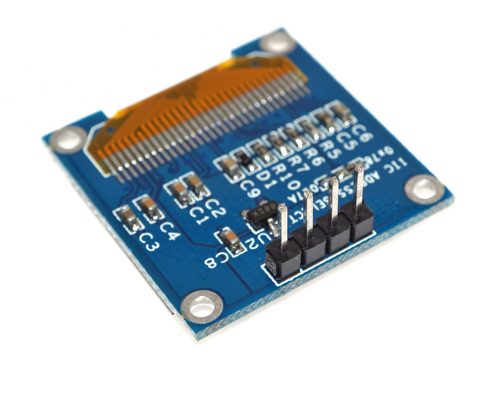

0.96″ OLED Display I2C IIC 128X64 LED Display Module

Product Description

Needn’t backlight, the display unit can self-luminous
High resolution: 128 * 64
Viewing angle:> 160 °
Supports many control chip: Fully compatible with 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
Ultra-low power consumption: full screen lit 0.08W
Voltage: 3V ~ 5V DC
Working Temperature: -30 ℃ ~ 70 ℃
Module Size: 27.0MM * 27.0MM * 4.1MM
I2C/IIC Interface, need 2 IO only.
Driver IC: SSD1306

Call on Whatsapp

Share This Product

Product Details

Product Description

Needn’t backlight, the display unit can self-luminous
High resolution: 128 * 64
Viewing angle:> 160 °
Supports many control chip: Fully compatible with 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
Ultra-low power consumption: full screen lit 0.08W
Voltage: 3V ~ 5V DC
Working Temperature: -30 ℃ ~ 70 ℃
Module Size: 27.0MM * 27.0MM * 4.1MM
I2C/IIC Interface, need 2 IO only.
Driver IC: SSD1306

Product Features

Super High Brightness (Adjustable)
Super High Contrast (Adjustable)
Embedded Driver/Controller
Colors: White
Drive Duty: 1/64 Duty
Pixels: 128×64
Panel Size: 26.70mm x 19.26mm x 1.85mm
Active Area: 21.74mm x 11.2mm
Pixel Size: 0.15mm x 0.15mm

Download Data
