LM3914 Indicator Module Battery capacity indicatorRGB-OKY4098

Product Model: OKY4098

LM3914 Indicator Module Battery capacity indicatorRGB

Product Description

Parameter:

Power: bar display full brightness 42ma, single light shows 4ma
Measuring range: the battery inside the common 2.4-20v
Color: blue
Display: Multi-light bar display or a single light dot display
pcb board size: 45 x 14 mm
Display Mode A / P: full brightness linear / single lamp lattice mode switch, the default is a linear model, the board set aside a switch pad, even with soldering pads can be turned into full light linear mode, no welding is the point like single light display

Send Inquiry

Chat Online

Call on Whatsapp

Share This Product

Product Details

Product Description

Features:
– This is a DIY kits,need buyer to assemble it.
– Power display is to take some voltage, perform simulations show the percentage of segments, such as 3.7V lithium battery, take the lower voltage 3V, the upper limit of 4.2V, 4.2-3 = 1.2V, the voltage difference between the lower limit of 1.2V, is the battery Analog power up

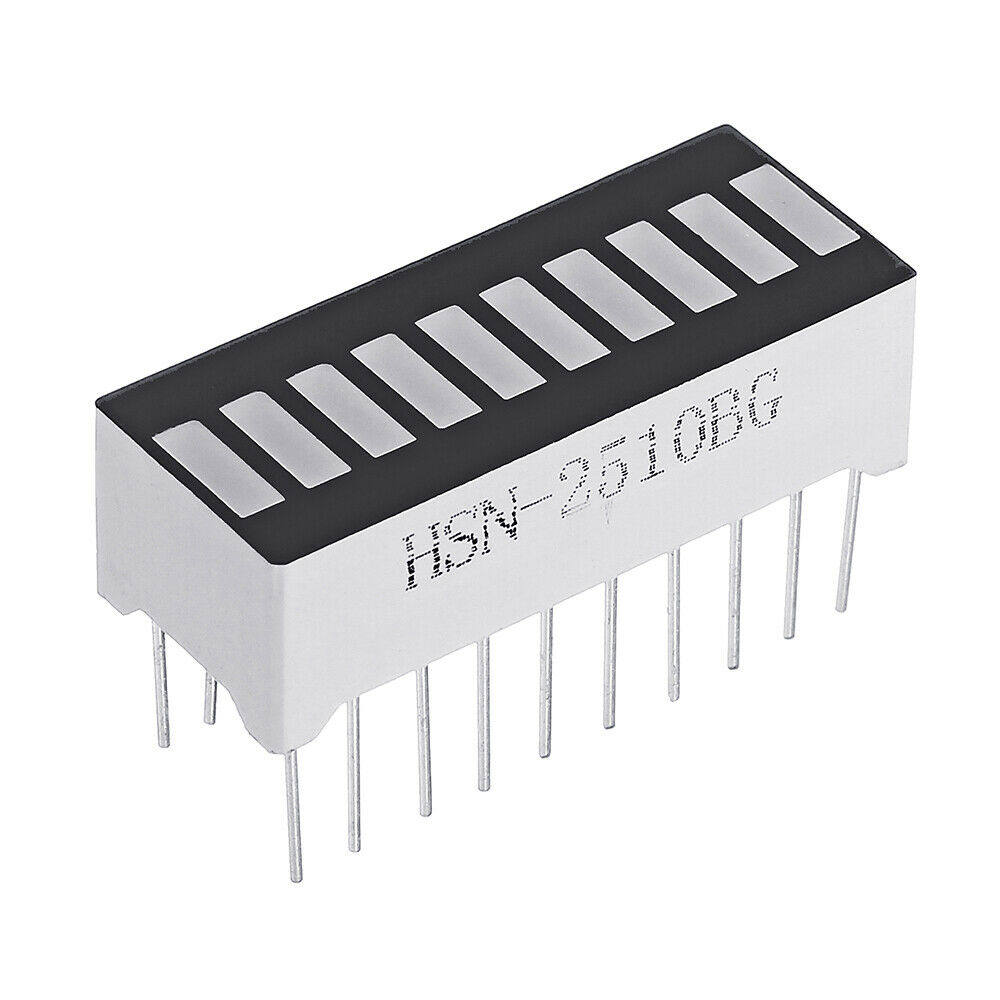

– LM3914 can accurately detect an analog voltage, and 10 LED display, display dot mode LED is lit 10 one, or in a stripe pattern individually lit LED
– Display Description: Displays the battery voltage between the lower limit of 10 files showed that representatives of each of the lights 10% charge displays, on behalf of 10 lights display charge 0% -100% range; you can also change the single light display, is displayed only a light, more power, single-light power 4mA, all bright 42mA.
– Suitable for lithium batteries, lead-acid batteries and other power batteries need to be displayed
– Power adjustable display range for the battery discharge curve of a scientific setting, direct support: single lithium 1S (4.2V) ~ 4S (16.8V), lead acid 6V ~ 12V, NiMH 3.6V ~ 18V, nickel-cadmium batteries 3.6V ~ 18V
