OKY3500-1

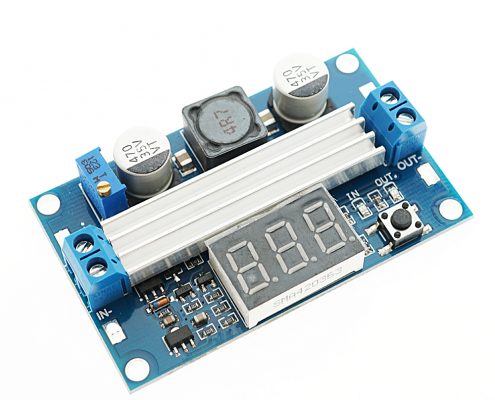

Ltc1871 DC 100w 3-35v 12v to 3.5-35v Boost Step-up Module LED Voltmeter PCE

Product Description

100% Brand New & High Quality

1.input voltage range:3~35VDC(Note: the input voltage is less than 4V, voltmeter failure)

2.input current:9A (max)

3.output voltage range:3.5~35VDC(please to ensure that output voltage above on input voltage)

4.output current: 6A (max)

5.output power: 75W (when the input and output voltages greater than 20V up to 128W)

6.conversion efficiency: 96.4% (max)

7.voltmeter range: 4 to 40V, error ±0.1V

8.short circuit protection: yes(limit current 14A). (Note: connected to high-power load, just switched on the impact of current very general meeting current limiting self-locking protection, it is recommended to be switched on firstly, and then access the load).

9.input reverse polarity protection: None (if required, high current diode in series with the input).

10.L x W x H = 67 * 43 * 12mm
