100% Brand New & High Quality
Description:

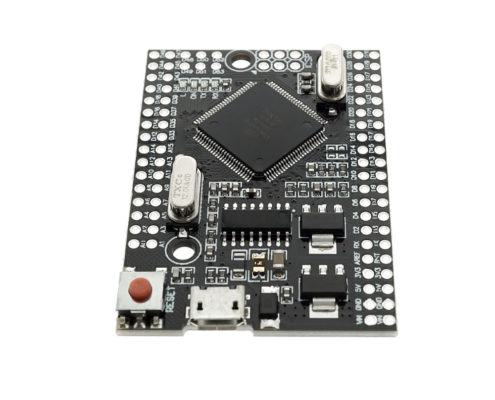

The board has a compact form factor of 38X55mm and is an excellent solution for developing projects based on ATmega2560.
The Mega Pro Embed functionalities are identical to the Mega 2560. Even though it is an Embed board, it is solid stable as the Mega Board. It uses the original chip, and a 16 MHz high-quality quartz resonators is present on the board.
The board has a Micro USB connector that allows you to connect the microcontroller to the computer via the USB-UART adapter CH340(A driver installation may be required).
The board can be powered directly through the Micro USB connector, or via the corresponding contact on the board (Vin). The used voltage regulator operates in a range of 6 to 9V DC.
The maximum output current upon 5V is around 800mA, while on the 3.3V it is about 800mA.
The voltage regulator allows to use up to 18V as an input value, however we do not recommend exceeding the recommended values aforementioned, since this can lead to excessive heat and damage the device.
The board used the CH340G chip as a UART-USB converter. When you work on the 12 MHz frequency, giving a stable result of the exchange of data.
Package Include:
1 x MEGA 2560 Pro Embedded Board
