OKY2236

Nano 328P IO Wireless Expansion Board Module Sensor

Product Description

Compatible for Arduino or Arduino-compatible Nano v3.0

14 I/O Pin (servo type with GND, power and signal)

8 analog Pin with power output and GND

6 PWM Pin

1 Servo power input

5 I2C expansion Pin

AREF output

3.3V output

Size：（Long）60mm *（wide1）56 mm *（high）15mm

Call on Whatsapp

Share This Product

Product Details

Product Description

Description:

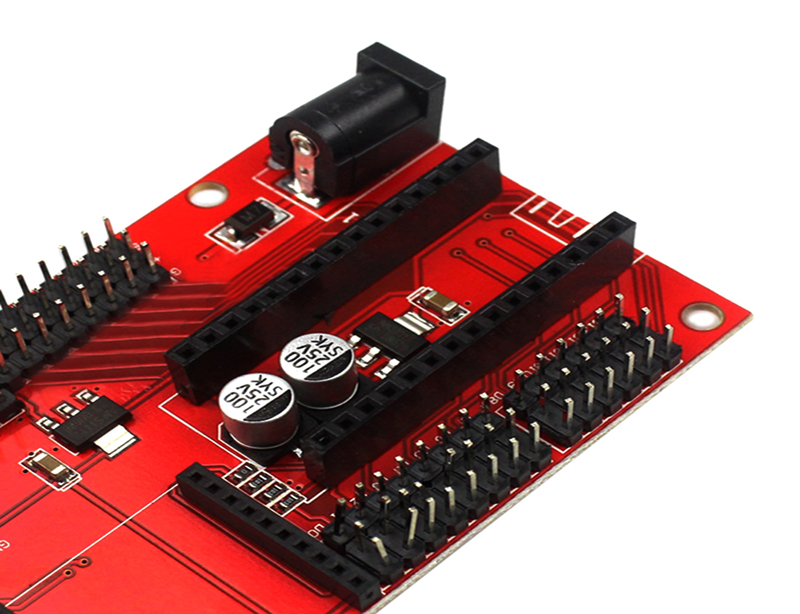

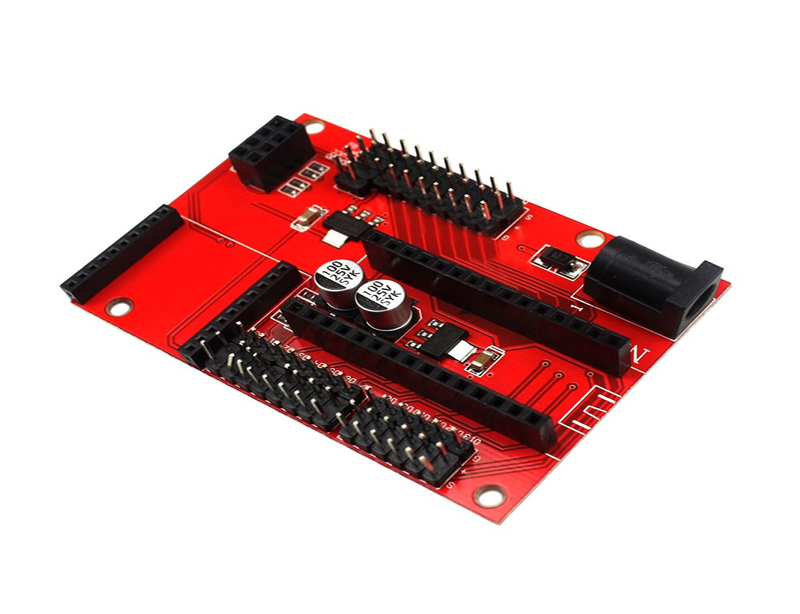

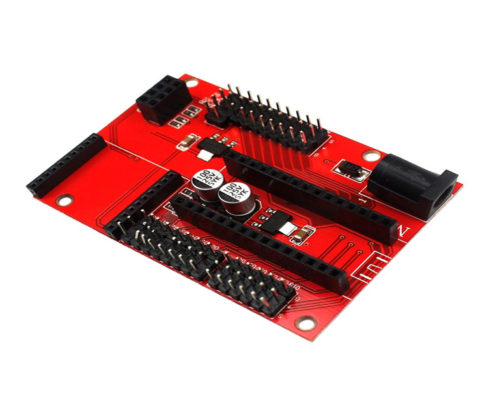

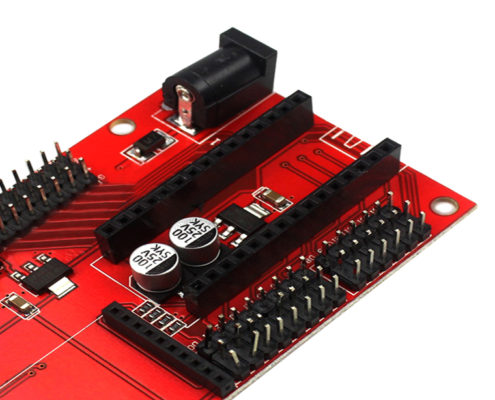

This expansion board for the Nano 328P offers all the IO leads. Leads to the electronic building blocks 3pin / sensor interface. In addition, to provide external power input terminals that can support an external 7-12V input. 24L01 with XBee socket and the socket, extend the wireless capabilities of the Nano.
