OKY3362

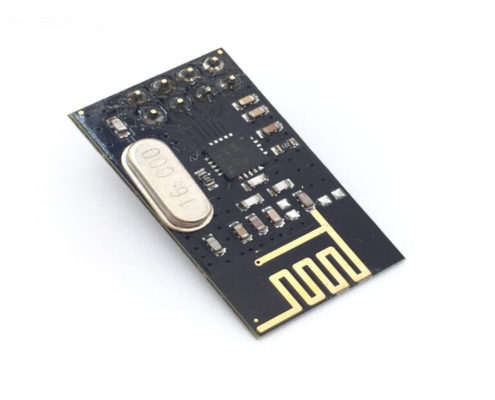

NRF24L01 2.4GHz Antenna Wireless Transceiver Module
Product Description
*Module Type: Wireless, upgrade version of NRF24L01+
*Voltage: 1.9-3.6V (recommended 3.3V)
*Maximum output power: +20dBm
*Emission mode current(peak): 115mA
*Receive Mode Current(peak): 45mA
*Power-down mode current: 4.2uA
Share This Product
Product Details
Product Description
Description:
- Low voltage: 1.9 ~ 3.6V low voltage work
2. high speed: 2Mbps, due to the short air transmission time, greatly reducing the collision of wireless transmission (software settings 1Mbps or 2Mbps air transmission rate)
- Multi-frequency: 125 frequency points to meet the needs of multi-point communication and frequency hopping communications
- Subminiature: Built-in 2.4GHz antenna, small size, 15x29mm (including antenna)
- Low power consumption: When the work in response mode communication, rapid air transmission and start-up time, greatly reducing the current consumption.
- Low application cost: NRF24L01 integrates all high-speed signal processing parts related to RF protocol, such as automatic retransmission of lost data packets and automatic generation of response signals. The SPI interface of NRF24L01 can be connected by the hardware SPI port of a singlechip or a singlechip I / O port for simulation, internal FIFO with a variety of high-speed microprocessor interface, easy to use low-cost microcontroller.
