OV2640 Camera Module 200W Pixel STM32F4 Driver Source Code Support JPEG Output-OKY3553-1

Product Model: OKY3553-1

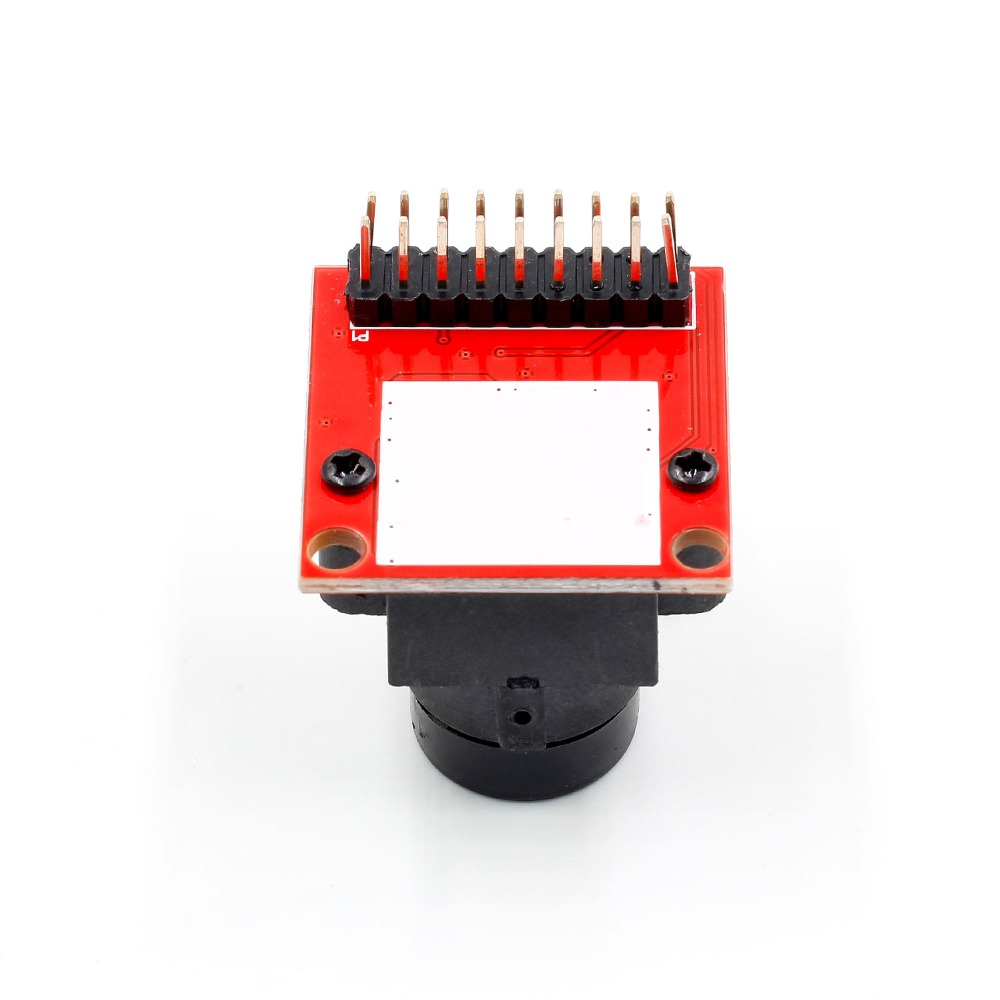

OV2640 Camera Module 200W Pixel STM32F4 Driver Source Code Support JPEG Output

Product Description

1, sensor size: 1/4 inch.
2, pixel: 1600 * 1200 (200W).
3, the output format: RGB565 / JPEG / YUV / YCbCr and so on.
4, control interface: SCCB.
5, working voltage: 3.3V
6, module size: 27mmX27m

Send Inquiry

Chat Online

Call on Whatsapp

Share This Product

Product Details

Product Description

High sensitivity, low voltage for embedded applications
Standard SCCB interface, compatible with I2C interface
RawRGB, RGB (GRB4:2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output formats
Support UXGA, SXGA, VGA, QVGA, QQVGA, CIF, QCIF and various sizes up to 40×30 size
Supports automatic exposure control, automatic gain control, auto white balance, automatic elimination of light streaks, automatic black level calibration. Image quality control including color saturation, color
Phase, gamma, sharpness, ANTI_BLOOM, etc.
Support for image scaling, panning, and window settings
Support image compression to output JPEG image data
Built-in embedded microprocessor
Integrated LDO, only need to supply 3.3V to work properly
