Product Model: OKYN420-4
1.8V Power Particle Supply MAX30105 Optical Flame Sensor
Product Description
1.The MAX30105 is an integrated particle-sensing module.
2.It includes internal LEDS, photo detectors, optical elements.
and low-noise electronics with ambient light rejection.
3.The MAX30105 provides a complete system solution to ease the design-in process of smoke detection applications including fire alarms.
4.Due to its extremely small size, the MAX30105 can also be used as a smoke detection sensor for mobile and wearable devices.
5.The MAX30105 operates on a single 1.8V power supply and a separate 5.0V power supply for the internal LEDS.
6.It communicates through a standard I2C-compatible interface.
7.The module can be shut down through software with zero standby current, allowing the power rails to remain powered at all times.
Product Details
Description:
1.The MAX30105 is an integrated particle-sensing module.
2.It includes internal LEDS, photo detectors, optical elements.
and low-noise electronics with ambient light rejection.
3.The MAX30105 provides a complete system solution to ease the design-in process of smoke detection applications including fire alarms.
4.Due to its extremely small size, the MAX30105 can also be used as a smoke detection sensor for mobile and wearable devices.
5.The MAX30105 operates on a single 1.8V power supply and a separate 5.0V power supply for the internal LEDS.
6.It communicates through a standard I2C-compatible interface.
7.The module can be shut down through software with zero standby current, allowing the power rails to remain powered at all times.
Specification:
1.Module Supply Voltage: DC 5V
2.Working Environment Temperature: -40 ° C ~ 85 ° C
3.Communication Interface: IIC
4.Module Size: 24.6*14.5MM
5.Material:Plastic
6.Colour:Purple
7.Model Number: MAX30105 Particle Optical Sensor
Package Include:

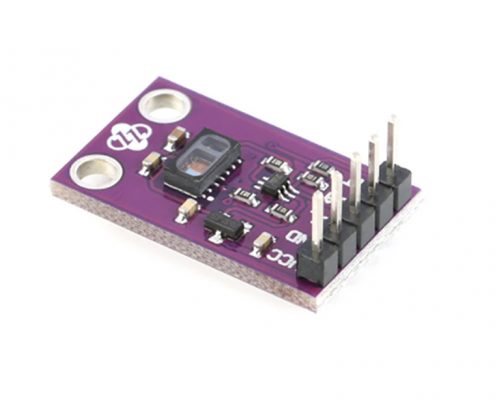

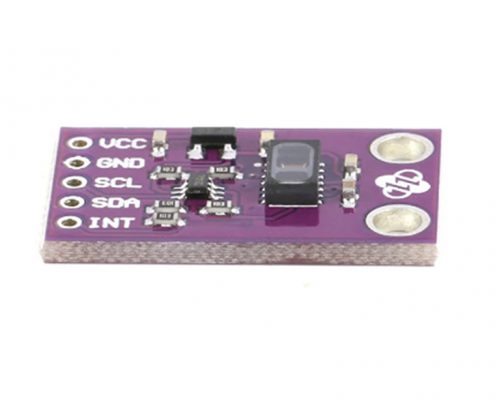

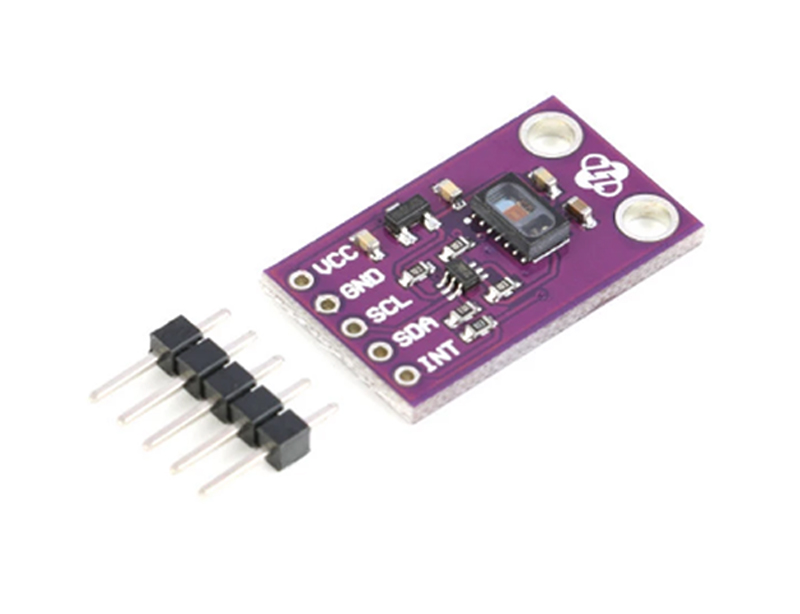

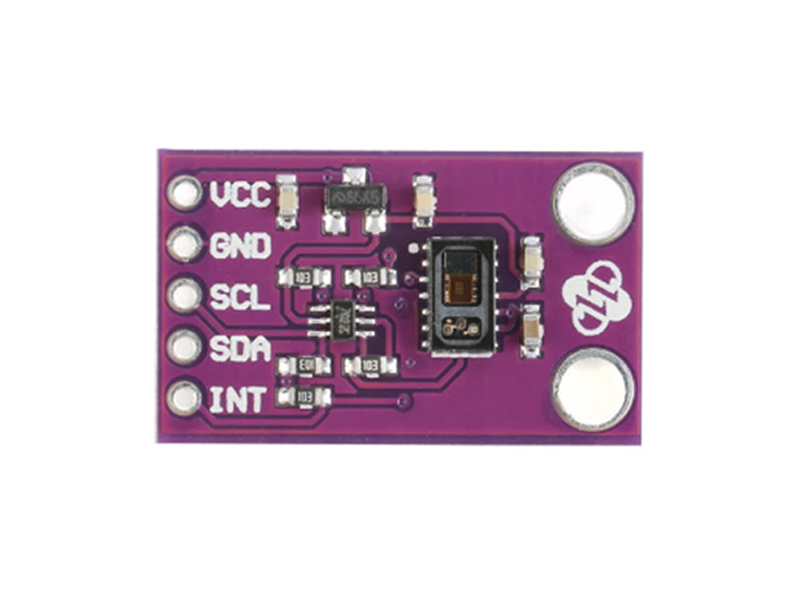

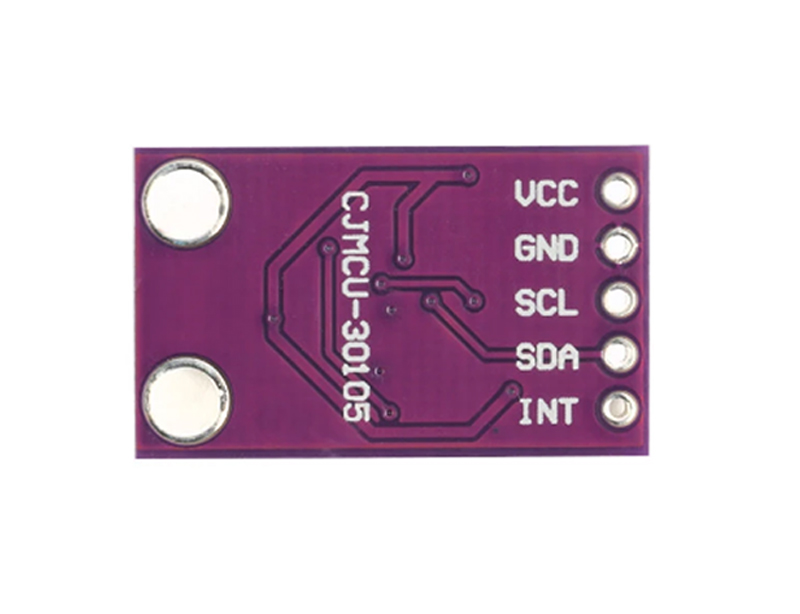

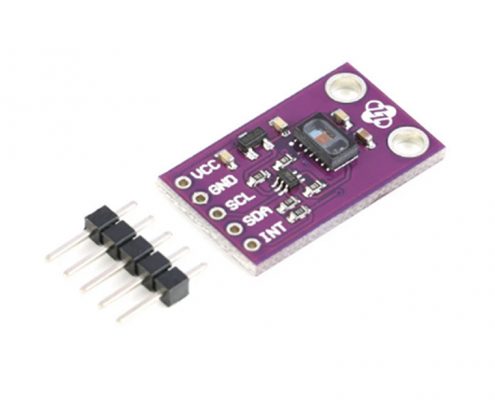

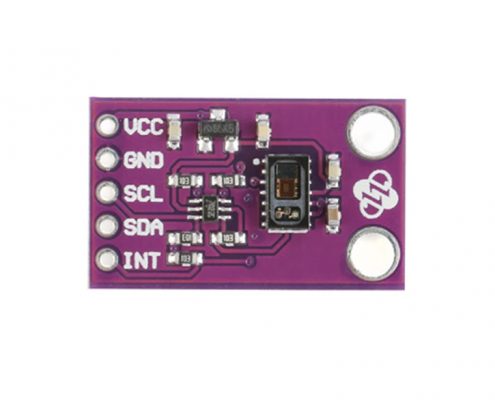

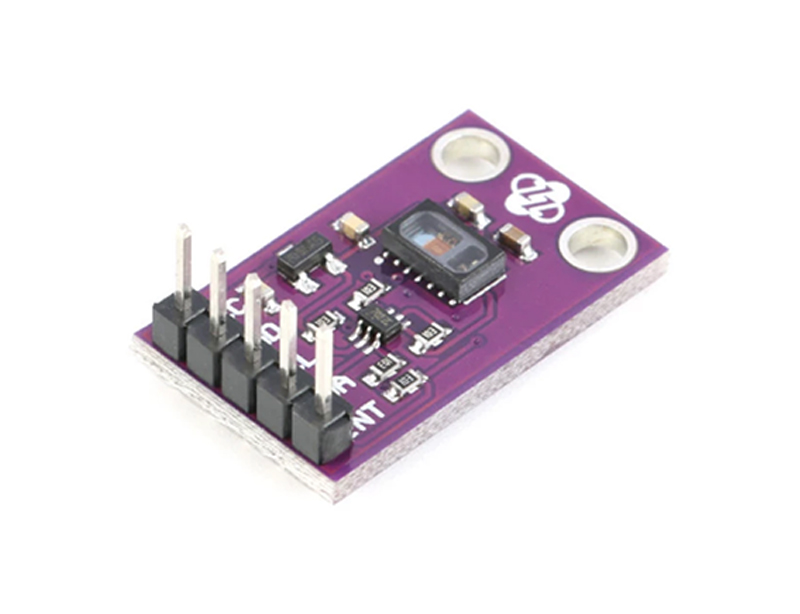

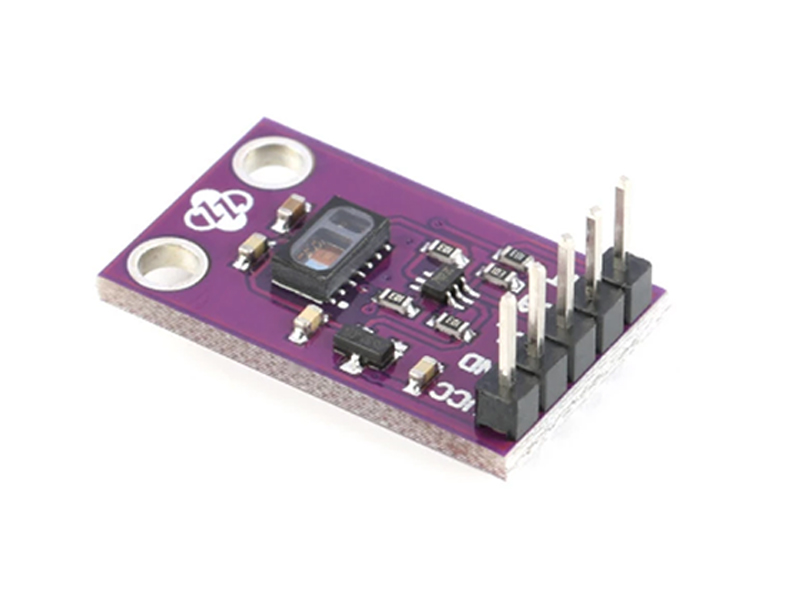

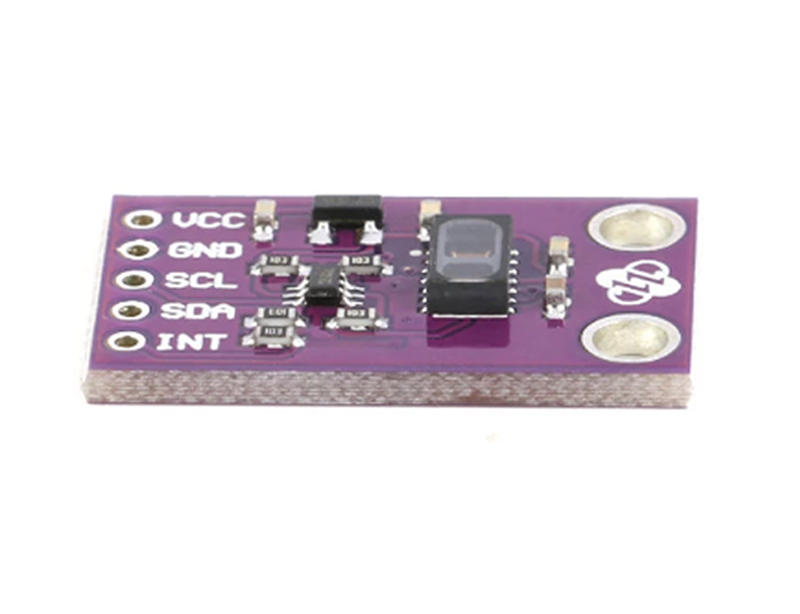

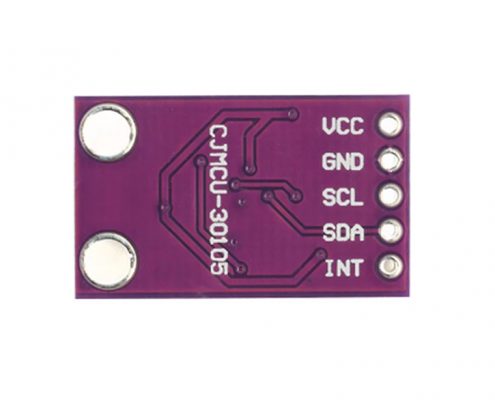

1 * Photo Detectors Board Module
