Product Model:OKY2019

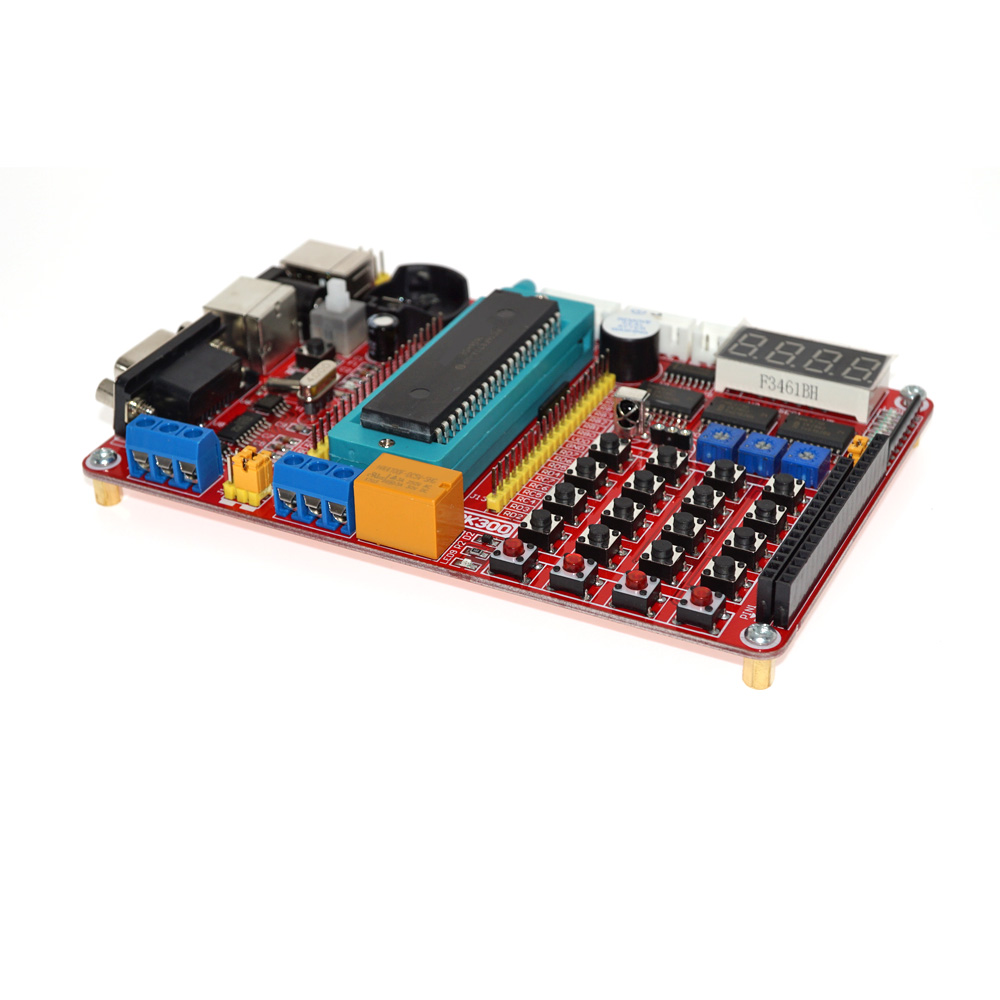

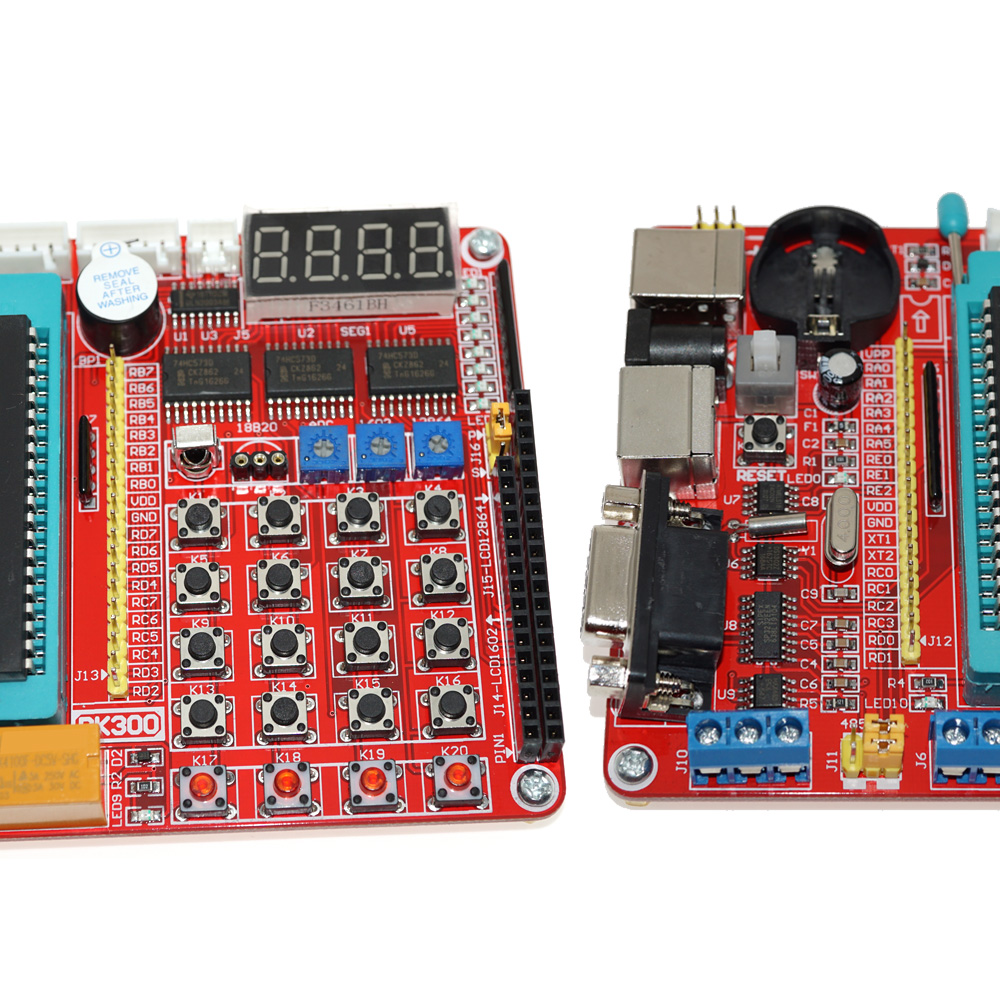

PIC Development Board PIC Learning board Microchip PIC16F877A For Arduino
Product Description
This development board with aPIC16F877A chip.
The DIP40 locking device, easy to remove the PIC microcontroller for reuse
8 independent LED(Marquee experiments)
4 common anode digital tube
1 * 3 independent keys
3 * 3 matrix of buttons
DS1302 Electronic Clock (electronic clock experiment)
DS18B20 temperature sensor (temperature detection and display)
AT24C02 I2C external memory
internal EEPROM read and write
buzzer (MCU sound, music play)
the MAX232 chip RS232 communication
ADC potentiometer input conversion (AD conversion experiments)
USB power supply
DC-machine interface (PWM to achieve speed)
stepper motor interface
infrared receiver
1 channel relay
PS2 keyboard interface
external reset circuit
All IO ports pin have extraction and clearly marked
