Product Model:OKY0107-A

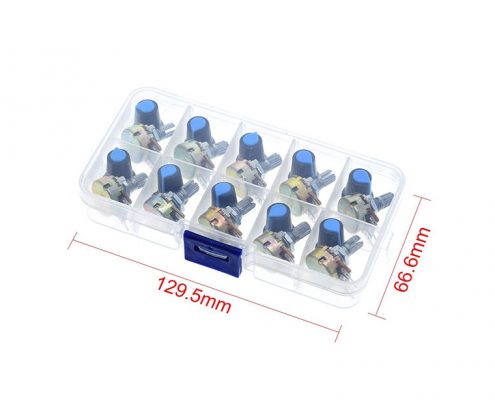

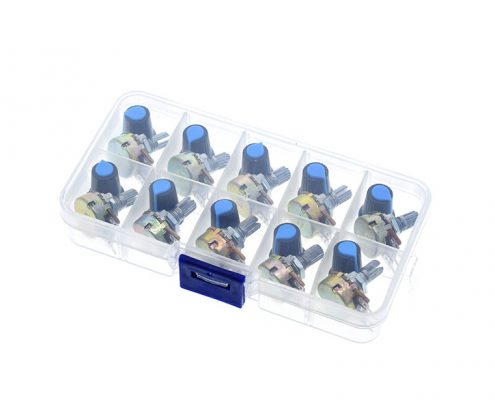

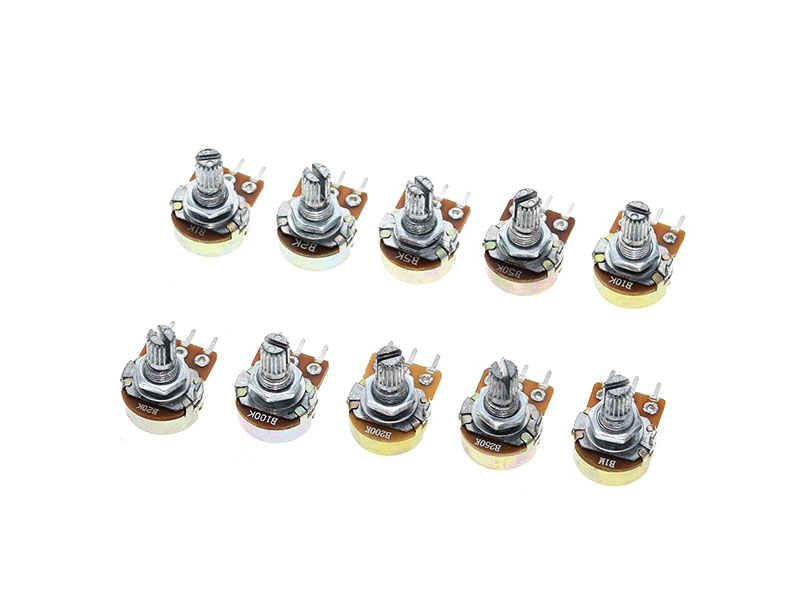

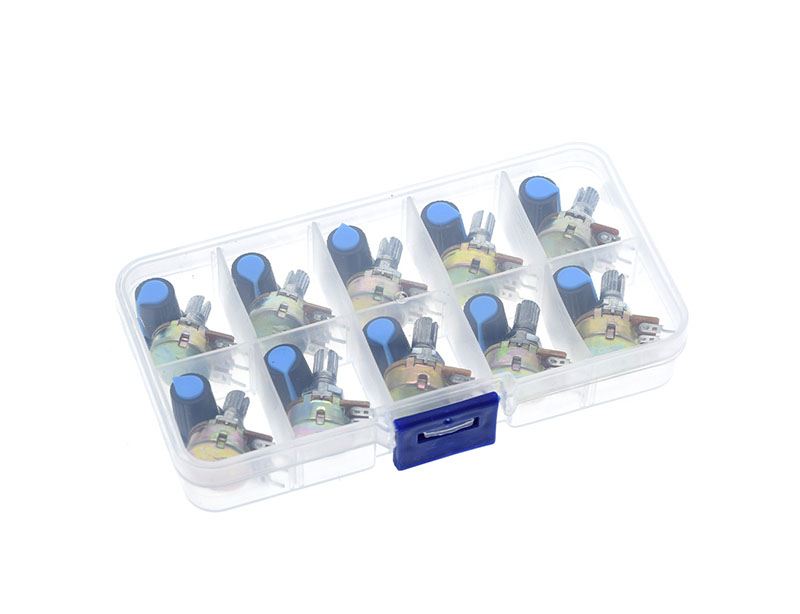

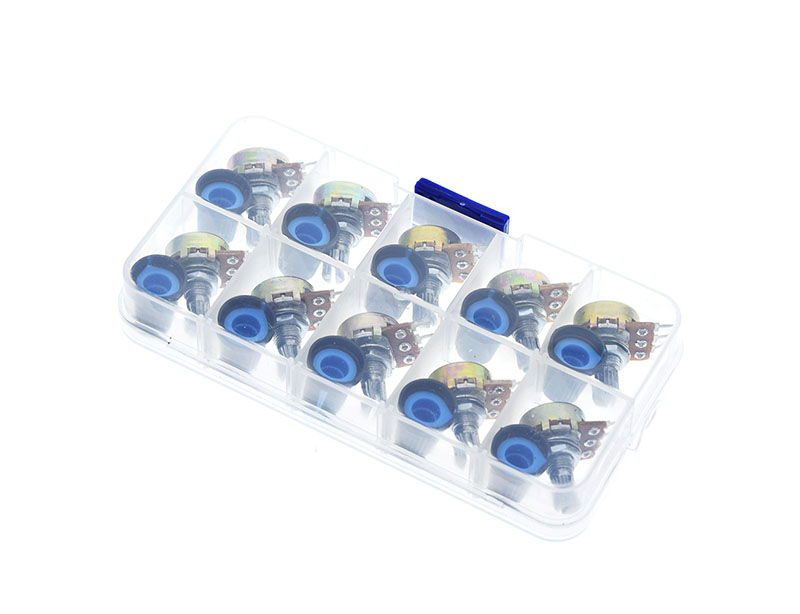

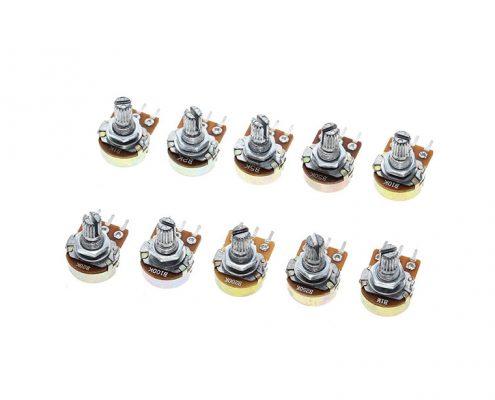

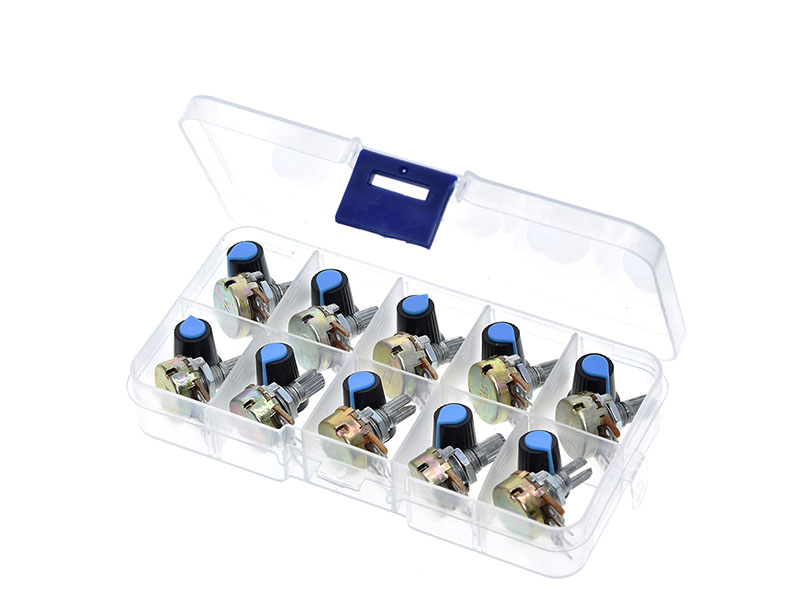

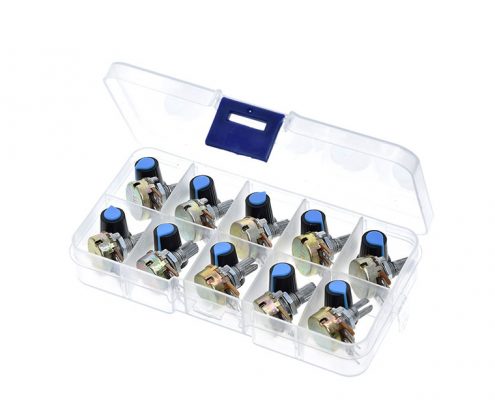

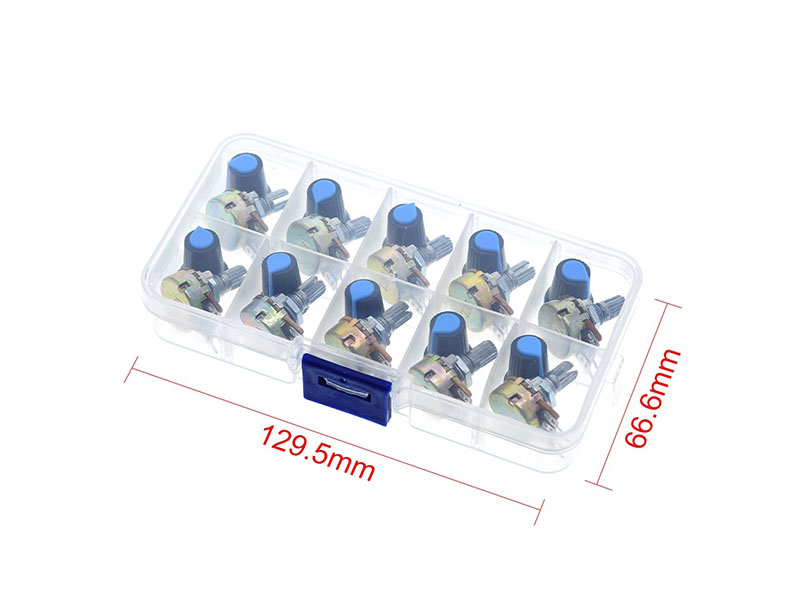

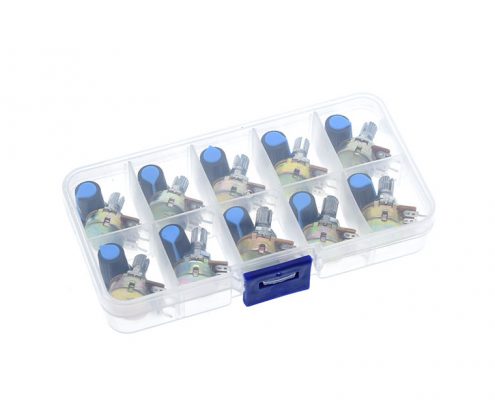

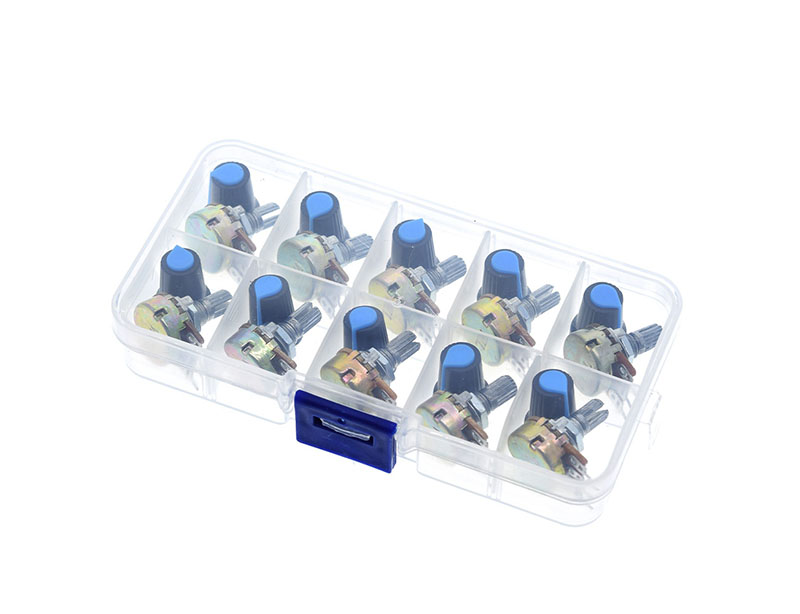

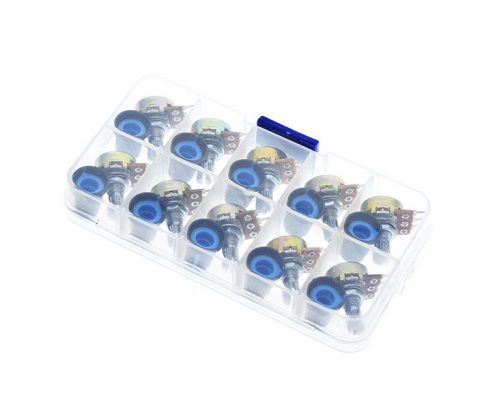

B1K 2K 5K 10K 20K 50K 100K 500K 1M 15mm Taper WH148 Potentiometer Kit Rotary Potentiometer Resistor Set
Product Description
Electrical Characteristics
1.Temp Range:-10℃~100℃
2.Rated Power:Curve B:0.125W;Other curve B:0.053W
3.Max Operation Voltage:Curve B:200V;Other curve B:150V
4.Resistance Range:1KΩ~2MΩ
5.Allow Desistance Tolerance:±20%(1MΩ or more30%)
6.Rotational Noise:≤47mV
7.Resistance Law:A、B、C
8.Dielectric:AC500V,1 minute
9.Insulation Resistance:More than 100MΩ at DC500V
Product Details
Product Description
Mechanical Characteristics:
1.Rotational Torque:2~20 mN.m(20~200gf.cm)
2.Total Rotational Angle:300°±5°
3.Rotary life:10000 cycles
4.Shaft Stopper Strength:6Kgf.cm
5.Push Pull Strength:60N
6.Click position:Center detent or 10,20,40
Weight:125g
Package Including:
1 * Potentiometer WH148
