Product Model: OKY3493

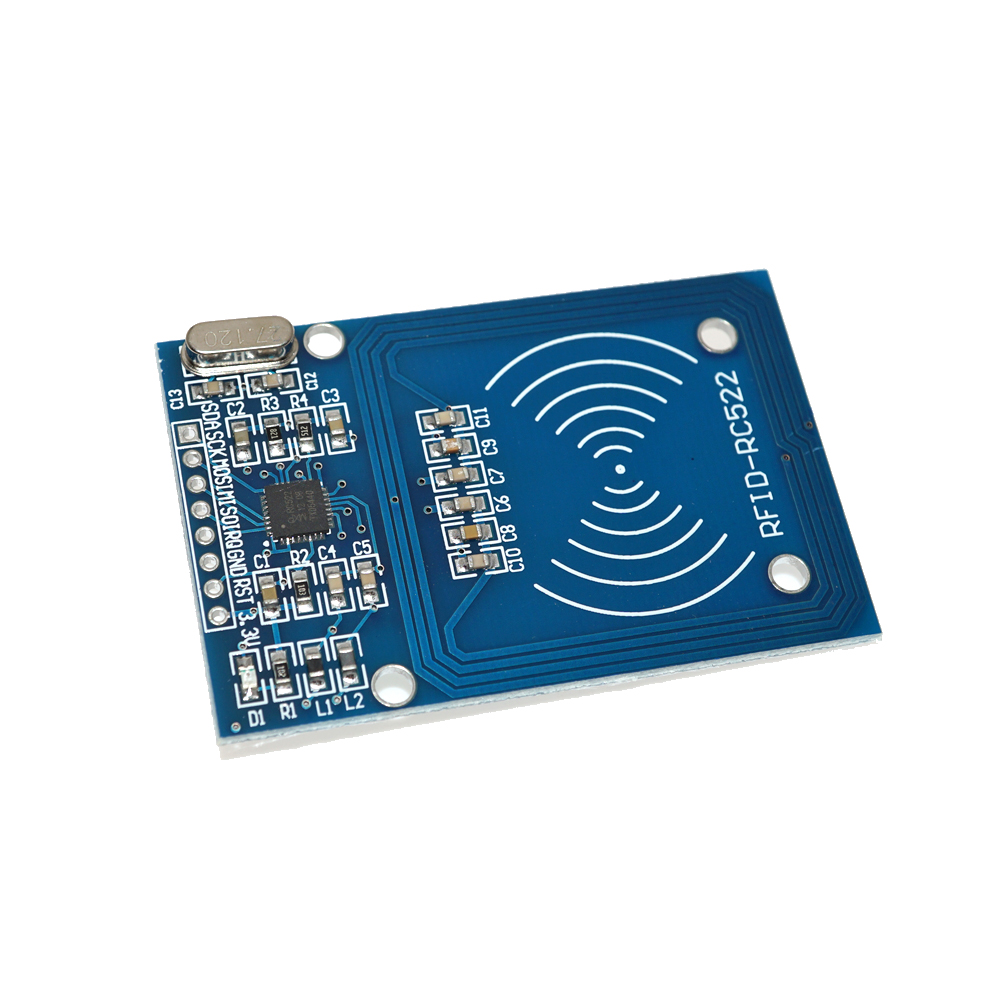

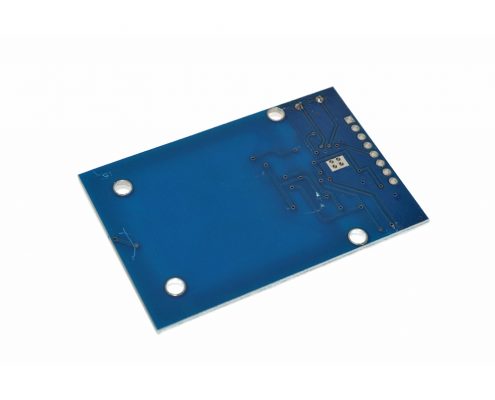

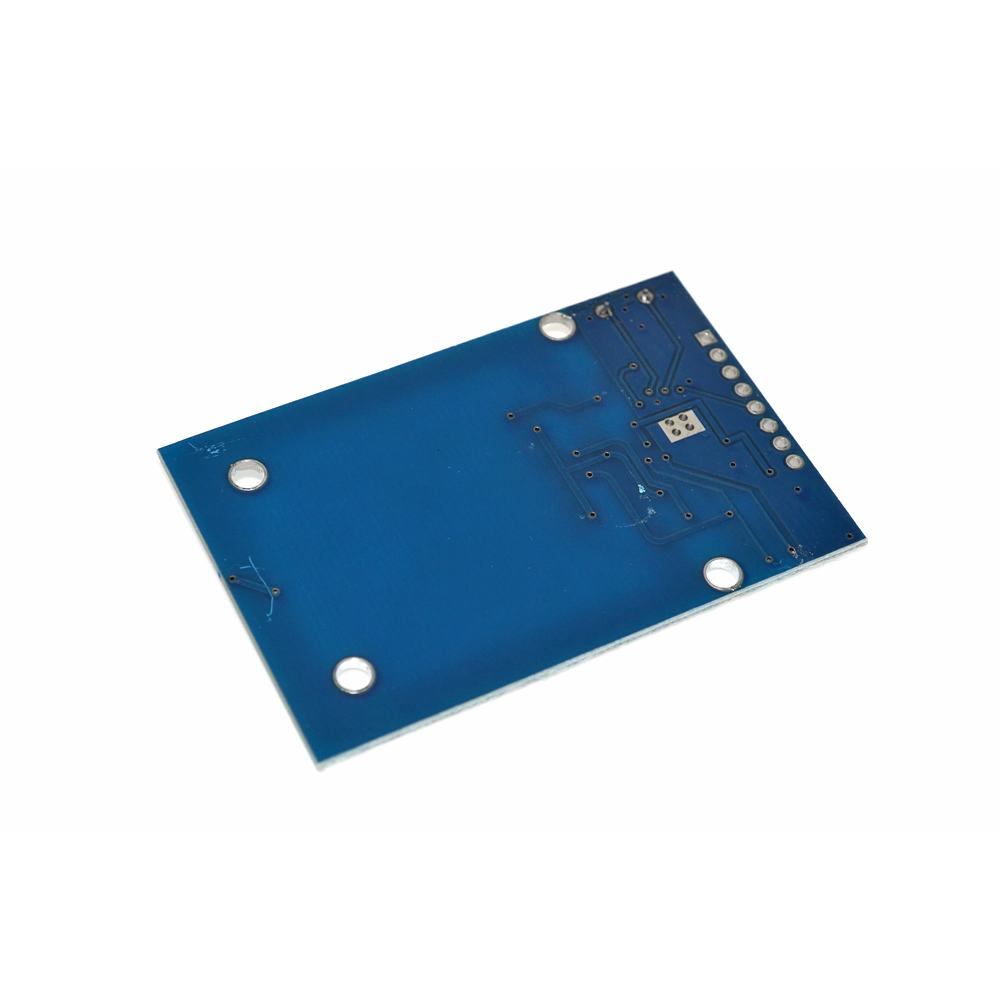

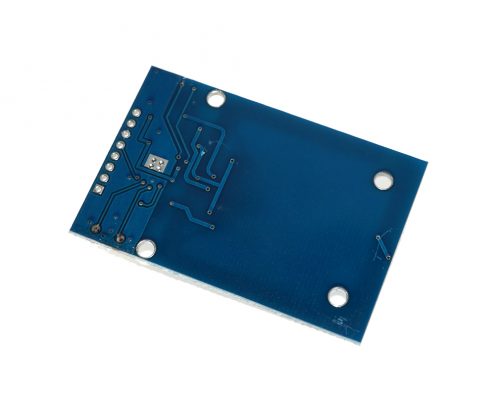

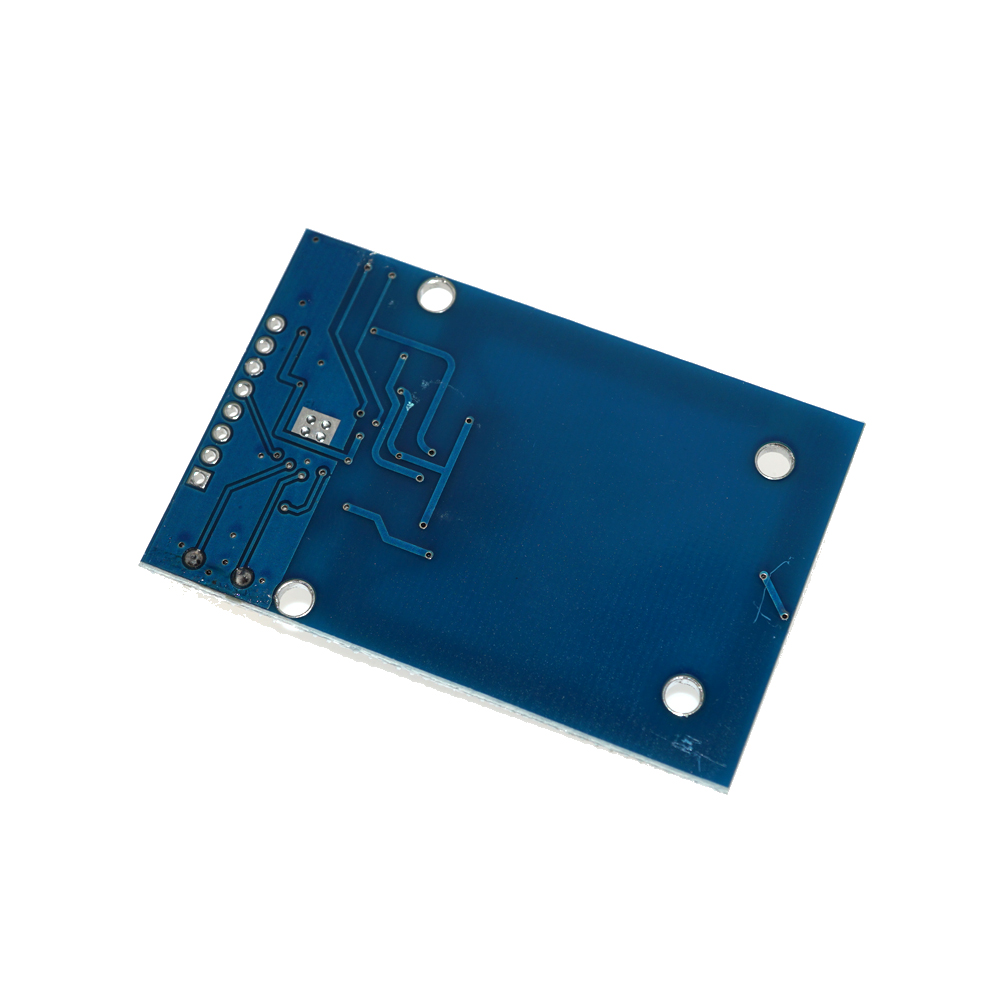

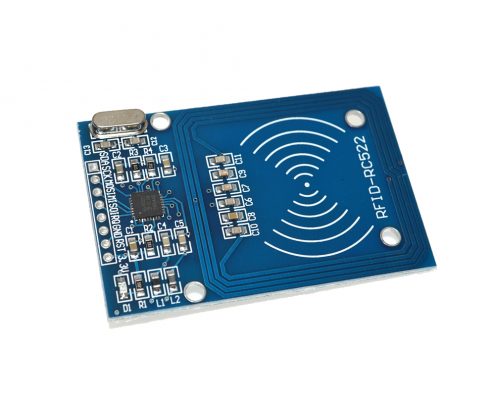

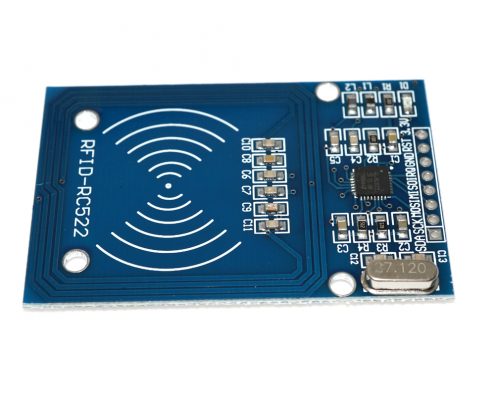

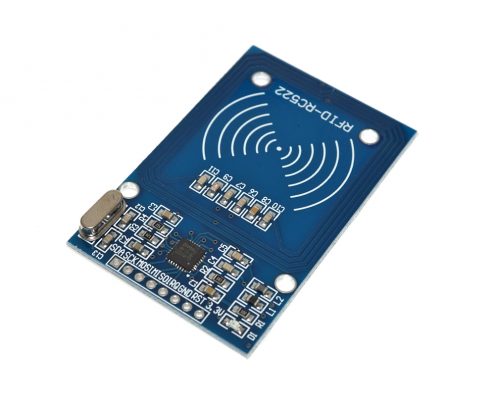

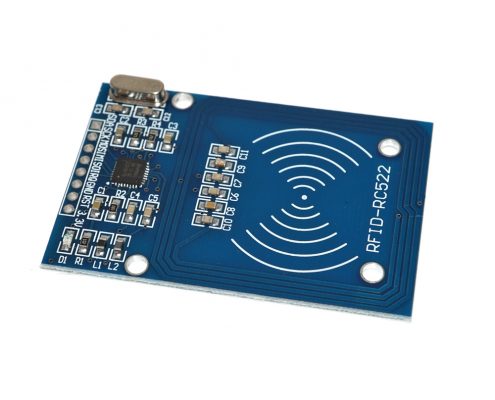

13.56MHz RC522 RFID Reader Module Antenna RF Module RFID Module
Product Description
- Operating current :13-26mA/DC 3.3V.
- Idle current :10-13mA/DC 3.3V.
- Sleep current: <80uA.
- Peak current: <30mA.
- Operating Frequency: 13.56MHz.
- Supported card types: 1 S50, mifare1 S70 Ultralight, mifare Pro, DESFire.
- Product physical characteristics: size: 40mm×60mm.
- Environmental Operating temperature: -20-80 degrees Celsius.
- Environmental Storage Temperature: -40-85 degrees Celsius.
10.Relative humidity: relative humidity 5% -95%.
11.Module interfaces SPI Parameter.
12.Data transfer rate: maximum 10Mbit/s.
