Product Model: OKY3227

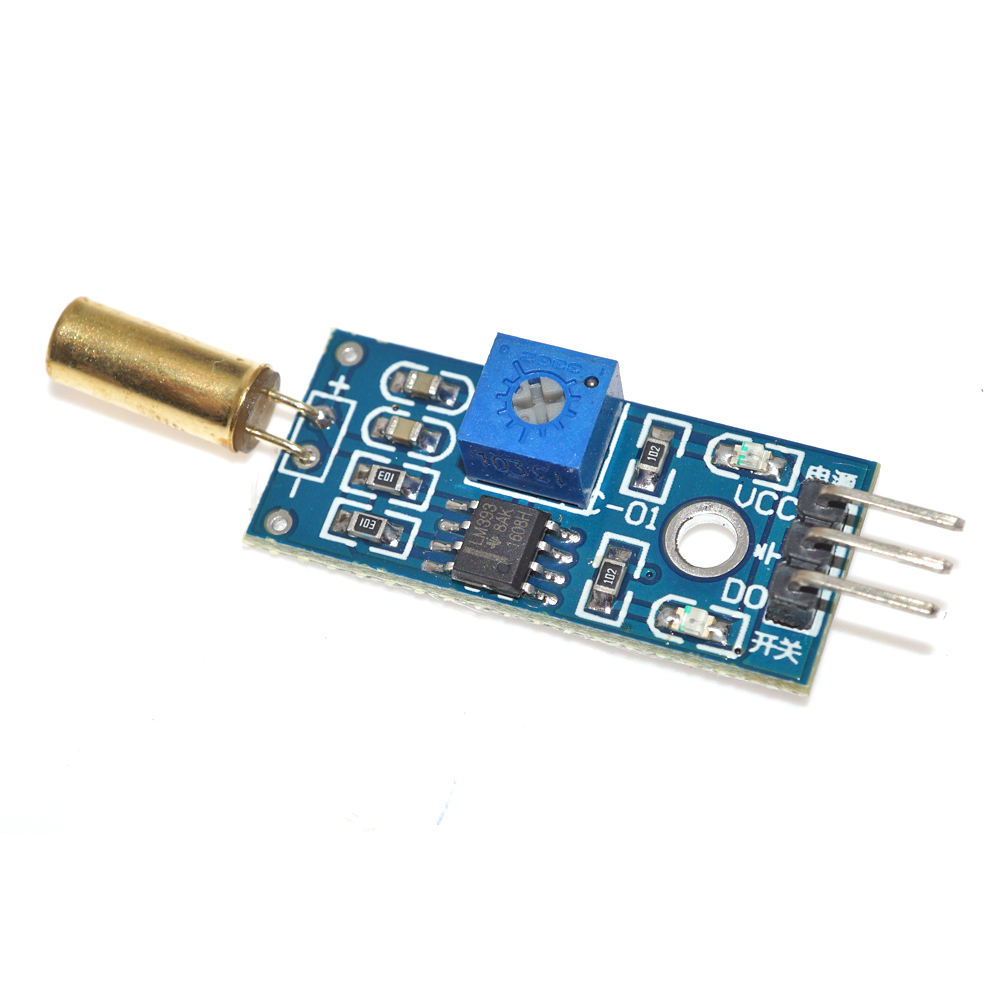

3.3V/5V SW-520D Tilt Switch Angle Sensor Module Ball Switch Tilt Sensor Module For Arduino
Product Description
1.Sensor can sense changes in body angle.
2.Adjustable sensitivity (shown in blue digital potentiometer adjustment).
4.Operating Voltage 3.3V-5V.
5.Output format: digital switching outputs (0 and 1).
6.With fixed bolt hole for easy installation.
7.Small PCB board size: 3.2cm * 1.4cm.
8 .Power indicator (red) and the digital switch output indicator (green).
9 .Using LM393 comparator chip, stable.
10.Life: at room temperature and normal life of up to 100,000 times switch (times / 1sec).
- GND GND External.
12.Tilt switch sensor using SW-520D, high sensitivity.
13.Small board digital output interface can be directly connected to the microcontroller IO port.
